The Anti-lock Braking System (ABS) is a safety technology designed to prevent the wheels of a vehicle from locking up during heavy braking situations. Its primary purpose is to maintain steering control and stability, allowing the driver to maneuver the vehicle safely and avoid potential collisions.
Throughout my career, I've identified several recurring problems that tend to plague ABS systems. Let's delve into the main offenders:
| Cause | Description |
|---|---|
| Faulty Wheel Speed Sensors | The ABS relies on wheel speed sensors to detect when a wheel is about to lock up during heavy braking. These sensors can become contaminated with debris, metal shavings, or sustain physical damage, causing them to send incorrect data to the ABS module. When this happens, the system can either malfunction or deactivate entirely, leaving you without the safety net of anti-lock brakes. |
| Low Brake Fluid Level | The ABS shares components with the regular hydraulic brake system. A low level of brake fluid can prevent the ABS from operating its valves and pumps correctly, triggering the dreaded warning light on your dashboard. Leaks or excessive fluid evaporation are common culprits here, so it's essential to keep an eye on that fluid level. |
| Worn Hydraulic Pump or Valve | At the heart of the ABS lies a hydraulic pump and a series of valves responsible for modulating brake pressure to each wheel. Over time, these components can wear out or become clogged, failing to regulate brake pressure properly. Contaminated brake fluid often accelerates this wear, so regular fluid flushes are crucial. |
| Malfunctioning ABS Module/Control Unit | Think of the ABS module or control unit as the brain of the system. It monitors wheel speeds and operates the pump and valves accordingly. Electrical issues, corrosion, or internal failures can cause this unit to malfunction, effectively disabling the entire ABS. When this happens, it's often time for a replacement. |
| Damaged Wiring or Electrical Issues | The ABS system relies on a network of wires and connectors to relay data and power between components. Damaged, corroded, or disconnected wiring can interrupt this communication, leading to error codes and warning lights. Electrical gremlins can be tricky to diagnose, but they're a common source of ABS headaches. |
When a customer rolls into the shop with an ABS issue, I follow a systematic approach to pinpoint the root cause. Here's a typical inspection and diagnosis process:

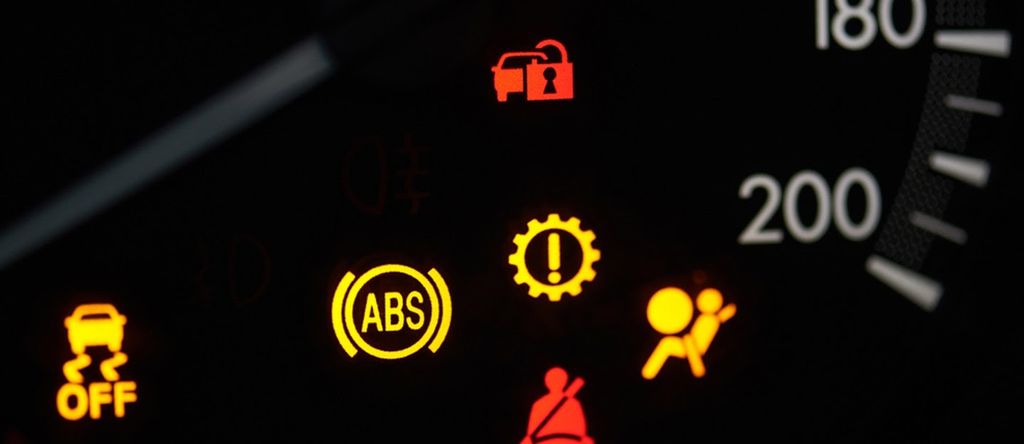

Check the ABS warning light and any stored trouble codes using an OBD-II scan tool. These codes can provide valuable clues about the nature of the problem.
Inspect the brake fluid level and condition. Low or contaminated fluid can wreak havoc on the ABS and should be addressed immediately.
Visually examine wiring and connectors for damage or corrosion. A keen eye can often spot obvious issues with the electrical system.
Check wheel speed sensors for debris, damage, or incorrect positioning. These sensors are prone to contamination and can be a frequent source of trouble.
Test the ABS pump operation and check for leaks. A faulty pump or leaking hydraulic lines can cause the system to malfunction.
Refer to the vehicle repair manual for specific diagnostic procedures. Each make and model may have unique tests or troubleshooting steps to follow.
Certain issues tend to exhibit specific symptoms, which can help narrow down the diagnosis:
| Issue | Symptoms |
|---|---|
| Faulty Wheel Speed Sensor | - Erratic brake behavior - Pulsations - Extended stopping distances - Traction control or stability control lights may also activate |
| Low Brake Fluid | - ABS light on - Spongy or less responsive brake pedal - Possible leak or fluid discoloration under the vehicle |
| Worn Hydraulic Pump/Valve | - ABS light illuminated - Brakes feel unresponsive or lack power - Clicking or whirring noises from ABS pump |
| Faulty ABS Module | - ABS light remains on after restarting vehicle - Loss of ABS functionality - Other dashboard lights may activate (traction control, check engine) |
| Wiring Issues | - Intermittent ABS light operation - Other electrical issues like gauge failures - Visual damage to wiring or connectors |
Once the root cause has been identified, it's time to roll up our sleeves and get to work. Here are some typical repair procedures for common ABS issues:
Safely raise the vehicle and remove the wheel.
Locate the ABS sensor, disconnect the wiring, and remove any debris around the sensor area.
Replace the sensor following the repair manual instructions, ensuring correct positioning and gap to the tone ring.
Locate the brake fluid reservoir and check the level.
Flush out the old fluid using a vacuum bleeder or manual pump.
Refill with new DOT 3 or 4 brake fluid to the maximum line.
Bleed the brakes if needed to remove any air pockets.
Refer to the vehicle-specific repair manual, as procedures can vary.
You may need to remove brake lines, calipers, or other components to access the pump or valves.
Replace any seals or gaskets when reinstalling the pump.
Bleed the brake system after reinstallation.
Locate and disconnect the ABS module.
Transfer any mounting brackets or hardware to the new module.
Install the new module and reconnect all wiring harnesses.
Some modules may need coding or calibration after installation.
Visually inspect the entire wiring harness for damage.
Use wiring diagrams to test for shorts or open circuits.
Replace any corroded connectors or damaged wiring segments.
Ensure all connections are tight and corrosion-free.
Throughout these repairs, it's crucial to consult the repair manual for torque specifications and procedures. Using brake parts cleaner to remove contamination and replacing any worn gaskets, seals, or brake components is also recommended.
While ABS issues are sometimes unavoidable, there are steps you can take to minimize the risk of future problems:
Follow the manufacturer's recommended schedule for brake fluid flushes.
Inspect brakes, sensors, and wiring during routine services.
Use the correct brake fluid type and replace it if contaminated.
Check for leaks, damage, or wear periodically.
Avoid driving through deep water or mud that could contaminate the sensors.
Don't continue driving if the ABS light remains illuminated.
Have any issues diagnosed promptly by a qualified technician.
The cost of repairing an ABS system can vary significantly depending on the issue and the vehicle. Here are some average estimates:
| Repair | Cost Range |
|---|---|
| Wheel Speed Sensor Replacement | $100 - $300 per sensor |
| Brake Fluid Flush | $80 - $150 |
| ABS Pump or Valve Replacement | $500 - $1,500 including labor |
| ABS Control Module Replacement | $600 - $1,200 |
| Wiring Repair | $100 - $500 depending on the extent of the damage |
Note that these are rough estimates, and costs can be higher for luxury or performance vehicles. Diagnosing issues may also incur additional labor fees from a repair shop. Addressing ABS problems promptly is recommended to prevent further damage and maintain safety.
ABS systems are complex and vital components of modern vehicles, but they're not immune to issues. By understanding the common causes of ABS problems, following proper diagnostic procedures, and addressing issues promptly, you can keep your anti-lock brakes in top shape and ensure a safer driving experience.
As a mechanic, I've seen my fair share of ABS headaches, but with the right knowledge and approach, these systems can be tamed. Regular maintenance, proper usage, and prompt attention to warning signs can go a long way in preventing costly repairs and ensuring your safety on the road.
The most common symptoms include erratic brake behavior, pulsations during braking, extended stopping distances, and the activation of traction control or stability control lights.
Follow the manufacturer's recommended schedule for brake fluid flushes, typically every 2-3 years or 30,000-50,000 miles.
Yes, a weak or failing battery can cause electrical issues that may affect the ABS system's operation and trigger warning lights.
The ABS control module acts as the brain of the system, monitoring wheel speeds and operating the hydraulic pump and valves to prevent wheel lockup during braking.
Yes, driving through deep water or mud can contaminate the wheel speed sensors and potentially cause damage to the ABS components.
If the ABS control module or multiple components like the pump, valves, and sensors are faulty, a complete system replacement may be necessary.
Yes, ABS issues can sometimes cause other warning lights to illuminate, such as the traction control, stability control, or check engine lights.
Driving with a faulty ABS system increases the risk of wheel lockup during hard braking, which can lead to loss of control and potentially dangerous situations.
Yes, using incompatible or low-quality aftermarket brake components can sometimes interfere with the ABS system's operation and cause issues.
Regularly inspect the wiring harness for damage, keep connectors clean and corrosion-free, and consider using dielectric grease on electrical connections.
