In today's automotive landscape, backup cameras have become an indispensable safety feature, providing drivers with an additional perspective of the area behind their vehicle during reversing maneuvers. However, one crucial component of these systems, the grid lines or guide lines that appear on the display, can sometimes disappear, rendering the backup camera less effective. This comprehensive guide delves into the common causes of this issue, offers troubleshooting steps, and provides insights into when professional assistance may be necessary, as well as preventive maintenance practices to minimize the occurrence of such problems.

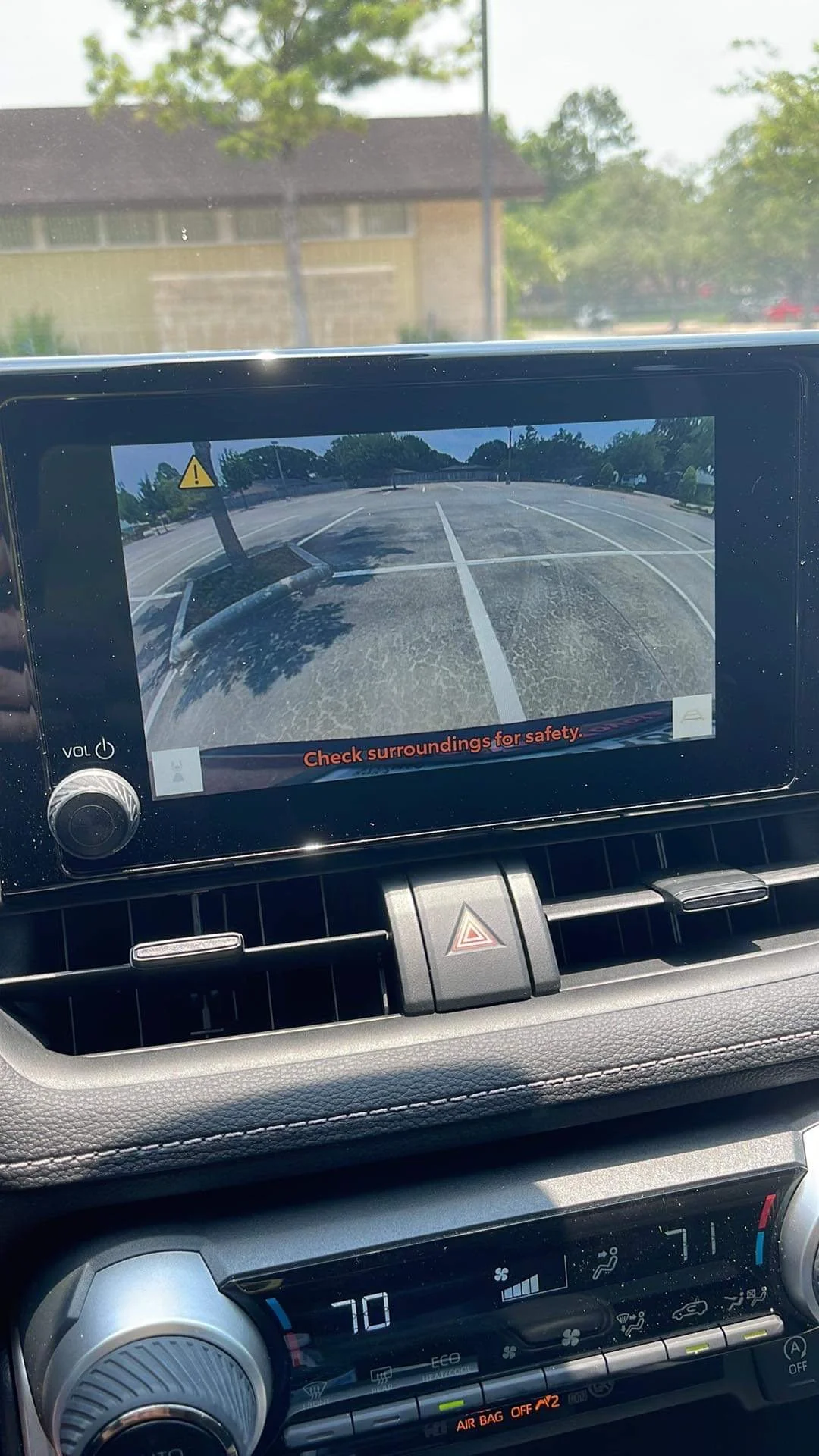

Backup cameras have revolutionized the way drivers navigate tight spaces and reverse their vehicles. The grid lines or guide lines overlaid on the camera feed serve as visual aids, helping drivers gauge distances and maintain spatial awareness, ultimately enhancing safety and convenience. However, many drivers have encountered the frustrating issue of these grid lines suddenly disappearing, leaving them without this crucial guidance.
This article aims to provide a comprehensive understanding of the various factors that can contribute to the disappearance of backup camera grid lines, as well as effective troubleshooting steps and preventive measures to address and minimize the issue.
| Common Causes of Disappearing Grid Lines |
|---|
| Software Glitches or Bugs |
| Wiring Issues or Loose Connections |
| Damaged or Malfunctioning Camera Module |
| Interference from Moisture or Water |
| Calibration Issues |
The disappearance of backup camera grid lines can be attributed to several common causes, each with its own unique characteristics and potential solutions.
The backup camera system relies on software to function correctly, and like any software, it can be susceptible to glitches or bugs. These software issues can manifest in various ways, including the sudden disappearance or erratic behavior of the grid lines on the display. Software glitches may arise due to coding errors, compatibility issues, or conflicts with other systems within the vehicle.
The backup camera module is connected to the vehicle's electrical system through a series of wires and connectors. Over time, these connections can become loose or damaged, leading to disruptions in the camera's operation, including the disappearance of grid lines. Wiring issues can also be caused by physical impacts, exposure to moisture, or general wear and tear.
The backup camera module itself is a hardware component that can be subject to various forms of damage or malfunction. Physical impacts, moisture ingress, or general wear and tear can all contribute to the degradation of the camera module, resulting in issues such as the disappearance of grid lines or complete failure of the system.
Backup cameras are exposed to the elements, and moisture or water can sometimes interfere with their operation. This interference can cause intermittent issues, including the temporary disappearance of grid lines. Water ingress can also lead to more severe problems, such as corrosion or short-circuiting of the camera module or its associated wiring.
Many vehicles require periodic calibration of the backup camera system to ensure accurate positioning of the grid lines. If the calibration is off, the grid lines may not display correctly or may disappear altogether. Calibration issues can arise due to various factors, such as changes in vehicle suspension, tire replacements, or even minor impacts that can affect the camera's alignment.
When faced with the issue of disappearing backup camera grid lines, there are several troubleshooting steps that can be taken to potentially resolve the problem.
| Troubleshooting Steps |
|---|
| Restart the Vehicle or Infotainment System |
| Check for Software Updates |
| Recalibrate the Camera |
| Inspect Wiring and Connections |
| Clean the Camera Lens |
In some cases, a simple restart of the vehicle or the infotainment system can resolve software-related glitches and restore the grid lines on the backup camera display. This step can help clear any temporary software issues or reset the system to its default state, potentially resolving the problem.
Manufacturers regularly release software updates to address known issues and improve the functionality of various vehicle systems, including the backup camera. Checking for and installing the latest software updates can often resolve glitches or bugs that may be causing the grid lines to disappear.
Addressing Known Glitches: Software updates are designed to address known glitches or bugs that have been identified and reported by users or discovered during internal testing. By installing these updates, you can benefit from the manufacturer's efforts to resolve specific issues, including those related to the backup camera grid lines.
Improving Functionality: In addition to addressing glitches, software updates can also introduce new features or enhancements to the backup camera system, improving its overall functionality. These improvements may include better grid line visibility, dynamic adjustments based on vehicle speed or angle, or integration with other driver assistance systems.
If the grid lines on your backup camera display appear misaligned or distorted, recalibrating the system may be necessary. Many vehicles have a dedicated menu option or a specific button sequence that allows you to initiate the recalibration process.
Importance of Proper Calibration: Proper calibration is crucial for ensuring that the grid lines accurately represent the vehicle's dimensions and the camera's field of view. Incorrect calibration can lead to inaccurate distance estimations and spatial awareness, potentially compromising the safety and effectiveness of the backup camera system.
Recalibration Process: The recalibration process typically involves following a series of on-screen prompts or instructions provided by the manufacturer. This may include adjusting the camera's position, driving the vehicle in a specific pattern, or entering vehicle-specific information. It is essential to follow the recalibration procedure carefully to ensure accurate results.
If you suspect a wiring issue or loose connection, it is important to inspect the backup camera's wiring harness and connections for any signs of damage or looseness. However, it is generally recommended to have a professional handle any electrical repairs or modifications to avoid potential safety risks or further damage.
Identifying Loose or Damaged Wiring: Visually inspect the wiring harness and connections for any signs of wear, fraying, or damage. Look for loose or disconnected connectors, as well as any exposed or damaged wires. It is also advisable to check for any signs of moisture or corrosion, which can contribute to wiring issues.
Precautions for Electrical Repairs: While it may be tempting to attempt electrical repairs yourself, it is crucial to exercise caution and seek professional assistance if you are not experienced in automotive electrical systems. Improper handling or repairs can lead to further damage, safety hazards, or even potential vehicle malfunctions.
Over time, the backup camera lens can accumulate dirt, debris, or moisture buildup, which can interfere with its operation and potentially cause issues such as the disappearance of grid lines or a distorted image.
Removing Dirt, Debris, or Moisture Buildup: Gently clean the camera lens using a soft, lint-free cloth and a mild cleaning solution specifically designed for automotive use. Avoid using abrasive materials or harsh chemicals, as they can scratch or damage the lens. It is also important to ensure that the lens is completely dry before operating the backup camera.
Recommended Cleaning Methods: Consult your vehicle's owner's manual or seek guidance from a professional for the recommended cleaning methods and products specific to your backup camera system. Some manufacturers may have specific instructions or approved cleaning solutions to ensure the safe and effective cleaning of the camera lens.
While the troubleshooting steps outlined above can often resolve the issue of disappearing backup camera grid lines, there are certain situations where seeking professional assistance may be necessary.
| When to Seek Professional Assistance |
|---|
| Persistent or Complex Issues |
| Suspected Hardware Failures |
| Benefits of Seeking Expert Help |
If the troubleshooting steps fail to resolve the issue of disappearing backup camera grid lines, or if the problem persists despite your efforts, it may be necessary to seek professional assistance. Complex issues or those involving hardware failures may require the expertise of a qualified mechanic or dealership technician.
In some cases, the disappearance of grid lines may be a symptom of a more serious hardware issue, such as a malfunctioning camera module or a deeper wiring problem. If you suspect a hardware failure, it is advisable to have a professional diagnose and repair the underlying issue to ensure the proper functioning of the backup camera system.
While DIY troubleshooting can be effective in many cases, seeking professional assistance from experienced technicians can provide several benefits:
Access to specialized diagnostic tools and equipment
In-depth knowledge of vehicle systems and repair procedures
Ensuring repairs or replacements are performed correctly and in accordance with manufacturer specifications
Minimizing the risk of further issues or potential safety concerns
To minimize the risk of backup camera issues, including the disappearance of grid lines, it is essential to incorporate preventive maintenance practices into your vehicle maintenance routine.
| Preventive Maintenance Practices |
|---|
| Regular Inspections and Cleaning |
| Careful Usage and Handling |
| Following Manufacturer Guidelines |
| Importance of Preventive Measures |
Regularly inspect the backup camera and its surroundings for any signs of damage, obstruction, or debris buildup, and clean the camera lens as needed. This proactive approach can help identify potential issues before they escalate and ensure optimal performance of the backup camera system.
Exercising caution when reversing or maneuvering in tight spaces can help prevent accidental impacts or damage to the backup camera system. Be mindful of potential obstacles or hazards that could strike the camera module, and avoid excessive force or pressure on the camera or its components.
Consult your vehicle's owner's manual and follow the manufacturer's recommended maintenance schedule for the backup camera system. This may include periodic inspections, calibration checks, or specific maintenance procedures to ensure the system's optimal performance and longevity.
Preventive maintenance practices not only help minimize the occurrence of backup camera issues but also contribute to the overall safety and reliability of your vehicle. By taking proactive steps to care for and maintain the backup camera system, you can enjoy the added peace of mind and convenience this technology provides while reducing the risk of costly repairs or potential safety hazards.
Backup cameras have become an invaluable safety feature in modern vehicles, providing drivers with an additional perspective and visual guidance during reversing maneuvers. However, the disappearance of grid lines can compromise the effectiveness of this system, leading to frustration and potential safety concerns. By understanding the common causes, following the troubleshooting steps outlined in this guide, and implementing preventive maintenance practices, drivers can often resolve grid line issues and restore the backup camera's full functionality. When persistent or complex problems arise, seeking professional assistance from qualified technicians ensures that the system operates correctly and safely, allowing drivers to enjoy the added peace of mind and convenience this technology provides.
Common causes include software glitches, wiring issues, damaged camera modules, moisture interference, and calibration problems. Troubleshooting steps like restarting the system, checking for updates, recalibrating, and inspecting wiring can often resolve the issue.
Regular inspections, careful usage, following manufacturer guidelines, and cleaning the camera lens can help minimize backup camera problems. Addressing issues promptly is also recommended to prevent further damage or safety concerns.
In most cases, a damaged backup camera module will need to be replaced by a professional. However, minor issues like loose connections or wiring problems may be repairable.
No, not all vehicles come equipped with backup camera grid lines or guide lines. Some base models or older vehicles may only have a basic backup camera without overlay lines.
Yes, most vehicles allow you to reset backup camera settings, including grid line options, to their default configurations through the infotainment system or vehicle settings menu.
Backup camera issues may be covered under the vehicle's warranty, depending on the cause and the warranty terms. It's best to consult with the manufacturer or dealership for specific coverage details.
Many aftermarket backup camera systems offer the option to display grid lines or guide lines on the camera feed, either through software settings or physical overlay options.
In some vehicles, the backup camera grid lines are designed to move dynamically based on the steering wheel position, providing a more accurate representation of the vehicle's path.
Yes, a malfunctioning backup camera or the absence of grid lines can potentially lead to safety concerns, as it may impair the driver's ability to accurately gauge distances and obstacles while reversing.
If troubleshooting steps fail to resolve persistent or complex backup camera issues, seeking professional assistance from a qualified mechanic or dealership technician is recommended to ensure proper diagnosis and repair.
