The torque converter and transmission are two critical components that work in tandem to ensure smooth and efficient power delivery in an automatic transmission vehicle. Understanding their roles and importance is crucial for proper vehicle maintenance and diagnosis.
The torque converter is a crucial component of an automatic transmission system. It acts as a fluid coupling, transferring power from the engine to the transmission. Unlike a traditional clutch in a manual transmission, the torque converter allows for smooth and seamless power delivery without the need for manual gear shifting.
Here's a table summarizing the key functions of a torque converter:
| Function | Description |
|---|---|
| Power Transfer | Transfers rotational force from the engine to the transmission |
| Torque Multiplication | Provides a torque multiplication effect, especially at low speeds |
| Smooth Operation | Allows for seamless power delivery without manual gear shifting |
| Fluid Coupling | Uses hydraulic fluid to transmit power, reducing shock and vibration |
The torque converter relies on bearings to reduce friction and ensure smooth operation. Over time, these bearings can wear out, causing various issues:
Grinding noises
Increased friction
Eventual failure of the torque converter
Additionally, damaged seals can lead to fluid leaks and contamination, further exacerbating the problem.
Inside the torque converter, there are clutch plates that engage and disengage to transfer power. If these plates wear out or become damaged, it can cause:
Slippage
Shuddering
Rough acceleration
Similarly, a malfunctioning solenoid, which regulates the fluid pressure in the torque converter, can lead to:
Erratic shifting
Slippage
Stalling
Insufficient or contaminated transmission fluid can have a detrimental effect on the torque converter's operation. The table below outlines the potential consequences:
| Fluid Issue | Consequence |
|---|---|
| Insufficient Fluid | Overheating, increased wear, eventual failure |
| Contaminated Fluid | Damage to internal components, accelerated wear |
To diagnose a faulty torque converter, I follow a systematic approach:
Check transmission fluid level and condition
Inspecting the fluid level and checking for discoloration, debris, or a burnt smell can provide valuable clues about the health of the torque converter and transmission.
Perform a stall speed test
This test evaluates the torque converter's performance by measuring the engine RPM while the transmission is in gear and the brakes are applied.
Abnormal stall speed readings can indicate torque converter issues.
Listen for unusual noises
Whining, grinding, or humming noises during operation can indicate bearing failure or other internal issues.
Observe for signs of slippage, shuddering, or rough shifting
These symptoms can point to clutch plate or solenoid problems within the torque converter.
Check for fluid leaks
Leaks around the torque converter or transmission area can signify seal damage or other issues.
Inspect for external damage
Look for signs of impact or external damage that could have affected the torque converter or transmission.
Perform diagnostic scans
Use specialized diagnostic tools to scan for error codes related to the torque converter or transmission.
Here's a table summarizing the common symptoms of a faulty torque converter:
| Symptom | Potential Cause |
|---|---|
| Slippage or shuddering during acceleration | Clutch plate or solenoid problems |
| Whining or grinding noises | Bearing failure |
| Fluid leaks or contamination | Seal damage or lack of maintenance |
| Delayed or erratic shifting | Solenoid or fluid issues |
| Stalling or difficulty engaging gears | Internal torque converter damage |
If the diagnosis points to a faulty torque converter, the repair process typically involves the following steps:

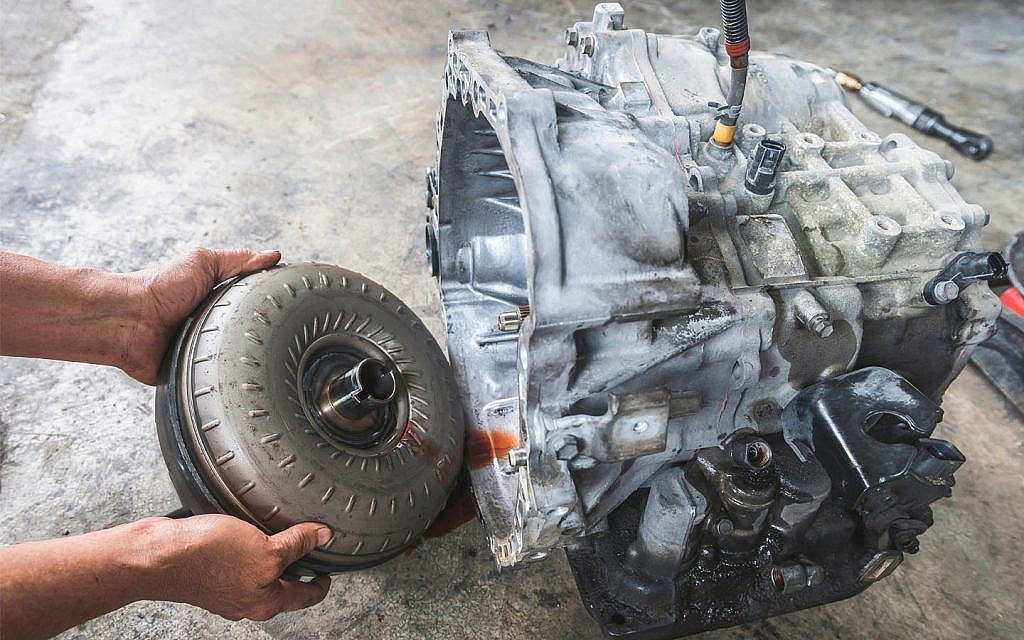

Remove the torque converter from the transmission
This requires partially disassembling the transmission to access the torque converter.
Disassemble and inspect internal components
The torque converter is carefully disassembled, and components like bearings, seals, and clutch plates are inspected for wear or damage.
Replace worn or damaged parts
Any components that are beyond their serviceable life are replaced with new ones.
Clean and reassemble the torque converter
After replacing the necessary parts, the torque converter is meticulously cleaned and reassembled.
Reinstall the torque converter and refill with fresh transmission fluid
The repaired torque converter is reinstalled, and the transmission is refilled with fresh, high-quality fluid.
Perform post-repair testing
After the repair, the vehicle is tested to ensure proper operation and address any remaining issues.
In some cases, the transmission itself may be damaged, requiring a more extensive repair or replacement. If the transmission has sustained significant internal damage, a rebuild or replacement may be necessary. This process is more complex and costly than a torque converter repair, as it involves:
Disassembling the entire transmission
Inspecting and replacing worn components
Reassembling the transmission according to the manufacturer's specifications
The decision to rebuild or replace the transmission depends on factors such as the extent of the damage, the vehicle's age, and the cost-effectiveness of the repair.
Proper maintenance is key to extending the lifespan of your vehicle's torque converter and transmission. Follow these maintenance practices:
Adhere to the recommended service intervals for transmission fluid changes and inspections.
Regularly check fluid levels and top up as needed.
Address any leaks or issues promptly to prevent further damage.
Use only the recommended transmission fluid type and grade specified by the manufacturer.
Avoid subjecting your vehicle to excessive loads or towing beyond its rated capacity. Follow these usage guidelines:
Allow the transmission to warm up before subjecting it to heavy loads.
Avoid aggressive driving or excessive slippage that can strain the torque converter.
Avoid sudden acceleration or deceleration, which can put unnecessary stress on the transmission components.
Follow the manufacturer's recommendations for towing capacities and weight limits.
The cost of repairing or replacing a torque converter can vary depending on several factors, such as the vehicle make and model, labor rates in your area, and the extent of the damage. Generally, you can expect the following cost ranges:
| Repair Type | Cost Range (including labor) |
|---|---|
| Torque Converter Replacement | $300 - $1,000 |
| Torque Converter Rebuild | $200 - $800 |
| Transmission Rebuild | $1,500 - $4,000 |
| Transmission Replacement | $2,000 - $6,000 (or more for high-end vehicles) |
It's important to note that addressing torque converter issues promptly can prevent further damage and more expensive repairs to the transmission itself. Regular maintenance and proper usage can also help extend the lifespan of your vehicle's torque converter and transmission, potentially saving you significant costs in the long run.
Differentiating between a bad torque converter and a bad transmission can be challenging, but with the right knowledge and diagnostic approach, it becomes more manageable. As a mechanic, I've seen firsthand the importance of proper maintenance, timely repairs, and responsible driving habits in prolonging the life of these critical components. By understanding the signs, causes, and repair procedures, you can make informed decisions and keep your vehicle running smoothly for years to come.
Transmission problems can be caused by low or contaminated transmission fluid, worn-out clutch plates, faulty solenoids, or internal component damage due to lack of maintenance.
The transmission fluid should be changed according to the manufacturer's recommended intervals, typically every 30,000 to 100,000 miles, depending on the vehicle and driving conditions.
Yes, transmission problems can be prevented by following the recommended maintenance schedule, regularly checking fluid levels, and addressing any leaks or unusual noises promptly.
A transmission fluid change involves draining and refilling the transmission fluid, while a flush involves a more thorough cleaning of the entire transmission system, including the cooler lines and torque converter.
Yes, transmission problems can lead to safety issues if not addressed promptly. A faulty transmission can cause the vehicle to unexpectedly shift gears, lose acceleration, or become unresponsive, increasing the risk of accidents.
If the transmission is making loud grinding noises, slipping gears frequently, or leaking fluid excessively, it may need to be rebuilt or replaced, depending on the extent of the damage and the cost-effectiveness of the repair.
Signs of a failing torque converter include shuddering or vibrations during acceleration, slipping or delayed gear shifts, and unusual whining or rattling noises from the transmission area.
Yes, transmission problems can negatively impact fuel efficiency. A slipping transmission or faulty torque converter can cause the engine to work harder, resulting in increased fuel consumption.
It is generally not recommended to drive with a known transmission problem, as it can lead to further damage and potential safety hazards. It is best to have the issue diagnosed and repaired by a professional as soon as possible.
Yes, transmission problems can sometimes be misdiagnosed as engine issues, especially if the symptoms are related to acceleration, power delivery, or unusual noises. Proper diagnosis by a qualified technician is crucial.
