Bad Transmission Ground Symptoms !?

Miguel Rodriguez
Miguel Rodriguez
6 min read

Review by: Miguel Rodriguez
Maintenance Electrical

A vehicle's transmission system heavily relies on a stable electrical supply and accurate signals to function correctly. However, when the ground connection responsible for providing a return path for these electrical currents becomes compromised, it can lead to various transmission-related problems. This article explores the symptoms, causes, effects, diagnostic procedures, repair methods, and professional service recommendations for poor transmission grounding.

Understanding Transmission Grounding

The transmission ground connection plays a crucial role in ensuring the proper operation of the transmission system. It provides a low-resistance path for electrical currents to flow back to the vehicle's chassis, completing the circuit and allowing the transmission control module, sensors, and solenoids to function correctly.

Importance of Proper Grounding
Ensures accurate signal transmission
Dissipates excess electrical charges
Prevents electromagnetic interference

Proper grounding is essential for several reasons, as shown in the table above. It ensures accurate signal transmission, dissipates excess electrical charges or voltage spikes, and prevents the buildup of electromagnetic interference (EMI) that can disrupt electronic systems.

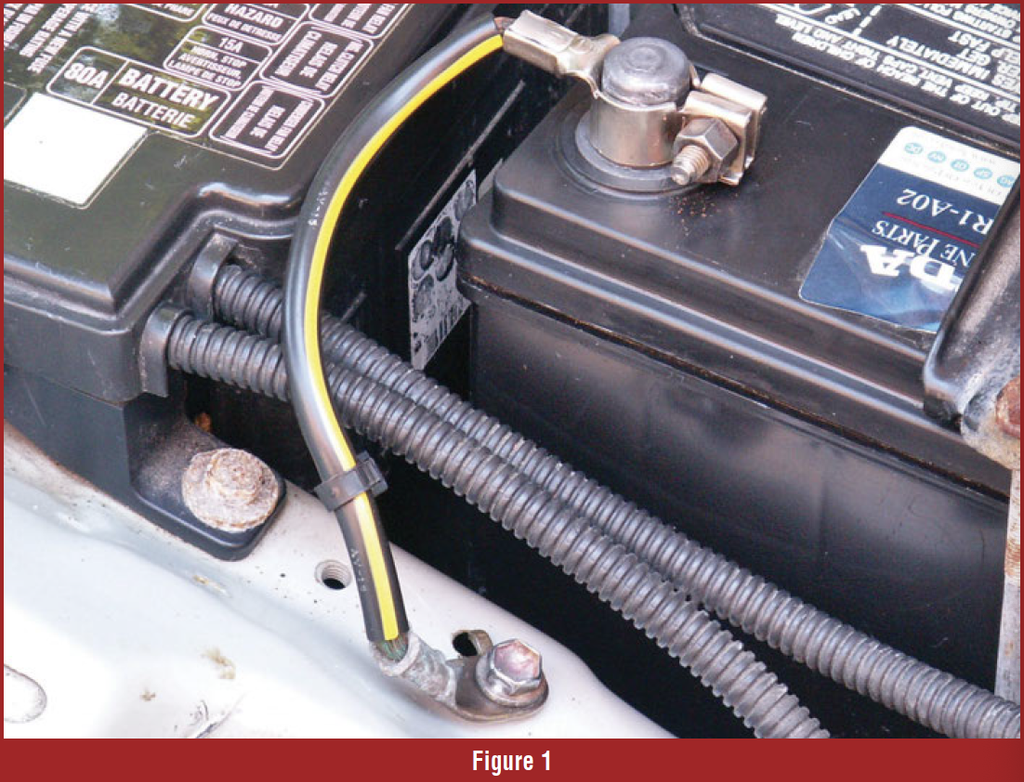

The ground connection typically consists of a ground wire or strap that connects the transmission case to the vehicle's chassis or body. Over time, these ground connections can become loose or corroded, leading to increased resistance and potential grounding issues.

Additionally, the transmission control module (TCM) has separate ground circuits to ensure a stable and consistent ground reference, which is essential for its proper operation.

Symptoms of Poor Transmission Grounds

When the ground connection becomes compromised, it can manifest in various ways, ranging from minor annoyances to severe drivability issues. Common symptoms include:

  • Erratic or harsh shifting behavior

  • Illuminated transmission warning lights

  • Slipping gears or failure to engage smoothly

  • Unusual whining or grinding noises

  • Overheating transmission issues

Causes of Grounding Problems

Several potential causes can contribute to transmission grounding issues:

CauseDescription
Loose ground wire connectionsGround wire or strap connecting the transmission case to the chassis becomes loose due to vibration, corrosion, or improper installation.
Corroded or damaged ground strapsGround strap or wire corrodes over time due to exposure to moisture, road salt, or other environmental factors.
High resistance in ground circuitsPoor connections, damaged wiring, or issues with the vehicle's chassis ground itself can increase resistance in the ground circuits.
Faulty transmission control module groundsSeparate ground circuits for the TCM become compromised due to corrosion, loose connections, or other issues.

Effects on Electrical Systems

A poor transmission ground can have far-reaching effects on the vehicle's electrical systems, potentially causing issues beyond just transmission-related problems.

  • Electromagnetic interference (EMI) can disrupt electronic systems by introducing electrical noise or interfering with signal transmission.

  • Sensor signals can be disrupted, leading to inaccurate or inconsistent data being sent to the transmission control module.

  • An unstable power supply for the TCM and other electronic components can cause intermittent operation or component failures.

  • Excessive current flow can cause overheating, premature component failure, or even electrical arcing or fires in extreme cases.

  • Voltage spikes and drops can damage sensitive electronic components, such as the TCM, sensors, and solenoids.

Transmission Control Module Issues

The transmission control module (TCM) is the brain of the transmission system, responsible for managing the shifting process, interpreting sensor data, and controlling the solenoids. A poor ground connection can significantly impact the TCM's operation, leading to:

  • Erratic operation and malfunctions

  • Sensor reading errors

  • Inappropriate gear shifting

  • Stored diagnostic trouble codes (DTCs)

Sensor Signal Disruptions

Sensors provide critical data to the TCM, but a poor ground connection can disrupt their signals, leading to:

  • Incorrect data from speed sensors

  • Faulty input from position sensors

  • Improper solenoid activation

Diagnostic Procedures

Diagnosing a transmission grounding issue requires a systematic approach and proper diagnostic tools and procedures, including:

  • Visual inspection of ground connections

  • Electrical system testing (e.g., measuring resistance, checking for voltage drops)

  • Scanning for trouble codes related to the transmission or electrical system

  • Following manufacturer-recommended diagnostic procedures and specifications

Repair and Prevention

Once the cause of the grounding issue has been identified, appropriate repair and preventative measures can be taken, such as:

  • Tightening loose connections

  • Replacing corroded ground straps

  • Cleaning grounding points

  • Wiring harness repairs

  • Regular preventative maintenance

Professional Service Recommendations

While some repairs can be done by DIY enthusiasts, seeking professional assistance from experienced automotive technicians is often recommended, especially for complex issues. Professional repair facilities have access to specialized tools and equipment, experienced technicians, and can provide comprehensive grounding checks and transmission rebuild services if necessary.

Conclusion

A poor transmission ground connection can lead to various drivability issues, from erratic shifting and warning lights to unusual noises and overheating. By understanding the causes, symptoms, and effects of transmission grounding problems, vehicle owners can take proactive steps to address these issues and prevent potential transmission damage. Regular maintenance, professional inspections, and timely repairs are essential to ensure the longevity and reliable operation of your vehicle's transmission system.

FAQs

What are the potential causes of transmission grounding issues?

Potential causes include loose ground wire connections, corroded or damaged ground straps, high resistance in ground circuits, and faulty transmission control module grounds.

What are the effects of a poor transmission ground on electrical systems?

A poor transmission ground can cause electromagnetic interference, disrupt sensor signals, provide an unstable power supply, lead to overheating or component failures, and introduce voltage spikes that damage electronic components.

How can a poor ground connection affect the transmission control module (TCM)?

A poor ground connection can cause erratic TCM operation, sensor reading errors, inappropriate gear shifting, and stored diagnostic trouble codes.

What diagnostic procedures are used to identify transmission grounding issues?

Diagnostic procedures include visual inspection of ground connections, electrical system testing, scanning for trouble codes, and following manufacturer-recommended diagnostic procedures.

What are some repair and preventative measures for transmission grounding problems?

Repairs may involve tightening loose connections, replacing corroded ground straps, cleaning grounding points, and wiring harness repairs. Preventative maintenance is also crucial.

Professional repair facilities have specialized tools, experienced technicians, and can provide comprehensive grounding checks and transmission rebuild services if necessary.

How does a poor transmission ground affect sensor signals?

A poor ground can disrupt signals from speed sensors, position sensors, and lead to improper solenoid activation, providing incorrect data to the TCM.

What role does the transmission ground play in the overall electrical system?

The transmission ground provides a low-resistance path for electrical currents to flow back to the chassis, ensuring accurate signal transmission, dissipating excess charges, and preventing electromagnetic interference.

What are some common symptoms of transmission grounding issues?

Common symptoms include erratic or harsh shifting, illuminated warning lights, slipping gears, unusual noises, and overheating transmission issues.

Why is proper grounding important for the transmission system?

Proper grounding ensures accurate signal transmission, dissipates excess electrical charges, and prevents electromagnetic interference, which is crucial for the proper operation of the transmission system.

Miguel Rodriguez
Miguel Rodriguez

Miguel started tinkering with car radios as a teenager, fascinated by the intricate dance of wires and circuits. This passion led him to pursue a career as an automotive electrician. For the past 10 years, Miguel has tackled everything from flickering headlights to mysterious electrical gremlins. He thrives on troubleshooting electrical problems and enjoys sharing his knowledge to empower car owners to understand their vehicles better.
