Introduction

Brake calipers are a crucial component of a vehicle's braking system, responsible for applying friction to the brake rotors and slowing down or stopping the wheels. The caliper is designed to slide along guide pins, allowing it to move inward and outward to clamp the brake pads against the rotor during braking. However, these caliper pins can sometimes become stuck or seized, leading to various issues and potential safety hazards.

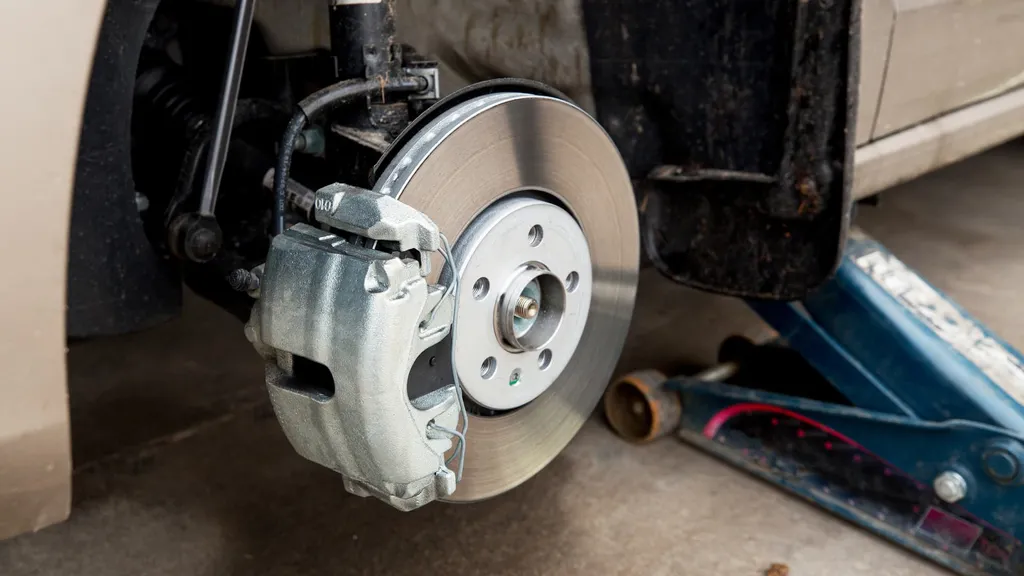

Understanding the Brake Caliper

Before diving into the specifics of a stuck caliper pin, let's briefly review the function of the brake caliper itself. The caliper is a critical component of the disc brake system, responsible for applying clamping force to the brake pads, which in turn create friction against the rotor to slow down or stop the vehicle.

The caliper pins, also known as caliper slide pins or guide pins, play a crucial role in allowing the caliper to move smoothly and evenly over the rotor. These pins are designed to slide within guide bushings or brackets, enabling the caliper to retract when the brakes are released and apply pressure when the brakes are engaged.

Causes of a Stuck Brake Caliper Pin

There are several common causes that can lead to a caliper pin becoming stuck or seized:

  • Lack of Lubrication

    • Over time, the lubricant on the caliper pins and guide bushings can dry out or become contaminated with dirt and debris.

    • This increased friction can eventually cause the pins to seize, preventing them from sliding smoothly.

  • Corrosion

    • Exposure to moisture, road salt, and other environmental factors can lead to corrosion buildup on the caliper pins and their guide bushings.

    • This corrosion acts as a barrier, hindering the free movement of the pins.

  • Damaged or Worn Rubber Boots

    • The rubber boots or seals that cover the caliper pins are designed to protect them from contaminants.

    • If these boots become cracked, torn, or worn out, they can allow dirt, moisture, and other debris to enter, leading to pin seizure.

  • Improper Installation or Maintenance

    • If the caliper pins are not properly lubricated or installed during brake pad replacement or caliper maintenance, they can become misaligned or stuck in their guide bushings.

Symptoms of a Stuck Brake Caliper Pin

As a mechanic, I've learned to recognize the telltale signs of a stuck caliper pin. Here are some common symptoms to watch out for:

SymptomDescription
Uneven Brake Pad WearIf one caliper pin is stuck, the brake pad on that side will not disengage properly, leading to faster wear on the inner pad compared to the outer pad. This uneven wear pattern is a clear indicator of a stuck pin.
Brake Drag or BindingWhen a caliper pin is seized, the brake pads may remain partially engaged, causing a dragging sensation or resistance when driving. This can be felt through the brake pedal or as a slight pulling sensation while the vehicle is in motion.
Pulling to One Side During BrakingIf the caliper pin is stuck on one side, the vehicle may pull or veer to that side when braking due to uneven brake application. This can be a safety concern, especially at higher speeds or during emergency braking situations.
Abnormal NoisesGrinding, squeaking, or scraping noises from the affected wheel can occur due to the constant contact between the brake pad and rotor. These noises are often a clear indication of a stuck caliper pin or other brake-related issues.
Overheating BrakesThe constant friction caused by a stuck caliper pin can generate excessive heat, potentially leading to brake fade, smoke, or a burning smell. This is a serious concern that should be addressed immediately to prevent further damage or safety risks.

Diagnosing and Repairing a Stuck Brake Caliper Pin

When faced with a suspected stuck caliper pin, the first step is to perform a thorough inspection. Here's the process I typically follow:

Inspection

  1. Remove the wheel and caliper assembly to gain access to the caliper pins.

  2. Visually inspect the pins and their guide bushings for any signs of damage, corrosion, or lack of lubrication.

  3. Check the rubber boots for cracks, tears, or missing sections that could allow contaminants to enter.

Repair Procedures

Depending on the severity of the issue, different repair procedures may be required:

  • Cleaning and Lubrication

    • If the pins are not severely corroded or damaged, I often start by cleaning them with a wire brush and applying fresh caliper grease or lubricant.

    • The guide bushings should also be cleaned and lubricated to ensure smooth operation.

  • Replacing Rubber Boots

    • If the rubber boots are damaged, they must be replaced with new ones to prevent contamination and ensure proper lubrication of the caliper pins.

  • Replacing Caliper Pins

    • In cases of severe corrosion, damage, or seizing, the caliper pins may need to be replaced.

    • This may require removing the caliper bracket or, in some cases, purchasing a new caliper assembly.

  • Caliper Rebuild or Replacement

    • If the caliper piston or internal components are damaged, a complete caliper rebuild or replacement may be necessary.

    • This is often the most cost-effective solution for severely worn or damaged calipers.

Tips and Precautions

Throughout my years of experience, I've learned a few valuable tips and precautions when dealing with stuck caliper pins:

  • Always use the correct type of caliper grease or lubricant recommended by the manufacturer. Using the wrong lubricant can lead to compatibility issues or premature wear.

  • Be extremely careful not to damage the rubber boots during installation, as this can compromise their protective function.

  • Ensure proper alignment and smooth operation of the caliper pins after reassembly to prevent future issues.

  • Consider replacing the brake pads if they show signs of uneven wear, as this can affect braking performance and safety.

Preventing Future Brake Caliper Pin Issues

Prevention is always better than cure, and there are several maintenance practices I recommend to prevent future issues with stuck brake caliper pins:

  • Regularly inspect and lubricate the caliper pins and guide bushings during brake pad replacements or routine maintenance. This simple step can go a long way in extending the life of these components.

  • Replace the rubber boots if they show signs of wear or damage, as they play a crucial role in protecting the pins from contaminants.

  • Flush and replace the brake fluid at recommended intervals to prevent moisture contamination and corrosion within the brake system.

  • Avoid driving through deep water or excessively wet conditions, as this can accelerate corrosion and damage to the brake components.

  • Follow the manufacturer's recommended service intervals for brake system inspections and maintenance. Regular professional attention can help identify and address potential issues before they become major problems.

Cost Considerations

The cost of repairing a stuck brake caliper pin can vary depending on the extent of the damage and the specific components that need to be replaced. Here are some approximate cost estimates based on my experience:

RepairCost Range
Caliper pin replacement (parts only)$10 - $30 per wheel
Caliper rebuild kit (including pins, boots, and seals)$20 - $50 per caliper
Complete caliper replacement$50 - $200 per caliper, depending on the vehicle make and model
Labor costs$100 - $300 per axle, depending on the repair shop and the complexity of the job

It's important to address a stuck brake caliper pin promptly, as neglecting the issue can lead to more extensive and costly repairs, such as replacing the brake rotors or calipers entirely. Regular maintenance and timely repairs can help prevent more significant problems and ensure safe and reliable braking performance.

Conclusion

A stuck brake caliper pin may seem like a minor issue, but it can have serious consequences if left unaddressed. As a mechanic, I've seen firsthand the importance of addressing this problem promptly and properly. By understanding the causes, symptoms, diagnosis, repair procedures, and preventive measures, you can take proactive steps to maintain the safety and performance of your vehicle's braking system.

Remember, regular maintenance and inspections are key to preventing stuck caliper pins and other brake-related issues. Don't hesitate to seek professional assistance if you suspect a problem with your brakes. Your safety on the road should always be the top priority.

FAQs

What causes a brake caliper to get stuck?

A brake caliper can get stuck due to lack of lubrication, corrosion, damaged rubber boots, or debris buildup. This prevents the caliper from moving smoothly and disengaging the brake pads when released.

How do I know if my brake caliper is sticking?

Signs of a sticking brake caliper include uneven brake pad wear, brake drag or binding, pulling to one side during braking, abnormal noises, and overheating brakes.

Can I drive with a stuck brake caliper?

It is not advisable to drive with a stuck brake caliper as it can cause further damage, uneven braking, and potential safety hazards.

How do I unstick a seized brake caliper?

To unstick a seized caliper, you may need to remove it, clean and lubricate the components, replace damaged parts like rubber boots or pins, and potentially rebuild or replace the caliper.

Should I rebuild or replace a stuck brake caliper?

If the caliper piston or slide pins are severely damaged, it is recommended to replace the entire caliper rather than rebuilding it, as the issue may reoccur.

What causes brake fluid leaks?

Brake fluid leaks can be caused by damaged or worn caliper pistons that are unable to seal properly, allowing brake fluid to escape.

How often should I replace brake fluid?

It is advisable to replace brake fluid every 2 years or 48,000 km (30,000 miles) to prevent moisture contamination and maintain proper braking performance.

What causes uneven brake pad wear?

Uneven brake pad wear can be caused by a stuck caliper pin, preventing the caliper from retracting evenly and causing one pad to wear faster than the other.

Why do my brakes make noise?

Brake noise can be caused by contaminated discs or pads, displaced or damaged shims, lack of lubrication, improper friction material, or worn or damaged discs.

How do I prevent brake caliper issues?

To prevent brake caliper issues, regularly inspect and lubricate the caliper components, replace damaged rubber boots, flush and replace brake fluid at recommended intervals, and follow the manufacturer's recommended service intervals.
