Brake pads are a critical component of a vehicle's braking system, responsible for creating the necessary friction to slow down and stop the vehicle. As brake pads wear down over time, their thickness decreases, affecting braking performance and safety. Understanding brake pad thickness and knowing when to replace them is crucial for maintaining a reliable and safe braking system.
Brake pads are the friction components that clamp down on the rotors (discs) to slow or stop a vehicle's motion. They are designed to wear down gradually through friction against the rotors during braking. When new, brake pads typically have a thickness within the range specified in the table below:
| Vehicle Type | New Brake Pad Thickness Range |
|---|---|
| Passenger Cars | 10-12 mm |
| Light Trucks/SUVs | 12-14 mm |
| Heavy-Duty Trucks | 14-18 mm |
As the pads wear down, their thickness decreases, reducing their ability to generate sufficient friction and braking force. Most manufacturers recommend replacing brake pads when the friction material thickness drops below the minimum values shown in the following table:
| Vehicle Type | Minimum Recommended Thickness |
|---|---|
| Passenger Cars | 3-4 mm |
| Light Trucks/SUVs | 4-5 mm |
| Heavy-Duty Trucks | 5-6 mm |
Allowing the pads to wear beyond these minimum thicknesses can lead to various safety issues and potential damage to other brake components.
There are several factors that can contribute to the premature thinning of brake pads:
Normal wear and tear: This is the primary cause of brake pad thinning over time. Braking generates friction, which gradually wears down the pad material.
Aggressive driving habits: Frequent hard braking or driving in stop-and-go traffic accelerates brake pad wear due to increased friction and heat generation.
Lack of maintenance: Failing to have brakes inspected and serviced as per the manufacturer's recommendations can allow brake pads to wear down excessively before being replaced.
Defective brake components: Issues like sticking calipers, seized caliper sliders, or warped rotors can lead to uneven brake pad wear and premature thinning.
Low-quality brake pads: Using substandard aftermarket brake pads that cannot withstand normal operating temperatures and friction can shorten their lifespan significantly.

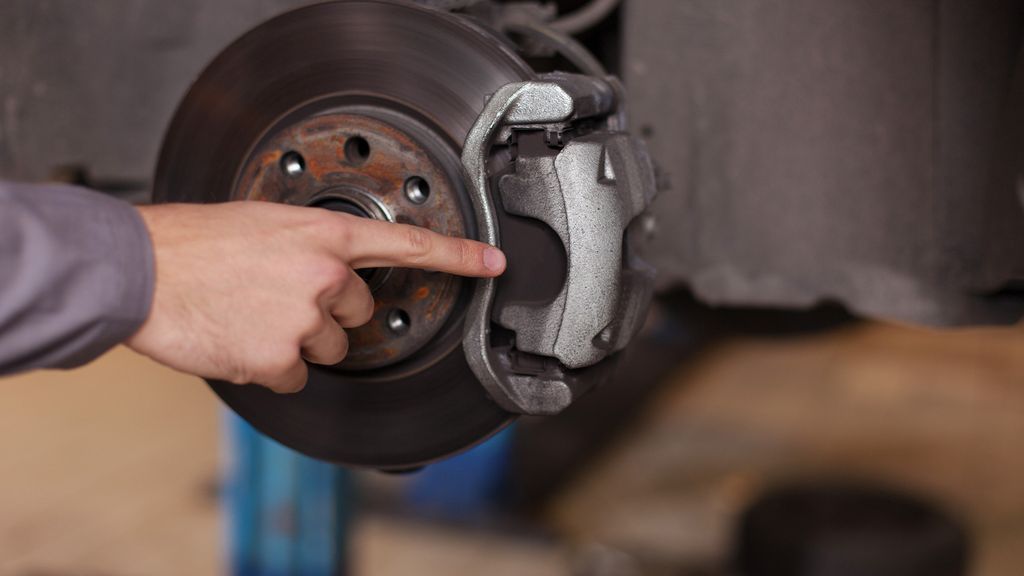

Regular inspections are crucial to identify thin brake pads before they become a safety hazard. There are two primary methods for inspecting brake pad thickness:
This is the quickest and easiest method. Follow these steps:
Park the vehicle on a level surface and apply the parking brake.
Look through the wheel spokes or remove the wheels to see the brake pads.
Check the thickness of the friction material on each pad.
If the pads appear excessively thin or worn down to the backing plate, it's time for replacement.
For a more accurate assessment, I recommend using a brake pad thickness gauge or measurement tool. Here's how to perform this inspection:
Slide the gauge between the brake pad and caliper housing.
Check the inner and outer pad thickness at multiple points.
Uneven wear may indicate issues like sticking calipers, which should be addressed.
Additionally, be on the lookout for warning signs like those listed in the table below:
| Warning Sign | Description |
|---|---|
| Squealing/grinding noises | Occur when braking due to thin pads |
| Brake pedal vibration or pulsation | Caused by uneven pad wear or rotor issues |
| Longer stopping distances required | Indicates reduced braking efficiency |
| Brake pad wear indicator lights | Illuminated when pads reach minimum thickness |
When brake pads become excessively thin, they must be replaced promptly. Here's the typical repair process:
Brake Pad Replacement:
Loosen the lug nuts and raise the vehicle safely on jack stands.
Remove the wheels to access the brake calipers and pads.
Use a C-clamp or brake tool to compress the caliper pistons, allowing room for the new, thicker pads.
Remove the old pads and replace them with new ones of the correct type for your vehicle.
Lubricate the caliper pins/slides and reassemble all components.
Pump the brake pedal to set the new pads, and test the brakes.
Resurfacing/Replacing Rotors:
Excessively worn pads may have grooved or damaged the rotors.
In such cases, the rotors should be resurfaced (machined) or replaced to ensure proper brake operation and even pad wear.
Ensure the rotors meet the minimum allowable thickness after machining, as specified by the manufacturer.
Caliper Repair/Replacement:
If the brake calipers are sticking or seized, they may need to be rebuilt or replaced.
Damaged caliper pins, slides, boots, and hardware should also be addressed.
Brake Fluid Flush:
Contaminated or degraded brake fluid can contribute to brake issues.
Flushing the entire hydraulic system and replacing the fluid is recommended during brake repairs.
While brake pad wear is inevitable, there are several steps you can take to maximize their lifespan and prevent premature thinning:
Follow the manufacturer's recommended brake service intervals for inspections and replacements.
Avoid aggressive braking habits like those listed below:
Riding the brakes
Frequent hard braking
Driving in stop-and-go traffic for extended periods
Check brake pad thickness at every oil change or routine maintenance visit.
Replace brake pads in axle sets (front or rear) to ensure even wear across all wheels.
Use quality brake parts from reputable manufacturers, as substandard pads may wear out faster.
Maintain proper brake fluid levels and condition to prevent contamination and brake system issues.
The cost of addressing brake pad thickness issues can vary depending on the extent of repairs needed and the vehicle make and model. Here are some typical cost ranges:
| Repair/Service | Cost Range |
|---|---|
| Brake pad replacement (pads only) | $100 - $300 per axle |
| Rotor resurfacing or replacement | $200 - $400 per axle |
| Caliper rebuild or replacement | $150 - $500 per caliper |
| Brake fluid flush | $80 - $150 |
| Professional labor costs | $80 - $150 per hour |
Keep in mind that addressing brake issues promptly is crucial for safety and can help avoid costlier repairs down the line.
As a mechanic, I cannot overstate the importance of monitoring and maintaining proper brake pad thickness. Brakes are a critical safety component, and neglecting their condition can have severe consequences. By understanding the causes of thin brake pads, conducting regular inspections, addressing issues promptly, and following preventive maintenance practices, you can ensure your vehicle's brakes remain in optimal condition, providing reliable stopping power and peace of mind on the road.
The recommended minimum brake pad thickness for passenger cars is typically 3-4 mm. Allowing the pads to wear beyond this thickness can lead to safety issues and potential damage to other brake components.
Look through the wheel spokes or remove the wheels to see the brake pads. Check the thickness of the friction material on each pad. If the pads appear excessively thin or worn down to the backing plate, it's time for replacement.
Aggressive driving habits like frequent hard braking, lack of maintenance, defective brake components like sticking calipers, and using low-quality brake pads can contribute to premature brake pad thinning.
Use a brake pad thickness gauge or measurement tool to check the inner and outer pad thickness at multiple points. Uneven wear may indicate issues like sticking calipers, which should be addressed.
Warning signs include squealing/grinding noises when braking, brake pedal vibration or pulsation, longer stopping distances required, and illuminated brake pad wear indicator lights.
The repair process involves replacing the brake pads, resurfacing or replacing the rotors if necessary, repairing or replacing any faulty calipers, and flushing the brake fluid.
Follow the manufacturer's recommended service intervals, avoid aggressive braking habits, check pad thickness regularly, replace pads in axle sets, use quality brake parts, and maintain proper brake fluid levels and condition.
Costs can range from $100-$300 per axle for pad replacement, $200-$400 per axle for rotor resurfacing/replacement, $150-$500 per caliper for rebuild/replacement, $80-$150 for a brake fluid flush, and $80-$150 per hour for professional labor.
Addressing brake issues promptly is crucial for safety and can help avoid costlier repairs down the line. Neglecting brake pad thickness can lead to reduced braking efficiency and potential damage to other brake components.
While it is possible to replace brake pads as a DIY task, it is recommended to seek professional assistance, especially if you are inexperienced or unsure about the process. Improper brake repairs can compromise vehicle safety.
