A broken tone ring can cause significant issues in your vehicle's automatic transmission, leading to poor performance, erratic shifting, and potential damage. In this article, we'll explore the common symptoms of a broken tone ring, the causes of tone ring failure, and how to diagnose and fix these problems to keep your transmission running smoothly.

Introduction

A tone ring, also known as a reluctor ring or exciter ring, is a critical component in an automatic transmission. It is a toothed or slotted metal ring mounted on a rotating shaft, working in conjunction with a sensor to provide speed and position information to the transmission control module (TCM). This data is essential for the TCM to make accurate decisions about gear shifts, torque converter lockup, and other transmission functions.

When a tone ring becomes damaged or broken, it can send incorrect signals or no signal at all to the TCM, causing a variety of transmission problems. In this article, we'll cover the following topics:

  • Common symptoms of a broken tone ring

  • Causes of tone ring failure

  • Diagnosing a broken tone ring

  • Repairing or replacing a broken tone ring

  • Preventing tone ring failures

Common Symptoms of a Broken Tone Ring

Harsh or Delayed Shifting

One of the most noticeable symptoms of a broken tone ring is harsh or delayed shifting. The transmission may hesitate before engaging a gear, or shifts may feel abrupt and jarring. This occurs because the TCM is receiving incorrect speed and position data from the damaged tone ring, causing it to make poorly timed or inappropriate shift decisions.

For example, if the tone ring is not providing accurate information about the transmission input shaft speed, the TCM may engage a gear too early or too late, resulting in a harsh shift. Similarly, if the tone ring is sending intermittent or erratic signals, the TCM may rapidly switch between gears or fail to engage a gear altogether, leading to a delayed or slipping shift.

Slipping or Erratic Shifts

In addition to harsh or delayed shifting, a broken tone ring can also cause slipping or erratic shifts. Slipping occurs when the transmission fails to engage a gear fully, causing the engine to rev up without a corresponding increase in vehicle speed. Erratic shifts may involve the transmission rapidly cycling through gears or shifting into the wrong gear for the current driving conditions.

These symptoms arise because the TCM is not receiving reliable data from the tone ring, preventing it from accurately controlling the transmission's hydraulic system. Without precise control over the clutch packs and shift solenoids, the transmission cannot smoothly and effectively transfer power from the engine to the wheels.

Transmission Warning Light or Diagnostic Trouble Codes

When a tone ring fails, it often triggers the transmission warning light on the vehicle's dashboard. This warning light, which may be labeled as "Check Transmission" or display a gear-shaped icon, indicates that the TCM has detected a problem with the transmission system.

In addition to illuminating the warning light, a broken tone ring can cause the TCM to store one or more diagnostic trouble codes (DTCs) in its memory. These codes, which can be retrieved using a diagnostic scanner, help pinpoint the specific component or system that is malfunctioning. Some common DTCs associated with a broken tone ring include:

  • P0716: Input/Turbine Speed Sensor Circuit Range/Performance

  • P0717: Input/Turbine Speed Sensor Circuit No Signal

  • P0718: Input/Turbine Speed Sensor Circuit Intermittent

  • P0719: Torque Converter/Brake Switch B Circuit Low

Limp Mode or Failsafe Mode

When the TCM detects a serious problem with the transmission, such as a broken tone ring, it may activate limp mode or failsafe mode to protect the transmission from further damage. In this mode, the transmission typically locks into a single gear, usually second or third, and limits engine power to prevent excessive wear on the transmission components.

Limp mode allows the vehicle to be driven to a safe location for repairs, but performance is significantly reduced, and the transmission will not shift gears normally. This mode is designed to minimize the risk of catastrophic transmission failure and give the driver an opportunity to seek professional assistance.

Unusual Noises During Shifting

A broken tone ring can also cause unusual noises during shifting, such as clunking, whining, or grinding sounds. These noises may be more pronounced when the transmission is under load, such as when accelerating or climbing a hill.

Clunking noises often indicate that the transmission is engaging gears too harshly due to incorrect speed and position data from the tone ring. Whining or grinding sounds may suggest that the transmission is attempting to shift into the wrong gear or that the gears are not meshing properly because of the faulty tone ring signal.

Causes of Tone Ring Failure

Wear and Tear

Like any mechanical component, tone rings are subject to wear and tear over time. The constant exposure to heat, vibration, and debris can cause the tone ring's teeth or slots to become worn, reducing the accuracy and reliability of the signal it sends to the transmission speed sensor.

Factors that can accelerate wear and tear on a tone ring include:

  • High mileage

  • Frequent stop-and-go driving

  • Towing heavy loads

  • Exposure to extreme temperatures

  • Contaminated transmission fluid

As the tone ring wears, it may develop small cracks or lose material from its teeth, leading to intermittent or erratic signals that can confuse the TCM and cause transmission problems.

Contamination or Debris

Contamination or debris in the transmission fluid can also damage the tone ring, causing it to fail prematurely. Common contaminants include:

  • Metal shavings from worn transmission components

  • Clutch material from degraded clutch packs

  • Dirt, sand, or other abrasive particles

  • Water or coolant from a leaking transmission cooler

These contaminants can scratch, erode, or clog the tone ring's teeth, preventing it from generating a clean, accurate signal. In some cases, debris may even become lodged between the tone ring and the sensor, physically blocking the signal and causing the transmission to malfunction.

Improper Installation

Improper installation of the tone ring during transmission service or repair can also lead to premature failure. If the tone ring is not seated correctly on the shaft, is misaligned, or is torqued to the incorrect specifications, it may wobble, vibrate, or come into contact with other components, causing damage or distortion.

An improperly installed tone ring may also have an incorrect air gap between itself and the sensor, which can affect the strength and quality of the signal. If the air gap is too large, the signal may be weak or intermittent; if it is too small, the signal may be distorted or the sensor may be damaged by contact with the tone ring.

Manufacturing Defects

In rare cases, a tone ring may fail due to manufacturing defects such as:

  • Improper heat treatment, leading to brittleness or weakness

  • Incorrect material composition, causing premature wear or corrosion

  • Machining errors, resulting in an uneven or misshapen tone ring

These defects may not be apparent when the tone ring is first installed but can cause it to fail suddenly and unexpectedly, even with relatively low mileage or gentle driving conditions. If a tone ring fails due to a manufacturing defect, it may be covered under the vehicle's warranty or a service bulletin issued by the manufacturer.

Diagnosing a Broken Tone Ring

Scanning for Diagnostic Trouble Codes

The first step in diagnosing a broken tone ring is to scan the vehicle's onboard diagnostic system for diagnostic trouble codes (DTCs). Using a diagnostic scanner or code reader, a technician can retrieve any stored DTCs related to the transmission speed sensors or tone rings.

Some common DTCs that may indicate a broken tone ring include:

DTCDescription
P0716Input/Turbine Speed Sensor Circuit Range/Performance
P0717Input/Turbine Speed Sensor Circuit No Signal
P0718Input/Turbine Speed Sensor Circuit Intermittent
P0719Torque Converter/Brake Switch B Circuit Low

While these DTCs can help pinpoint the problem area, they do not always conclusively prove that the tone ring is at fault. Further testing and inspection may be necessary to confirm the diagnosis.

Checking Transmission Fluid Condition

Checking the condition of the transmission fluid can provide valuable clues about the health of the tone ring and other transmission components. If the fluid is contaminated with metal shavings, clutch material, or other debris, it may indicate that the tone ring has been damaged by abrasive particles or that other transmission components are wearing excessively.

To check the transmission fluid:

  1. Locate the transmission dipstick (consult the vehicle's owner's manual if necessary).

  2. With the engine running and the transmission at operating temperature, remove the dipstick and wipe it clean with a lint-free cloth.

  3. Reinsert the dipstick fully, then remove it again and examine the fluid level and condition.

Healthy transmission fluid should be clear, red, or pink in color and free of debris or unusual odors. If the fluid is dark, burnt-smelling, or contains visible particles, it may be a sign of a broken tone ring or other transmission problems.

Performing Visual Inspection

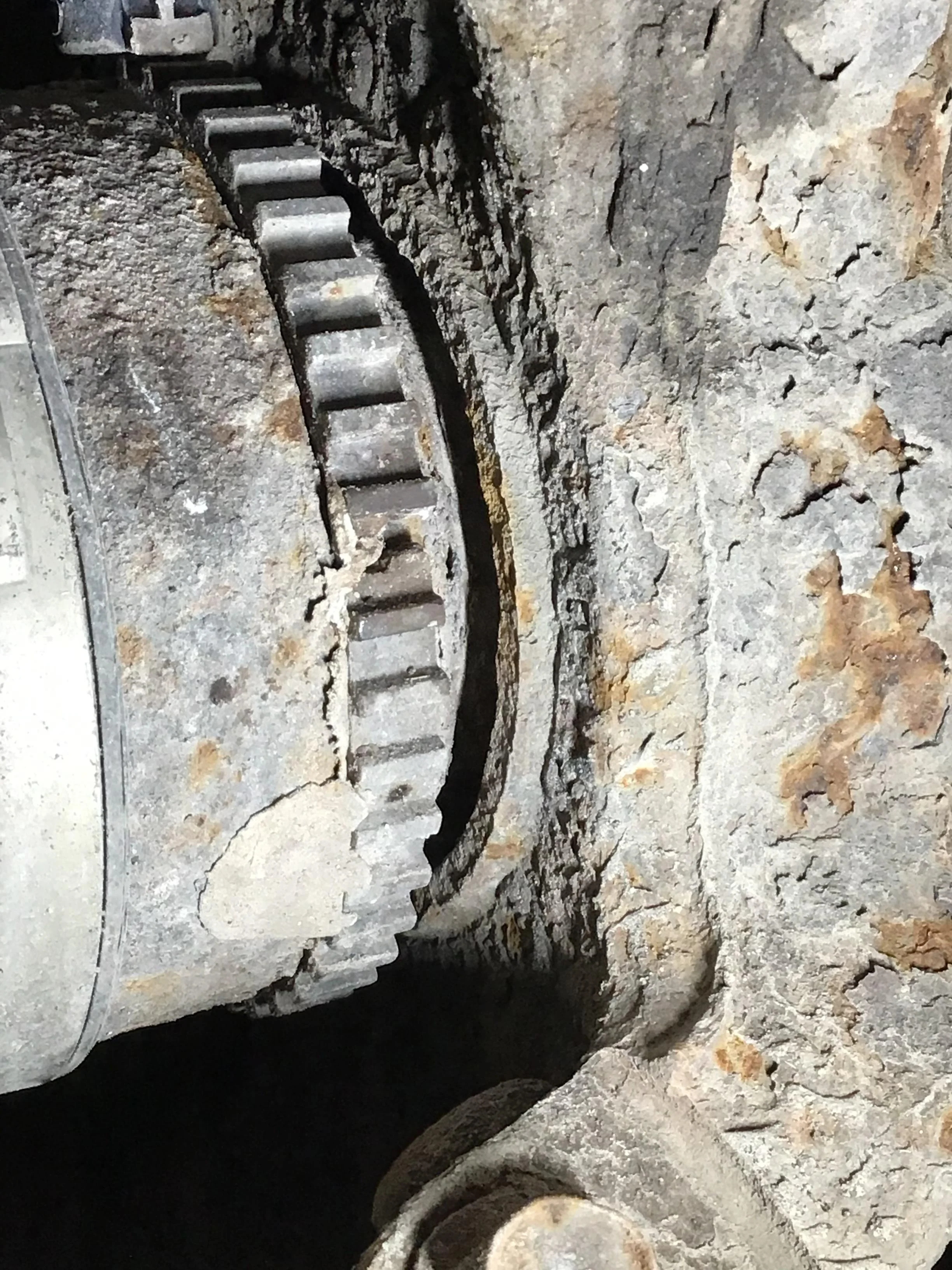

A visual inspection of the tone ring can help confirm a suspected failure or identify physical damage that may not be apparent from DTCs or fluid condition alone. To inspect the tone ring:

  1. Safely raise and support the vehicle on jack stands or a lift.

  2. Locate the tone ring on the transmission input shaft, output shaft, or differential (consult a repair manual for the specific location on your vehicle).

  3. Using a flashlight and mirror, carefully examine the tone ring for signs of damage, such as:

    • Cracks or fractures

    • Missing or worn teeth

    • Uneven wear or scoring

    • Debris lodged between the tone ring and sensor

  4. Check the wiring and connectors for the transmission speed sensor for any signs of damage, corrosion, or loose connections.

If the tone ring shows visible damage or the sensor wiring is compromised, replacement or repair will likely be necessary to restore proper transmission function.

Using Oscilloscope to Test Tone Ring Signals

For a more definitive diagnosis, a technician may use an oscilloscope to test the tone ring signals directly. An oscilloscope is a device that displays the waveform of an electrical signal, allowing the technician to see the pattern and strength of the signal generated by the tone ring.

To test the tone ring signals with an oscilloscope:

  1. Connect the oscilloscope probes to the transmission speed sensor wiring (consult a repair manual for the specific procedure).

  2. Start the engine and allow the transmission to run through its gears.

  3. Observe the waveform on the oscilloscope display, looking for signs of a faulty tone ring, such as:

    • Weak or intermittent signals

    • Erratic or irregular waveforms

    • Missing or extra pulses in the signal pattern

By comparing the observed waveform to the expected pattern for a properly functioning tone ring, a technician can determine whether the tone ring is generating the correct signal and, if not, pinpoint the nature of the problem (e.g., worn teeth, debris interference, etc.).

Repairing or Replacing a Broken Tone Ring

Removing and Inspecting the Tone Ring

If the diagnostic tests and visual inspection confirm that the tone ring is faulty, the next step is to remove it from the transmission for a more thorough examination. The exact procedure for removing the tone ring varies depending on the make and model of the vehicle, but generally involves:

  1. Draining the transmission fluid.

  2. Removing the transmission pan and valve body.

  3. Disconnecting the transmission speed sensor.

  4. Unbolting or pressing off the tone ring from the transmission shaft.

Once the tone ring is removed, clean it thoroughly and inspect it closely for any signs of damage, wear, or debris accumulation. Pay particular attention to the condition of the teeth or slots, looking for cracks, chips, or uneven wear that could cause signal problems.

Cleaning or Replacing the Tone Ring

If the tone ring is in good overall condition but has accumulated debris or contamination, it may be possible to clean it and reinstall it on the transmission. To clean the tone ring:

  1. Use a soft-bristled brush or toothbrush to remove any loose debris or built-up contamination from the teeth or slots.

  2. If necessary, use a mild solvent, such as brake cleaner or electrical contact cleaner, to dissolve stubborn grease or oil deposits.

  3. Rinse the tone ring thoroughly with clean water and dry it completely with compressed air or a lint-free cloth.

However, if the tone ring shows signs of physical damage, such as cracks, missing teeth, or severe wear, it must be replaced with a new one. Attempting to reuse a damaged tone ring will likely result in a recurrence of transmission problems and may cause additional damage to other components.

Ensuring Proper Installation and Alignment

When installing a new or cleaned tone ring, it is crucial to ensure that it is properly aligned and torqued to the manufacturer's specifications. Improper installation can cause the tone ring to wobble, vibrate, or generate incorrect signals, leading to transmission issues.

To ensure proper installation:

  1. Clean the mating surfaces of the transmission shaft and tone ring to remove any dirt, grease, or old sealant.

  2. If applicable, apply a thin layer of the specified sealant or thread-locking compound to the tone ring or shaft.

  3. Carefully align the tone ring with the shaft, ensuring that it is fully seated and not cocked or tilted.

  4. Using a torque wrench, tighten the tone ring retaining bolts to the manufacturer's specified torque value.

  5. Double-check the alignment and torque after installation to ensure that the tone ring is secure and correctly positioned.

Verifying Repair and Clearing Diagnostic Codes

After installing the tone ring and reassembling the transmission, it is important to verify that the repair has been successful and that the transmission is functioning properly. To do this:

  1. Refill the transmission with the specified type and quantity of fluid.

  2. Start the engine and allow the transmission to reach operating temperature.

  3. Test-drive the vehicle, paying attention to shift quality, engagement, and any unusual noises or behaviors.

  4. Using a diagnostic scanner, recheck for any transmission-related DTCs and clear any codes that were previously stored.

If the transmission shifts smoothly and no new DTCs are generated, the tone ring repair can be considered successful. However, if problems persist or new codes appear, further diagnosis and repair may be necessary.

Preventing Tone Ring Failures

Regular Transmission Maintenance

One of the best ways to prevent tone ring failures is to adhere to a regular transmission maintenance schedule. This typically involves:

  • Checking the transmission fluid level and condition at least once a month.

  • Changing the transmission fluid and filter at the intervals specified by the manufacturer (usually every 30,000 to 60,000 miles).

  • Having the transmission serviced by a qualified technician if any unusual noises, smells, or behaviors are noticed.

By keeping the transmission fluid clean and at the proper level, you can help minimize wear and tear on the tone ring and other critical components, extending the life of the transmission.

Using High-Quality Transmission Fluid

Using high-quality transmission fluid that meets or exceeds the manufacturer's specifications can also help prevent tone ring failures. High-quality fluid is formulated to provide optimal lubrication, cooling, and protection against wear, corrosion, and contamination.

When selecting transmission fluid, look for a product that is:

  • Recommended or approved by the vehicle manufacturer

  • Appropriate for the specific make, model, and year of your vehicle

  • Labeled with the correct viscosity grade and performance level for your transmission

Avoid using generic or low-quality transmission fluids, as these may not provide adequate protection and can even cause damage to the tone ring and other components.

Avoiding Harsh Driving Conditions

Harsh driving conditions can accelerate wear and tear on the tone ring and other transmission components, increasing the risk of premature failure. To minimize this risk, try to avoid:

  • Frequent stop-and-go driving in heavy traffic

  • Towing heavy loads or exceeding the vehicle's rated towing capacity

  • Driving in extreme temperatures (very hot or very cold)

  • Launching the vehicle aggressively or shifting abruptly

  • Driving with low transmission fluid levels or contaminated fluid

By driving smoothly and avoiding excessive stress on the transmission, you can help extend the life of the tone ring and other critical components.

Addressing Any Transmission Issues Promptly

Finally, it is important to address any transmission issues promptly, rather than ignoring them or putting off repairs. If you notice any of the following signs of transmission problems, have your vehicle inspected by a qualified technician as soon as possible:

  • Unusual noises, such as whining, clunking, or grinding during shifts

  • Slipping, jerking, or hesitation when shifting gears

  • Burning smell or visible smoke from the transmission

  • Leaking transmission fluid (red or pink fluid on the ground under the vehicle)

  • Illuminated transmission warning light on the dashboard

By catching and addressing transmission issues early, you can often prevent more serious damage, including tone ring failures, and avoid costly repairs down the road.

Conclusion

A broken tone ring can cause a range of transmission problems, from harsh or delayed shifts to complete transmission failure. By understanding the symptoms, causes, and diagnostic procedures for tone ring failures, you can help keep your vehicle's transmission running smoothly and avoid costly repairs.

If you suspect that your vehicle has a broken tone ring, have it inspected by a qualified transmission specialist as soon as possible. They can perform the necessary tests and repairs to restore proper transmission function and prevent further damage.

To prevent tone ring failures in the first place, follow a regular transmission maintenance schedule, use high-quality transmission fluid, avoid harsh driving conditions, and address any transmission issues promptly. By taking these steps, you can help extend the life of your vehicle's transmission and enjoy reliable, smooth-shifting performance for years to come.

FAQs

What are the most common symptoms of a broken ABS tone ring?

The most common symptoms of a broken ABS tone ring include the ABS warning light illuminating on the dashboard, the brake pedal vibrating or pulsating at low speeds, and the ABS function not working properly during hard braking. In some vehicles, a broken tone ring can also cause sudden, unintended autonomous braking.

Can a broken ABS tone ring affect other vehicle systems besides the anti-lock brakes?

Yes, a broken ABS tone ring can also cause issues with the traction control system, vehicle stability control, and even the speedometer, as these systems rely on the same wheel speed sensors as the ABS. Warning lights for these systems may appear on the dashboard in addition to the ABS light.

How does a broken ABS tone ring cause these symptoms?

A broken ABS tone ring sends incorrect or erratic signals to the ABS control module, which can cause it to activate the ABS unnecessarily, fail to engage the ABS when needed, or trigger other system malfunctions. The inconsistent signals confuse the computer, leading to the various warning lights and performance issues.

What are the main causes of ABS tone ring failure?

The main causes of ABS tone ring failure include wear and tear over time, contamination or debris getting lodged between the tone ring and sensor, improper installation during service, and in rare cases, manufacturing defects. Corrosion between the tone ring and axle can also cause the ring to crack.

How is a broken ABS tone ring diagnosed?

Diagnosing a broken ABS tone ring typically involves scanning for diagnostic trouble codes related to the wheel speed sensors, checking the condition of the transmission fluid for contamination, visually inspecting the tone ring for cracks or damage, and using an oscilloscope to analyze the tone ring signals. Swapping wheel speed sensors side-to-side can help isolate the problem to the tone ring.

Can a broken ABS tone ring be repaired, or does it need to be replaced?

In most cases, a broken ABS tone ring cannot be reliably repaired and must be replaced entirely to restore proper ABS function. Attempting to reuse a damaged tone ring will likely result in a recurrence of the issues.

Is it safe to drive with a broken ABS tone ring?

While it is possible to drive with a broken ABS tone ring, it is not recommended, as the vehicle will have reduced braking performance and lack the safety features provided by the ABS, traction control, and stability control systems. These issues can be especially dangerous in emergency situations or adverse weather conditions.

How much does it typically cost to replace a broken ABS tone ring?

The cost to replace a broken ABS tone ring can vary depending on the make and model of the vehicle, but it typically ranges from around $200 to $800 or more, including parts and labor. In some cases, the entire wheel hub assembly or drive axle may need to be replaced, which can significantly increase the repair cost.

Can regular maintenance help prevent ABS tone ring failures?

Yes, regular vehicle maintenance, such as keeping the transmission fluid clean and at the proper level, can help minimize wear and tear on the ABS tone ring and other components. Using high-quality transmission fluid and avoiding harsh driving conditions can also help extend the life of the tone ring.

What should I do if I suspect my vehicle has a broken ABS tone ring?

If you suspect your vehicle has a broken ABS tone ring, it is important to have it inspected by a qualified mechanic as soon as possible. Ignoring the problem can lead to reduced braking performance, increased repair costs, and potential safety hazards.

Miguel Rodriguez
Miguel Rodriguez

Miguel started tinkering with car radios as a teenager, fascinated by the intricate dance of wires and circuits. This passion led him to pursue a career as an automotive electrician. For the past 10 years, Miguel has tackled everything from flickering headlights to mysterious electrical gremlins. He thrives on troubleshooting electrical problems and enjoys sharing his knowledge to empower car owners to understand their vehicles better.

Related Posts

Why Does My Brake Pedal Click When Pressed? Causes and Fixes

Why Does My Brake Pedal Click When Pressed? Causes and Fixes

When you press your brake pedal, you expect a smooth and silent operation. However, if you notice a clicking noise emanating from the pedal, it can be concerning. This article will delve into the various causes of brake pedal clicking and provide solutions to address the issue. We will explore the brake system components, common causes, diagnosis, fixes, and prevention methods to help you maintain a safe and reliable braking system.
Miguel Rodriguez
Miguel Rodriguez
Honda Civic Brake System Problems: Symptoms, Causes, and Fixes

Honda Civic Brake System Problems: Symptoms, Causes, and Fixes

The Honda Civic is a popular compact car known for its reliability and performance. However, like any vehicle, it can experience brake system problems that affect its safety and drivability. This article will explore the common symptoms, causes, and fixes for Honda Civic brake system issues, as well as provide guidance on diagnosing and resolving them to ensure optimal braking performance.
Miguel Rodriguez
Miguel Rodriguez
Traction Control System (TCS) Faults: A Comprehensive Guide for Drivers

Traction Control System (TCS) Faults: A Comprehensive Guide for Drivers

As a driver, you rely on your vehicle's traction control system (TCS) to maintain optimal braking performance and stability, especially in challenging road conditions. The TCS prevents wheel lockup and skidding, ensuring a safer and more controlled driving experience. However, when a "Tbc Fault" or traction control system malfunction occurs, it can be concerning and potentially dangerous. In this article, we'll delve into the world of traction control systems, explore common causes of TCS faults, and provide strategies for diagnosing and resolving these issues to keep your vehicle's braking system in top shape.
Miguel Rodriguez
Miguel Rodriguez
New Brakes Squeaking? Don't Panic! Here's Why & How to Fix It

New Brakes Squeaking? Don't Panic! Here's Why & How to Fix It

If you've recently replaced your brake pads and are now hearing an annoying squeaking noise when you slow down, don't worry! In most cases, this is a normal part of the break-in process for new brakes. However, it's essential to understand the various causes of brake squealing and when it might indicate a more serious issue. In this comprehensive article, we'll explore why new brakes squeak, how to fix the problem, and when to seek professional help to ensure your vehicle's safe stopping performance.
Miguel Rodriguez
Miguel Rodriguez

Recommend Posts

Cast Iron Car Exhaust Systems: Durable, Cost-Effective, and Eco-Friendly

Cast Iron Car Exhaust Systems: Durable, Cost-Effective, and Eco-Friendly

The exhaust system is a critical component of a vehicle's internal combustion engine, responsible for expelling harmful gases produced during the combustion process. Among the various materials used in exhaust system components, cast iron has been a popular choice for exhaust manifolds due to its durability, cost-effectiveness, and ability to contribute to emission control and environmental sustainability.
Sarah Khan
Sarah Khan
Understanding Coolant Shelf Life: When to Replace and Maintain Your Vehicle's Antifreeze

Understanding Coolant Shelf Life: When to Replace and Maintain Your Vehicle's Antifreeze

Coolant, also known as antifreeze, plays a vital role in your vehicle's cooling system, preventing engine overheating and freeze-up. However, like any other automotive fluid, coolant has a limited lifespan and requires regular maintenance and replacement. In this article, we'll explore the factors that affect coolant shelf life, signs of degradation, and best practices for ensuring optimal cooling system performance.
Miguel Rodriguez
Miguel Rodriguez
