Do Motorcycles Have Alternators
I. Introduction
Motorcycles rely heavily on their electrical systems for various functions, including ignition, lighting, instrumentation, and an ever-increasing array of electronic accessories. The alternator is the heart of this electrical system, responsible for generating the necessary power to keep everything running and the battery charged. Without a properly functioning alternator, your motorcycle's electrical components would quickly drain the battery, leaving you stranded.
II. Motorcycle Alternator Basics
A. What is a motorcycle alternator?

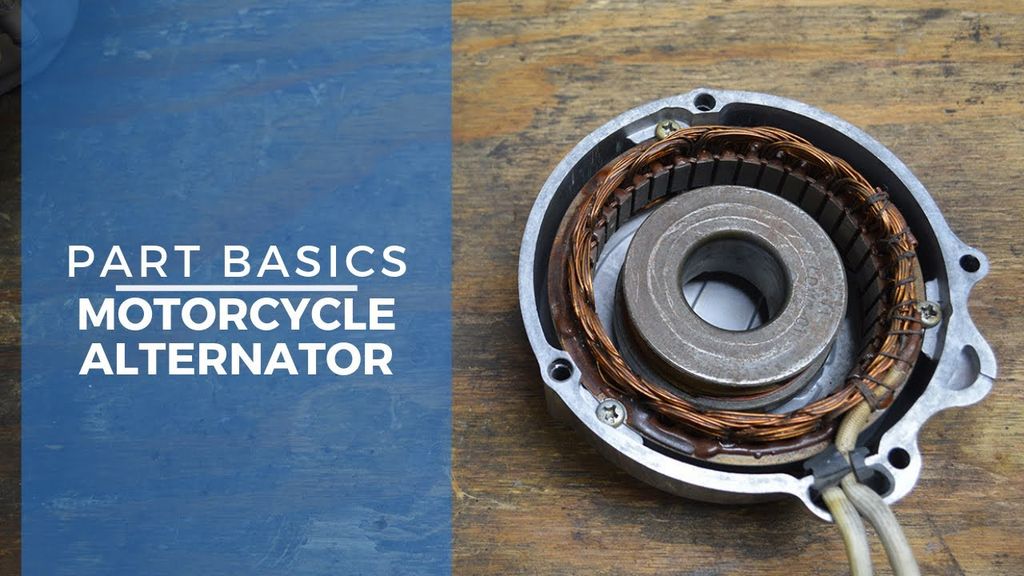

A motorcycle alternator is an electromechanical device that converts mechanical energy from the engine's rotation into electrical energy. It is a crucial component of the motorcycle's charging system, responsible for generating the alternating current (AC) needed to power the electrical system and charge the battery.
B. Primary function and purpose
The primary function of a motorcycle alternator is to generate electrical power for all the electrical components and accessories on the motorcycle, while also keeping the battery charged during operation. By taking over the job of powering the electrical system from the battery once the engine starts, the alternator ensures that the battery can recharge after providing the initial power for starting the engine.
C. Key components
A motorcycle alternator typically consists of three main components:
1. Rotor
The rotor is the rotating part of the alternator that acts as an electromagnet. It is connected to the engine's crankshaft and spins at the same speed as the engine, generating a magnetic field.
2. Stator
The stator is the stationary part of the alternator that contains coils of wire. As the rotor's magnetic field rotates past the stator windings, it induces an alternating current (AC) in the coils through the principle of electromagnetic induction.
3. Regulator/rectifier
The regulator/rectifier is a crucial component that serves two primary functions. First, it converts the AC generated by the stator into direct current (DC) required by the motorcycle's electrical system and battery. Second, it regulates the voltage output of the alternator to prevent overcharging or undercharging the battery.
III. Principles of Operation
A. Electromagnetic induction
The principle of electromagnetic induction is the foundation upon which motorcycle alternators operate. This phenomenon, described by Faraday's law, states that an electromotive force (EMF) is induced in a conductor when it experiences a changing magnetic field.
1. Faraday's law
Faraday's law of electromagnetic induction explains how the alternator generates an alternating current (AC) in the stator windings. As the rotor spins, its magnetic field continuously changes direction relative to the stator coils, inducing an EMF and generating an AC in the windings.
2. Alternating current generation
The alternating current generated in the stator windings is a result of the constantly changing magnetic field produced by the rotating rotor. The frequency of the AC depends on the rotational speed of the rotor and the number of magnetic poles it contains.
B. Voltage regulation
While the alternator generates AC, the motorcycle's electrical system and battery require direct current (DC) at a specific voltage level. This is where the regulator/rectifier comes into play.
1. Regulator circuits
The regulator circuit within the regulator/rectifier unit monitors the output voltage of the alternator and adjusts it to maintain a constant voltage level. This prevents overcharging or undercharging the battery, which can lead to premature battery failure or damage to electrical components.
2. Voltage regulation methods
There are various voltage regulation methods used in motorcycle alternators, such as zener diode regulation, shunt regulation, and pulse-width modulation (PWM) regulation. Each method has its advantages and disadvantages in terms of efficiency, cost, and complexity.
Table 1: Comparison of Voltage Regulation Methods in Motorcycle Alternators
Regulation Method | Efficiency | Cost | Complexity | Advantages | Disadvantages |
---|---|---|---|---|---|
Zener Diode Regulation | Moderate | Low | Low | Simple, inexpensive | Limited voltage regulation range, heat dissipation |
Shunt Regulation | High | Moderate | Moderate | Precise voltage regulation, efficient | More complex circuitry, potential for oscillations |
PWM Regulation | High | High | High | Precise voltage regulation, efficient, adjustable | Complex circuitry, higher cost |
C. Current rectification
In addition to voltage regulation, the regulator/rectifier unit also performs current rectification, converting the AC generated by the stator into DC for use by the motorcycle's electrical system and battery.
1. AC to DC conversion
The rectifier circuit within the regulator/rectifier unit consists of diodes that allow current to flow in only one direction. This process converts the alternating current (AC) from the stator into a pulsating direct current (DC).
2. Rectifier circuits
There are different types of rectifier circuits used in motorcycle alternators, such as half-wave rectifiers, full-wave rectifiers, and bridge rectifiers. The choice of rectifier circuit depends on factors like efficiency, cost, and output requirements.
Table 2: Comparison of Rectifier Circuits in Motorcycle Alternators
Rectifier Circuit | Efficiency | Cost | Output Ripple | Advantages | Disadvantages |
---|---|---|---|---|---|
Half-wave Rectifier | Low | Low | High | Simple, inexpensive | Low efficiency, high output ripple |
Full-wave Rectifier | Moderate | Moderate | Moderate | Improved efficiency, reduced ripple | More complex circuitry |
Bridge Rectifier | High | High | Low | High efficiency, low output ripple | More complex circuitry, higher cost |
IV. Alternator Types and Designs
A. Single-unit alternators
Some larger motorcycles, particularly cruisers and touring models, may have a single-unit alternator design similar to those found in automobiles.
1. Construction
In a single-unit alternator, the rotor, stator, and regulator/rectifier are housed together in a single assembly. This design is more compact and easier to package on larger motorcycles with more available space.
2. Advantages and disadvantages
The main advantages of a single-unit alternator include:
Simplicity and ease of installation
Compact design
However, it may have the following disadvantages:
Less efficient than separate-component designs
Challenging to service or replace individual components
B. Separate-component alternators
Most motorcycles, particularly smaller and mid-sized models, employ a separate-component alternator design due to space constraints.
1. Rotor, stator, and regulator/rectifier locations
In this design, the rotor, stator, and regulator/rectifier are separate components mounted at different locations on the engine and frame. The rotor is typically connected to the crankshaft, while the stator is mounted on the engine case or frame, and the regulator/rectifier is located elsewhere on the motorcycle.
2. Advantages and disadvantages
The main advantages of a separate-component design include:
Modularity, allowing for easier replacement or servicing of individual components
Flexibility in component placement
However, it may have the following disadvantages:
More complex installation and wiring
Potential for increased vibration and noise
V. Performance Factors
A. Output ratings
The performance of a motorcycle alternator is primarily determined by its output ratings, which include voltage and current.
1. Voltage
Most motorcycle alternators are designed to produce a regulated output voltage of 12 volts or 14 volts, depending on the motorcycle's electrical system requirements. This voltage is necessary to charge the battery and power the electrical components.
2. Current
The current output of an alternator is measured in amperes (A) and represents the amount of electrical current it can supply. Higher current outputs are required for motorcycles with more electrical accessories or higher electrical loads.
List 1: Common Electrical Accessories and Their Typical Current Draw
LED headlights: 2-4 amps
Heated grips: 1-2 amps
GPS/Navigation system: 0.5-1 amp
Smartphone charger: 1-2 amps
Auxiliary lighting: 2-4 amps
Heated gear: 3-5 amps
Audio system: 2-4 amps
B. Engine speed and alternator output
The output of a motorcycle alternator is directly proportional to the engine's rotational speed. As the engine revs increase, the alternator's rotor spins faster, generating a higher alternating current in the stator windings and producing more electrical power.
C. Electrical load management
Proper electrical load management is crucial for ensuring that the alternator can meet the demands of the motorcycle's electrical system without overloading or underperforming.
1. Load balancing strategies
Load balancing strategies, such as prioritizing critical electrical components and selectively disabling non-essential accessories, can help prevent overloading the alternator and ensure reliable operation.
List 2: Typical Load Balancing Strategies for Motorcycle Alternators
Prioritize essential components (ignition, lighting, instrumentation)
Disable non-essential accessories during high electrical load
Implement load shedding (temporarily disabling non-critical components)
Upgrade to a higher-output alternator for increased electrical demands
2. Alternator sizing and selection
Selecting the appropriate alternator size and output rating for a motorcycle's electrical load is essential. Undersized alternators may struggle to keep up with the electrical demands, while oversized alternators can be inefficient and generate unnecessary heat.
VI. Cooling and Noise Reduction
A. Alternator cooling mechanisms
Motorcycle alternators generate heat during operation, and proper cooling is essential to prevent premature failure and ensure optimal performance.
1. Heat dissipation techniques
Various heat dissipation techniques are employed in motorcycle alternators, such as finned housings, air channels, and heat sinks. These design features help dissipate the heat generated by the alternator's components.
2. Cooling system integration
In some cases, motorcycle alternators may be integrated with the engine's cooling system, using air or liquid cooling to help dissipate heat more effectively.
B. Noise reduction strategies
Alternators can produce audible noise due to the rotating components and electromagnetic interference. Noise reduction strategies are essential for maintaining a pleasant riding experience.
1. Vibration damping
Vibration damping techniques, such as using rubber mounts or isolators, can help reduce the transmission of vibrations from the alternator to the motorcycle's frame, minimizing noise.
2. Electromagnetic shielding
Electromagnetic shielding, achieved through the use of conductive materials or shielding techniques, can help reduce electromagnetic interference (EMI) and the associated noise generated by the alternator.
VII. Maintenance and Troubleshooting
A. Regular maintenance
Regular maintenance is crucial for ensuring the longevity and optimal performance of a motorcycle alternator.
1. Inspection
Periodic visual inspections of the alternator and its components can help identify potential issues, such as loose connections, worn brushes, or signs of damage.
2. Cleaning
Keeping the alternator clean and free from dirt, debris, and contaminants can prevent premature wear and improve heat dissipation.
3. Lubrication
Some alternator designs may require periodic lubrication of bearings or other moving parts to ensure smooth operation and prevent excessive wear.
B. Common failure indicators
Several indicators can signal potential alternator failure, including:
Warning lights on the motorcycle's instrument panel
Dimming or flickering lights
Battery not charging or draining quickly
Unusual noises or vibrations from the alternator
C. Diagnostic procedures
Proper diagnosis is essential for identifying and resolving alternator issues.
1. Visual inspection
A thorough visual inspection can reveal signs of damage, wear, or loose connections that may be causing problems.
2. Electrical testing
Electrical testing, using specialized tools like multimeters or alternator testers, can help diagnose issues with the alternator's output, voltage regulation, or rectification.
3. Diagnostic tools
Advanced diagnostic tools, such as oscilloscopes or computer-based diagnostic systems, can provide more detailed information about the alternator's performance and help pinpoint specific issues.
VIII. Repair and Replacement
A. Repair techniques
In some cases, alternator issues can be resolved through repair techniques, such as:
1. Component replacement
Replacing faulty components, such as the rotor, stator, or regulator/rectifier, can restore the alternator's functionality.
2. Winding repairs
Damaged or shorted windings in the stator can sometimes be repaired through rewinding or insulation replacement.
3. Brush replacement
Replacing worn or damaged brushes in the alternator can improve its performance and extend its lifespan.
B. Replacement guidelines
In other cases, replacing the entire alternator may be necessary.
1. When to replace the alternator
Factors that may necessitate alternator replacement include excessive wear, irreparable damage, or when the cost of repair exceeds the cost of a new alternator.
2. Compatibility considerations
When replacing a motorcycle alternator, it is crucial to ensure compatibility with the motorcycle's electrical system, output requirements, and physical dimensions.
3. Installation procedures
Proper installation procedures, including correct mounting, alignment, and wiring connections, are essential for ensuring the new alternator functions correctly and reliably.
IX. Environmental Factors and Safety
A. Temperature extremes
Motorcycle alternators must be designed to withstand a wide range of temperature extremes, from cold starts to high operating temperatures, without compromising performance or reliability.
B. Vibration and shock resistance
The alternator and its components must be able to withstand the vibrations and shocks associated with motorcycle operation, particularly on rough terrain or during aggressive riding.
C. Moisture and debris protection
Exposure to moisture, dust, and debris can lead to premature wear or failure of the alternator's components. Proper sealing and protection measures are necessary to ensure reliable operation in various environmental conditions.
D. Electromagnetic interference (EMI) shielding
Motorcycle alternators can generate electromagnetic interference (EMI) that can potentially affect other electronic components or systems on the motorcycle. Proper shielding and grounding techniques are essential to mitigate EMI and ensure compatibility with other electrical systems.
E. Safety precautions during maintenance and repair
Working on motorcycle alternators can be hazardous due to the presence of high voltages and rotating components. Proper safety precautions, such as disconnecting the battery, wearing appropriate personal protective equipment (PPE), and following manufacturer guidelines, are crucial to prevent injuries or accidents.
X. Future Trends and Advancements
A. Improved efficiency and power output
As motorcycles continue to incorporate more electrical accessories and advanced systems, the demand for higher-output and more efficient alternators will increase. Advancements in materials, design, and manufacturing techniques may lead to alternators with higher power densities and improved efficiency.
B. Lightweight and compact designs
Weight and space constraints are always a consideration in motorcycle design. Future alternator designs may focus on reducing weight and achieving more compact form factors without compromising performance.
C. Advanced cooling and noise reduction technologies
Improved cooling technologies, such as advanced heat sinks or liquid cooling integration, may help dissipate heat more effectively, allowing for higher output alternators without compromising reliability. Additionally, advanced noise reduction techniques, like active noise cancellation or optimized electromagnetic shielding, could further enhance the riding experience.
D. Integration with motorcycle electrical systems
As motorcycle electrical systems become more sophisticated and interconnected, alternators may be designed to integrate more seamlessly with these systems. This could include features like intelligent load management, predictive maintenance, or real-time monitoring and diagnostics.
E. Predictive maintenance and diagnostics
Advancements in sensor technology and data analytics may enable predictive maintenance and diagnostics for motorcycle alternators. By monitoring various parameters and analyzing data, potential issues could be detected and addressed before they lead to failures, improving reliability and reducing downtime.
XI. Conclusion
Motorcycle alternators are essential components that ensure the reliable operation of a motorcycle's electrical system. From generating power through electromagnetic induction to charging the battery and powering accessories, these devices play a vital role in keeping your ride running smoothly.
Throughout this article, we've explored the construction, principles of operation, performance factors, maintenance, and future advancements of motorcycle alternators. By understanding these aspects, riders can make informed decisions about
FAQs
What is the purpose of a motorcycle alternator?
A motorcycle alternator generates electrical power to run all the electrical components and charge the battery while the engine is running. It takes over from the battery once the engine starts.
How does an alternator generate electricity?
An alternator generates electricity through electromagnetic induction - the rotating magnetic field from the rotor induces an alternating current in the stator windings.
What are the main components of an alternator?
The three main components are the rotor (rotating electromagnet), stator (stationary windings), and regulator/rectifier (converts AC to DC).
What is the difference between a single-unit and separate-component alternator design?
A single-unit has the rotor, stator, and regulator combined, while a separate-component design has these parts mounted separately on the engine and frame.
How does alternator output vary with engine speed?
Alternator output increases with higher engine RPM, as the faster rotor rotation generates more electrical current.
What factors affect alternator performance?
Key factors include output ratings (voltage and current), electrical load management, cooling, and noise reduction strategies.
Why is regular maintenance important for alternators?
Regular maintenance like inspections, cleaning, and lubrication helps ensure longevity and optimal performance of the alternator.
What are common signs of alternator failure?
Warning lights, dimming lights, battery draining quickly, and unusual noises or vibrations can indicate alternator failure.
When should a motorcycle alternator be replaced?
An alternator should be replaced if there is excessive wear, irreparable damage, or if repair costs exceed a new alternator.
What future advancements are expected for motorcycle alternators?
Future trends include improved efficiency, lightweight designs, advanced cooling and noise reduction, integration with electrical systems, and predictive maintenance.
