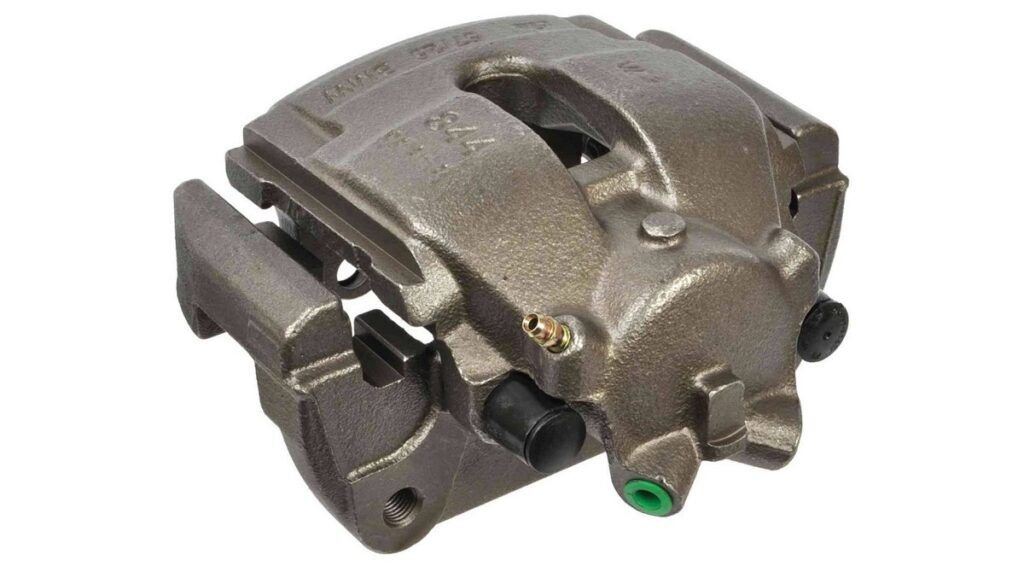

Brake calipers are a critical component of a vehicle's braking system, playing a crucial role in ensuring safe and efficient braking performance. These small but mighty components are responsible for applying the necessary force to the brake pads, which in turn create friction against the rotors, slowing down or stopping the vehicle's motion.
Throughout my career, I've identified three main culprits behind most brake caliper issues on the BMW E46. Let's delve into each of them:
| Caliper Issue | Potential Causes |
|---|---|
| Sticking Calipers | - Corrosion or debris buildup on pistons/sliders - Damaged or worn caliper piston seals - Lack of lubrication on slide pins |
| Seized Calipers | - Extreme corrosion or debris buildup - Damaged caliper slide pins or mounting brackets - Lack of maintenance and lubrication over time |
| Leaking Calipers | - Worn or damaged caliper piston seals - Cracks or damage to the caliper housing - Loose caliper bleeder valve or brake line fittings |
One of the most common issues I've encountered is sticking calipers. This occurs when the caliper pistons fail to retract properly after braking, causing the brake pads to remain partially engaged with the rotor. Several factors can contribute to this problem:
Corrosion or debris buildup: The caliper pistons and sliders can become corroded or clogged with debris, preventing smooth movement.
Damaged or worn caliper piston seals: Over time, the seals that keep the pistons in place can degrade, allowing brake fluid to leak and causing the pistons to stick.
Lack of lubrication: The caliper slide pins, which allow the caliper to move smoothly, require proper lubrication. If neglected, they can seize up, causing the caliper to stick.
In more severe cases, I've encountered completely seized calipers, where the piston or the entire caliper assembly is stuck and not moving at all. This can be caused by:
Extreme corrosion or debris buildup: If left unchecked for an extended period, corrosion and debris can completely immobilize the caliper components.
Damaged caliper slide pins or mounting brackets: Bent or damaged slide pins or mounting brackets can prevent the caliper from moving freely.
Lack of maintenance and lubrication: Neglecting regular maintenance and lubrication can lead to seized calipers over time.
Another common issue I've seen is leaking calipers, where brake fluid escapes from the caliper assembly. This can be caused by:
Worn or damaged caliper piston seals: As the seals deteriorate, they can no longer contain the brake fluid effectively, leading to leaks.
Cracks or damage to the caliper housing: Physical damage or stress cracks in the caliper housing can also allow brake fluid to escape.
Loose caliper bleeder valve or brake line fittings: If the bleeder valve or brake line fittings are not properly tightened, they can develop leaks over time.
When a customer brings in their E46 with suspected brake caliper issues, I follow a systematic approach to diagnose the problem accurately:
The first step is to perform a thorough visual inspection of the brake system. Here's what I look for:
Visible leaks, damage, or excessive corrosion on the calipers
Uneven wear on the brake pads, indicating a sticking caliper
Brake fluid on the wheels or signs of overheating (discolored or glazed brake pads)
With the wheels removed, I can get a closer look at the caliper components. During this stage, I:
Try to move the caliper pistons by hand to check for smooth operation
Check for smooth operation of the caliper slide pins and bushings
Ensure the caliper can move freely on the mounting brackets
While a visual and physical inspection can reveal a lot, sometimes it's necessary to take the vehicle for a road test to fully diagnose the problem. During the road test, I pay close attention to:
Any pulling or veering to one side during braking (indicating a stuck caliper)
Grinding, squeaking, or dragging noises from the brakes
A soft or low brake pedal (indicating a leak or air in the system)
Once I've identified the specific issue, I can proceed with the appropriate repair procedure:
| Caliper Issue | Repair Procedure |
|---|---|
| Sticking Calipers | - Disassemble and clean all components - Replace damaged seals, boots, and bushings - Lubricate moving parts with brake lubricant - Reassemble and bleed the brake system |
| Seized Calipers | - Replace the entire caliper assembly - Inspect and replace damaged mounting brackets - Bleed the brake system after installation |
| Leaking Calipers | - Replace leaking calipers with new units - Use a seal repair kit if only piston seals are leaking - Bleed brakes and replace brake fluid |
In cases of sticking calipers, I typically disassemble the caliper and thoroughly clean all components. This involves removing any corrosion, debris, or buildup that may be causing the sticking. I then replace any damaged seals, boots, or slide pin bushings with new ones. After reassembly, I lubricate all moving parts with the recommended brake lubricant and bleed the brake system to ensure proper operation.
Unfortunately, in cases of severely seized calipers, the entire caliper assembly often needs to be replaced. I inspect the mounting brackets and replace them if they're damaged or corroded. After installing the new caliper, I bleed the brake system to ensure proper brake fluid flow and pressure.
If the caliper is leaking, I typically replace it with a new unit. However, in some cases, if only the piston seals are leaking, a seal repair kit can be used to fix the issue. After repairing or replacing the leaking caliper, I bleed the brakes and replace the brake fluid to ensure a fresh, clean system.
While brake caliper issues are common on the E46, there are several steps I recommend to my customers to help prevent or minimize future problems:
Performing regular brake system inspections and maintenance is crucial. During these inspections, I:
Check for any signs of wear, corrosion, or damage to the calipers and other brake components
Ensure that the calipers are properly lubricated and functioning smoothly
Following the manufacturer's recommended intervals, I clean and lubricate the calipers to prevent sticking and seizing. This simple maintenance task can go a long way in extending the life of the caliper components.
Brake fluid can absorb moisture over time, which can lead to corrosion and other issues. I recommend replacing the brake fluid at the specified intervals to ensure a clean, moisture-free system.
Whenever possible, I advise my customers to use high-quality, genuine BMW or reputable aftermarket brake parts and fluids. Using low-quality or contaminated parts or fluids can lead to premature wear and failure.
When installing new brake pads, I always emphasize the importance of proper bedding procedures. Improper bedding can lead to uneven wear, vibrations, and potentially contribute to caliper issues down the line.
The cost of repairing or replacing brake calipers on a BMW E46 can vary significantly depending on several factors:
| Repair/Replacement | Cost Range (Parts + Labor) |
|---|---|
| Caliper replacement (both front) | $300 - $600 |
| Caliper rebuild kit (both front) | $100 - $300 |
| Brake flush and fluid replacement | $80 - $150 |
| Diagnosis and inspection | $80 - $150 |
It's important to note that labor costs can range from $80 - $150 per hour at an independent shop or $100 - $200+ per hour at a dealer. When it comes to critical brake components, opting for quality parts and workmanship is essential for safety and longevity.
Brake caliper issues on the BMW E46 are not uncommon, but with proper diagnosis, repair procedures, and preventative maintenance, they can be effectively addressed. As an experienced mechanic, I've learned that taking a proactive approach and addressing caliper problems promptly can save E46 owners from costly repairs down the line and ensure safe, reliable brake operation.
Throughout my career, I've encountered countless E46 owners who have benefited from my expertise in diagnosing and fixing brake caliper issues. By sharing my knowledge and experiences, I hope to empower fellow E46 enthusiasts with the information they need to keep their beloved vehicles in top condition.
If you're experiencing any brake-related issues with your E46, don't hesitate to bring it in for a thorough inspection. With the right diagnosis and repair, your trusty Bimmer will be back on the road, delivering the exceptional driving experience you've come to expect.
The most common causes are sticking calipers due to corrosion, debris buildup, worn seals, or lack of lubrication. Seized calipers and leaking calipers are also frequent issues.
Look for visible leaks, damage, excessive corrosion on the calipers, uneven brake pad wear, brake fluid on the wheels, or signs of overheating.
Try moving the caliper pistons by hand, check for smooth operation of slide pins and bushings, and ensure the caliper can move freely on the mounting brackets.
A road test allows you to detect pulling or veering during braking (stuck caliper), grinding/squeaking noises, or a soft brake pedal (indicating a leak or air in the system).
Disassemble and clean all components, replace damaged seals/bushings, lubricate moving parts with brake lubricant, reassemble, and bleed the brake system.
Replace the entire caliper assembly, inspect and replace damaged mounting brackets, and bleed the brake system after installation.
Replace leaking calipers with new units or use a seal repair kit if only the piston seals are leaking. Bleed the brakes and replace the brake fluid.
Perform regular brake system inspections, clean and lubricate calipers at recommended intervals, replace brake fluid as specified, and use quality brake parts and fluids.
Improper bedding can lead to uneven wear, vibrations, and potentially contribute to caliper issues down the line.
Caliper replacement (both front) costs $300-$600, caliper rebuild kit $100-$300, brake flush $80-$150, and diagnosis/inspection $80-$150, plus labor costs.
