Sarah KhanNgày đăng 24 Tháng 5, 2024The blend door actuator is a critical component that regulates the temperature and airflow inside your vehicle's cabin. When this component fails, it can lead to various issues with the climate control system, causing discomfort and frustration. In this comprehensive article, we'll explore the intricacies of blend door actuators, their functions, common symptoms of failure, and the steps involved in diagnosing and addressing this problem.
The blend door actuator is a vital part of a car's Heating, Ventilation, and Air Conditioning (HVAC) system. Its primary role is to control the position of the blend door, a plastic panel that mixes hot and cold air to achieve the desired cabin temperature. Recognizing the signs of a faulty blend door actuator and understanding its importance can help you take prompt action and maintain a comfortable driving experience.

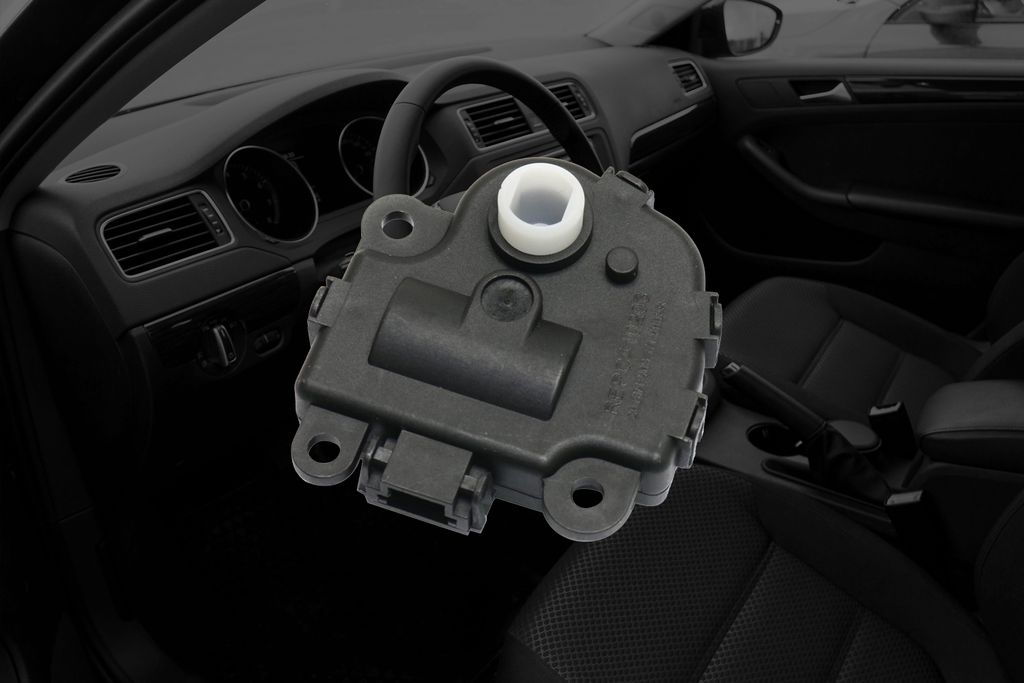

A blend door actuator is a small electric motor that operates the blend door, a plastic panel located within the HVAC system's ductwork. Its main function is to regulate the temperature and airflow inside the cabin by directing the airflow through the heater core or the air conditioning evaporator, depending on the desired temperature setting.
| Component | Function |
|---|---|
| Blend Door Actuator | Operates the blend door to control temperature and airflow |
| Blend Door | Plastic panel that mixes hot and cold air |
| Heater Core | Provides hot air for heating |
| Air Conditioning Evaporator | Provides cold air for cooling |
The blend door actuator works in conjunction with the temperature sensors and climate control system to ensure the cabin maintains the desired temperature. When the actuator fails, it can disrupt the entire HVAC system, leading to various issues.
There are several telltale signs that may indicate a faulty blend door actuator:
Inconsistent Temperature or Airflow
Strange Noises
Unresponsive Climate Control System
One of the most common symptoms is inconsistent temperature or airflow coming from the vents, even when the climate control settings remain unchanged. This indicates that the blend door is not positioned correctly, resulting in improper mixing of hot and cold air.
Another sign of a failing blend door actuator is the presence of clicking, knocking, or tapping sounds coming from the dashboard area. These noises are often caused by worn-out plastic gears or internal components of the actuator, indicating that it is struggling to operate properly.

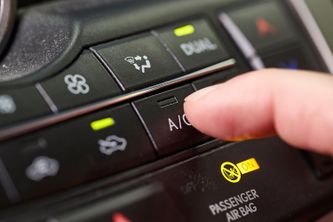

In some cases, the climate control system may become unresponsive, and adjusting the temperature or airflow settings has no effect. This can be a clear indication that the blend door actuator is not functioning correctly, preventing the HVAC system from responding to user inputs.
There are several factors that can contribute to the failure of a blend door actuator:
| Cause | Description |
|---|---|
| Wear and Tear | Over time, the plastic gears and internal components can wear down due to regular use and exposure to environmental factors, leading to malfunctions or complete failure. |
| Electrical Issues | Faulty wiring, loose connections, or problems with the HVAC control module can prevent the actuator from receiving the correct signals or power, causing it to malfunction or stop working. |
| Mechanical Problems | Obstructions, debris, or damage to the blend door itself can hinder its movement and cause the actuator to malfunction. These issues can arise due to improper maintenance or accidental damage. |
To diagnose a faulty blend door actuator, mechanics typically employ the following methods:
Visual Inspection
Listening for Abnormal Noises
Using Diagnostic Tools
Mechanics will inspect the actuator for any visible signs of damage, such as broken gears or loose connections, which can indicate a problem with the actuator.
Another diagnostic technique involves listening for any abnormal noises coming from the dashboard area when operating the climate control system. Clicking, knocking, or grinding sounds can be indicative of a failing blend door actuator.
In some cases, mechanics may use specialized diagnostic tools or scan tools to check for any error codes or issues with the HVAC control module. These tools can provide valuable insights into the root cause of the problem and help pinpoint the faulty component.
If the blend door actuator is confirmed to be faulty, it will need to be replaced. The replacement process typically involves the following steps:
Accessing the Actuator
Disconnecting Electrical Connections
Removing the Faulty Actuator
Installing the New Actuator
Reassembling and Testing
The blend door actuator is typically located behind the dashboard, requiring the removal of various trim pieces and panels to access it. This process can be complex and may require specialized tools and knowledge.
Once the actuator is accessible, the next step is to disconnect the electrical connectors from the faulty unit. This ensures that the new actuator can be properly installed and connected to the HVAC system.
After disconnecting the electrical connections, the faulty actuator must be carefully removed from its mounting location.
The new actuator must be installed, ensuring proper alignment and connections. This step is crucial to ensure that the new actuator functions correctly and integrates seamlessly with the HVAC system.
Once the new actuator is installed, the dashboard components must be reassembled, and the climate control system should be tested to ensure that the new actuator is functioning correctly.
To help prevent blend door actuator failure and extend the lifespan of your HVAC system, it is essential to follow these preventive maintenance tips:
Regular HVAC System Maintenance
Avoiding Moisture and Debris Buildup
Checking for Unusual Noises or Issues
Have your vehicle's HVAC system inspected and serviced regularly by a professional mechanic. Regular maintenance can help identify potential issues before they become major problems.
Ensure that the HVAC system is kept clean and free from moisture and debris, which can cause obstructions and damage to components like the blend door actuator. Regular cleaning and maintenance can prolong the life of these critical components.
Be attentive to any unusual noises or issues with the climate control system, and address them promptly. Addressing problems early can prevent further damage and potentially avoid the need for more extensive repairs.
The cost of replacing a blend door actuator can vary depending on several factors:
Make and model of the vehicle
Labor costs in your area
Complexity of the repair
On average, the parts cost for a new blend door actuator can range from $50 to $200, while labor costs can range from $100 to $300 or more, depending on the complexity of the repair.
While it is possible to replace the blend door actuator as a DIY project for those with mechanical experience and the necessary tools, seeking professional assistance from a qualified mechanic or dealership is often recommended. Professionals have the expertise, specialized tools, and access to repair manuals and diagnostic equipment to ensure the job is done correctly and efficiently.
A faulty blend door actuator can significantly impact the performance of your car's HVAC system, leading to discomfort and potential damage to other components. By understanding the symptoms, causes, and repair process, you can take proactive steps to address this issue and ensure a comfortable driving experience. Regular maintenance and prompt attention to any unusual noises or issues can help prevent blend door actuator failure and extend the lifespan of your vehicle's climate control system.
A blend door actuator controls the temperature and airflow inside a vehicle's cabin by regulating the blend door position. It mixes hot and cold air from the heater core and evaporator.
The blend door actuator is a small electric motor that moves the blend door, a plastic panel, to direct airflow over the heater core or evaporator based on the desired temperature setting.
Common symptoms include clicking or knocking noises from the dashboard area, inconsistent or incorrect temperature airflow, and unresponsive climate control settings.
Wear and tear, electrical issues, mechanical problems like debris obstructing the blend door, and plastic gear damage can cause blend door actuator failure over time.
Mechanics typically perform a visual inspection, listen for abnormal noises, and use diagnostic tools to check for error codes related to the HVAC control module.
While possible for experienced DIYers, replacing a blend door actuator can be complex and may require removing the entire dashboard, so professional installation is often recommended.
The average cost for parts and labor ranges from $100 to $400, depending on the vehicle make and model and the complexity of the repair.
Regular HVAC system maintenance, avoiding moisture and debris buildup, and addressing any unusual noises or issues promptly can help prevent blend door actuator failure.
While not a safety issue, driving with a faulty blend door actuator can be uncomfortable due to inconsistent temperature and airflow in the cabin.
The replacement process can take 1-2 hours, depending on the vehicle and the mechanic's experience, as it involves accessing the actuator, disconnecting electrical connections, and reassembling components.
