How a Car Transmission Works: The Ultimate Guide

Sarah Khan
Sarah Khan
11 min read

Review by: Sarah Khan
Maintenance Transmission

A car's transmission is a vital component that enables the transfer of power from the engine to the wheels, allowing the vehicle to move and operate efficiently. It acts as a force multiplier, providing different gear ratios to match the driving conditions and speed requirements. Without a properly functioning transmission, a car would be unable to accelerate, maintain speed, or even move.

Introduction

A transmission is a complex system of gears, shafts, and other components that work together to transfer the engine's power to the wheels. Its primary function is to provide different gear ratios, which allow the engine to operate within its optimal rpm range while accommodating varying driving conditions and speed requirements.

Here are the key aspects that make transmissions crucial in vehicles:

AspectDescription
Power TransferTransmissions transfer the rotational force from the engine to the wheels, enabling the car to move.
Gear RatiosThey provide a range of gear ratios that can be selected based on driving conditions and speed requirements.
Engine EfficiencyTransmissions allow the engine to operate within its most efficient rpm range, ensuring smooth acceleration, fuel efficiency, and overall drivability.

Without a transmission, the engine's power would be directly coupled to the wheels, making it impossible to achieve optimal engine speeds for acceleration, cruising, or hill climbing.

Types of Car Transmissions

There are several types of transmissions used in modern vehicles, each with its own unique design and operating principles. Let's explore the most common types and their respective advantages and disadvantages.

Manual Transmission

A manual transmission, also known as a stick shift, is one of the oldest and most traditional types of transmissions. It relies on the driver to manually select and change gears using a clutch pedal and gear shifter. The clutch disengages the engine from the transmission, allowing the driver to shift between gears smoothly.

  • How it Works

    • The driver uses the clutch pedal to temporarily disengage the engine from the transmission, allowing them to shift between gears using the gear shifter.

    • When the clutch pedal is released, the selected gear engages, and power is transferred from the engine to the wheels through the meshed gears.

Automatic Transmission

Automatic transmissions are the most common type of transmission found in modern vehicles, particularly in the United States and other Western countries. Unlike manual transmissions, automatic transmissions do not require the driver to manually shift gears or operate a clutch pedal.

  • How it Works

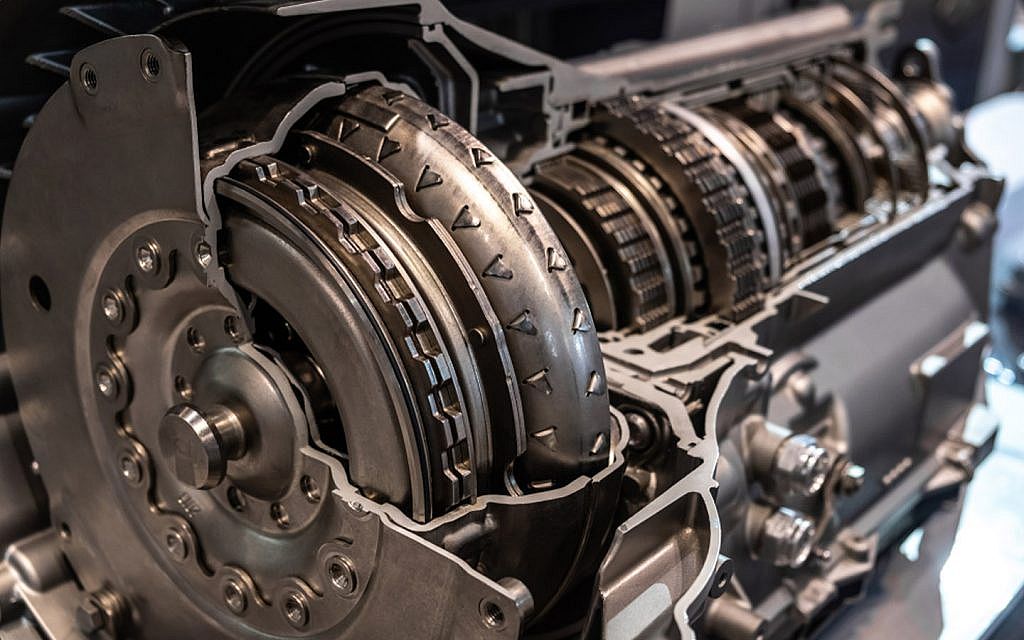

    • The heart of an automatic transmission is a complex system of planetary gearsets, clutches, and a torque converter.

    • The torque converter acts as an automatic clutch, allowing the engine to spin independently of the transmission when the vehicle is stopped or idling.

    • As the driver accelerates, the transmission's hydraulic system and computer controls automatically shift between gears, providing the appropriate gear ratio for the driving conditions.

Continuously Variable Transmission (CVT)

A Continuously Variable Transmission (CVT) is a type of automatic transmission that uses a pulley system instead of traditional gears. Unlike conventional transmissions with a fixed number of gear ratios, a CVT can provide an infinite number of ratios within a specific range, allowing for smoother and more efficient operation.

  • How it Works

    • In a CVT, two pulleys connected by a metal belt or chain adjust their diameters to change the gear ratio continuously.

    • As the pulleys change their diameters, the belt rides higher or lower on the pulleys, effectively changing the gear ratio.

Other types of transmissions, such as Automated Manual Transmissions (AMTs), Dual-Clutch Transmissions (DCTs), and Hybrid Transmissions, are also available in some vehicles, each with their own unique characteristics and advantages.

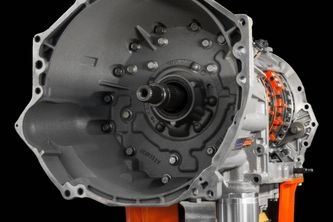

Components of a Transmission

Regardless of the type, all transmissions share some common components that work together to transfer power from the engine to the wheels. These components include:

ComponentDescription
GearsToothed wheels that mesh together to transfer rotational force and change the speed and torque ratios.
ShaftsCylindrical rods that support the gears and allow them to rotate.
ClutchesEngage or disengage the power flow between different components, enabling smooth gear shifts.
Torque Converter (in automatic transmissions)Acts as a fluid coupling, allowing the engine to spin independently of the transmission when the vehicle is stopped or idling.
Hydraulic System (in automatic transmissions)Uses pressurized fluid to engage and disengage clutches, enabling gear shifts.
Electronic Controls (in modern transmissions)Monitor various parameters and manage the shifting process for optimal performance and efficiency.

These components work together in a coordinated manner to transfer power from the engine to the wheels while providing the appropriate gear ratios for different driving conditions.

How Transmissions Work

The basic principle behind how transmissions work is to provide different gear ratios between the engine's rotational speed and the speed of the wheels. This is achieved through a series of gears and shafts that can be engaged or disengaged to change the gear ratio.

Manual Transmission Operation

In a manual transmission, the driver uses the clutch pedal to temporarily disengage the engine from the transmission, allowing them to shift between gears using the gear shifter. When the clutch pedal is released, the selected gear engages, and power is transferred from the engine to the wheels through the meshed gears.

  • Clutch and Gear Shifting

    • The clutch pedal is used to disengage the engine from the transmission, allowing the driver to shift between gears smoothly.

    • When the clutch pedal is depressed, the clutch disengages, and the driver can move the gear shifter to select the desired gear.

  • Gear Ratios and Power Transfer

    • Each gear in a manual transmission provides a different gear ratio, which determines the relationship between the engine's rotational speed and the speed of the wheels.

    • Lower gears have a higher gear ratio, providing more torque for acceleration but limiting the top speed.

    • Higher gears have a lower gear ratio, allowing for higher cruising speeds but with less torque.

Automatic Transmission Operation

In an automatic transmission, the gear shifting process is handled automatically by a complex system of planetary gearsets, clutches, and a torque converter. The torque converter acts as an automatic clutch, allowing the engine to spin independently of the transmission when the vehicle is stopped or idling.

  • Torque Converter and Planetary Gearsets

    • The torque converter acts as a fluid coupling, allowing the engine to spin independently of the transmission when the vehicle is stopped or idling.

    • Planetary gearsets are a system of gears that can be locked or unlocked to provide different gear ratios.

  • Hydraulic System and Electronic Controls

    • The hydraulic system uses pressurized fluid to engage and disengage clutches, enabling gear shifts.

    • Electronic controls monitor various parameters, such as vehicle speed, throttle position, and engine load, to determine the optimal gear ratio for the driving conditions.

As the driver accelerates, the transmission's hydraulic system and electronic controls engage and disengage different clutches, effectively changing the gear ratios by locking and unlocking different sets of planetary gears. This process happens seamlessly without any input from the driver.

CVT Operation

In a Continuously Variable Transmission (CVT), the gear ratio is continuously adjusted using a pulley system instead of fixed gears. Two pulleys, connected by a metal belt or chain, can change their diameters to vary the gear ratio.

  • Pulley System and Metal Belt/Chain

    • The pulley system consists of two pulleys connected by a metal belt or chain.

    • By adjusting the diameters of the pulleys, the gear ratio can be continuously varied.

  • Continuous Gear Ratio Adjustment

    • The CVT's computer controls constantly adjust the pulley diameters based on driving conditions, such as vehicle speed and engine load, to keep the engine operating within its optimal rpm range for maximum efficiency and performance.

As the pulleys change their diameters, the belt rides higher or lower on the pulleys, effectively changing the gear ratio. This allows the CVT to provide an infinite number of gear ratios within a specific range, enabling smooth and efficient operation.

Transmission Maintenance

Regular maintenance is crucial for ensuring the longevity and proper functioning of your vehicle's transmission. Here are some important transmission maintenance tips:

Importance of Regular Maintenance

Neglecting regular transmission maintenance can lead to premature wear, increased friction, and potential transmission failure. Proper maintenance helps extend the lifespan of the transmission and ensures optimal performance and efficiency.

Checking and Changing Transmission Fluid

Transmission fluid lubricates and cools the internal components of the transmission. Over time, the fluid can break down and become contaminated, leading to increased wear and potential transmission failure.

Maintenance TaskDescription
Check Fluid LevelRegularly check the transmission fluid level and top it up if necessary.
Change FluidFollow your vehicle's manufacturer's recommendations for transmission fluid changes, typically every 30,000 to 100,000 miles, depending on the type of transmission and driving conditions.

Inspecting for Leaks

Leaks in the transmission system can cause fluid loss, leading to increased wear and potential transmission damage. Regularly inspect for any signs of leaks and have them repaired promptly.

Avoiding Excessive Load and Aggressive Driving

  • Overloading your vehicle or towing heavy loads beyond its rated capacity can put excessive strain on the transmission, leading to premature wear or failure.

  • Aggressive driving habits, such as rapid acceleration or harsh braking, can cause unnecessary wear on the transmission components.

Common Transmission Problems and Warning Signs

Pay attention to any unusual noises, vibrations, or warning lights related to the transmission. These can be early signs of potential issues that should be addressed promptly by a qualified mechanic.

Common ProblemsWarning Signs
Slipping gearsDelayed engagement, RPM increase without speed increase
Transmission fluid leaksPuddles under the vehicle, low fluid level
Transmission overheatingBurning smell, erratic shifting
Transmission failureComplete loss of power, inability to shift gears

By following these maintenance tips and addressing any issues promptly, you can help extend the life of your vehicle's transmission and avoid costly repairs or replacements.

As automotive technology continues to evolve, transmission systems are also undergoing advancements to improve efficiency, performance, and driving experience. Some of the future trends in transmission technology include:

Increasing Number of Gears

Many modern automatic transmissions now feature 8, 9, or even 10 forward gears, providing a wider range of gear ratios for improved fuel efficiency and performance.

Wider Adoption of CVTs and Dual-Clutch Transmissions (DCTs)

CVTs and DCTs are becoming more prevalent in modern vehicles due to their improved efficiency and performance characteristics.

  • CVTs: Continuously Variable Transmissions offer excellent fuel efficiency and smooth acceleration by continuously adjusting the gear ratio to keep the engine operating within its optimal rpm range.

  • DCTs: Dual-Clutch Transmissions combine the efficiency of a manual transmission with the convenience of an automatic transmission, providing quick and seamless gear shifts.

Electrification and Hybrid Transmissions

As electric and hybrid vehicles become more popular, transmission systems are being adapted to work with electric motors and battery systems, leading to the development of specialized hybrid transmissions.

Advancements in Electronic Controls and Software

Improved electronic controls, sensors, and software algorithms are enabling more precise and efficient gear shifting, as well as the integration of advanced features like adaptive shift patterns and predictive shifting.

Potential for New Transmission Concepts

Researchers and engineers are continuously exploring new transmission concepts and technologies, such as continuously variable planetary transmissions (CVPs) and hydraulic-mechanical transmissions, which could offer further improvements in efficiency, performance, and cost-effectiveness.

Conclusion

A car's transmission is a vital component that enables the vehicle to move and operate efficiently. By understanding how different types of transmissions work, their components, and the importance of regular maintenance, you can ensure that your vehicle's transmission remains in good condition, providing reliable performance and longevity.

As technology advances, transmission systems will continue to evolve, offering improved efficiency, performance, and driving experiences for the future of automotive transportation. Advancements in areas such as increasing gear counts, adopting CVTs and DCTs, electrification, and advanced electronic controls will play a crucial role in meeting the demands of modern driving while addressing environmental concerns and fuel efficiency goals.

Regular maintenance, including checking and changing transmission fluid, inspecting for leaks, and avoiding excessive load or aggressive driving, is essential for prolonging the life of your vehicle's transmission and preventing costly repairs or replacements.

By staying informed about the latest developments in transmission technology and following proper maintenance practices, you can ensure that your vehicle's transmission remains in top condition, providing a smooth and efficient driving experience for years to come.

FAQs

Content Analysis:

The article provides a comprehensive overview of different types of car transmissions, including manual, automatic, continuously variable transmission (CVT), semi-automatic, and dual-clutch transmissions. It covers their working mechanisms, advantages, and disadvantages. However, there are some content gaps that could be addressed through an FAQ section.

FAQ Section:

What is the purpose of a car transmission?

A car transmission is a crucial component that transfers power from the engine to the wheels, allowing the vehicle to move and operate efficiently. It provides different gear ratios to match driving conditions and speed requirements.

How does a manual transmission work?

In a manual transmission, the driver uses a clutch pedal and gear shifter to manually select and change gears, disengaging and engaging the engine from the transmission during gear shifts.

What is the advantage of a CVT transmission?

A CVT transmission provides seamless acceleration without fixed gear ratios, enhancing fuel efficiency and smoothness. It allows the engine to operate at its most efficient RPM range for various vehicle speeds.

What is the difference between a semi-automatic and a dual-clutch transmission?

A semi-automatic transmission combines manual and automatic features, while a dual-clutch transmission offers quick gear shifts and improved efficiency, often found in high-performance vehicles.

How often should transmission fluid be changed?

Transmission fluid should be changed according to the manufacturer's recommendations, typically every 30,000 to 100,000 miles, depending on the type of transmission and driving conditions.

What are the signs of a failing transmission?

Signs of a failing transmission include slipping gears, difficulty shifting, grinding or whining noises, leaking fluid, and warning lights on the dashboard.

Can transmission problems be prevented?

Yes, transmission problems can be prevented through regular maintenance, avoiding excessive load or aggressive driving, and addressing issues promptly when warning signs appear.

What is the cost of transmission repair or replacement?

The cost of transmission repair or replacement can vary greatly, ranging from a few hundred dollars for minor repairs to several thousand dollars for a complete replacement, depending on the vehicle and extent of damage.

Are there any new transmission technologies on the horizon?

Yes, future trends in transmission technology include increasing the number of gears, wider adoption of CVTs and dual-clutch transmissions, electrification and hybrid transmissions, and advancements in electronic controls and software algorithms.

How does the type of transmission affect fuel efficiency?

Manual transmissions and CVTs generally offer better fuel efficiency compared to conventional automatic transmissions due to their design and ability to keep the engine operating within its optimal RPM range.
