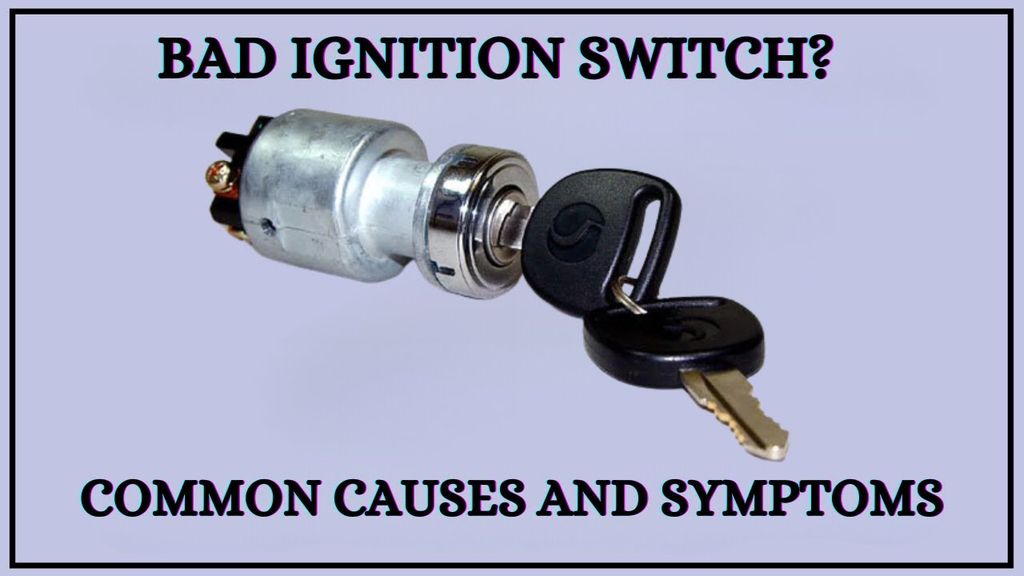

If you're experiencing starting issues or electrical problems with your vehicle, a failing ignition switch could be the culprit. The ignition switch is a critical component that plays a vital role in your car's starting and electrical systems. In this comprehensive guide, we'll explore the common symptoms of a bad ignition switch, how to diagnose the problem, and what you can do to fix it.
The ignition switch is responsible for supplying power to your vehicle's starter motor, ignition system, and various electrical components. When this switch fails, it can lead to a range of issues that can leave you stranded. Understanding the signs of a failing ignition switch can help you address the problem before it escalates, saving you time and money in the long run.
The ignition switch serves several crucial functions in your vehicle's electrical system:
| Function | Description |
|---|---|
| Power supply | Supplies power to the starter motor, ignition system, and electrical accessories |
| Engine control | Enables the engine to start and run by providing power to the ignition system |
| Accessory control | Controls power to various accessories depending on the key position |
The ignition switch is typically located on the steering column, just behind the ignition lock cylinder where you insert your key. It has four key positions:
Lock: Locks the steering wheel and prevents key removal
Off: Turns off the engine and electrical accessories, allows key removal
Run: Allows the engine to run and supplies power to electrical accessories
Start: Engages the starter motor to crank the engine
No-start condition: The engine may not crank or cranks slowly due to a lack of power supply to the starter motor or ignition system.
Engine stalling: The engine may stall while driving if the switch intermittently loses electrical contact, cutting power to the ignition system and fuel pump.
Flickering lights and accessories: Electrical accessories may behave erratically due to inconsistent power supply from a worn or damaged switch.
Key stuck in the ignition: A worn switch can prevent the key from properly disengaging from the lock cylinder.
Unresponsive starter motor: A clicking sound or no sound when turning the key could indicate a lack of power supply to the starter solenoid.
Intermittent electrical problems: Random electrical issues, such as power windows or radio cutting out, can be caused by a failing switch.
Difficulty turning the key: Wear and tear on the switch's internal components can make it harder to rotate the key between positions.
Accessory power issues: Inconsistent power supply to accessories in certain key positions can indicate a switch problem.
Unusual noises when turning the key: Grinding or buzzing noises can be caused by wear and tear on the switch's internal components.
Security light or warning messages: A failing switch can trigger security system issues, causing warning lights or messages to appear.
To properly diagnose a failing ignition switch, you'll need the following tools:
Multimeter
Test light
Vehicle-specific wiring diagram
The diagnostic process involves:
Checking for power at the switch using a multimeter or test light
Measuring switch resistance and comparing it to specified values
Inspecting the wiring harness and connectors for damage, corrosion, or loose connections
When replacing a faulty ignition switch, you have two options:
Replace the entire ignition switch assembly (includes lock cylinder and key)
Replace only the electrical portion of the switch
The cost of replacement varies depending on the vehicle make, model, and chosen replacement type. On average:
| Replacement Type | Cost Range |
|---|---|
| Complete assembly | $100 - $300 |
| Electrical portion only | $20 - $100 |
Labor costs can add an additional $100 to $200 to the total repair bill.
Experienced DIYers can replace the switch themselves, following these general steps:
Disconnect the battery
Remove steering column covers
Disconnect the wiring harness
Remove the retaining screws or bolts
Install the new switch and reconnect the wiring harness
Test the new switch before reassembling the steering column covers
If you're unsure of your abilities or lack the necessary tools, it's best to have a professional mechanic perform the replacement.
To prevent ignition switch failure, follow these tips:
Perform regular maintenance and inspections on your vehicle's electrical system
Practice proper key usage and handling
Address any related issues promptly
Regular maintenance includes:
Checking and cleaning battery terminals
Inspecting the wiring harness and connectors for damage or wear
Testing the battery and charging system
Replacing worn or damaged electrical components
Proper key usage and handling involves:
Avoiding excessive weight on your key chain
Using only the manufacturer-provided key or a high-quality duplicate
Handling the key gently when inserting or removing it from the ignition
Keeping the key and lock cylinder clean and debris-free
Promptly addressing related issues, such as a faulty starter motor, wiring problems, or security system issues, can prevent additional stress on the ignition switch and premature failure.
While some ignition switch issues can be diagnosed and repaired by experienced DIYers, it's best to seek professional help when:
Dealing with complex electrical issues beyond your diagnostic capabilities
Lacking proper tools or expertise to perform necessary repairs
Facing persistent problems even after the ignition switch has been replaced
In these cases, a qualified mechanic or automotive electrician can accurately diagnose and repair the issue to ensure it is properly resolved.
A failing ignition switch can cause various problems, from no-start conditions to stalling and electrical issues. Understanding the common symptoms and diagnostic procedures can help you address the issue before it leaves you stranded.
Regular maintenance, proper key handling, and promptly addressing related issues can prevent ignition switch failure and extend the life of your vehicle's electrical system. If you're unsure about diagnosing or repairing an ignition switch issue, don't hesitate to seek professional help to get you back on the road safely.
The ignition switch supplies power to the starter motor, ignition system, and various electrical components in your vehicle. It enables the engine to start and run by providing power to the ignition system.
The ignition switch is typically located on the steering column, just behind the ignition lock cylinder where you insert your key.
The four key positions of an ignition switch are: Lock (locks the steering wheel and prevents key removal), Off (turns off the engine and electrical accessories, allows key removal), Run (allows the engine to run and supplies power to electrical accessories), and Start (engages the starter motor to crank the engine).
Yes, a bad ignition switch can cause the engine to stall while driving if it intermittently loses electrical contact, cutting power to the ignition system and fuel pump.
To properly diagnose a failing ignition switch, you'll need a multimeter, test light, and vehicle-specific wiring diagram.
The two options for replacing a faulty ignition switch are: replacing the entire ignition switch assembly (includes lock cylinder and key) or replacing only the electrical portion of the switch.
The cost of replacing an ignition switch varies depending on the vehicle make, model, and chosen replacement type. On average, a complete assembly replacement costs $100 - $300, while replacing only the electrical portion costs $20 - $100.
Experienced DIYers can replace the ignition switch themselves, but if you're unsure of your abilities or lack the necessary tools, it's best to have a professional mechanic perform the replacement.
To prevent ignition switch failure, perform regular maintenance and inspections on your vehicle's electrical system, practice proper key usage and handling, and address any related issues promptly.
You should seek professional help when dealing with complex electrical issues beyond your diagnostic capabilities, lacking proper tools or expertise to perform necessary repairs, or facing persistent problems even after the ignition switch has been replaced.
