Ensuring the proper functioning of a vehicle's hydraulic brake system is crucial for safe driving. Over time, these systems can develop leaks, compromising their effectiveness and posing potential safety hazards. This comprehensive guide delves into various methods for detecting and addressing hydraulic brake leaks, empowering you to maintain optimal braking performance.
Hydraulic brake systems play a vital role in transferring the force from the brake pedal to the wheel brakes, allowing vehicles to slow down and stop effectively. However, leaks in these systems can lead to a loss of pressure, resulting in a spongy or soft brake pedal feel and reduced braking power.
Common signs of a hydraulic brake fluid leak include:
| Sign | Description |
|---|---|

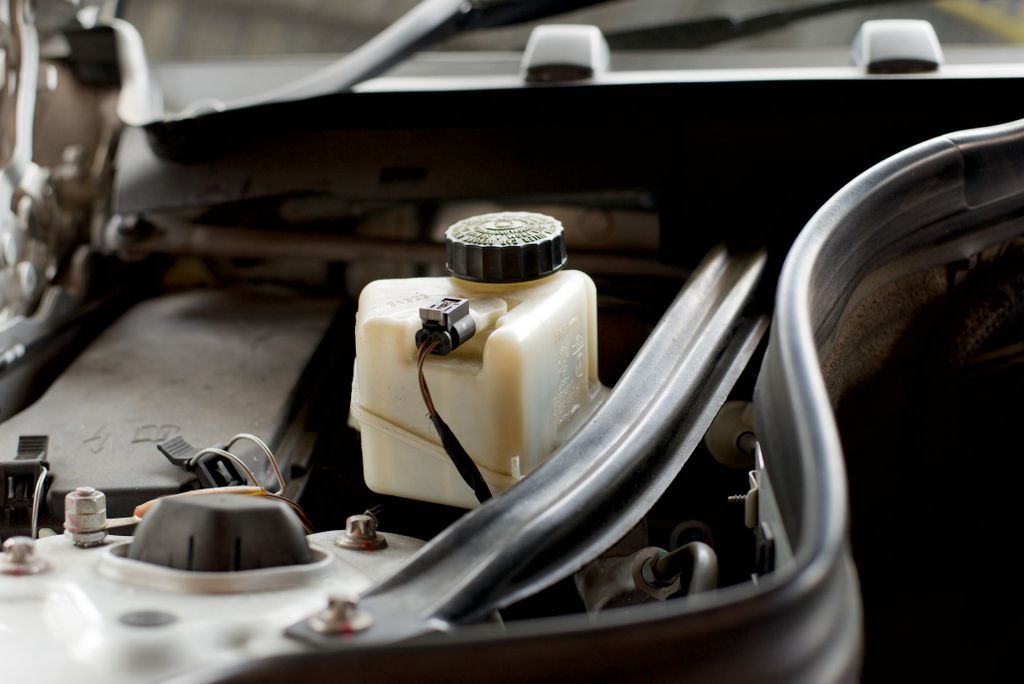

| Low brake fluid level | If the brake fluid level in the master cylinder reservoir is consistently low, even after topping it up, it may indicate a leak in the system. |
| Spongy or soft brake pedal | When air enters the hydraulic system due to a leak, it can cause the brake pedal to feel spongy or soft when depressed, indicating a loss of pressure. |
| Brake warning lights | Most modern vehicles are equipped with brake warning lights on the dashboard that illuminate when there is a problem with the braking system, such as a leak or low fluid level. |
| Visible fluid leaks | If you notice puddles of clear or brownish fluid under your vehicle, it may be a sign of a hydraulic brake fluid leak. |
Recognizing these signs is the first step in addressing the issue.
One of the initial steps in testing for hydraulic brake leaks is to perform a thorough visual inspection. This process involves carefully examining the entire brake system for any signs of fluid leaks or dampness.
Inspecting under the vehicle: Carefully examine the entire brake system, including the master cylinder, brake lines, calipers, and wheel cylinders, for any signs of fluid leaks or dampness.
Using dye or UV light: To better detect small leaks, you can introduce a special dye into the brake fluid and use a UV light to trace any leaks, as the dye will glow under the UV light.
Pressure testing is a more advanced method of detecting hydraulic brake leaks. It involves applying regulated hydraulic pressure to the brake system and monitoring for pressure drops, which can indicate the presence of a leak.
The general steps for pressure testing are:
Connecting a pressure gauge: A pressure gauge is connected to the brake system, typically at the master cylinder.
Applying pressure: Hydraulic pressure is applied to the system, either manually or using a specialized pressure testing tool.
Monitoring pressure: The pressure gauge is monitored for any drops in pressure, which can indicate a leak in the system.
Isolating components: By closing off individual brake lines, you can isolate specific components of the brake system and pinpoint the location of the leak.
Dye testing is another effective method for detecting hydraulic brake leaks. It involves introducing a special dye into the brake fluid and then using a UV light to trace any leaks. The dyed fluid will glow under the UV light, making it easier to identify the source of the leak.
The steps for dye testing are:
Adding the dye: A predetermined amount of dye is added to the brake fluid reservoir.
Pressurizing the system: The brake system is pressurized, either manually or using a pressure testing tool.
Using a UV light: A UV light is used to inspect the entire brake system, including lines, calipers, and wheel cylinders. Any leaks will be visible as the dyed fluid will glow under the UV light.
Vacuum testing is a newer technology that has gained popularity in recent years for testing hydraulic brake systems. It involves using a vacuum to quickly identify leaks, blockages, and other potential problems.
The process of vacuum testing includes:
Connecting the vacuum: A vacuum testing device is connected to the brake system, typically at the master cylinder.
Applying vacuum: A vacuum is applied to the system, and the pressure is monitored.
Detecting leaks: Any leaks in the system will cause a pressure drop, which can be detected by the vacuum testing device.
Identifying blockages: Vacuum testing can also help identify blockages in the brake system, which can be cleared before they cause further issues.
If you're a DIY enthusiast, you can perform a basic visual inspection and some simple testing at home. Here are the steps:
Park your vehicle on a level surface and engage the parking brake.
Inspect under the vehicle for any signs of fluid leaks or dampness around the brake components.
Check the brake fluid level in the master cylinder reservoir and top it up if necessary.
With the engine running, apply the brakes firmly and hold for about 10 seconds. If the pedal sinks to the floor or feels spongy, it may indicate a leak.
If you have access to a pressure gauge, you can perform a basic pressure test by connecting the gauge to the brake system and monitoring for any pressure drops.
While some basic testing can be done at home, it's essential to take your vehicle to a professional mechanic if you suspect a significant leak or if you're unable to pinpoint the source of the problem. Professional mechanics have the necessary tools and expertise to perform more advanced testing and repairs.
They can utilize specialized equipment and techniques, such as:
| Equipment/Technique | Description |
|---|---|
| Scan tools | Diagnostic scan tools can help identify brake system issues and error codes. |
| Brake bleeding machines | These machines can effectively bleed air from the brake system, ensuring proper pressure and pedal feel. |
| Brake line replacement | If a brake line is found to be leaking or damaged, a professional mechanic can replace it with a new one. |
| Caliper and wheel cylinder overhaul | In case of leaks or damage to calipers or wheel cylinders, a mechanic can overhaul or replace these components. |
Regular maintenance can help prevent hydraulic brake leaks and ensure the longevity of your vehicle's braking system. Here are some essential maintenance tips:
Regular brake fluid flushes
Follow the manufacturer's recommended intervals for brake fluid flushes, as old or contaminated fluid can cause corrosion and damage to the system.
Brake fluid is hygroscopic, meaning it absorbs moisture over time, which can lead to corrosion and decreased braking performance.
Inspecting brake components
During routine maintenance, have your mechanic inspect the brake components for any signs of wear, damage, or leaks.
Components to inspect include brake lines, hoses, calipers, wheel cylinders, and the master cylinder.
Replacing worn components
If any brake components, such as hoses, lines, or seals, show signs of wear or damage, replace them promptly to prevent leaks.
Worn or damaged components can lead to fluid leaks and compromised braking performance.
Avoiding contamination
Be careful not to introduce any contaminants into the brake fluid reservoir, as this can cause corrosion and damage to the system.
Contaminants can include dirt, water, or other fluids.
Regularly testing and maintaining hydraulic brake systems is crucial for vehicle safety. By following the methods outlined in this guide, you can effectively identify and address leaks, ensuring your braking system functions optimally and preventing potential accidents. Remember, properly functioning brakes are a critical safety component, and addressing any issues promptly is of utmost importance.
Perform a visual inspection under the vehicle for any signs of fluid leaks or dampness around brake components. Apply brake pedal pressure and check for drops in system pressure indicating a leak.
Common causes include worn seals, damaged lines or fittings, and corrosion. Leaks can also occur from the master cylinder, calipers, wheel cylinders or brake hoses.
Follow the manufacturer's recommended intervals, typically every 2-3 years. Brake fluid is hygroscopic and absorbs moisture over time, which can cause corrosion and decreased braking performance.
Yes, bleeding hydraulic brakes is possible as a DIY task if you have the right tools and follow the proper procedures carefully. However, professional assistance is recommended for complex systems.
Common tools include a brake bleeder kit, catch bottle, wrenches, brake fluid and rags. Some systems may require specialized vacuum bleed equipment.
Apply firm pressure to the brake pedal. If it feels spongy or keeps sinking to the floor, there is likely air trapped in the system requiring a full brake bleed.
Connect a pressure gauge, apply regulated hydraulic pressure, monitor for pressure drops indicating a leak, and isolate components by closing brake lines.
No, do not reuse brake fluid that has been removed from the system as it may be contaminated. Always use fresh, clean brake fluid specified by the manufacturer.
Regular brake fluid flushes, inspecting components for wear/damage, promptly replacing worn parts, and avoiding contamination of the brake fluid reservoir.
If you suspect a significant leak, cannot locate the source, or are uncomfortable performing advanced testing and repairs, have a professional mechanic diagnose and repair the system.
