Introduction

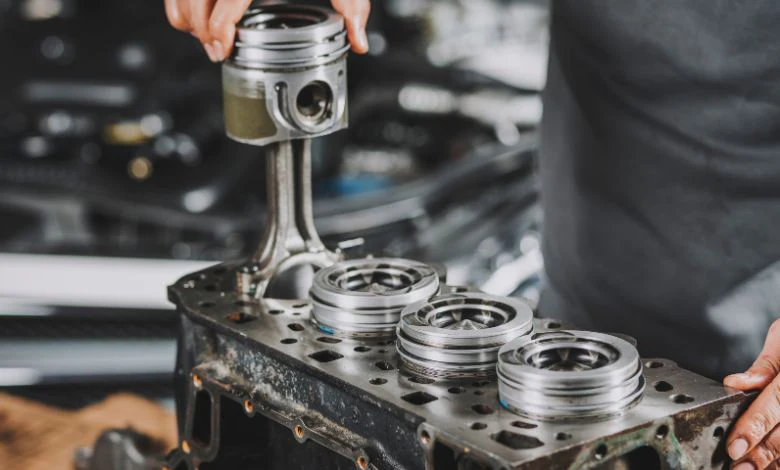

Sealing the Combustion Chamber: The primary function of piston rings is to create an effective seal between the piston and the cylinder wall. This seal prevents the leakage of high-pressure combustion gases from the combustion chamber into the crankcase, ensuring maximum power output and fuel efficiency.

Oil Control: Piston rings regulate the amount of lubricating oil that enters the combustion chamber. Excessive oil can lead to incomplete combustion, increased emissions, and fouling of the spark plugs or injectors. The oil control rings scrape excess oil from the cylinder walls, returning it to the crankcase.

Understanding the Root Causes

Before we dive into the cleaning process, it's essential to understand the root causes of piston ring issues. These problems can stem from various factors, as outlined in the following table:

CauseDescription
Incomplete CombustionWhen fuel doesn't burn completely, carbon deposits can accumulate on the piston rings and grooves.
Lack of Proper LubricationInsufficient or poor-quality oil can lead to excessive wear and tear on the piston rings.
Sludge AccumulationOver time, oil can break down and form sludge, which can clog the piston ring grooves and prevent proper sealing.

These issues can manifest in various ways, such as:

  • Blue or gray exhaust smoke, indicating oil burning

  • Low compression in one or more cylinders

  • Decreased fuel efficiency and engine performance

Inspection and Diagnosis

The first step in addressing piston ring issues is to perform a thorough inspection and diagnosis. This process typically involves:

Exhaust Smoke Check

If you notice blue or gray smoke coming from the exhaust, it's a clear indication that oil is burning, which could be caused by worn or stuck piston rings.

Compression Test

A compression test is a simple yet effective way to identify cylinders with low compression, which can be a direct result of piston ring problems. Here's how it works:

  • Remove all spark plugs from the engine.

  • Install a compression tester in each cylinder.

  • Crank the engine over and record the compression readings.

  • Compare the readings to the manufacturer's specifications.

Low compression in one or more cylinders can indicate piston ring issues.

Borescope Inspection

Using a borescope, a specialized camera tool, you can visually inspect the piston rings and cylinder walls without disassembling the engine. This can provide valuable insights into the extent of the damage or buildup.

Inspection MethodPurpose
Exhaust Smoke CheckIdentify oil burning
Compression TestDetect low compression cylinders
Borescope InspectionVisually assess piston rings and cylinder walls

Repair Procedures

Once you've identified the issue, it's time to tackle the cleaning process. Here's how you can clean the piston rings without removing them:

Step 1: Degreaser/Solvent Application

Pour a degreaser or solvent, such as injector cleaner, down the spark plug holes. This will help dissolve the deposits and sludge accumulated on the piston rings and grooves.

Step 2: Cranking the Engine

With the degreaser or solvent in place, crank the engine over several times. This action will work the solvent around the piston rings, helping to dislodge and dissolve the buildup.

Step 3: Repeat and Soak

Repeat the process of applying the solvent and cranking the engine several times, allowing for adequate soak time between each cycle. This will ensure that the solvent has ample opportunity to penetrate and break down the stubborn deposits.

Step 4: Cylinder Head Removal (Optional)

In cases of severe buildup or stubborn deposits, you may need to remove the cylinder head to gain better access to the piston rings and cylinders. This step should be considered if the initial cleaning attempts are unsuccessful.

It's important to note that this cleaning method may not be effective for severely worn or stuck piston rings. In such cases, removing the engine and disassembling it for a full rebuild would be necessary to replace the rings and restore compression.

Preventive Maintenance

While cleaning the piston rings without removal can provide a temporary solution, it's crucial to address the underlying causes to prevent future issues. Here are some preventive maintenance tips to keep your engine running smoothly:

  • Regular oil changes: Adhering to the recommended oil change intervals and using high-quality oil can help prevent sludge buildup and excessive wear on the piston rings.

  • Filter replacements: Replacing air and fuel filters as recommended by the manufacturer can improve combustion efficiency and reduce carbon buildup.

  • Fuel system cleaners: Using fuel system cleaners periodically can help remove deposits from the fuel system, improving combustion and reducing carbon buildup on the piston rings.

  • Driving habits: Avoid excessive idling and short trip driving, as these conditions can contribute to incomplete combustion and increased carbon buildup.

Maintenance TaskBenefit
Regular Oil ChangesPrevent sludge buildup and excessive wear
Filter ReplacementsImprove combustion efficiency and reduce carbon buildup
Fuel System CleanersRemove deposits from the fuel system
Proper Driving HabitsMinimize incomplete combustion and carbon buildup

Cost Considerations

Cleaning piston rings without full disassembly is a cost-effective temporary solution. The cost typically ranges from $100 to $300, which includes the solvents, gaskets (if cylinder head removal is required), and labor charges.

However, it's important to note that if the piston rings are severely worn or damaged, a full engine overhaul with new rings may eventually be required. This more extensive repair can cost anywhere from $1,000 to $5,000, depending on the vehicle and the extent of the work needed.

Repair OptionCost Range
Piston Ring Cleaning$100 - $300
Engine Overhaul with New Rings$1,000 - $5,000

Final Thoughts

While cleaning piston rings without removal is a viable option for addressing performance issues caused by carbon buildup, oil deposits, and sludge accumulation, it's important to remember that this is a temporary solution. If the piston rings are severely worn or stuck, a full engine disassembly and rebuild may be necessary to replace the rings and restore proper compression.

Proper diagnosis is crucial to determine the best course of action. If you're unsure about the extent of the problem or lack the necessary tools and expertise, it's always advisable to seek the assistance of a professional automotive technician. They can accurately assess the condition of your engine and provide the most appropriate solution, whether it's a simple cleaning or a more extensive repair.

Remember, preventive maintenance is key to prolonging the life of your engine and avoiding costly repairs down the line. By following the recommended maintenance schedule, using high-quality fluids, and adopting good driving habits, you can minimize the risk of piston ring issues and keep your vehicle running smoothly for years to come.

FAQs

What causes piston rings to fail?

Piston rings can fail due to incomplete combustion leading to carbon buildup, lack of proper lubrication, or sludge accumulation from old oil breaking down.

How can I tell if my piston rings need cleaning?

Signs of dirty piston rings include blue/gray exhaust smoke indicating oil burning, low compression in cylinders, and decreased fuel efficiency.

Is cleaning piston rings without removal a permanent fix?

No, cleaning piston rings without removal is only a temporary solution - severely worn or stuck rings will still need to be replaced through an engine overhaul.

What tools are needed to inspect piston rings?

Common tools used include a compression tester to check for low compression, and a borescope camera to visually inspect the rings and cylinders.

How does cranking the engine help clean the rings?

Cranking works the solvent around the piston rings, helping dislodge built-up deposits and sludge.

Why is preventive maintenance important for piston rings?

Regular maintenance like oil changes, filter replacements, and fuel system cleaners help prevent excessive carbon buildup that fouls the rings.

What are the cost differences between cleaning and replacing rings?

Cleaning rings costs around $100-300, while a full engine overhaul to replace worn rings is $1,000-5,000.

Are there any driving habits that prevent piston ring issues?

Avoiding excessive idling and short trips can minimize incomplete combustion and carbon buildup on the rings.

When should I consider removing the cylinder head?

If initial cleaning attempts are unsuccessful due to severe buildup, removing the cylinder head provides better access.

How often should piston ring cleaning be performed?

There is no set interval - cleaning should be done as needed based on symptoms like low compression or oil burning.
