The automatic shutdown (ASD) relay is a critical component in fuel-injected engines, responsible for supplying power to vital systems such as fuel injectors, ignition coils, and the alternator field. A malfunctioning ASD relay can lead to various engine performance issues, including stalling, no-start conditions, and intermittent operation of electrical components. In this article, we will discuss how to identify, diagnose, and repair ASD relay problems to ensure reliable vehicle operation.
A failing ASD relay can manifest through several symptoms that affect engine performance and electrical system operation, such as:
| Symptom | Description |
|---|---|
| Engine stalling | Intermittent power loss to fuel injectors and ignition coils |
| No-start condition | Failure to supply power to fuel injectors and ignition system |
| Intermittent electrical component operation | Erratic behavior of fuel injectors, ignition coils, and alternator |
| Diagnostic trouble codes (DTCs) | PCM detection of ASD relay issues, e.g., P1682, P0685, P0686 |
If you experience any of these indicators, it is crucial to diagnose the issue promptly to prevent further damage to the engine or electrical system.
To accurately diagnose an ASD relay problem, you will need the following tools:
Scan tool for retrieving diagnostic trouble codes (DTCs) from the PCM
Vehicle-specific wiring diagrams to understand the ASD relay's control circuit
Digital multimeter for testing relay coil resistance, voltage, and ground signals
Basic hand tools, such as pliers, screwdrivers, and wrenches, to access the relay
Having these tools readily available will streamline the diagnosis process and improve accuracy.
The ASD relay is typically situated in the engine compartment fuse and relay box, although the exact location may vary depending on the vehicle make and model. Consult the owner's manual, service manual, or wiring diagram to pinpoint the relay's location. Look for a relay labeled "ASD," "Fuel Pump," or "EFI Main," or refer to the box cover or service manual for correct identification.
Before removing the relay, visually inspect the socket for signs of corrosion, damage, or loose connections. Clean any corrosion with electrical contact cleaner and ensure the relay is securely seated.

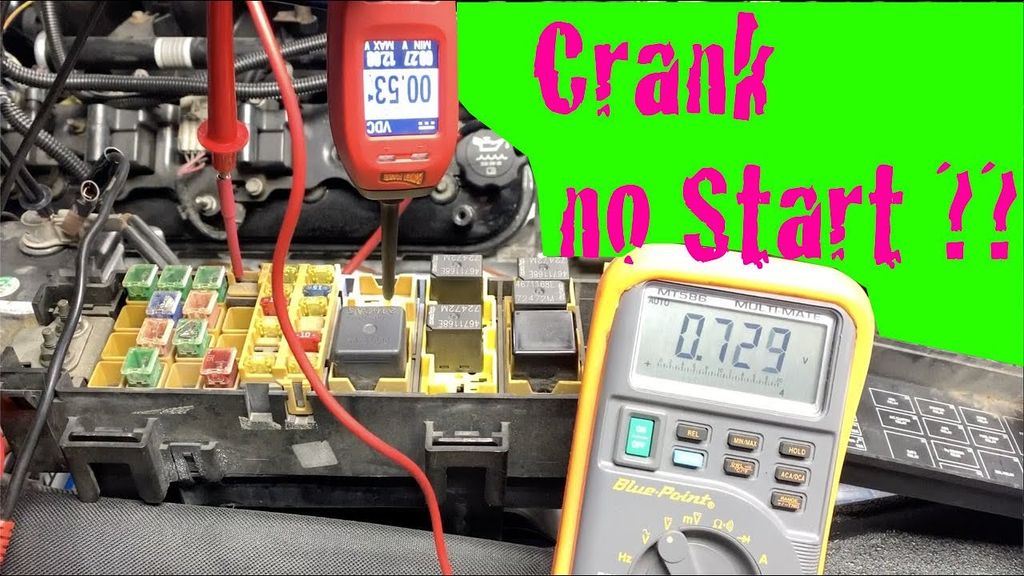

To test the ASD relay, follow these steps while observing safety precautions:
Check relay coil resistance using a digital multimeter and compare it to the manufacturer's specifications (typically 50-100 ohms).
Measure relay coil supply voltage (should be approximately 12V) with the ignition key on.
Test the relay control circuit from the PCM by measuring the voltage at the coil control terminal (pin 85) with the ignition key on.
Verify relay output voltage when energized by jumpering 12V and ground to the coil terminals and measuring voltage at the output terminal (pin 30).
Inspect relay contacts for corrosion or damage, cleaning them with electrical contact cleaner if necessary.
By conducting these tests, you can determine the functionality of the ASD relay and identify potential issues in the control circuit or wiring harness.
Several factors can contribute to ASD relay failure:
High resistance in the relay coil windings due to heat and vibration
Corroded or worn relay contacts from exposure to moisture and contaminants
Damaged wiring or connectors in the relay control circuit
Faulty PCM relay driver causing inconsistent or lack of control signal
Overloaded relay contacts due to shorted components, such as fuel injectors or ignition coils
Understanding these common causes can help you identify the root problem and take appropriate steps to repair or replace the faulty components.
Once you have identified the cause of the ASD relay problem, take the following actions to resolve the issue:
Replace a faulty ASD relay with a new, identical unit Clean corroded relay contacts with electrical contact cleaner and apply dielectric grease Repair damaged wiring and connectors by soldering, heat-shrinking, or replacing affected harness sections Resolve short circuits in the relay output circuit by locating and repairing or replacing the faulty component Verify proper operation after repairs by clearing diagnostic trouble codes and test driving the vehicle
By addressing the root cause of the ASD relay issue, you can restore reliable engine performance and electrical system operation.
To minimize the risk of future ASD relay issues, consider implementing these preventive measures:
Maintain the vehicle electrical system by regularly inspecting the battery, alternator, and starter Keep the relay and its connections clean and dry, applying dielectric grease to prevent corrosion Avoid overloading relay contacts by ensuring proper function of supplied components Properly route and secure wiring harnesses away from heat sources and moving parts Follow the manufacturer's recommended maintenance schedule for inspecting and replacing electrical components
By adopting these preventive practices, you can help ensure the long-term reliability of your vehicle's ASD relay and electrical system.
While many ASD relay issues can be diagnosed and repaired with basic tools and knowledge, there are situations where seeking professional assistance is advisable:
Persistent ASD relay issues despite attempted repairs Lack of necessary tools or expertise to perform electrical repairs safely Suspected PCM or wiring harness damage requiring advanced diagnostic tools Vehicle under warranty, where repairs should be performed by a certified dealership or authorized repair facility
By seeking professional help when necessary, you can ensure accurate diagnosis and repair of your vehicle's ASD relay issue, minimizing the risk of further damage or costly mistakes.
The ASD relay is a vital component in fuel-injected engines, and its failure can lead to various drivability issues. By understanding the symptoms, having the necessary tools, and following a systematic testing procedure, you can effectively diagnose and repair ASD relay problems. Regular maintenance and preventive measures can help prevent ASD relay failures and ensure reliable vehicle operation. If you encounter persistent issues or lack the required tools and expertise, do not hesitate to seek professional assistance to guarantee accurate diagnosis and repair of your vehicle's ASD relay and electrical system.
The ASD relay supplies power to critical engine components such as fuel injectors, ignition coils, and the alternator field. It plays a vital role in ensuring proper engine operation.
Yes, a failing ASD relay can lead to intermittent power loss to fuel injectors and ignition coils, resulting in engine stalling while the vehicle is in motion. This can be a serious safety concern.
If you experience engine stalling, no-start conditions, or intermittent electrical component operation, it is essential to diagnose the issue promptly. Consult a professional mechanic or use the appropriate tools to test the ASD relay and its control circuit.
The ASD relay is usually located in the engine compartment fuse and relay box. Consult your vehicle's owner's manual, service manual, or wiring diagram to determine the exact location of the relay.
To accurately test the ASD relay, you will need a scan tool for retrieving diagnostic trouble codes, vehicle-specific wiring diagrams, a digital multimeter, and basic hand tools such as pliers, screwdrivers, and wrenches.
To test the ASD relay, check the relay coil resistance, measure the relay coil supply voltage, test the relay control circuit from the PCM, verify the relay output voltage when energized, and inspect the relay contacts for corrosion or damage.
Common causes of ASD relay failure include high resistance in the relay coil windings, corroded or worn relay contacts, damaged wiring or connectors in the relay control circuit, faulty PCM relay driver, and overloaded relay contacts due to shorted components.
To fix ASD relay issues, replace a faulty relay with a new one, clean corroded relay contacts, repair damaged wiring and connectors, resolve short circuits in the relay output circuit, and verify proper operation after repairs by clearing diagnostic trouble codes and test driving the vehicle.
To prevent future ASD relay problems, maintain the vehicle electrical system, keep the relay and its connections clean and dry, avoid overloading relay contacts, properly route and secure wiring harnesses, and follow the manufacturer's recommended maintenance schedule for inspecting and replacing electrical components.
Seek professional assistance if you experience persistent ASD relay issues despite attempted repairs, lack the necessary tools or expertise to perform electrical repairs safely, suspect PCM or wiring harness damage requiring advanced diagnostic tools, or if your vehicle is under warranty.
