Thermally driven chillers are revolutionizing the cooling industry by harnessing waste heat and renewable thermal energy to provide efficient and eco-friendly cooling solutions. These innovative chillers offer a sustainable alternative to traditional electric chillers, reducing energy consumption, operational costs, and environmental impact. As the demand for sustainable cooling grows, thermally driven chillers are poised to play a crucial role in shaping the future of the cooling industry.

In this article, we will explore the world of thermally driven chillers, delving into their types, power sources, applications, efficiency, economic considerations, and sustainability impact. We will also discuss future trends and advancements in this rapidly evolving field, highlighting the potential of thermally driven chillers to transform the way we approach cooling in buildings and industrial processes.

I. Introduction

Thermally driven chillers are advanced cooling systems that utilize heat energy, rather than electricity, to produce chilled water for air conditioning in buildings. These chillers operate on the principles of absorption or adsorption, harnessing low-grade heat sources like solar thermal energy, waste heat from combined heat and power (CHP) units, or industrial processes to drive the cooling process. By leveraging otherwise wasted thermal energy, thermally driven chillers significantly reduce the reliance on electricity for cooling, leading to substantial energy savings and environmental benefits.

The growing demand for sustainable cooling solutions has propelled the development and adoption of thermally driven chillers. As businesses and organizations seek to reduce their carbon footprint and improve energy efficiency, these chillers have emerged as a compelling option. Thermally driven chillers not only minimize energy consumption but also contribute to the reduction of greenhouse gas emissions, aligning with global efforts to combat climate change.

II. Types of Thermally Driven Chillers

Thermally driven chillers come in two main types: absorption chillers and adsorption chillers. Each type operates on distinct working principles and offers unique advantages for different applications.

Absorption Chillers

Absorption chillers utilize a fluid pair, typically water-lithium bromide or ammonia-water, to achieve the cooling effect. The absorption process occurs when the refrigerant, such as water, is absorbed into a solution, like lithium bromide. Heat is then applied to the solution, causing the refrigerant to evaporate and separate from the absorbent. The evaporated refrigerant undergoes condensation, expansion, and evaporation, similar to a conventional vapor compression cycle, to produce the desired cooling.

Lithium bromide absorption chillers are the most common type, known for their high efficiency and compatibility with low-grade heat sources. These chillers excel in large-scale applications, such as commercial buildings and industrial processes, where waste heat is readily available. The absorption process allows for efficient cooling without the need for significant electrical input, making absorption chillers an attractive choice for sustainable cooling solutions.

Adsorption Chillers

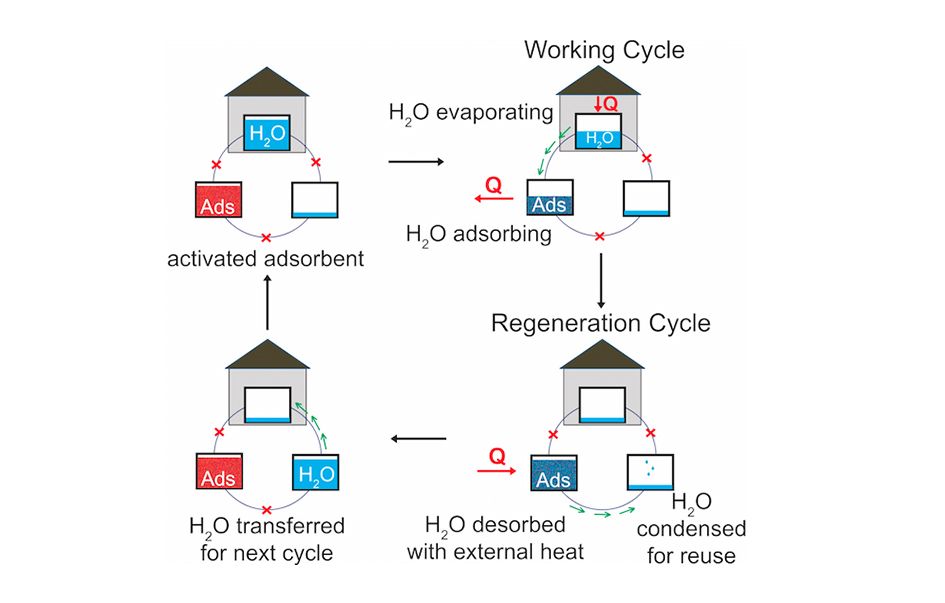

Adsorption chillers rely on the adsorption of a refrigerant onto a solid adsorbent material, such as zeolite, silica gel, or activated carbon. The adsorption process occurs when the refrigerant molecules adhere to the surface of the adsorbent, creating a thin film. Heat is then applied to the adsorbent, causing the refrigerant to desorb and evaporate. The evaporated refrigerant undergoes condensation, expansion, and evaporation, similar to absorption chillers, to produce the cooling effect.

Compared to absorption chillers, adsorption chillers have the advantage of operating with lower driving heat temperatures, making them suitable for applications with limited waste heat availability. However, they typically have lower cooling capacities and efficiencies compared to absorption chillers. Adsorption chillers find applications in smaller-scale systems and niche markets where low-grade heat sources are prevalent.

III. Power Sources for Thermally Driven Chillers

Thermally driven chillers harness low-grade heat sources to power the cooling process, reducing the reliance on electricity. Two primary power sources for these chillers are waste heat utilization and solar thermal energy.

Waste Heat Utilization

Waste heat is a byproduct of various industrial processes and power generation systems, such as combined heat and power (CHP) plants. Instead of releasing this thermal energy into the environment, thermally driven chillers can capture and utilize it to produce chilled water for cooling purposes. By leveraging waste heat, these chillers achieve significant energy savings and reduce the overall carbon footprint of the cooling system.

For instance, engine waste heat from a CHP plant can be effectively harnessed by a thermally driven chiller to provide air conditioning for a nearby building. This synergistic approach maximizes the utilization of thermal energy, improves overall energy efficiency, and minimizes the need for additional energy input. Waste heat utilization not only reduces energy costs but also contributes to the sustainability goals of the facility.

Solar Thermal Energy

Solar thermal energy presents another promising power source for thermally driven chillers. By integrating solar thermal collectors with the chiller system, the sun's energy can be captured and used to drive the cooling process. This renewable energy source offers a clean and sustainable alternative to conventional cooling methods, particularly in regions with abundant solar radiation.

Solar-powered thermally driven chillers operate by concentrating solar energy onto a collector, which heats a working fluid to drive the absorption or adsorption process. The integration of solar thermal energy with thermally driven chillers requires careful consideration of factors such as collector sizing, storage capacity, and system control strategies to ensure optimal performance and reliability. With advancements in solar thermal technology and declining costs, solar-powered cooling is becoming an increasingly viable option for sustainable building design.

IV. Applications of Thermally Driven Chillers

Thermally driven chillers find applications across a wide range of building types and industries, offering sustainable cooling solutions for diverse needs. The suitability of a thermally driven chiller for a particular application depends on several factors, including the availability of waste heat, cooling capacity requirements, and efficiency targets.

Building TypeSuitability for Thermally Driven Chillers
Data CentersHigh
Commercial BuildingsHigh
Industrial FacilitiesHigh
Residential BuildingsModerate

Data centers, with their substantial cooling requirements, can greatly benefit from thermally driven chillers. By utilizing waste heat from IT equipment or nearby industrial processes, these chillers can efficiently cool the data center while reducing energy consumption and operational costs. Commercial buildings, such as office complexes, shopping malls, and hospitals, are also prime candidates for thermally driven cooling. The availability of waste heat from HVAC systems, combined with the potential for solar thermal integration, makes these chillers an attractive choice for sustainable building design.

Industrial facilities, particularly those with high-temperature processes, can harness waste heat to power thermally driven chillers, providing cooling for both process and comfort applications. This approach enhances overall energy efficiency and reduces the environmental impact of industrial operations. In residential buildings, the application of thermally driven chillers is moderate due to the limited availability of waste heat sources. However, advancements in small-scale chiller technology and the integration of solar thermal systems are making these chillers increasingly viable for residential cooling needs.

When selecting a thermally driven chiller for a specific application, several factors must be considered:

  • Cooling capacity: The chiller should be sized appropriately to meet the cooling demand of the building or process.

  • Efficiency rating: Higher efficiency ratings, such as the Coefficient of Performance (COP), indicate better performance and energy savings.

  • Heat source compatibility: The chiller should be compatible with the available waste heat source or solar thermal system.

  • Space requirements: The physical footprint of the chiller and its auxiliary components should be considered for seamless integration into the building's mechanical system.

V. Efficiency and Performance of Thermally Driven Chillers

The efficiency and performance of thermally driven chillers are crucial factors in determining their viability and cost-effectiveness. The Coefficient of Performance (COP) serves as a key metric to evaluate the efficiency of these chillers.

Coefficient of Performance (COP) Explained

The COP of a thermally driven chiller represents the ratio of the cooling capacity produced to the heat input required. A higher COP indicates better efficiency, as more cooling is generated per unit of heat input.

Chiller TypeTypical COP Range
Absorption Chillers0.7 - 1.5
Adsorption Chillers0.4 - 0.7
Electric Chillers2.5 - 5.0

Several factors influence the COP of thermally driven chillers:

  • Driving heat temperature: Higher driving heat temperatures generally lead to higher COPs, as more thermal energy is available for the cooling process.

  • Heat rejection temperature: Lower heat rejection temperatures, achieved through effective heat dissipation systems, contribute to improved COP.

  • Chilled water temperature: The desired chilled water temperature affects the COP, with higher temperatures resulting in better efficiency.

While the COP of thermally driven chillers is generally lower than that of electric chillers, it is essential to consider the broader context. Thermally driven chillers utilize waste heat or renewable thermal energy, offsetting the lower COP and resulting in significant overall energy savings. By leveraging otherwise wasted thermal energy, these chillers reduce the reliance on electricity for cooling, leading to improved sustainability and cost-effectiveness.

VI. Economic Considerations

The economic viability of thermally driven chillers depends on both the initial cost and the long-term operational costs. While the upfront investment may be higher compared to conventional electric chillers, the potential for long-term energy savings and reduced operational expenses makes thermally driven chillers an attractive option.

Initial Cost Comparison with Conventional Chillers

Thermally driven chillers often have higher initial costs compared to their electric counterparts. This cost premium is attributed to the additional components and integration requirements, such as heat exchangers, storage tanks, and control systems. However, it is crucial to consider the long-term benefits and energy savings potential when evaluating the overall economic feasibility of thermally driven chillers.

Long-Term Operational Cost Savings and ROI Potential

The operational costs of thermally driven chillers are significantly lower than those of electric chillers, primarily due to the utilization of waste heat or renewable thermal energy. By reducing the reliance on electricity for cooling, these chillers offer substantial energy cost savings over their lifetime. The exact savings depend on factors such as energy prices, system size, and utilization rates.

Moreover, the potential for return on investment (ROI) is promising, especially in scenarios where waste heat is readily available or solar thermal energy is abundant. The payback period for thermally driven chillers typically ranges from 3 to 7 years, making them an economically viable choice for long-term cooling solutions. As energy costs continue to rise and sustainability becomes a top priority, the economic benefits of thermally driven chillers are expected to become even more compelling.

VII. Sustainability Impact of Thermally Driven Chillers

Thermally driven chillers play a significant role in promoting sustainable cooling practices and reducing the environmental impact of buildings and industrial processes.

Reduction in Greenhouse Gas Emissions

By harnessing waste heat or renewable thermal energy, thermally driven chillers minimize the use of electricity for cooling, which is often generated from fossil fuel sources. This reduction in electricity consumption directly translates to a decrease in greenhouse gas emissions associated with cooling systems. By adopting thermally driven chillers, businesses and organizations can significantly reduce their carbon footprint and contribute to the global effort to mitigate climate change.

Furthermore, thermally driven chillers often employ environmentally friendly refrigerants, such as water or ammonia, eliminating the need for synthetic refrigerants with high global warming potential (GWP). This transition towards natural refrigerants further enhances the sustainability benefits of thermally driven cooling systems.

Contribution to Sustainable Building Design Principles

Thermally driven chillers align perfectly with the principles of sustainable building design, which aim to minimize energy consumption, optimize resource utilization, and reduce environmental impact. By integrating these chillers into building systems, designers can achieve higher levels of energy efficiency, reduce the carbon footprint of the building, and contribute to green building certifications such as LEED (Leadership in Energy and Environmental Design).

Moreover, the ability of thermally driven chillers to provide both cooling and heating (through heat recovery) further enhances their sustainability benefits. This dual functionality allows for the efficient utilization of thermal energy, reducing the overall energy demand of the building and promoting a more sustainable built environment.

The field of thermally driven chillers is continuously evolving, with ongoing research and development efforts aimed at improving efficiency, reliability, and cost-effectiveness.

Ongoing Developments in Thermally Driven Chiller Technology

Researchers and manufacturers are actively working on advancing thermally driven chiller technology to enhance performance and expand its applications. Some notable developments include:

  • Advanced adsorbent materials: Novel adsorbent materials, such as metal-organic frameworks (MOFs), are being explored to improve the efficiency and performance of adsorption chillers. These materials offer higher adsorption capacities and faster kinetics, leading to more compact and efficient chiller designs.

  • Hybrid systems: The integration of thermally driven chillers with other technologies, such as combined cooling, heating, and power (CCHP) systems, is gaining traction. These hybrid systems maximize overall energy efficiency by utilizing waste heat from power generation to drive the cooling process, while also providing heating and electricity.

  • Modular designs: Modular and scalable chiller designs are being developed to facilitate easier installation, maintenance, and adaptation to different building sizes and cooling requirements. These modular systems offer flexibility and cost-effectiveness, making thermally driven cooling more accessible to a wider range of applications.

Increasing Adoption in Response to Environmental Regulations

As environmental regulations become more stringent and the focus on sustainability intensifies, the adoption of thermally driven chillers is expected to increase. Governments and organizations worldwide are setting ambitious targets for reducing greenhouse gas emissions and promoting energy efficiency in buildings.

Thermally driven chillers offer a viable solution to meet these targets, as they significantly reduce the environmental impact of cooling systems. The increasing awareness of the benefits of these chillers, coupled with supportive policies and incentives, is likely to drive their widespread adoption in the coming years. As businesses and individuals prioritize sustainability and seek cost-effective cooling solutions, thermally driven chillers are poised to play a crucial role in shaping the future of sustainable cooling.

IX. Conclusion

In conclusion, thermally driven chillers are a transformative technology that offers a sustainable and efficient alternative to traditional electric chillers. By harnessing waste heat and renewable thermal energy, these chillers significantly reduce energy consumption, operational costs, and environmental impact. As the demand for sustainable cooling solutions continues to grow, the adoption of thermally driven chillers is expected to accelerate, driven by ongoing technological advancements and supportive environmental regulations. Embracing this technology will be crucial in creating a more sustainable built environment and combating climate change.

FAQs

What is the typical payback period for investing in a thermally driven chiller system?

The payback period for thermally driven chillers typically ranges from 3 to 7 years, depending on factors such as energy prices, system size, and utilization rates.

Can thermally driven chillers be used in residential applications?

While the application of thermally driven chillers in residential buildings is currently moderate due to limited waste heat sources, advancements in small-scale chiller technology and solar thermal integration are making them increasingly viable for residential cooling needs.

How do thermally driven chillers contribute to reducing greenhouse gas emissions?

By harnessing waste heat or renewable thermal energy, thermally driven chillers minimize the use of electricity for cooling, which is often generated from fossil fuel sources, thereby reducing the associated greenhouse gas emissions.

What are the maintenance requirements for thermally driven chillers compared to electric chillers?

Thermally driven chillers generally have fewer moving parts and require less frequent maintenance compared to electric chillers, leading to lower maintenance costs and increased system reliability.

Can thermally driven chillers be integrated with existing HVAC systems in buildings?

Yes, thermally driven chillers can be integrated with existing HVAC systems in buildings, but proper sizing, compatibility assessment, and system modifications may be necessary to ensure optimal performance and efficiency.

What is the typical cooling capacity range of thermally driven chillers?

Thermally driven chillers are available in a wide range of cooling capacities, from small-scale systems suitable for residential applications to large-scale industrial chillers with capacities exceeding 1,000 tons of refrigeration.

How do ambient temperature and humidity levels affect the performance of thermally driven chillers?

The performance of thermally driven chillers is influenced by ambient temperature and humidity levels, with higher ambient temperatures generally leading to reduced cooling capacity and efficiency, while high humidity levels can impact the heat rejection process in the cooling tower.

Can thermally driven chillers provide both cooling and heating simultaneously?

Some advanced thermally driven chiller designs, such as triple-effect absorption chillers, can provide both cooling and heating simultaneously by recovering waste heat from the cooling process, enhancing overall system efficiency.

What are the key factors to consider when selecting a thermally driven chiller for a specific application?

When selecting a thermally driven chiller, key factors to consider include cooling capacity requirements, available waste heat sources, space constraints, efficiency ratings, compatibility with existing systems, and local utility rates for electricity and thermal energy.

How can government policies and incentives support the adoption of thermally driven chillers?

Government policies and incentives, such as tax credits, grants, and favorable utility rates for thermal energy, can encourage the adoption of thermally driven chillers by reducing upfront costs, improving economic viability, and creating a supportive regulatory environment for sustainable cooling solutions.
