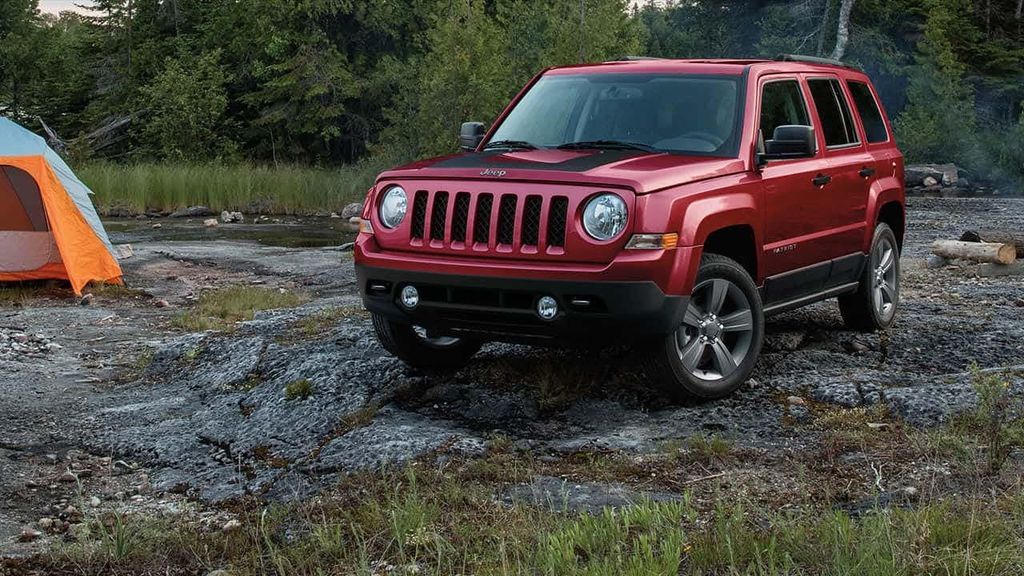

The Jeep Patriot, a compact SUV known for its versatility and off-road capabilities, offers a decent towing capacity for those who need to haul small trailers or recreational equipment. Understanding the towing capacity of your Jeep Patriot is crucial for safe and efficient towing, ensuring that you don't exceed the vehicle's limits and compromise its performance or handling.
The Patriot's towing capacity is influenced by several factors, including engine size, trim level, and the availability of optional towing packages. Throughout its production years, the Patriot's towing capacity ranged from 1,000 lbs to 2,000 lbs, depending on these variables.
The Patriot was offered with two engine options: a 2.0L and a 2.4L engine. While the engine size itself did not significantly impact the towing capacity, the availability of optional towing packages played a crucial role in determining the maximum weight the vehicle could tow.
The Jeep Patriot was available with two engine options:
2.0L engine
Provided a towing capacity of 1,000 lbs without any additional packages.
2.4L engine
Offered the potential for a higher towing capacity of 2,000 lbs when paired with the appropriate towing package.
The Jeep Patriot was offered in various trim levels, such as Sport, Latitude, and Limited. While the trim levels did not directly affect the towing capacity, they often determined the availability of certain towing packages or optional equipment that could enhance the vehicle's towing capabilities.
For example, higher trim levels might have included features like a trailer wiring harness or a more robust cooling system, which could contribute to improved towing performance.
To achieve the maximum towing capacity of 2,000 lbs, the Jeep Patriot required the addition of specific towing packages, which varied depending on the model year.
Engine oil cooler
Full-size spare tire
Trailer wiring harness for connecting trailer lights and brakes
Skid plates
All-terrain tires
Full-size spare tire
Components of the Tow Prep Package
To provide a comprehensive understanding of the Jeep Patriot's towing capacity, it's essential to examine the specifications for each model year. The following tables outline the towing capacity, maximum tongue weight, and maximum frontal area for different engine and package combinations across various model years.
2017-2014 Models:
| Engine | Towing Package | Towing Capacity | Max. Tongue Weight | Max. Frontal Area |
|---|---|---|---|---|
| 2.0L | None | 1,000 lbs | 100 lbs | 20 sq ft |
| 2.0L | Tow Prep | 2,000 lbs | 200 lbs | 32 sq ft |
| 2.4L | None | 1,000 lbs | 100 lbs | 20 sq ft |
| 2.4L | Tow Prep/Off-Road | 2,000 lbs | 200 lbs | 32 sq ft |
2013-2010 Models:
| Engine | Towing Package | Towing Capacity | Max. Tongue Weight | Max. Frontal Area |
|---|---|---|---|---|
| 2.0L | None | 1,000 lbs | 100 lbs | 20 sq ft |
| 2.4L | None | 1,000 lbs | 100 lbs | 20 sq ft |
| 2.4L | Off-Road | 2,000 lbs | 200 lbs | 32 sq ft |
2009 Models:
| Engine | Towing Package | Towing Capacity | Max. Tongue Weight | Max. Frontal Area |
|---|---|---|---|---|
| 2.0L | None | 1,000 lbs | 150 lbs | 20 sq ft |
| 2.4L | None | 1,000 lbs | 150 lbs | 20 sq ft |
| 2.4L | Tow Prep/Off-Road | 2,000 lbs | 250 lbs | 32 sq ft |
2008-2007 Models:
| Engine | Towing Package | Towing Capacity | Max. Tongue Weight | Max. Frontal Area |
|---|---|---|---|---|
| 2.4L | None | 1,000 lbs | 100 lbs | 20 sq ft |
| 2.4L | Tow Prep | 2,000 lbs | 200 lbs | 32 sq ft |
When calculating the total towing capacity, it's crucial to consider not only the trailer weight but also the weight of passengers, cargo, and any additional equipment in the vehicle. The Jeep Patriot's towing capacity ratings typically include the weight of one or two occupants, but it's essential to verify this information in the owner's manual or with a dealership.
Additionally, it's important to factor in the Gross Combined Weight Rating (GCWR), which is the maximum allowable weight of the vehicle, passengers, cargo, and trailer combined. This information can be found on the certification label located on the driver's side door jamb.
Factors to consider:
Trailer weight
Passenger weight
Cargo weight
Additional equipment weight
Gross Combined Weight Rating (GCWR)
When towing near the maximum capacity, it's essential to be aware of potential limitations in performance, fuel efficiency, and handling. Proper loading, trailer maintenance, and driving techniques are crucial for safe and efficient towing.
Potential limitations when towing near maximum capacity:
Reduced performance
Decreased fuel efficiency
Compromised handling
It's important to note that Jeep recommended installing trailer brakes for trailers weighing between 1,000 and 1,999 lbs, and trailer brakes were required for trailers exceeding 2,000 lbs. Additionally, state regulations may have different requirements for trailer brake installation, so it's essential to check local laws.
Adhering to the manufacturer's recommendations and local regulations is crucial for safe and legal towing operations.
Trailer brake requirements:
Recommended for trailers between 1,000 and 1,999 lbs
Required for trailers exceeding 2,000 lbs
Check local regulations for additional requirements
To ensure a safe and enjoyable towing experience with your Jeep Patriot, it's essential to follow these tips and best practices:
Always adhere to the manufacturer's recommended towing capacity and follow the guidelines in the owner's manual.
Distribute the trailer's load evenly and keep the tongue weight within the specified limits.
Regularly inspect and maintain the trailer, including brakes, lights, and tires.
Use appropriate towing equipment, such as a weight-distributing hitch or sway control, if recommended.
Adjust your driving style and speed when towing, allowing for longer stopping distances and wider turns.
Consider the terrain and weather conditions, as they can affect towing performance and safety.
Take breaks during long towing trips to avoid fatigue and ensure safe operation.
By following these guidelines and respecting the Jeep Patriot's towing capabilities, you can enjoy a safe and efficient towing experience with your compact SUV.
Understanding the towing capacity of your Jeep Patriot is crucial for safe and efficient towing operations. This comprehensive guide has provided detailed information on the factors affecting towing capacity, specifications by model year, towing requirements and regulations, and valuable tips for safe towing. By adhering to the guidelines and respecting the vehicle's limits, you can enjoy the versatility and capability of your Jeep Patriot while towing small trailers or recreational equipment with confidence.
The maximum towing capacity for a Jeep Patriot ranges from 1,000 lbs to 2,000 lbs, depending on the model year, engine size, and whether a towing package is installed. With the appropriate towing package, some Patriot models can tow up to 2,000 lbs.
While the Patriot was offered with 2.0L and 2.4L engine options, the engine size itself did not significantly impact the towing capacity. The availability of optional towing packages played a more crucial role in determining the maximum towing capacity.
The Jeep Patriot offered two main towing packages: the Trailer Tow Prep Package (AHC package) and the Freedom Drive II Off-Road Package (AWL package). These packages included components like an engine oil cooler, trailer wiring harness, and other accessories to enhance towing capabilities.
Yes, to achieve the maximum towing capacity of 2,000 lbs for the Jeep Patriot, a towing package (either the Trailer Tow Prep Package or the Freedom Drive II Off-Road Package) was required, depending on the model year.
The maximum tongue weight (the weight exerted by the trailer on the vehicle's hitch) varied by model year but typically ranged from 100 lbs to 250 lbs, depending on the towing capacity and package installed.
The maximum frontal area (the surface area of the trailer facing the wind) for trailers towed by a Jeep Patriot ranged from 20 sq ft to 32 sq ft, depending on the towing capacity and package installed.
Jeep recommended installing trailer brakes for trailers weighing between 1,000 and 1,999 lbs, and trailer brakes were required for trailers exceeding 2,000 lbs when towing with a Jeep Patriot.
While trim levels like Sport, Latitude, and Limited did not directly affect the towing capacity, they often determined the availability of certain towing packages or optional equipment that could enhance the vehicle's towing capabilities.
When calculating the total towing capacity, it's crucial to consider the trailer weight, passenger weight, cargo weight, additional equipment weight, and the Gross Combined Weight Rating (GCWR) of the vehicle.
Some tips for safe and efficient towing with a Jeep Patriot include adhering to the recommended towing capacity, distributing the trailer's load evenly, regularly inspecting and maintaining the trailer, using appropriate towing equipment, adjusting driving style, considering terrain and weather conditions, and taking breaks during long towing trips.
