Warped Brake Disc Symptoms: Signs of Uneven Wear and Vibrations to Watch For

Sarah Khan
Sarah Khan
6 min read

Review by: Sarah Khan
Maintenance Brakes

Introduction

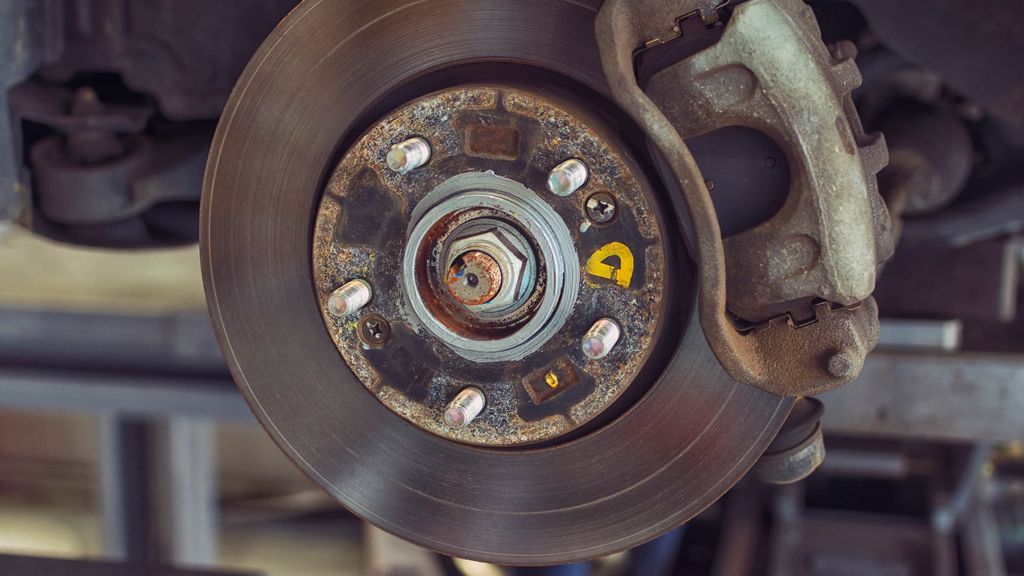

Brake discs, also known as rotors, are a crucial component of a vehicle's braking system. They are circular, flat discs made of cast iron or other durable materials that are attached to the wheels. When the brakes are applied, brake pads clamp down on the rotating disc, creating friction that slows down the wheel's rotation and ultimately brings the vehicle to a stop. The brake disc's design plays a vital role in dissipating the immense heat generated during braking. Many discs feature ventilated or drilled patterns that allow for better air circulation and cooling. This helps prevent brake fade, a phenomenon where the brakes become less effective due to excessive heat buildup.

Symptoms of Warped Brake Discs

One of the most noticeable signs of a warped brake disc is a pulsating sensation in the brake pedal. When you apply the brakes, you'll feel a rhythmic vibration or pulsing that can be quite unsettling. This pulsation is caused by the uneven surface of the warped disc, which creates a periodic variation in the braking force as the disc rotates.

Another telltale symptom is brake roughness or vibration. As the warped disc rotates, it can cause the entire brake assembly to vibrate, resulting in a rough or grinding sensation when braking. This vibration can be felt through the steering wheel, brake pedal, or even the vehicle's body.

Visually, you may notice uneven wear patterns on the brake discs, such as:

  • Grooves

  • Scoring

  • Uneven wear around the circumference

These patterns are caused by the brake pads making uneven contact with the disc's surface due to the warping.

Common Causes of Warped Brake Discs

There are several factors that can contribute to the warping of brake discs:

CauseDescription
Excessive Heat BuildupWhen brakes are applied heavily or for extended periods, the friction between the pads and discs generates immense heat. If this heat cannot dissipate quickly enough, it can cause uneven expansion of the disc material, leading to warping or thickness variation.
Uneven CoolingAfter hard braking, if one portion of the hot disc cools faster than the rest (e.g., driving through a puddle), the uneven contraction can distort the disc's shape.
Improper InstallationIf the wheel lugs are unevenly torqued or over-torqued, it can cause uneven clamping pressure on the disc, leading to warping. The disc must be mounted perfectly parallel to the hub face.
Defective Brake ComponentsStuck or seized brake calipers can apply excessive force on one side of the disc, causing it to warp. Worn wheel bearings can also allow the disc to wobble and warp over time.
Manufacturing DefectsWhile rare, some discs may have metallurgical defects, improper heat treatment, or machining issues from the factory that make them prone to warping.

Diagnosing Warped Discs

As a mechanic, I follow a systematic approach to inspecting and diagnosing warped brake discs:

  1. Visual Inspection:

    • Check for scoring, grooves, cracks, or uneven wear patterns on the discs.

    • These visual cues provide insights into the extent of warping and potential causes.

  2. Runout (Wobble) Check:

    • Mount a dial indicator on the suspension and rotate the disc.

    • Excessive runout can indicate warping or issues with mounting or wheel bearings.

  3. Thickness Variation Measurement:

    • Use a micrometer to measure disc thickness at multiple points around the circumference.

    • Significant variations in thickness can confirm warping and determine if disc replacement is needed.

  4. Brake Component Inspection:

    • Check the condition and proper operation of calipers, pads, and wheel bearings.

    • Defective components can contribute to or exacerbate disc warping.

Repairing Warped Brake Discs

In many cases, warped brake discs need to be replaced. The repair process involves:

  • Safely lifting and supporting the vehicle

  • Removing the wheel, caliper, and brake components

  • Removing the disc from the hub and cleaning mounting surfaces

  • Installing a new disc and lubricating caliper brackets

  • Replacing any other worn brake components (pads, calipers, etc.)

  • Properly torquing the wheel lugs according to manufacturer specifications

  • Reinstalling the caliper and other components

  • Pumping the brakes to set the caliper pistons

  • Performing a brake bedding procedure

It's crucial to replace discs in axle pairs to avoid uneven brake operation and use proper tools and torque specifications during installation.

Prevention and Maintenance

Preventing disc warping is just as important as addressing it when it occurs. Here are some key preventative measures:

  • Follow the manufacturer's recommended brake inspection intervals

  • Replace discs and pads when they reach minimum service limits

  • Flush the brake fluid regularly to prevent contamination

  • Avoid excessive hard braking or riding the brakes

  • Allow discs to cool after heavy braking before continuing

  • Don't overload the vehicle beyond its rated capacity

  • Use engine braking instead of riding the brakes when possible

Cost Considerations

The cost of replacing warped brake discs can vary significantly based on several factors:

FactorCost Range
Replacing Discs Only (per axle)$100 - $300
Replacing Discs and Brake Pads (per axle)$200 - $400
Complete Brake Job with Calipers and Components (per axle)$300 - $800
Labor Costs at a Shop (per axle)$100 - $300
  • Doing the work yourself can save significantly on labor costs but requires tools, skills, and time.

  • The cost also depends on the vehicle make and model, quality of replacement parts (OEM or aftermarket), and whether you replace just the discs or the entire brake system.

Conclusion

Warped brake discs are a common issue that can significantly impact a vehicle's braking performance and safety. As a mechanic, I've seen firsthand the importance of recognizing the symptoms, understanding the causes, and addressing the problem promptly and effectively.

By following proper maintenance schedules, driving habits, and inspection procedures, you can help prevent disc warping and ensure your brakes remain in optimal condition. When warping does occur, it's crucial to have the discs replaced and any underlying issues addressed to restore proper braking function and safety.

Remember, your brakes are one of the most critical safety systems in your vehicle. Investing in their proper maintenance and repair is an investment in your safety and peace of mind on the road.

FAQs

What is the difference between a warped brake disc and one with thickness variation?

A warped brake disc refers to a disc that is bent or distorted, while thickness variation refers to an uneven surface on the disc caused by uneven material transfer from the brake pads. The terms are often used interchangeably, but thickness variation is more accurate.

Can warped brake discs be resurfaced?

Yes, in some cases warped brake discs can be resurfaced or machined on a brake lathe to restore an even surface, provided there is enough material remaining and no cracks or damage to the disc.

How do stuck brake calipers cause warped discs?

If a brake caliper becomes stuck or seized, it can apply excessive clamping force on one side of the brake disc, causing uneven heat buildup and leading to warping of the disc over time.

Do I need to replace brake discs in pairs?

It is generally recommended to replace brake discs in pairs (both front or both rear) to ensure even brake operation and prevent pulling to one side under braking.

Can driving habits contribute to warped brake discs?

Yes, driving habits like excessive hard braking, riding the brakes, or overloading the vehicle can generate excessive heat and contribute to warping of the brake discs over time.

Are aftermarket brake discs more prone to warping?

Quality aftermarket brake discs from reputable manufacturers should not be more prone to warping than OEM discs, provided they are installed and maintained properly.

Can I continue driving with warped brake discs?

It is not advisable to continue driving with warped brake discs, as it can lead to longer stopping distances, uneven brake operation, and increased wear on other brake components.

How do I know if my brake discs need to be replaced?

Signs that your brake discs may need to be replaced include excessive runout or thickness variation measurements, visible cracks or grooves, and persistent brake pulsation or vibration after resurfacing.

Can warped brake discs damage other brake components?

Yes, warped brake discs can cause uneven wear on the brake pads, potentially leading to caliper damage, and increased wear on suspension components due to vibration.

How often should I have my brake discs inspected?

It is recommended to have your brake discs inspected as part of regular maintenance intervals specified by the vehicle manufacturer, typically every 12,000 miles or annually.
