Brake lines are an integral part of a vehicle's braking system, responsible for transmitting hydraulic pressure from the master cylinder to the wheel cylinders or calipers. This pressure application enables the brakes to slow down or stop the vehicle effectively. Understanding brake lines' functionality, components, maintenance requirements, and replacement procedures is crucial for ensuring optimal braking performance and vehicle safety.
Brake lines are conduits that facilitate the transfer of brake fluid under high pressure throughout the braking system. Their primary purpose is to convey the force generated by the driver's input on the brake pedal to the wheel brakes, ultimately slowing or stopping the vehicle's motion.
Properly functioning brake lines are essential for vehicle safety. Any failure or compromise in their integrity can lead to a loss of braking ability, potentially resulting in accidents and injuries. Regular maintenance and timely replacement of brake lines are crucial to ensure the reliable operation of the braking system and the safety of the vehicle's occupants.
There are several types of brake lines used in modern vehicles, each with its own advantages and disadvantages:
| Type | Description | Advantages | Disadvantages |
|---|---|---|---|
| Steel Brake Lines | Double-walled, seamless steel tubing coated with zinc, tin, or epoxy to resist corrosion and rust. | Strong, durable, capable of withstanding high pressures and vibrations. | Susceptible to corrosion over time. |
| Stainless Steel Brake Lines | Offer superior corrosion resistance compared to regular steel lines. | Highly durable and resistant to harsh environments. Often used in high-performance or racing applications. | More expensive and difficult to bend and flare. |
| Copper-Nickel Alloy Brake Lines (Nicopp or Cunifer) | Made from a blend of copper and nickel, providing excellent corrosion resistance and flexibility. | Easier to bend and flare than steel or stainless steel. Preferred by many mechanics and DIY enthusiasts. | More expensive than regular steel lines. |
A complete brake line system consists of several components:
These are the main lines that run from the master cylinder to various points in the braking system, such as the wheel cylinders or calipers. They are typically made of steel, stainless steel, or copper-nickel alloy and are designed to withstand high pressures without deforming or leaking.

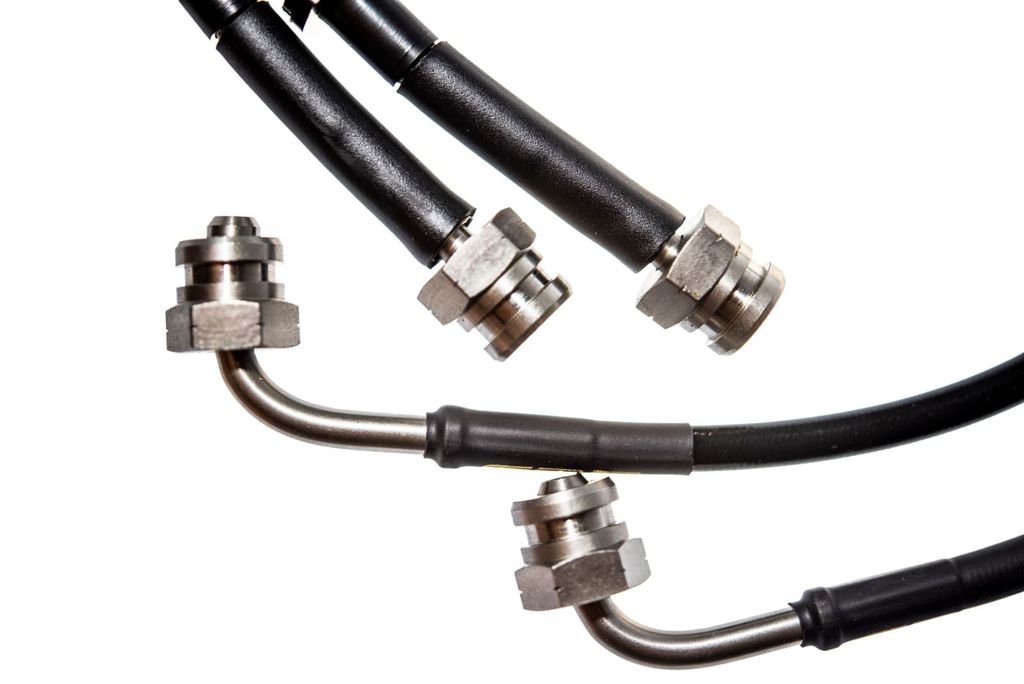

Flexible brake hoses connect the rigid brake pipes to the moving components of the braking system, such as the calipers or wheel cylinders. These hoses are typically made of reinforced rubber or braided stainless steel and are designed to accommodate the movement of the suspension and wheels without compromising the integrity of the brake line.
Brake lines are connected to various components using fittings and flares. The most common types of flares are:
Double Flare (SAE Flare)
Bubble Flare (ISO Flare)
These flares are created at the ends of the brake lines using specialized flaring tools and are designed to create a secure, leak-proof connection when tightened with a flare nut.
Tube nuts and washers are used to secure the brake lines to the various components of the braking system. The tube nut is tightened onto the flared end of the brake line, while the washer (typically made of soft brass or copper) creates a seal between the line and the component.
The routing of brake lines throughout a vehicle is carefully designed to ensure proper function and minimize the risk of damage or interference. In most vehicles, the brake lines follow a specific path:
The master cylinder, located in the engine compartment, has two outlets: one for the front brakes and one for the rear brakes.
Rigid brake pipes run from the master cylinder to the wheel wells or suspension components, where they connect to flexible brake hoses.
The flexible brake hoses connect the rigid pipes to the wheel cylinders (in drum brake systems) or calipers (in disc brake systems).
In some vehicles, additional components such as proportioning valves or combination valves may be incorporated into the brake line routing to optimize braking performance and balance.
Regular inspection and maintenance of brake lines are crucial for ensuring the proper functioning and safety of a vehicle's braking system. Here are some key points to consider:
Visual Inspection: Periodically inspect the entire length of the brake lines for signs of damage, such as cracks, bulges, or leaks. Pay particular attention to areas where the lines may rub against other components or are exposed to road debris.
Corrosion and Rust: Check for any signs of corrosion or rust on the brake lines, especially in areas prone to exposure to road salt or moisture. Rust can weaken the lines and potentially lead to failure.
Flexible Hose Condition: Inspect the flexible brake hoses for signs of cracking, swelling, or excessive wear. These hoses have a limited lifespan and should be replaced if they show signs of deterioration.
Brake Fluid Leaks: Any leaks in the brake line system can lead to a loss of brake fluid and potentially compromised braking performance. If you notice any fluid leaks or a low brake fluid level, have the system inspected and repaired immediately.
While there is no universal replacement interval for brake lines, many manufacturers recommend replacing them every 5-7 years or 60,000-100,000 miles, whichever comes first. However, this can vary based on driving conditions, vehicle usage, and the type of brake lines installed.
When it comes to replacing brake lines, it is essential to follow proper procedures and use the correct tools to ensure a safe and reliable installation. Here are the key steps:
Cutting and Bending: If replacing a section of brake line, you will need to cut the old line and bend the new line to match the routing. This requires specialized tools such as tubing cutters, benders, and flaring tools.
Flaring: Once the new brake line is cut to length and bent to shape, the ends must be flared using the appropriate flaring tool (double flare or bubble flare) to create a secure connection with the fittings.
Installation: Carefully route the new brake line through the vehicle, ensuring that it does not rub against any other components or become kinked or damaged. Secure the line using the appropriate fittings, tube nuts, and washers, following the manufacturer's torque specifications.
Bleeding the System: After installing new brake lines, it is crucial to bleed the braking system to remove any air that may have entered the lines during the replacement process. Air in the brake lines can lead to a spongy or ineffective brake pedal.
It is generally recommended to have brake line replacement and installation performed by a qualified mechanic or technician, as improper installation can compromise the safety and performance of the braking system.
Brake lines play a critical role in the safe operation of a vehicle's braking system. Any failure or compromise in the integrity of the brake lines can lead to a loss of braking ability, potentially resulting in accidents and injuries. Therefore, it is essential to prioritize the maintenance and proper replacement of brake lines to ensure the safety of the vehicle and its occupants.
The design, manufacture, and installation of brake lines are governed by various industry codes and standards to ensure safety and performance. Some of the relevant codes and standards include:
FMVSS 106 (Federal Motor Vehicle Safety Standard 106): This standard specifies the requirements for brake hoses and brake hose assemblies used in hydraulic braking systems.
SAE J1401 (Society of Automotive Engineers): This standard covers the performance and testing requirements for hydraulic brake hoses and fittings.
ISO 3738 (International Organization for Standardization): This standard specifies the requirements for copper-nickel alloy brake tubing.
Manufacturers and aftermarket suppliers must comply with these codes and standards to ensure that their brake line products meet the necessary safety and performance criteria.
Here are some expert tips and best practices regarding brake line maintenance and replacement:
Always use brake lines and fittings specifically designed and approved for automotive braking systems. Never use non-approved materials, as they may not withstand the high pressures and temperatures involved.
When replacing brake lines, consider upgrading to more corrosion-resistant materials like stainless steel or copper-nickel alloy, especially if you live in areas with harsh weather conditions or frequent exposure to road salt.
Inspect brake lines during routine maintenance intervals or whenever you notice any signs of fluid leaks, spongy brake pedal, or other braking issues.
If you are performing a brake line replacement yourself, invest in high-quality tools and follow the manufacturer's instructions carefully. Improper installation can lead to brake failure and potential accidents.
After any brake line replacement or repair, always bleed the braking system thoroughly to remove any air pockets that may have formed during the process.
Consider replacing all flexible brake hoses at the same time as the rigid brake lines, as the hoses may be of a similar age and condition.
By understanding the importance of brake lines, their components, and proper maintenance and replacement procedures, you can help ensure the safe and reliable operation of your vehicle's braking system.
Brake lines are a critical component of a vehicle's braking system, responsible for transmitting hydraulic pressure and enabling the brakes to function effectively. Understanding their types, components, routing, maintenance requirements, and replacement procedures is essential for ensuring optimal braking performance and vehicle safety. By adhering to industry standards, following expert tips, and prioritizing regular inspections and timely replacements, you can help maintain the integrity of your vehicle's brake line system and ensure a safe driving experience.
Brake lines are conduits that facilitate the transfer of brake fluid under high pressure throughout the braking system. Their primary purpose is to convey the force generated by the driver's input on the brake pedal to the wheel brakes, ultimately slowing or stopping the vehicle's motion.
The main types of brake lines are steel brake lines, stainless steel brake lines, and copper-nickel alloy (Nicopp or Cunifer) brake lines. Each type offers different advantages in terms of strength, durability, corrosion resistance, and ease of installation.
A complete brake line system consists of rigid brake pipes, flexible brake hoses, fittings and flares (double flare or bubble flare), tube nuts, and washers to secure the connections.
It is recommended to visually inspect brake lines periodically, typically every 6 months or during routine maintenance intervals. Look for signs of damage, corrosion, leaks, or wear, and replace brake lines if necessary.
The main steps include cutting and bending the new brake line, flaring the ends, routing and installing the new line, securing the fittings, and bleeding the braking system to remove any air pockets.
While it is possible to replace brake lines yourself, it is generally recommended to have the work done by a qualified mechanic or technician. Improper installation can compromise the safety and performance of the braking system.
Brake line products must comply with industry codes and standards such as FMVSS 106 (Federal Motor Vehicle Safety Standard 106), SAE J1401 (Society of Automotive Engineers), and ISO 3738 (International Organization for Standardization).
Use only approved brake line materials, consider upgrading to more corrosion-resistant materials, inspect lines regularly, follow manufacturer's instructions for installation, and bleed the system thoroughly after any repairs.
Brake lines play a critical role in the safe operation of a vehicle's braking system. Any failure or compromise in their integrity can lead to a loss of braking ability, potentially resulting in accidents and injuries.
With a professional mechanic, a brake line replacement typically takes about 1 to 2 hours, depending on the vehicle and the extent of the repair.
