What Are Brake Shoes? Understanding Their Function and Importance

Sarah Khan
Sarah Khan
8 min read

Review by: Sarah Khan
Maintenance Brakes

Introduction

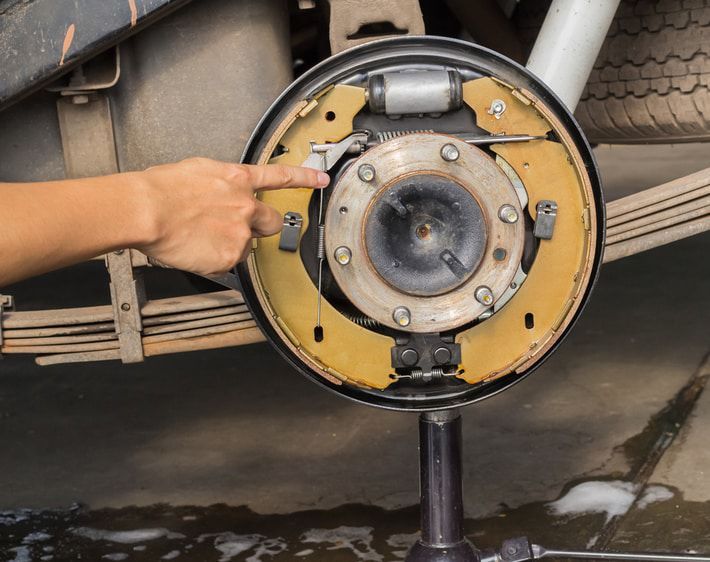

Brake shoes are crescent-shaped metal components lined with friction material on one side. They are an integral part of the drum brake system, which is commonly used on the rear wheels of modern vehicles. The primary function of brake shoes is to create friction against the inside of the brake drum, slowing down or stopping the rotation of the wheels when the brakes are applied.

When the driver presses the brake pedal, the brake shoes are forced outward by hydraulic pistons or mechanical linkages. This causes the friction lining on the brake shoes to press against the inner surface of the rotating brake drum, generating friction and slowing down the vehicle.

The Importance of Brake Shoes

Brake shoes are an integral part of the drum brake system, which is still widely used on many vehicles, particularly on the rear wheels. When you press the brake pedal, hydraulic pressure is applied to the wheel cylinders, causing the brake shoes to press against the inside of the rotating brake drum. This friction slows down the rotation of the wheels, allowing your vehicle to decelerate or come to a complete stop.

While disc brakes have become more prevalent in modern vehicles, drum brakes and their accompanying brake shoes remain a reliable and cost-effective braking solution, especially for lighter vehicles or those with lower performance requirements.

Common Brake Shoe Problems

Over the years, I've encountered various issues related to brake shoes. Here are some of the most common problems and their telltale signs:

ProblemSymptoms
Excessive Wear- Reduced braking power
- Longer stopping distances
- Squealing/grinding noises when braking
Stuck or Frozen Brake Shoes- Brakes dragging
- Burning smell
- Increased brake pedal effort
Damaged or Worn Brake Drums- Uneven wear on brake shoes
- Reduced braking efficiency
Brake Fluid Leaks- Low or spongy brake pedal
- Reduced braking power
- Potential brake failure
Worn or Damaged Hardware- Uneven wear on brake shoes
- Sticking or binding issues

Excessive Wear

One of the most frequent issues I encounter is excessive wear on the brake shoes. As the friction material wears down over time, the brake shoes become thinner, reducing their ability to create sufficient friction to stop the vehicle effectively. This can lead to reduced braking power, longer stopping distances, and squealing or grinding noises when braking.

Stuck or Frozen Brake Shoes

Another common problem is when brake shoes become stuck or frozen in place. This can be caused by corrosion, lack of lubrication, or debris buildup in the brake assembly. When brake shoes are stuck, they can cause the brakes to drag, leading to premature wear, overheating, and potential brake failure. This issue is often accompanied by a burning smell or increased brake pedal effort.

Damaged or Worn Brake Drums

While brake shoes are the primary friction components, the condition of the brake drums is equally important. Excessive wear, scoring, or cracks on the drum surface can cause uneven wear on the brake shoes and reduce braking efficiency. In severe cases, the brake drums may need to be resurfaced or replaced.

Brake Fluid Leaks

Leaks in the brake fluid lines or wheel cylinders can lead to a loss of hydraulic pressure, resulting in reduced braking power or complete brake failure. This issue is often accompanied by a low or spongy brake pedal, and it's crucial to address it promptly to ensure safe braking.

Worn or Damaged Hardware

In addition to the brake shoes themselves, there are various hardware components that play a role in the proper operation of the brake system. Issues with components like return springs, self-adjusters, or brake shoe guides can affect the proper positioning and movement of the brake shoes, leading to uneven wear or sticking.

Inspecting and Diagnosing Brake Shoe Issues

As a mechanic, I've developed a systematic approach to inspecting and diagnosing brake shoe issues. Here are the key steps I follow:

Visual Inspection

The first step is always a thorough visual inspection of the brake assembly. I check the thickness of the brake shoe lining, looking for any areas that are worn down to the rivets or metal backing plate. If the lining is too thin, the brake shoes need to be replaced.

I also look for:

  • Uneven wear patterns

  • Cracks or damage on the brake shoes and drums

  • Signs of leaks

  • Corrosion or debris buildup in the brake assembly

Brake Pedal Feel

The feel of the brake pedal can provide valuable insights into the condition of the brake system:

Pedal FeelPotential Issue
Low or spongyAir in brake lines, master cylinder or wheel cylinder issues
Goes all the way to the floorWorn-out brake shoes or more serious problems

Noise and Vibration

Paying attention to the sounds and vibrations associated with braking can also help diagnose issues:

  • Squealing or grinding noises when braking can indicate worn brake shoes or other problems within the brake assembly.

  • Vibrations or pulsations when braking may be caused by warped or damaged brake drums.

Brake Warning Light

Many modern vehicles are equipped with a brake warning light that illuminates when the brake pads or shoes are worn down and need replacement. While this light is a helpful indicator, it's important to note that it may not always be accurate, and a thorough inspection is still necessary.

Repairing and Replacing Brake Shoes

Once a brake shoe issue has been identified, the next step is to repair or replace the affected components. Here's a detailed overview of the process:

Brake Shoe Replacement

When replacing brake shoes, I follow the manufacturer's instructions for safely removing the brake drums, shoes, and related hardware. I carefully:

  • Clean and inspect all components

  • Replace any worn or damaged parts, such as:

    • Return springs

    • Self-adjusters

    • Brake shoe guides

After installing the new brake shoes, I ensure they are properly:

  • Adjusted according to specifications

  • Lubricated to prevent sticking or binding

Finally, I reassemble the brake assembly and adjust the parking brake cables if necessary.

Brake Drum Resurfacing or Replacement

In some cases, the brake drums may be heavily scored or worn beyond specifications. In these situations, the drums may need to be:

  • Resurfaced (turned on a lathe) to restore a smooth surface

  • Replaced entirely if the wear is too severe

This process helps ensure a smooth surface for the new brake shoes to make contact with, improving braking performance and preventing uneven wear.

Brake Fluid and Component Replacement

If there are leaks or damage to:

  • Brake lines

  • Wheel cylinders

  • Master cylinder

These components may need to be replaced. After any repairs or replacements, it's crucial to:

  • Bleed the brake system to remove any air pockets

  • Refill it with fresh brake fluid to ensure proper hydraulic pressure and braking performance

Preventing Future Brake Shoe Issues

While brake shoe replacement is sometimes necessary, there are steps you can take to help prevent or delay future issues:

Regular Maintenance and Inspections

Following the manufacturer's recommended maintenance schedule for brake inspections and replacements is crucial. During routine service intervals, I always:

  • Check the brake shoe thickness

  • Inspect the overall condition of the brake system

  • Address any potential issues before they become more severe

Proper Driving Habits

Your driving habits can also impact the lifespan of your brake shoes:

  • Avoid excessive braking or riding the brakes, which can accelerate wear

  • Allow brakes to cool down after heavy use or towing before coming to a complete stop to prevent overheating and premature wear

Brake System Cleaning and Lubrication

Keeping brake components clean and free of:

  • Debris

  • Moisture

  • Corrosion

Is essential for proper operation. I also recommend lubricating:

  • Brake shoe guides

  • Self-adjusters

  • Other hardware as recommended by the manufacturer

This ensures smooth movement and prevents sticking or binding.

Cost of Brake Shoe Replacement

The cost of replacing brake shoes can vary depending on:

  • Vehicle make and model

  • Quality of replacement parts

On average, you can expect to pay:

CostRange
Brake shoe set (parts only)$100 - $300
Labor costs at a professional mechanic or dealership$150 - $400

Doing the replacement yourself can save on labor costs, but it requires specialized tools and knowledge. It's generally recommended to have brake work done by a qualified professional, especially if other components like brake drums or wheel cylinders need attention.

Regular brake inspections and timely replacements can help prevent more costly repairs down the line and ensure safe braking performance for your vehicle.

Conclusion

Brake shoes may seem like a simple component, but they play a vital role in ensuring your vehicle can stop safely and reliably. As a mechanic, I've seen firsthand the importance of proper brake shoe maintenance and the consequences of neglecting this crucial system.

By understanding the common issues that can arise with brake shoes, learning how to inspect and diagnose problems, and following proper repair and replacement procedures, you can help extend the life of your brake system and avoid costly repairs or potential safety hazards.

Remember, your brakes are one of the most critical safety features of your vehicle. Don't hesitate to seek professional assistance if you suspect any issues with your brake shoes or overall braking system. Investing in regular maintenance and timely replacements can provide peace of mind and ensure a safe driving experience for you and your passengers.

FAQs

What are the different types of brake shoe materials?

The most common brake shoe materials are semi-metallic, ceramic, and organic (non-asbestos). Semi-metallic shoes offer good performance and durability, while ceramic shoes provide better insulation against brake noise.

How do I know if my brake shoes need replacement?

Signs that your brake shoes need replacement include squealing or grinding noises when braking, reduced braking performance, a low or spongy brake pedal, and the parking brake not holding effectively.

Can I replace just one brake shoe instead of the full set?

No, brake shoes should always be replaced as a full set (both shoes on the same wheel) to ensure even wear and proper brake balance.

What tools are needed to replace brake shoes?

Common tools needed include a jack and jack stands, lug wrench, brake spanner or drum puller, pliers, brake spring tool, wire brush, and brake grease.

How do I adjust brake shoes after replacement?

After installing new brake shoes, you'll need to adjust them using the star wheel adjuster or brake adjustment tool until you get a slight drag on the brake drum when spun.

Should I replace wheel cylinders when changing brake shoes?

It's generally recommended to inspect the wheel cylinders and replace them if they are leaking or showing signs of wear to prevent future brake issues.

How often should I replace brake shoes?

Brake shoe replacement intervals vary, but many automakers recommend inspecting them around every 30,000-50,000 miles and replacing when they get down to 1/16" thick.

Can I reuse the old brake drums when replacing shoes?

You can potentially reuse brake drums if they are within specifications for minimum thickness and show no signs of excessive scoring, cracking or hot spots.

What should I do if my brake drum is stuck?

Try spraying penetrating oil around the drum and striking it with a rubber mallet. If it's still stuck, you may need to cut the drum off using an angle grinder.

How do I bleed the brakes after replacing shoes?

After a brake shoe replacement, you'll need to bleed the brake system to remove any air pockets by pumping the brake pedal with the bleeder valves open.
