What Does Check BSD System Mean ?

Miguel Rodriguez
Miguel Rodriguez
4 min read

Review by: Miguel Rodriguez
Maintenance Electrical

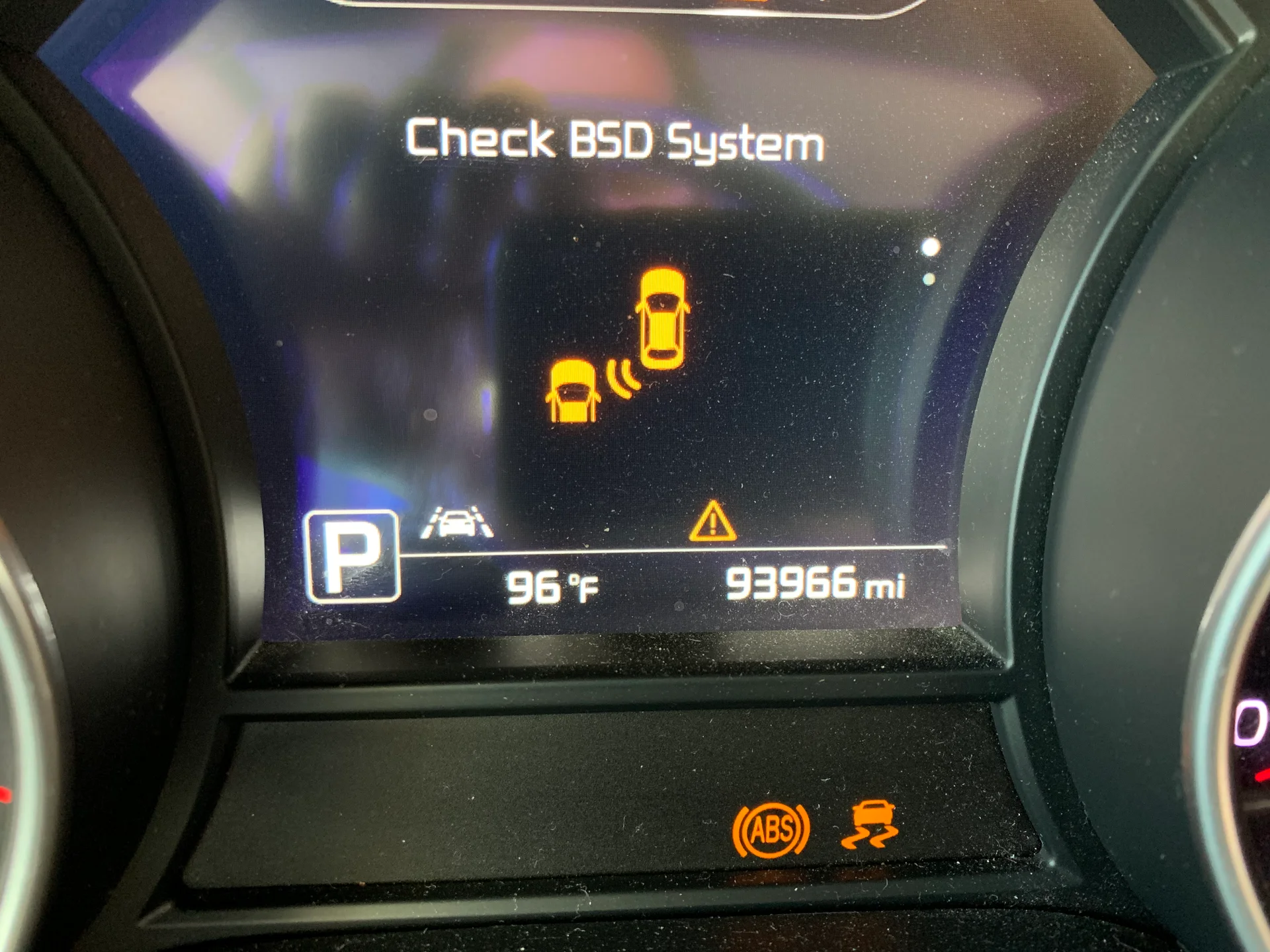

The "Check BSD System" warning on your vehicle's dashboard indicates an issue with the Blind Spot Detection (BSD) system, an advanced safety feature designed to enhance your awareness and prevent collisions. This comprehensive guide will help you understand the causes, diagnose the problem, and explore repair options to restore the system's functionality.

The Blind Spot Detection System Explained

The BSD system uses radar sensors, typically located in the rear bumper, to monitor the blind spot zones on both sides of your vehicle. These sensors continuously scan for other vehicles, pedestrians, or obstacles that may be obscured from your view, alerting you through visual and audible warnings when potential hazards are detected.

ComponentFunction
Radar SensorsEmit and receive radio waves to detect objects in blind spots
Control ModuleProcesses sensor data and triggers warnings
Warning IndicatorsVisual (side mirrors) and audible alerts notify the driver

By providing an extra set of eyes, the BSD system helps reduce the risk of collisions during lane changes, merging, or backing up, ultimately enhancing your safety on the road.

Potential Causes of the Warning

Several factors can trigger the "Check BSD System" warning, including:

  • Sensor Damage or Obstruction

    • Minor rear-end collisions

    • Road debris

    • Accumulated dirt or snow

  • Wiring Issues

    • Loose connections

    • Damaged wiring

    • Electrical interference

  • Control Module Failure

    • Internal faults or failures

  • Software or Calibration Problems

    • Outdated software versions

    • Incorrect calibration settings

Diagnosing the Issue

To address the warning effectively, proper diagnosis is essential. Here are the steps to follow:

  1. Inspect the Rear Bumper Area

    • Look for signs of damage, obstructions, or debris near the sensor locations.

  2. Scan for Diagnostic Trouble Codes

    • A qualified technician can retrieve trouble codes related to the BSD system.

    • Common codes include:

      | Trouble Code | Description | |--------------|-------------| | P0628 | Left Rear Sensor Circuit | | P0629 | Right Rear Sensor Circuit | | C1234 | BSD Control Module Fault | | U1234 | BSD Software Error |

    • These codes provide clues about the specific component or system causing the issue.

Repair and Resolution Options

Once the root cause is identified, several repair options are available:

  • Replacing Damaged or Faulty Components

    • Radar sensors

    • Wiring harnesses

    • Control modules

  • Software Updates and Recalibration

    • Installing the latest software version

    • Recalibrating the sensors for optimal performance

Preventive Maintenance

Regular maintenance is crucial for ensuring the long-term reliability of your BSD system:

  • Annual Inspections

    • Thorough examination of system components

  • Sensor Cleaning

    • Removing accumulated dirt or debris

  • Software Updates

    • Addressing known issues and improving performance

Professional technicians have the knowledge and tools to conduct comprehensive inspections and service, ensuring your BSD system operates at its best.

Advanced Features and Future Developments

Many modern vehicles offer advanced BSD system features, such as:

  • Integration with other driver assistance technologies

    • Lane change assist

    • Rear cross-traffic alert

    • Automatic emergency braking

  • Customizable settings and preferences

    • Adjusting sensitivity levels

    • Enabling or disabling warnings

As technology advances, we can expect further improvements in BSD systems, including enhanced sensor capabilities, improved object recognition algorithms, and seamless integration with other advanced driver assistance systems (ADAS).

Conclusion

Addressing the "Check BSD System" warning promptly is essential for maintaining the safety and reliability of this crucial driver assistance feature. By understanding the potential causes, performing proper diagnostics, and implementing the appropriate repairs or updates, you can ensure your BSD system continues to provide valuable assistance during lane changes and backing maneuvers.

Remember, while advanced technologies like the BSD system are designed to enhance safety, they should never replace attentive and responsible driving practices. Always remain vigilant and exercise caution when operating your vehicle, especially in situations where blind spots may be present.

FAQs

What is the Blind Spot Detection (BSD) system?

The Blind Spot Detection (BSD) system uses radar sensors to monitor the blind spot zones on both sides of your vehicle and alert you when potential hazards are detected.

What are the common causes of the "Check BSD System" warning?

Common causes include sensor damage or obstruction, wiring issues, control module failure, and software or calibration problems.

How can the issue be diagnosed?

The issue can be diagnosed by inspecting the rear bumper area for damage or obstructions, and scanning for diagnostic trouble codes related to the BSD system.

What are the repair options for the BSD system?

Repair options include replacing damaged or faulty components (sensors, wiring, control modules), and performing software updates and recalibration.

Why is regular maintenance important for the BSD system?

Regular maintenance, such as annual inspections, sensor cleaning, and software updates, is crucial for ensuring the long-term reliability and optimal performance of the BSD system.

What are some advanced features of modern BSD systems?

Advanced features include integration with other driver assistance technologies (lane change assist, rear cross-traffic alert, automatic emergency braking), and customizable settings and preferences.

How can the BSD system enhance driving safety?

The BSD system enhances driving safety by providing an extra set of eyes to monitor blind spots and alerting the driver to potential hazards during lane changes, merging, or backing up.

What should drivers keep in mind when using the BSD system?

While the BSD system is designed to enhance safety, it should never replace attentive and responsible driving practices. Drivers should always remain vigilant and exercise caution, especially in situations where blind spots may be present.

What are the typical components of a BSD system?

The typical components of a BSD system include radar sensors (to detect objects), a control module (to process sensor data and trigger warnings), and warning indicators (visual and audible alerts).

How can future developments improve BSD systems?

Future developments may include enhanced sensor capabilities, improved object recognition algorithms, and seamless integration with other advanced driver assistance systems (ADAS).
