The master cylinder is an indispensable component that lies at the heart of a vehicle's braking system. It acts as a crucial intermediary, converting the mechanical force applied to the brake pedal into the hydraulic pressure necessary to engage the brakes and bring the vehicle to a controlled stop. This comprehensive article delves into the intricate workings of the master cylinder, exploring its functionality, components, types, and the paramount importance of proper maintenance for ensuring safe and reliable braking performance.

I. Introduction to Master Cylinders

A master cylinder is a hydraulic pump that serves as the intermediary between the mechanical force exerted on the brake pedal and the hydraulic pressure required to engage the brakes. When the brake pedal is depressed, the master cylinder displaces brake fluid from its reservoir(s) into the brake lines, creating hydraulic pressure. This pressurized fluid travels through the lines and enters the brake calipers or wheel cylinders, forcing the brake pads or shoes to clamp against the rotors or drums, generating friction and slowing or stopping the vehicle's motion.

II. How Master Cylinders Work

The operation of a master cylinder is a precise and intricate process, involving several key components working in harmony:

• Pistons: When the brake pedal is depressed, it pushes one or more pistons inside the master cylinder. These pistons displace the brake fluid from the cylinder's reservoir(s) into the brake lines, creating hydraulic pressure.

• Seals: Seals play a crucial role in preventing brake fluid leaks and maintaining pressure within the cylinder. They ensure the proper functioning of the hydraulic system by creating a tight seal around the pistons.

• Springs: Springs provide resistance and return the pistons to their original position when the brake pedal is released. This action allows the brake pads or shoes to disengage from the rotors or drums, restoring the vehicle's ability to move freely.

The interplay between these components is essential for the master cylinder to function correctly and efficiently convert the mechanical force from the brake pedal into the hydraulic pressure required to engage the brakes.

III. Types of Master Cylinders

There are two primary types of master cylinders: single reservoir and dual reservoir. Each design offers distinct advantages and disadvantages, catering to different vehicle requirements and safety considerations.

A. Single Reservoir Master Cylinders

A single reservoir master cylinder has one reservoir that supplies brake fluid to both the front and rear brake circuits. While this design is simpler and more cost-effective, it poses a significant risk: if a failure occurs in one circuit, the entire braking system may be compromised, potentially leading to complete brake failure.

B. Dual Reservoir Master Cylinders

Dual reservoir master cylinders feature two separate reservoirs, each dedicated to either the front or rear brake circuit. This design offers redundancy, as one circuit can still function if the other fails, providing a fail-safe mechanism. In the event of a failure in one circuit, the driver retains partial braking capability, reducing the risk of a complete loss of brakes. However, this design is more complex and typically more expensive than a single reservoir system.

IV. Bore Size and Braking Performance

The bore size, or diameter, of the master cylinder plays a pivotal role in determining the braking performance of a vehicle. A smaller bore size generates higher hydraulic pressure but displaces a smaller volume of brake fluid, while a larger bore size produces lower pressure but a higher fluid volume.

Choosing the appropriate bore size is essential for achieving the desired braking characteristics, such as pedal feel, travel distance, and overall braking power. Factors like brake type (disc or drum), vehicle weight, and personal preference influence the ideal bore size selection for a particular vehicle.

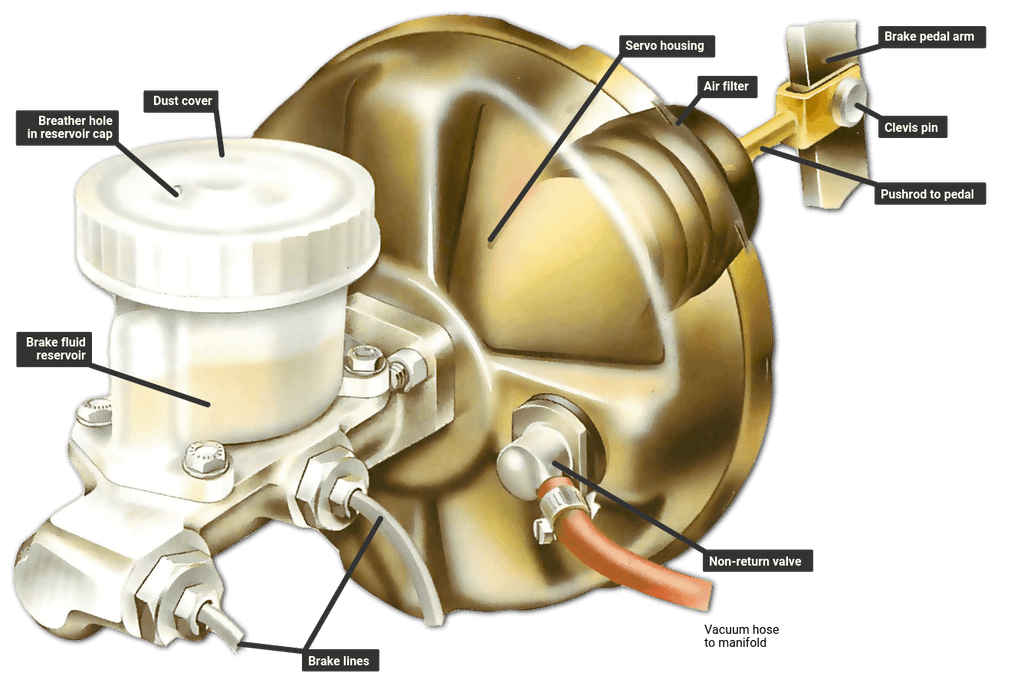

V. Components of a Master Cylinder

A typical master cylinder consists of several key components, each playing a vital role in its overall function:

• Reservoir(s): The reservoir(s) hold the supply of brake fluid. In a single reservoir design, there is one reservoir, while dual reservoir systems have two separate reservoirs, one for the front brakes and one for the rear brakes.

• Piston(s): The piston(s) are driven by the brake pedal and displace the brake fluid, creating hydraulic pressure. The number of pistons varies depending on the master cylinder design.

• Seals: Seals are essential components that prevent brake fluid leaks and maintain pressure within the cylinder. They ensure the proper functioning of the hydraulic system by creating a tight seal around the pistons.

• Spring(s): Springs provide resistance and return the pistons to their original position when the brake pedal is released, allowing the brake pads or shoes to disengage from the rotors or drums.

VI. Symptoms of a Failing Master Cylinder

A failing master cylinder can exhibit several warning signs that should not be ignored, as they can indicate a potential safety hazard:

• Brake fluid leaks around the master cylinder or under the vehicle

• A spongy or soft brake pedal feel

• The brake pedal sinking to the floor when pressed

• Contaminated or discolored brake fluid

• Uneven braking or the vehicle pulling to one side during braking

• The illumination of the brake warning light on the dashboard

If any of these symptoms are present, it is crucial to have the master cylinder inspected and repaired or replaced as soon as possible to ensure safe and reliable braking performance.

VII. Maintenance and Replacement

Regular inspection and maintenance of the master cylinder are essential to ensure its proper functioning and extend its lifespan. Brake fluid should be checked and replaced according to the manufacturer's recommendations, as contaminated or moisture-laden fluid can damage internal components and compromise the braking system's performance.

If a master cylinder exhibits signs of failure or leakage, it should be replaced promptly. Attempting to drive with a compromised master cylinder can lead to complete brake failure, putting the driver and others at risk of a potentially dangerous situation.

VIII. Conclusion

The master cylinder is the cornerstone of a vehicle's braking system, responsible for converting the mechanical force applied to the brake pedal into hydraulic pressure. Its proper functioning is crucial for ensuring safe and reliable braking performance. By understanding the different types of master cylinders, their components, and the importance of regular maintenance and timely replacement, vehicle owners can take proactive steps to maintain the integrity of their braking system and prioritize safety on the road.

FAQs

What causes a spongy or soft brake pedal?

A spongy or soft brake pedal is usually caused by air in the brake lines or low brake fluid levels. It indicates the presence of air bubbles in the hydraulic brake system.

How do you fix a brake fluid leak in the master cylinder?

To fix a brake fluid leak, inspect the master cylinder and surrounding brake lines for any signs of leakage. Replace damaged components and ensure all connections are secure and tight.

Why does the brake pedal go all the way to the floor?

The brake pedal going all the way to the floor without stopping power indicates a significant problem with the master cylinder or a broken brake line. Professional diagnosis is recommended.

How often should brake fluid be replaced?

Brake fluid should be replaced according to the vehicle manufacturer's recommended intervals, typically every 2-3 years, to prevent contamination and maintain optimal braking performance.

What causes brake dragging or sticking?

Brake dragging or sticking can be caused by internal pressure problems in the master cylinder, obstructions, or lack of lubrication in the brake system components.

Why does the brake pedal vibrate when applied?

Brake pedal vibrations can be caused by worn brake pads, warped rotors, or internal issues within the master cylinder itself, such as worn seals or pistons.

What does the brake warning light indicate?

The brake warning light illuminates to indicate potential issues in the brake system, such as low brake fluid levels, electrical problems with the brake light sensor, or other significant brake system faults.

What causes unusual brake noise?

Unusual brake noises like squealing, grinding, or groaning can be caused by worn-out brake pads, damaged components, or internal issues within the master cylinder.

How do you diagnose a loss of brake fluid pressure?

A sudden loss of brake fluid pressure requires immediate attention. The entire brake system, including the master cylinder, brake lines, and booster, must be inspected by a professional mechanic to identify and repair the cause.

Can a faulty master cylinder cause brake fluid contamination?

Yes, a faulty master cylinder can allow contaminants like moisture and debris to enter the brake fluid, leading to diminished braking performance and potential damage to other brake system components.
