Why Is My Rpm Gauge Not Working?

Miguel Rodriguez
Miguel Rodriguez
5 min read

Review by: Miguel Rodriguez
Maintenance Electrical

Your vehicle's RPM (revolutions per minute) gauge, or tachometer, plays a vital role in monitoring engine performance. When this gauge malfunctions, it can indicate underlying issues with your car's electrical or mechanical systems. This article explores the most common reasons for a faulty RPM gauge and provides solutions to diagnose and address the problem.

Introduction

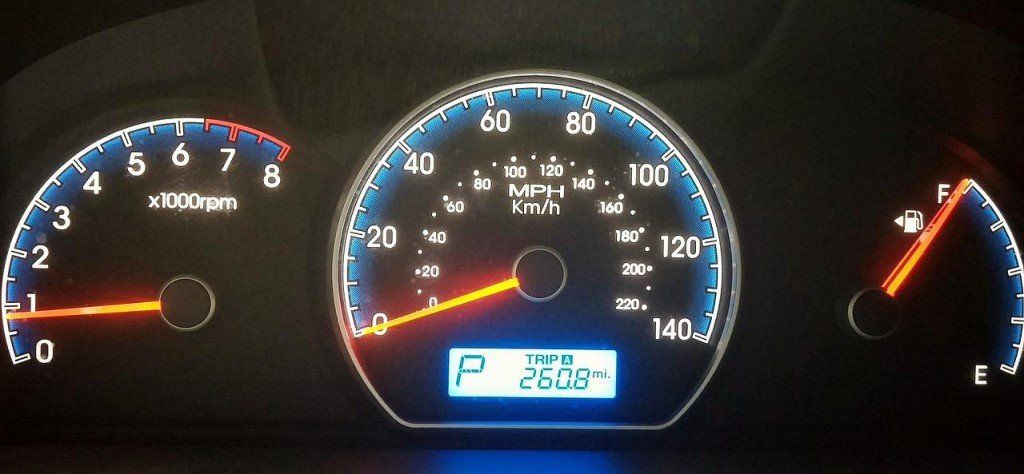

The RPM gauge displays your engine's rotational speed, typically measured in revolutions per minute. It helps you monitor engine performance and ensure you're operating within the recommended RPM range. A malfunctioning gauge can lead to inaccurate readings, potentially causing engine damage or poor fuel efficiency.

Potential Causes of RPM Gauge Failure

Faulty Wiring

Over time, the wiring connecting the RPM gauge to engine sensors can become damaged or corroded, leading to signal loss or inaccurate readings. Damaged wiring can occur due to exposure to heat, vibrations, or physical impact, while corrosion can result from moisture, road salt, or environmental factors.

Wiring IssuePotential Cause
DamagedHeat, vibrations, physical impact
CorrodedMoisture, road salt, environmental factors

Electrical Interference

Erratic or fluctuating RPM readings can be caused by electromagnetic interference from other components or devices in the vehicle. This interference disrupts the signal sent to the tachometer, causing inaccurate or unstable readings.

Damaged RPM Gauge

The RPM gauge itself may be faulty or damaged, either mechanically (for analog gauges) or electronically (for digital gauges). Analog gauges can have worn or damaged mechanical movements, while digital gauges may suffer from electrical surges, moisture ingress, or component failure.

Gauge TypePotential Issue
AnalogWorn or damaged mechanical movements
DigitalElectrical surges, moisture ingress, component failure

Sensor Issues

The RPM gauge relies on input from engine sensors, such as the crankshaft or camshaft position sensors. If one of these sensors malfunctions due to physical damage, electrical faults, or wear and tear, it can cause the RPM gauge to display incorrect or no readings.

ECM/ECU Problems

In modern vehicles, the engine control module (ECM) or engine control unit (ECU) processes sensor data and sends RPM information to the instrument cluster. If there's a problem with the ECM/ECU, it may fail to process sensor data correctly or send inaccurate RPM information to the gauge.

Diagnosing the Root Cause

To diagnose the root cause of an RPM gauge issue, a mechanic may perform the following steps:

  1. Visual Inspection: Examine the wiring harness for damage, corrosion, or loose connections. Inspect the RPM gauge and associated sensors for physical defects.

  2. Electrical Testing: Use a multimeter to measure voltage and resistance values along the wiring harness and sensor circuits, identifying potential breaks, shorts, or electrical faults.

  3. Scan Tool Diagnostics: Connect an OBD2 scan tool to access the ECM/ECU's stored trouble codes, which can point to specific component failures.

  4. Sensor Testing: Use diagnostic equipment to measure and analyze the output signals from the crankshaft and camshaft sensors, identifying any irregularities or deviations from expected waveforms.

Repair and Replacement Options

Depending on the diagnosed cause, the following repair or replacement options may be recommended:

  • Wiring Repairs: Replace damaged or corroded wiring sections, secure connections, and apply protective coverings.

  • Gauge Replacement: Install a new, compatible RPM gauge (analog or digital) and ensure proper calibration.

  • Sensor Replacement: Replace failed crankshaft or camshaft sensors, following manufacturer specifications for installation and calibration.

  • ECM Repairs or Replacement: Reprogram or replace the engine control module, often requiring specialized equipment and expertise.

Preventive Maintenance

Regular maintenance can help prevent RPM gauge issues or catch them early before complete failure:

  • Inspections: Visually inspect wiring, gauges, and sensors periodically for signs of damage or wear.

  • Electrical System Care: Ensure proper grounding and shielding, and address potential sources of electromagnetic interference.

  • Sensor Maintenance: Clean sensors, check mountings during service, and replace sensors at recommended intervals.

Maintenance TaskFrequency
Visual InspectionsPeriodic
Electrical System CareAs needed
Sensor MaintenanceDuring service intervals

Conclusion

By understanding the potential causes, proper diagnosis, and repair or replacement options, you can ensure your vehicle's RPM gauge remains accurate and reliable, providing crucial information for monitoring engine performance and preventing potential issues.

FAQs

What are the potential causes of RPM gauge failure?

The potential causes of RPM gauge failure include faulty wiring, electrical interference, damaged RPM gauge, sensor issues, and problems with the engine control module (ECM) or engine control unit (ECU).

How can a mechanic diagnose the root cause of an RPM gauge issue?

A mechanic can diagnose the root cause by performing a visual inspection, electrical testing, scan tool diagnostics, and sensor testing to identify any wiring, component, or sensor-related issues.

What are the repair and replacement options for a faulty RPM gauge?

The repair and replacement options include wiring repairs, gauge replacement, sensor replacement, and ECM repairs or replacement, depending on the diagnosed cause.

What preventive maintenance can help prevent RPM gauge issues?

Regular visual inspections, proper electrical system care, and sensor maintenance during service intervals can help prevent RPM gauge issues or catch them early before complete failure.

What role does the RPM gauge play in monitoring engine performance?

The RPM gauge displays the engine's rotational speed, helping you monitor engine performance and ensure you're operating within the recommended RPM range to prevent potential engine damage or poor fuel efficiency.

What types of sensors are involved in providing input to the RPM gauge?

The RPM gauge relies on input from engine sensors, such as the crankshaft position sensor and camshaft position sensor, to accurately display the engine's RPM.

What is the difference between analog and digital RPM gauges?

Analog RPM gauges have mechanical movements that can wear or become damaged, while digital RPM gauges are electronic and can suffer from electrical surges, moisture ingress, or component failure.

What role does the engine control module (ECM) play in RPM gauge functionality?

In modern vehicles, the ECM processes sensor data and sends the RPM information to the instrument cluster, so problems with the ECM can prevent the RPM gauge from receiving the correct signal.

What types of electrical interference can cause erratic RPM readings?

Electromagnetic interference from other components or devices in the vehicle can disrupt the signal sent to the tachometer, causing erratic or fluctuating RPM readings.

What maintenance tasks can help identify potential RPM gauge issues early?

Regular visual inspections of wiring, gauges, and sensors, as well as proper electrical system care and sensor maintenance during service intervals, can help identify potential RPM gauge issues early.
