The brake booster check valve is a critical component in a vehicle's brake system, responsible for maintaining proper vacuum pressure in the brake booster. When this valve malfunctions, it can lead to various symptoms that affect braking performance and safety. In this article, we will explore the ten most common warning signs of a failing brake booster check valve, helping you identify potential issues early and ensure your vehicle remains safe to drive.
The brake booster check valve is a one-way valve that allows air to be drawn out of the brake booster, creating a vacuum. This vacuum assists in amplifying the force applied to the brake pedal, making it easier for the driver to stop the vehicle. A properly functioning check valve is essential for maintaining the vacuum in the brake booster and ensuring optimal braking performance.
In the following sections, we will discuss how the brake booster check valve works, common failure modes, and the symptoms associated with a faulty check valve. We will also cover the diagnosis and replacement of a failing check valve, as well as maintenance and prevention tips to keep your brake system in top condition.
The brake booster check valve acts as a gatekeeper between the brake booster and the engine's vacuum source, typically the intake manifold or a separate vacuum pump. When the brake pedal is released, the check valve opens, allowing air to be drawn out of the brake booster, creating a vacuum. This vacuum is stored in the brake booster, ready to assist in the next braking application.
When the brake pedal is pressed, the check valve closes, preventing air from flowing back into the booster and maintaining the vacuum. This vacuum helps multiply the force applied to the brake pedal, reducing the effort required by the driver to stop the vehicle.
There are three primary failure modes for brake booster check valves:
Stuck-open check valve: A check valve that remains open allows air to continuously leak into the brake booster, reducing or eliminating the vacuum.
Stuck-closed check valve: When the check valve fails to open, it prevents the brake booster from creating a vacuum, resulting in a consistently hard brake pedal.
Leaking check valve: A check valve that does not seal properly allows air to gradually leak into the brake booster, diminishing the vacuum over time.
One of the most noticeable symptoms of a failing brake booster check valve is a hard brake pedal. When the check valve malfunctions, it can allow air to leak into the brake booster, reducing the vacuum assist. This loss of vacuum makes the brake pedal much more difficult to press, requiring more effort from the driver to stop the vehicle.
A hard brake pedal can also be caused by other issues, such as a failing brake booster, a leak in the vacuum hose, or a problem with the master cylinder. However, if the check valve is the culprit, the brake pedal will become increasingly difficult to press as the vacuum in the booster diminishes.
As a faulty check valve allows air to enter the brake system, the brakes may begin to feel spongy or soft. This occurs when air bubbles accumulate in the brake lines, compressing under pressure and reducing the hydraulic force transmitted to the brake calipers or wheel cylinders.
Spongy brakes can significantly increase stopping distances and reduce overall braking performance. The presence of air in the brake lines can also cause the brake pedal to travel farther than normal before engaging the brakes, further compromising safety.
In severe cases, a complete failure of the brake booster check valve can lead to a total loss of braking power. If the check valve becomes stuck closed or severely leaks, the brake booster will be unable to create the necessary vacuum to assist in braking. As a result, the driver may find it extremely difficult or impossible to stop the vehicle using the brake pedal alone.
If you experience a complete loss of braking power, safely maneuver the vehicle to the side of the road and turn on the hazard lights. Do not attempt to drive the vehicle any further, as it is unsafe to operate without functioning brakes. Have the vehicle towed to a repair shop for diagnosis and repair.
A failing brake booster check valve can sometimes cause a whistling or hissing noise, particularly when the brake pedal is applied. This noise is the result of air leaking through the faulty check valve and into the brake booster.
The whistling or hissing sound may be more noticeable during the initial press of the brake pedal or when the engine is running at a higher RPM. If you hear this type of noise consistently when braking, it is a strong indication that the brake booster check valve needs to be inspected and possibly replaced.
In some cases, a malfunctioning brake booster check valve can trigger the check engine light. This occurs when the unmetered air entering through the leaking check valve disrupts the engine's air-fuel ratio, causing a lean condition.
A lean air-fuel mixture can lead to misfires, rough idling, and reduced engine performance. The engine control module (ECM) detects this abnormal condition and illuminates the check engine light to alert the driver of a potential issue.
It is important to note that the check engine light can be triggered by numerous other factors unrelated to the brake system. However, if the light comes on in conjunction with other symptoms of a failing brake booster check valve, it is a strong indication that the valve may be the root cause.
To diagnose a suspected brake booster check valve problem, a mechanic will typically use a vacuum gauge to test the valve's ability to hold vacuum. The vacuum gauge is connected to the brake booster, and the engine is started. If the check valve is functioning properly, the vacuum gauge should show a steady reading, indicating that the valve is holding vacuum in the booster.
If the vacuum gauge reading drops or fluctuates, it suggests that the check valve is allowing air to leak into the booster, compromising its performance. A visual inspection of the check valve can also help identify any physical damage, such as cracks or deteriorated seals, that may be causing the leak.
If the brake booster check valve is determined to be faulty, it must be replaced to restore proper braking performance and safety. The replacement process typically involves the following steps:

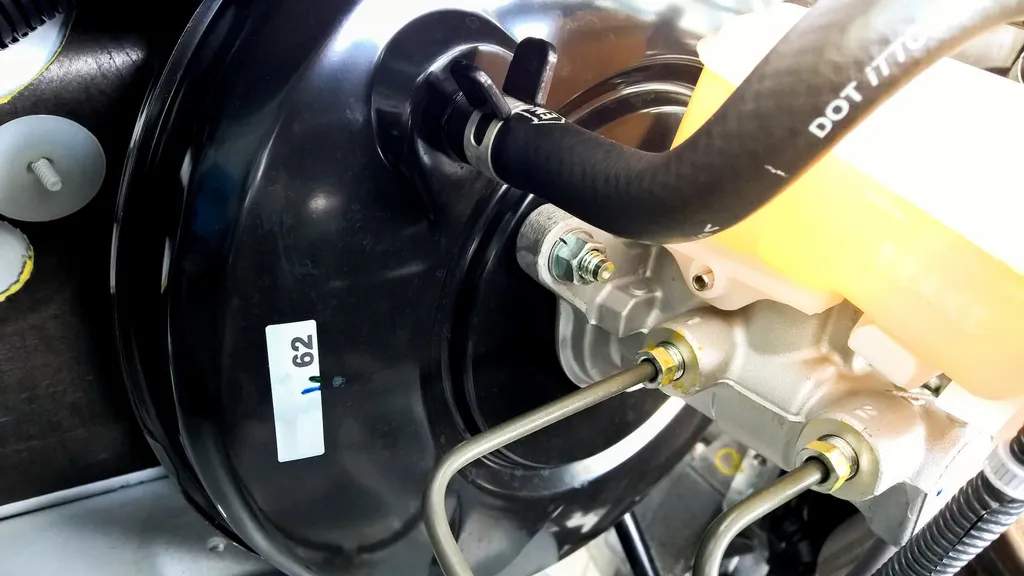

Locate the brake booster check valve, which is usually mounted on the brake booster or connected to the vacuum hose leading to the booster.
Disconnect the vacuum hose from the check valve and remove the valve from the booster, if applicable.
Install the new check valve, ensuring that it is properly oriented and securely connected.
Reconnect the vacuum hose to the new check valve.
Test the brake system to verify that the new check valve is functioning correctly and that the brakes are operating as intended.
In some cases, the brake booster check valve may be integrated into the brake booster itself. In this situation, the entire brake booster assembly may need to be replaced if the check valve is not available as a separate component.
To minimize the risk of brake booster check valve failures and ensure optimal braking performance, regular maintenance and inspection of the brake system are essential. This includes:
Checking the brake fluid level and condition regularly. Contaminated or low brake fluid can damage the check valve and other brake system components.
Inspecting the vacuum hose and connections for cracks, leaks, or other damage that could compromise the vacuum supply to the brake booster.
Following the manufacturer's recommended maintenance schedule for brake system servicing, which may include periodic brake fluid changes and component inspections.
Using high-quality, manufacturer-recommended brake fluid to protect the check valve and other brake system components from premature wear and corrosion.
By adhering to a regular maintenance routine and promptly addressing any signs of brake system issues, you can help extend the life of the brake booster check valve and maintain the safety and reliability of your vehicle's brakes.
The brake booster check valve plays a vital role in the overall function and safety of a vehicle's brake system. When operating correctly, the check valve ensures that the brake booster maintains the necessary vacuum to provide power assist during braking. This vacuum assist reduces the effort required by the driver to stop the vehicle, improving braking performance and reducing fatigue during extended driving.
However, when the check valve fails, it can severely compromise the brake system's effectiveness. A malfunctioning check valve can lead to increased stopping distances, reduced braking power, and, in extreme cases, complete brake failure. These issues pose significant safety risks to the driver, passengers, and other road users.
| Component | Function | Failure Consequences |
|---|---|---|
| Brake Booster Check Valve | Maintains vacuum in brake booster | - Hard brake pedal - Reduced braking power - Increased stopping distance - Potential brake failure |
| Brake Booster | Provides power assist for braking | - Increased pedal effort - Reduced braking performance - Driver fatigue |
| Master Cylinder | Converts mechanical force to hydraulic pressure | - Reduced braking power - Brake fluid leaks - Spongy or sinking brake pedal |
Neglecting the symptoms of a failing brake booster check valve can lead to more severe and costly repairs down the line. For example, a leaking check valve can cause the brake booster to overwork, leading to premature wear and potential failure of the booster itself. In addition, the presence of air in the brake lines due to a faulty check valve can cause damage to other brake system components, such as the master cylinder, calipers, and wheel cylinders.
To ensure the safety and reliability of your vehicle's brakes, it is crucial to address any suspected brake booster check valve issues promptly. If you experience any of the following symptoms, have your vehicle inspected by a qualified mechanic as soon as possible:
Hard or spongy brake pedal
Reduced braking performance
Whistling or hissing noises during braking
Brake system warning light illumination
Increased stopping distance
By being proactive in identifying and addressing brake booster check valve problems, you can help prevent more serious brake system failures and maintain the safety of your vehicle on the road.
The brake booster check valve is a small but critical component in a vehicle's brake system, responsible for maintaining the vacuum necessary for power-assisted braking. When this valve fails, it can lead to various symptoms that compromise braking performance and safety, such as a hard brake pedal, spongy brakes, reduced stopping power, and even complete brake failure. By understanding the common warning signs of a failing brake booster check valve and promptly addressing any issues, drivers can ensure their vehicles remain safe and reliable on the road. Regular maintenance, including brake fluid checks and system inspections, can help prevent check valve problems and extend the life of the brake system components. If you suspect a problem with your brake booster check valve, have your vehicle inspected by a qualified mechanic to diagnose and resolve the issue, ensuring your safety and the safety of others on the road.
The brake booster check valve is a one-way valve that allows air to be drawn out of the brake booster, creating a vacuum. This vacuum assists in amplifying the force applied to the brake pedal, making it easier for the driver to stop the vehicle.
When the brake pedal is released, the check valve opens, allowing air to be drawn out of the brake booster. When the brake pedal is pressed, the check valve closes, preventing air from flowing back into the booster and maintaining the vacuum.
A stuck-open check valve allows air to continuously leak into the brake booster, reducing or eliminating the vacuum. This can cause a hard brake pedal, increased stopping distance, and reduced braking performance.
When the check valve fails to open, it prevents the brake booster from creating a vacuum, resulting in a consistently hard brake pedal. The driver will need to apply more force to stop the vehicle.
Yes, a check valve that does not seal properly allows air to gradually leak into the brake booster, diminishing the vacuum over time. This can cause the brakes to feel spongy or soft when applied.
A malfunctioning brake booster check valve can allow unmetered air to enter the engine, disrupting the air-fuel ratio and causing a lean condition. This can lead to misfires and trigger the check engine light.
To replace a brake booster check valve, you will typically need a screwdriver, pliers, and penetrating oil. Some check valves may require additional tools depending on their location and design.
In severe cases, a complete failure of the brake booster check valve can lead to a total loss of braking power. If the check valve becomes stuck closed or severely leaks, the brake booster will be unable to create the necessary vacuum to assist in braking.
The brake booster check valve is designed to last the life of the vehicle and does not require routine replacement. However, if the check valve becomes damaged or fails, it should be replaced promptly to ensure proper braking performance and safety.
The average cost to replace a brake booster check valve ranges from $100 to $130, including parts and labor. However, the exact cost may vary depending on the make and model of the vehicle and the location of the repair shop.
