When it comes to maintaining the braking system of your vehicle, understanding the appropriate brake line size is crucial. Brake lines play a vital role in delivering the hydraulic pressure from the master cylinder to the brake calipers, ensuring optimal braking performance and safety. In this comprehensive article, we will delve into the intricacies of brake line sizes, exploring the standard 3/16-inch line and the alternative 1/4-inch line. Additionally, we will provide guidance on measuring and selecting the correct size for your vehicle.

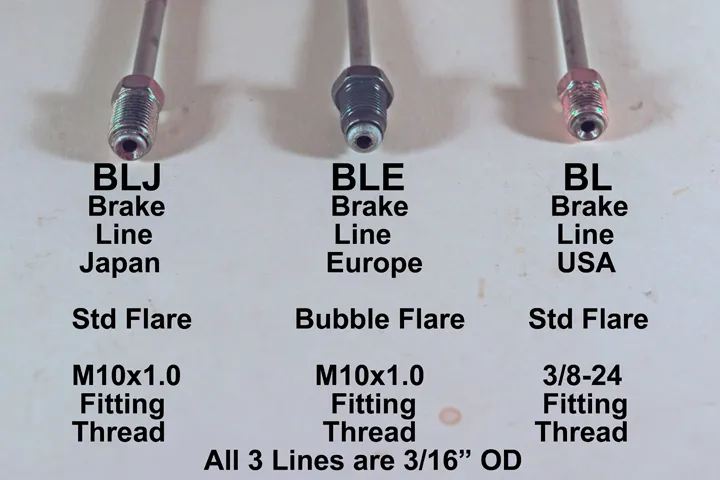

The 3/16-inch brake line, commonly referred to as a CNF-3, is the industry standard for most modern vehicles equipped with disc brake systems. This size has gained widespread acceptance due to several key advantages it offers:
| Advantage | Description |
|---|---|
| Pressure Delivery Efficiency | The size of the brake line does not directly influence the hydraulic pressure within the braking system. The pressure is determined by the master cylinder, and the lines serve as conduits to deliver this pressurized fluid to the brake calipers. Both the 3/16-inch and 1/4-inch lines are equally capable of transmitting the required pressure, ensuring consistent braking performance. |
| Optimal Fluid Volume | While the line size does not affect the pressure, it does impact the volume of brake fluid delivered to the calipers. The 3/16-inch line carries a slightly lower volume of fluid compared to its 1/4-inch counterpart. However, this difference is negligible for most applications and does not significantly impact braking performance. |
| Firm Pedal Feel | One of the primary advantages of the 3/16-inch brake line is the firm pedal feel it provides. Due to the reduced system volume, the brake pedal responds with a more immediate and responsive sensation, enhancing the driver's control and confidence during braking maneuvers. Many experts recommend using 3/16-inch lines exclusively for this reason. |
While the 3/16-inch line is the standard for modern vehicles, the 1/4-inch brake line was commonly used in vehicles manufactured during the 1950s. If your vehicle dates back to that era, you may need to use the 1/4-inch line to ensure compatibility with the original hydraulic system design.
The 1/4-inch brake line offers a larger internal diameter, allowing for a greater volume of brake fluid to be delivered to the calipers. This characteristic can be beneficial in specific applications where disc brake calipers have large piston displacements, requiring a higher fluid volume for optimal performance.
However, it is essential to consider compatibility with your vehicle's braking system. Using an incompatible line size can lead to potential issues, such as a spongy brake pedal or reduced braking performance.
If you are unsure about the correct brake line size for your vehicle, you can measure the existing lines using a caliper. Follow these steps to ensure accurate measurement:
Locate the Brake Lines
Consult your vehicle's owner's manual or a professional repair manual to identify the location of the master cylinder and brake lines. This will help you access the lines safely and efficiently.
Measure with a Caliper
Once you have located an accessible section of the brake line, clamp a caliper over it to obtain an accurate measurement. The caliper reading should indicate either 3/16 inch or 1/4 inch, allowing you to determine the appropriate size for your vehicle.
Consult Professionals
If you encounter any uncertainty or have specific concerns about your vehicle's braking system, it is always advisable to consult with a professional mechanic. They can provide expert guidance and ensure that you select the correct brake line size for optimal performance and safety.
| Potential Issues | Description |
|---|---|
| Spongy Brake Pedal | Using an incorrect brake line size can lead to a spongy or soft brake pedal, which can compromise braking performance and responsiveness. |
| Reduced Braking Performance | Incompatible brake line sizes may result in reduced braking power, longer stopping distances, and decreased overall braking efficiency. |
| Compatibility Concerns | Older vehicles or those with specific braking system designs may require a particular brake line size to ensure compatibility and proper functioning. |
Understanding brake line sizes is crucial for maintaining the integrity and performance of your vehicle's braking system. The 3/16-inch line is the industry standard, offering efficient pressure delivery, optimal fluid volume, and a firm pedal feel for most modern vehicles. Alternatively, the 1/4-inch line may be required for older vehicles or specific applications where increased fluid volume is beneficial.
By accurately measuring your existing brake lines and consulting professional resources, you can ensure that you select the correct size for your vehicle. Proper brake line selection not only enhances braking performance but also contributes to your overall safety on the road.
The most common brake line size used in modern vehicles is 3/16 inch, also known as CNF-3. This size offers efficient pressure delivery, optimal fluid volume, and a firm pedal feel for most applications.
Yes, using an incorrect brake line size can lead to issues like a spongy brake pedal, reduced braking power, and decreased overall braking efficiency, potentially compromising safety.
You can determine the correct brake line size for your vehicle by measuring the existing brake lines with a caliper or consulting your vehicle's owner's manual or a professional repair manual.
The 1/4 inch brake line offers a larger internal diameter, allowing for a greater volume of brake fluid delivery, which can be beneficial in specific applications with large disc brake calipers requiring higher fluid volumes.
It is generally not recommended to mix different brake line sizes within the same braking system, as it can lead to compatibility issues and potentially affect braking performance and safety.
It is advisable to inspect your brake lines regularly, at least every six months, for any signs of wear, leaks, or damage, and replace them as needed or according to the manufacturer's recommendations.
Yes, the size of the brake line can affect the pedal feel. The 3/16 inch line provides a firmer and more responsive pedal feel due to the reduced system volume compared to the 1/4 inch line.
When installing custom or aftermarket brake systems, it is crucial to ensure compatibility with the appropriate brake line size and follow the manufacturer's recommendations to maintain optimal braking performance and safety.
While brake line size does not directly affect the braking force, using an incompatible size can lead to reduced braking performance, potentially resulting in longer stopping distances and decreased overall braking efficiency.
If you are unsure about the correct brake line size for your vehicle or have specific concerns about your braking system, it is highly recommended to consult with a professional mechanic for expert guidance and ensure proper selection and installation.
