Broken Valve Spring Symptoms: Signs, Causes & Solutions for Engine Issues

Sarah Khan
Sarah Khan
5 min read

Review by: Sarah Khan
Maintenance Engine

The Dreaded Ticking Noise

Valve springs play a crucial role in the operation of an internal combustion engine. They are responsible for keeping the valves closed during the compression and combustion strokes, and for allowing the valves to open and close at the appropriate times during the intake and exhaust strokes. A broken valve spring can have severe consequences for the engine's performance and can potentially lead to catastrophic engine failure if not addressed promptly.

The Early Warning Signs

The first indication of a broken valve spring is usually an unusual noise coming from the engine bay. It might start as a faint ticking or tapping sound, which can be easily mistaken for a loose heat shield or exhaust leak. However, as the problem worsens, the noise becomes more pronounced, especially at higher RPMs.

SymptomDescription
Unusual Engine NoiseTicking, tapping, or rattling sound
Rough IdleEngine misfiring or running rough
Loss of PowerNoticeable drop in engine performance

Another early symptom is a rough idle or misfiring cylinder. As the valve spring loses tension, it can cause the valve to close improperly, leading to compression loss and misfiring. This can also result in a noticeable drop in engine power and performance.

The Root Causes

Valve springs are subjected to extreme stress and millions of cycles during their lifetime. Over time, this constant flexing can lead to metal fatigue and eventual failure of the spring. However, there are several other factors that can accelerate the process:

  • Improper Selection or Installation

  • Valve Float

  • Manufacturing Defects

Improper Selection or Installation

Using the wrong valve springs or installing them incorrectly can cause binding, uneven wear, or loss of pressure, leading to premature failure.

Valve Float

At high RPMs, the valve springs may not have enough pressure to control the valves, causing them to "float" and potentially strike the pistons. This is known as valve float and can cause significant damage to the valves, pistons, and springs.

Manufacturing Defects

In rare cases, manufacturing defects like inclusions or improper heat treatment of the spring material can lead to premature failure.

Diagnosing the Issue

As a mechanic, diagnosing a broken valve spring involves a combination of visual inspection and specialized tests. First, I'll listen for any unusual noises coming from the engine and check for misfires or loss of power. Then, I'll perform a cylinder leak-down test to identify any compression loss in a specific cylinder.

If the valve cover is accessible, I'll remove it and visually inspect the valve springs.

Signs of Failure

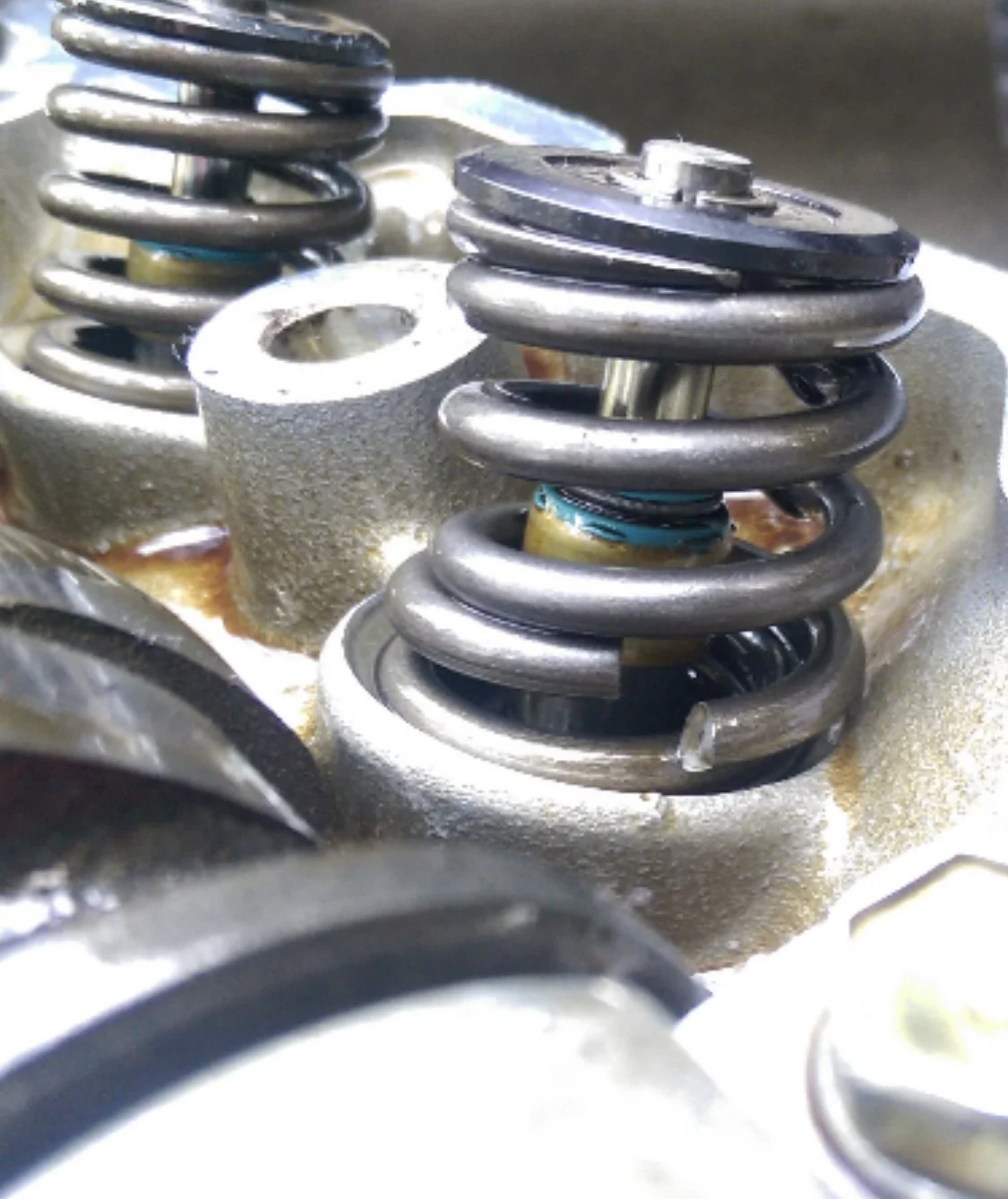

Broken spring pieces or coils
Burnt or damaged valves
Low or zero compression in one cylinder
Excessive valve train noise

The Repair Process

Once a broken valve spring is confirmed, the repair process begins. Here's a general overview of the steps involved:

  • Remove the valve cover and inspect the springs and valves.

  • Use a spring compressor tool to remove the keepers and retainers.

  • Remove the broken spring and valve (if damaged).

  • Clean all components and the cylinder head surface.

  • Install a new valve spring, valve (if needed), and keepers.

  • Adjust the installed spring height if required using shims.

  • Reinstall the valve cover with a new gasket.

Throughout the process, I handle the new springs carefully to avoid damage and use assembly lube on the valve stems and springs. I also verify that the new spring pressure is correct for the camshaft specifications.

Tips
Handle new springs carefully
Use assembly lube on valve stems and springs
Verify spring pressure is correct for camshaft specs
Replace all springs if one fails
Upgrade to higher quality springs for performance builds

Prevention and Cost Considerations

To prevent valve spring failures, I always recommend:

  • Following the manufacturer's service intervals for valve adjustments

  • Using high-quality valve springs rated for your engine's operating range

  • Ensuring proper break-in procedure for new cams/springs

  • Avoiding over-revving or abusive driving that can cause valve float

  • Inspecting valve train components regularly for wear

As for the cost, replacing just the valve springs can range from $100 to $400 for a performance upgrade set. However, if there's internal engine damage, the costs can escalate rapidly.

Repair Cost
Valve spring set (performance upgrade): $100-$400
Machine shop valve job (grind valves, etc.): $300-$800
New cylinder head (if damaged): $500-$2,000
Engine rebuild (severe internal damage): $2,000-$6,000+

Doing the spring replacement yourself can save considerably on labor costs, but any internal engine damage will require the expertise of a professional mechanic. Proper maintenance and using quality components is essential to avoid these expensive repairs.

A Mechanic's Advice

As a mechanic, I've seen my fair share of broken valve springs and the havoc they can wreak on an engine. While it's a common issue, it's also one that can be prevented with proper maintenance and attention to detail.

If you ever hear that dreaded ticking noise or experience any of the symptoms I've mentioned, don't hesitate to bring your vehicle in for inspection. Catching a broken valve spring early can save you from costly repairs down the line.

And remember, prevention is always better than cure. Follow the manufacturer's recommendations, use quality parts, and drive responsibly. Your engine (and your wallet) will thank you for it.

FAQs

What does a broken valve spring sound like?

A broken valve spring typically produces a distinct ticking, tapping, or rattling noise from the engine, which may become louder at higher RPMs.

How long do valve springs usually last?

The lifespan of valve springs can vary greatly depending on the vehicle, driving conditions, and maintenance, but they typically last between 60,000 to 100,000 miles.

Can a broken valve spring cause further engine damage?

Yes, if left unaddressed, a broken valve spring can lead to more severe issues like bent valves, damaged pistons, and potentially catastrophic engine failure.

Is it safe to drive with a broken valve spring?

No, it is not recommended to continue driving with a broken valve spring, as it can cause further damage and potentially lead to engine failure.

Can a broken valve spring be repaired or does it need replacement?

Valve springs cannot be repaired once they are broken or damaged. They must be replaced with new ones.

How long does it take to replace valve springs?

The time required to replace valve springs can vary, but a skilled mechanic can typically complete the job in 4-8 hours, depending on the vehicle and extent of the repair.

Can valve spring failure be caused by poor maintenance?

Yes, neglecting regular maintenance, such as valve adjustments and oil changes, can contribute to premature valve spring failure due to increased wear and tear.

Are performance modifications a common cause of valve spring issues?

Yes, performance modifications like high-lift camshafts or aggressive valve spring upgrades can increase the stress on valve springs and lead to premature failure if not properly engineered.

How can I prevent valve spring failure?

To prevent valve spring failure, follow the manufacturer's recommended maintenance schedule, use high-quality parts, avoid over-revving the engine, and have the valve train inspected regularly for wear.

Can valve spring failure be covered under warranty?

Whether valve spring failure is covered under warranty depends on the specific circumstances and the terms of the vehicle's warranty. In some cases, it may be considered a maintenance item and not covered.
