Introduction

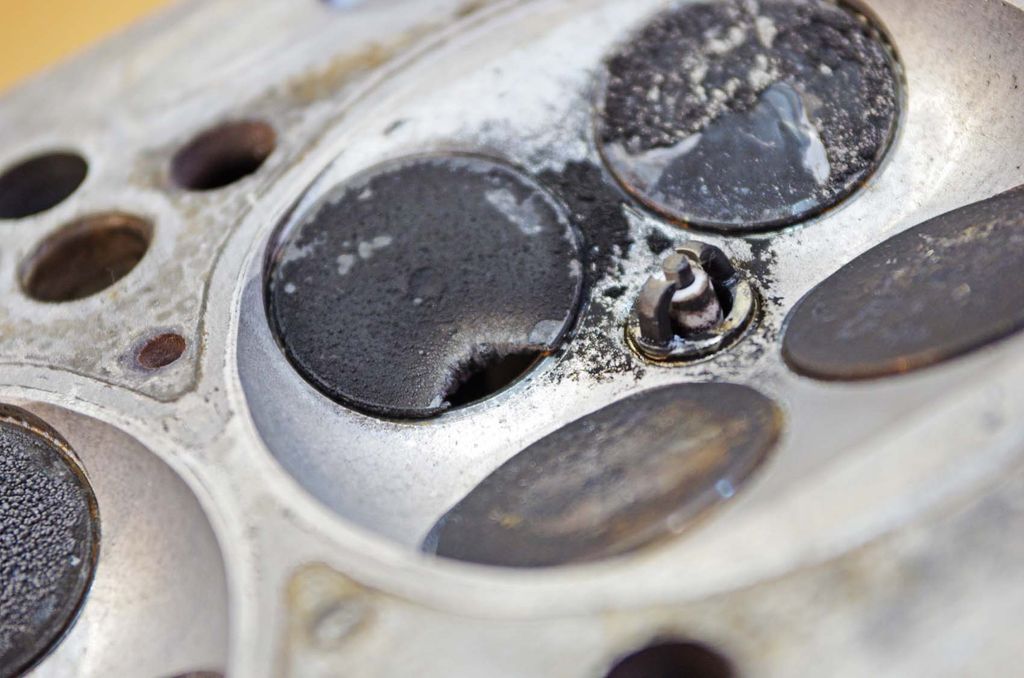

A burnt valve is a condition that occurs in an internal combustion engine when one or more of the valves (intake or exhaust) becomes damaged due to excessive heat. This can happen for various reasons, such as improper valve seating, overheating, or engine performance issues. A burnt valve can lead to a loss of compression, reduced engine performance, and potentially further damage if left unaddressed.

The Telltale Signs

When valves start to burn, your vehicle will give you some not-so-subtle hints that something's amiss. Here are the most common signs to watch out for:

One of the most obvious signs is a rough idling engine, accompanied by misfiring and that pesky check engine light illuminating on your dashboard. If you hear puffing or puttering sounds coming from the exhaust, it's likely that your exhaust valves have taken a beating.

Another telltale sign is the presence of blue or white smoke billowing from the exhaust pipe. This smoke is a clear indicator that your valve stem seals have been compromised, allowing oil to seep into the combustion chamber and burn. Excessive oil consumption and low compression are also red flags that your valves might be in dire need of some TLC.

If you're hearing rattling or tapping noises coming from your engine, it could mean that a valve has broken and needs immediate replacement. Trust me; you don't want to ignore these warning signs, or you might end up with a much bigger (and more expensive) problem on your hands.

The Culprits

Now, let's talk about what causes valves to burn in the first place:

• Valve not seating properly or sticking open

  • Carbon buildup

  • Valve stem wear

  • Bent valves

• Sticking valves

  • Excessive carbon deposits

  • Lack of lubrication

  • Warped valves

• High operating temperatures

  • Coolant leaks

  • Failed water pump

  • Cooling system issues

• Misfiring

  • Unburnt fuel entering exhaust

  • Ignition system faults (bad spark plugs, coils)

• Incorrect fuel/air mixture

  • Running too lean (excessive air)

  • Running too rich (excessive fuel)

• Broken exhaust valves

  • Valve degradation from repeated use and heat cycles

• Incorrect cam timing

  • Increased friction and heat buildup

One of the most common culprits is a valve that's not seating properly or sticking open. This can happen due to carbon buildup, valve stem wear, or bent valves that prevent a proper seal when closed. Sticking valves, caused by excessive carbon deposits, lack of lubrication, or warped valves, can also lead to burnt valves as they allow hot gases to continually flow.

High operating temperatures are another major contributor to burnt valves. Overheating caused by coolant leaks, a failed water pump, or other cooling system issues can slowly but surely cook your valves over time. Misfiring is also a common offender, as unburnt fuel entering the exhaust can ignite and burn the exhaust valves. This is often caused by ignition system faults like bad spark plugs or coils.

Running your engine with an incorrect fuel/air mixture can also spell trouble for your valves. Too much air (running lean) or too much fuel (running rich) can increase combustion temperatures and burn those valves to a crisp. Broken exhaust valves, which degrade over time from repeated use and heat cycles, can also allow excessive heat into the cylinder, leading to burnt valves.

Last but not least, incorrect cam timing can cause increased friction and heat buildup, ultimately damaging your valves. So, if you've been tinkering with your engine's timing, make sure you've got it dialed in correctly.

Diagnosis and Repair

If you suspect your valves might be burnt, there are a few diagnostic steps you can take:

• Check for engine misfiring codes with an OBD2 scanner

• Perform a cylinder leakdown test to check for low compression

• Inspect spark plugs for signs of overheating or oil fouling

• Use a borescope camera to visually inspect valve condition

For a more direct approach, you can use a borescope camera to visually inspect the condition of your valves. If you spot any burnt, warped, or cracked valves, it's time to roll up your sleeves and get to work.

The repair process typically involves:

1. Removing the cylinder head to access the valves

2. Inspecting all valves, guides, and seats for damage

3. Replacing any burnt, warped, or cracked valves and guides

4. Resurfacing or replacing valve seats if pitted or damaged

5. Reassembling cylinder head and adjusting valve lash

After replacing the necessary components, you'll need to reassemble the cylinder head and adjust the valve lash according to the manufacturer's specifications. It's also a good idea to:

• Replace any damaged valve stem seals to prevent oil leaks

• Fix any cooling system, ignition, or fuel system faults that may have contributed to the overheating or misfiring issues

• Adjust cam timing if found to be incorrect during inspection

If you find that multiple valves are burnt, it might be more cost-effective to replace the entire cylinder head. And, of course, always follow the factory service manual for your specific vehicle and use new gaskets and seals when reassembling components.

Prevention and Costs

As the saying goes, an ounce of prevention is worth a pound of cure. To avoid burnt valves in the first place, follow these tips:

• Use the recommended fuel octane rating for your engine to prevent pre-ignition

• Keep up with scheduled maintenance like oil changes and cooling system flushes

• Fix any engine misfires, oil leaks, or cooling issues immediately

• Avoid excessive idling which can lead to hot spots and burnt valves

• Consider using a high-quality fuel system cleaner periodically

Now, let's talk about the dreaded topic of costs. The cost to repair burnt valves can vary significantly depending on the extent of the damage:

If you're lucky and only need to replace a few valves, you might be looking at $500 to $1,000 in parts and labor. However, if the entire cylinder head needs to be replaced, expect to pay anywhere from $1,500 to $3,500, depending on your vehicle.

In the worst-case scenario, where you need a complete engine replacement, you could be facing a bill ranging from $3,000 to $8,000 for a new engine and installation. Ouch! That's why catching burnt valve symptoms early and fixing the underlying causes is crucial – it can save you from a massive repair bill down the road.

Conclusion

Burnt valves are no laughing matter, but with the right knowledge and preventive measures, you can keep your engine running smoothly for years to come. As a mechanic, I've seen firsthand the importance of addressing these issues promptly and properly.

Remember, if you notice any of the telltale signs we discussed, don't hesitate to bring your vehicle in for a professional diagnosis and repair. A little bit of proactive maintenance can go a long way in preventing costly repairs and ensuring your ride stays in tip-top shape.

So, keep an ear out for those rattling noises, an eye on your exhaust smoke, and a nose for the sweet smell of burning oil. With a little TLC and some expert guidance, you can keep those valves happy and your engine purring like a kitten.

FAQs

What causes valves to get stuck open?

Carbon buildup, valve stem wear, or bent valves can prevent proper seating and cause valves to stick open. This allows hot gases to continually flow, leading to burnt valves.

How do I know if I have a stuck valve?

You may experience rough idling, misfiring, a check engine light, puffing exhaust sounds, or excessive oil consumption - all signs of a potential stuck valve.

Can low oil levels burn valves?

Yes, lack of proper lubrication from low oil levels can cause valves to stick and overheat, eventually leading to burnt valves.

What does a warped valve sound like?

A warped valve can produce a distinct tapping or rattling noise from the engine as it fails to seal properly.

How do coolant leaks affect valves?

Coolant leaks can cause overheating which exposes the valves to excessive temperatures over time, increasing the risk of them burning.

Why do misfires damage exhaust valves?

When an engine misfires, unburnt fuel can enter the exhaust and ignite, exposing the exhaust valves to extremely high temperatures that can burn them.

What happens if I use the wrong fuel octane?

Using a lower octane fuel than recommended can cause pre-ignition and excessive combustion temperatures that may burn valves over time.

How do I check for burnt valves?

Use an OBD2 scanner to check for misfiring codes, perform a cylinder leakdown test, inspect spark plugs, or use a borescope camera for visual inspection.

Is it worth rebuilding the engine for burnt valves?

If multiple valves are severely burnt, it may be more cost-effective to replace the entire cylinder head or engine rather than just the valves.

Besides repairs, what else should I do for burnt valves?

In addition to valve/head replacement, fix any underlying cooling, ignition, or fuel system issues that contributed to the burnt valves.
