As an experienced automotive mechanic, I've encountered countless cases where a vehicle's air conditioning system has been compromised due to a damaged or punctured condenser. This crucial component, located at the front of the vehicle, is responsible for dissipating heat from the refrigerant, allowing the A/C system to cool the cabin effectively. Unfortunately, its exposed position makes it susceptible to impact from road debris, which can lead to costly repairs and discomfort for the driver and passengers.
In this detailed blog post, I'll share my in-depth insights and expertise on this common issue, covering the main causes, inspection and diagnosis procedures, repair methods, preventive measures, and cost considerations. Let's dive into the world of automotive air conditioning systems!

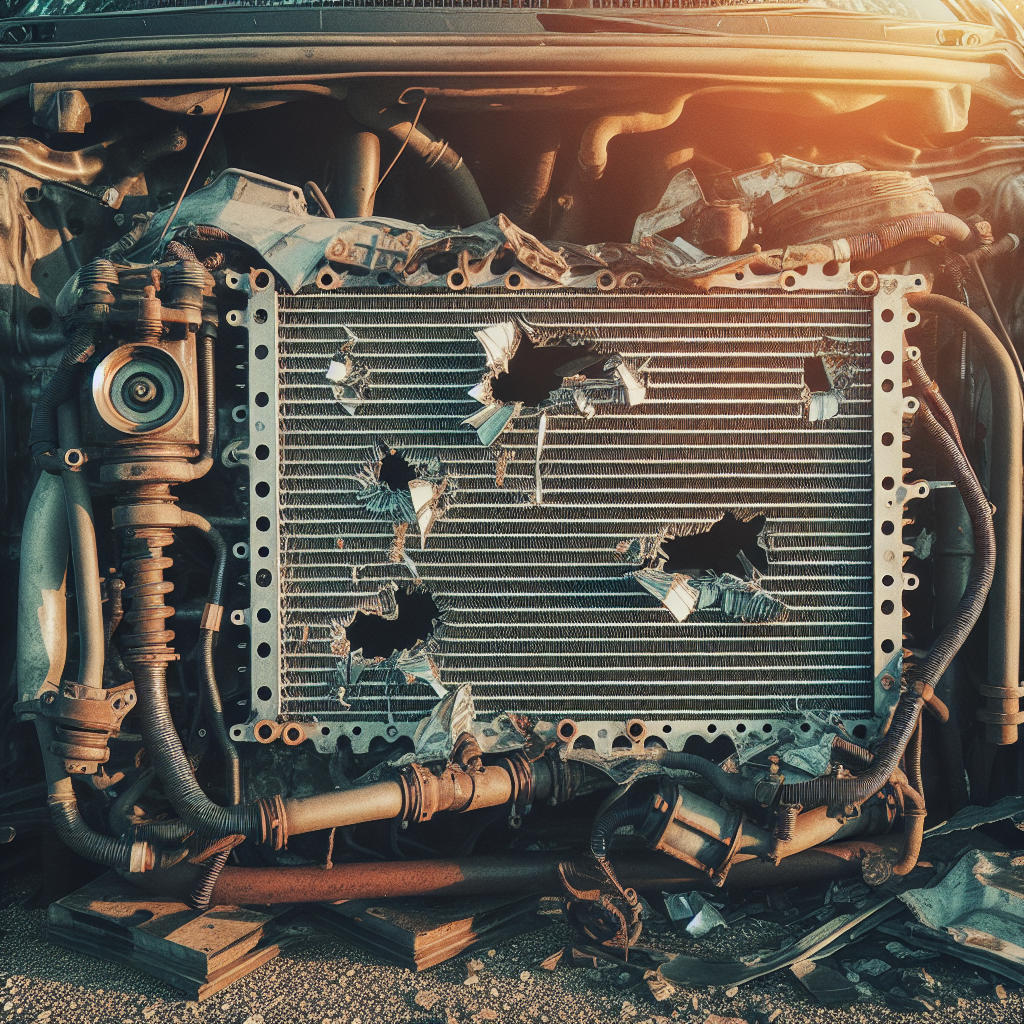

The most frequent culprit behind a damaged or punctured condenser is road debris striking the component. Here are some of the main causes:
| Cause | Description |
|---|---|
| Rocks/Sticks | Rocks, sticks or other solid objects kicked up by passing vehicles can strike the condenser with enough force to bend or puncture its thin aluminum fins. |
| Location | The condenser is positioned at the front of the vehicle, directly exposed to road debris and elements. |
| Delicate Design | The condenser coil has tightly spaced fins to maximize heat transfer, making it vulnerable to damage. |
Even a small puncture can lead to a refrigerant leak, rendering the entire A/C system ineffective and in need of repair.
When a customer brings in a vehicle with a suspected condenser issue, a thorough multi-step inspection and diagnosis process is required:
Visual Inspection
Carefully examine the condenser for physical damage like dents, punctures, bent fins
Even minor damage can compromise performance
Check Condenser Fan
Ensure fan is operating properly with good airflow
Malfunctioning fan can mimic condenser issue
Leak Detection
Use leak detection solution or electronic leak detector
Pinpoint exact location of refrigerant leak
Determine if condenser or other component is the source
This comprehensive diagnosis allows me to accurately identify the root cause before proceeding with repairs.
The repair method depends on the extent of the condenser damage:
If only a few fins are bent, a fin comb tool may be used to straighten them
Restores proper airflow and heat transfer
Temporary solution, may not be long-lasting
For major damage or confirmed refrigerant leaks, the condenser must be replaced through this multi-step process:
| Step | Description |
|---|---|
| Recover Refrigerant | Properly recover remaining refrigerant to prevent environmental release |
| Remove Old Condenser | Carefully remove damaged condenser without causing further issues |
| Install New Condenser | Install new condenser, ensuring proper alignment and connections |
| Vacuum System | Vacuum to remove moisture and contaminants that entered |
| Replace Other Components | Replace receiver/drier or any other damaged components as needed |
| Charge System | Charge system with correct type and amount of refrigerant per specifications |
Safety is the top priority, following best practices and manufacturer guidelines throughout the repair.
While road debris strikes are sometimes unavoidable, these preventive steps can minimize risk:
Regular maintenance and cleaning of condenser area
Install condenser guard or deflector to shield from debris
Avoid driving on unpaved or heavily debris-strewn roads when possible
Address any dents or damage promptly before it worsens
The total cost for condenser replacement can vary based on:
Vehicle make and model
Labor rates in your area
Extent of additional repairs needed
On average, expect:
| Cost | Range |
|---|---|
| Condenser Unit | $200 - $800 |
| Labor | $200 - $500 (3-5 hours) |
| Additional Parts (receiver/drier, refrigerant, etc.) | Varies |
| Total Estimated Cost | $500 - $1,500 |
Costs can fluctuate, so I provide transparent, accurate estimates before any work begins.
Dealing with a damaged or punctured condenser is an unfortunate but common reality for many vehicle owners. As a mechanic, I've seen the hassle it causes firsthand.
By understanding the causes, proper inspection, repair options, preventive measures, and typical costs involved, you can be better prepared if this issue arises with your vehicle. Don't hesitate to seek an expert mechanic's help to keep your cool on the road.
With the right knowledge, proactive maintenance, and prompt repairs when needed, you can minimize the risks and keep your air conditioning system running smoothly for years to come.
The refrigerant lines and compressor can also be damaged if the condenser is leaking refrigerant. The entire A/C system may need repairs.
Mechanics use specialized leak detection solutions or electronic leak detectors to pinpoint the exact location of any refrigerant leaks.
Minor damage like bent fins can sometimes be repaired using a fin comb tool, but significant damage or leaks will require full condenser replacement.
The condenser is located at the front to allow maximum airflow over the coils for optimal heat dissipation from the refrigerant.
A malfunctioning condenser fan can mimic the symptoms of a bad condenser by reducing airflow and heat transfer ability.
Most condenser replacements take 3-5 hours of labor time for an experienced mechanic to complete properly.
No, driving with a refrigerant leak from the condenser can be unsafe and is illegal in many areas due to environmental regulations.
Regular maintenance, cleaning, installing protective guards, and avoiding debris are ways to prevent condenser damage.
No, condensers are specifically designed for each vehicle make, model and engine configuration to ensure proper fit and performance.
No, the condenser is replaced as a complete assembly. Individual coil replacement is not a viable repair option.
