Introduction

Pressure switches are essential components found in various systems, including heating, ventilation, and air conditioning (HVAC) units, as well as automotive air conditioning systems. These unassuming devices play a crucial role in ensuring the safe and efficient operation of these systems by monitoring and regulating pressure levels.

In this article, I'll share my in-depth insights and expertise on faulty pressure switches in HVAC car systems, covering the main causes, troubleshooting techniques, repair instructions, and preventive measures. Buckle up, and let's dive into the world of automotive HVAC systems!

Main Causes of Faulty Pressure Switches

Over the years, I've identified several common culprits that can lead to faulty pressure switches in car HVAC systems. Let's explore them in detail:

Low Refrigerant Levels

One of the most frequent causes of pressure switch issues is low refrigerant levels due to leaks in the AC system. Refrigerant is the lifeblood of your car's air conditioning, and when it escapes through leaks, it can disrupt the entire system's pressure balance. This imbalance can trigger the pressure switches to malfunction, leading to improper cooling or even compressor damage if left unchecked.

Leaks can occur in various parts of the system, such as the compressor seals, hoses, or connections. Even a small leak can cause a significant loss of refrigerant over time, leading to low pressure and potential system failure.

Common Leak PointsDescription
Compressor SealsWorn or damaged seals around the compressor shaft can allow refrigerant to escape.
Hose ConnectionsLoose or cracked hose connections can develop leaks, especially in older vehicles.
Evaporator CoreTiny holes or cracks in the evaporator core can lead to refrigerant leakage.
Condenser CoilsCorrosion or physical damage to the condenser coils can cause leaks.

Blocked or Dirty Condenser Coils

The condenser coils play a crucial role in dissipating heat from the refrigerant, allowing it to condense back into a liquid state. However, over time, these coils can become clogged with dirt, debris, or even small insects, restricting airflow. This blockage can cause high-pressure issues, triggering the high-pressure switch and preventing the AC system from functioning correctly.

Condenser coils are typically located in front of the radiator, exposed to various environmental contaminants. Factors that can contribute to clogged condenser coils include:

  • Driving in dusty or polluted areas

  • Parking under trees or near construction sites

  • Lack of regular maintenance and cleaning

As the coils become increasingly blocked, the airflow is restricted, causing the refrigerant to accumulate excessive heat and pressure, leading to potential system failures.

Faulty Compressor or Other AC Components

The compressor is the heart of your car's AC system, responsible for circulating the refrigerant through the various components. If the compressor or other essential parts like the evaporator fail, it can disrupt the refrigerant flow and cause pressure imbalances, leading to pressure switch malfunctions.

Common issues with the compressor and other AC components include:

ComponentPotential Issues
CompressorWorn bearings, seized pistons, electrical failures
EvaporatorClogged or frozen core, leaks
Expansion ValveStuck or faulty valve, causing improper refrigerant flow
AccumulatorClogged or damaged, preventing proper refrigerant return

These component failures can cause the refrigerant pressure to fluctuate outside of the normal operating range, triggering the pressure switches and potentially leading to further damage if left unaddressed.

Electrical Issues

Electrical problems, such as bad wiring connections, blown fuses, or failed control modules, can also contribute to pressure switch failures. These issues can prevent the pressure switches from receiving the necessary electrical signals, causing them to malfunction or fail to operate correctly.

Common electrical issues include:

  • Corroded or loose wiring connections

  • Blown fuses or faulty relays

  • Failed control modules or sensors

  • Grounding issues or electromagnetic interference

Electrical problems can be particularly challenging to diagnose, as they may not always present obvious symptoms. In some cases, intermittent issues or unusual behavior may be the only clues to an underlying electrical problem.

Troubleshooting and Diagnosis

When faced with a potential pressure switch issue, proper troubleshooting and diagnosis are crucial to identify the root cause and prevent further damage. Here are the steps I typically follow:

Inspection Steps

  • Check refrigerant levels: Using specialized gauges, I check the refrigerant levels in the system to determine if there are any leaks or low levels. This involves connecting the gauges to the service ports and monitoring the pressure readings.

  • Inspect condenser coils: I carefully examine the condenser coils for any dirt, debris, or obstructions that could be restricting airflow. This may involve removing the condenser fan or other components to gain better access.

  • Test compressor operation: I run tests to ensure the compressor is functioning correctly and not causing any pressure imbalances. This can involve monitoring the current draw, checking for unusual noises or vibrations, and observing the system pressures during operation.

  • Check wiring and fuses: I inspect the wiring connections and fuses related to the pressure switches to identify any electrical issues. This includes checking for loose or corroded connections, testing fuses and relays, and verifying proper grounding.

Signs of Specific Failures

During the troubleshooting process, I look for specific signs that can indicate the type of pressure switch failure:

  • Low-pressure switch failure: If the AC is not cooling properly, or the compressor is cycling on and off rapidly, it could be a sign of a low-pressure switch failure. This can be caused by low refrigerant levels, a faulty expansion valve, or a blocked evaporator.

  • High-pressure switch failure: If the AC is blowing warm air or the compressor is running constantly, it may indicate a high-pressure switch failure. This can be caused by blocked or dirty condenser coils, a faulty compressor, or a restriction in the system.

  • Wiring issues: If the compressor doesn't respond when the AC is turned on, it could be due to wiring issues related to the pressure switches. This can include blown fuses, loose connections, or a failed control module.

Repair Instructions for Each Cause

Once the root cause has been identified, it's time to address the issue and restore your car's HVAC system to optimal performance. Here are the repair instructions for each potential cause:

Replacing Pressure Switches

  • Recover refrigerant: First, I recover the remaining refrigerant from the system using specialized equipment. This is necessary to prevent the release of harmful refrigerants into the environment and to ensure proper system evacuation.

  • Disconnect and remove: I disconnect the electrical connector and remove the faulty pressure switch from the system. This may involve removing other components or panels to access the switch location.

  • Install new switch: I install a new, high-quality pressure switch, replacing any necessary seals or gaskets. It's important to use the correct replacement part specified for your vehicle make and model.

  • Evacuate and recharge: After installing the new switch, I evacuate the system to remove any moisture or contaminants, and then recharge it with the appropriate amount and type of refrigerant. Proper evacuation and recharging are essential for the system to function correctly.

Cleaning Condenser Coils

If the issue is caused by blocked or dirty condenser coils, I carefully clean them using specialized tools and techniques. This process involves:

  1. Removing any debris, dirt, or obstructions from the coils using compressed air, brushes, or specialized cleaning solutions.

  2. Straightening bent fins to restore proper airflow.

  3. Inspecting the coils for any physical damage or leaks and repairing as necessary.

  4. Reassembling the condenser and ensuring proper airflow.

Regular condenser coil cleaning is recommended to maintain optimal system performance and prevent future issues.

Replacing Failed Compressor or Other Components

In cases where the compressor or other essential AC components are faulty, I replace them with new, high-quality parts. This process can be more complex and may require additional system evacuations and recharges.

The steps typically involve:

  1. Recovering the refrigerant from the system.

  2. Removing the faulty component (compressor, evaporator, expansion valve, etc.).

  3. Installing the new component, following the manufacturer's instructions and torque specifications.

  4. Evacuating the system to remove any moisture or contaminants.

  5. Recharging the system with the correct amount and type of refrigerant.

  6. Performing system checks and adjustments as necessary.

Replacing major components like the compressor can be a significant repair, but it's often necessary to restore proper system operation and prevent further damage.

Repairing Wiring Issues and Fuse Replacements

If the problem is related to electrical issues, such as bad wiring connections or blown fuses, I carefully inspect and repair the wiring harnesses, connectors, and replace any faulty fuses or control modules as needed.

The steps may include:

  • Inspecting and cleaning wiring connections, ensuring proper crimping and insulation.

  • Replacing any corroded or damaged wiring harnesses or connectors.

  • Testing and replacing blown fuses or faulty relays.

  • Checking for proper grounding and addressing any issues.

  • Verifying the operation of control modules, sensors, and other electrical components related to the HVAC system.

Electrical repairs can be time-consuming and may require specialized diagnostic tools and expertise to identify and resolve the underlying issues.

Preventing Recurrence

While repairs are necessary to address immediate issues, preventive maintenance is key to avoiding future problems with your car's HVAC system and pressure switches. Here are some tips to help prevent recurrence:

Regular Maintenance and Inspections

I strongly recommend scheduling regular maintenance and inspections for your car's HVAC system. During these visits, a qualified technician can:

  • Check for any potential issues, such as refrigerant leaks, dirty coils, or worn components.

  • Address minor problems before they escalate into more significant issues.

  • Perform system checks and adjustments to ensure optimal performance.

Regular maintenance can help catch issues early and prevent costly breakdowns or component failures.

Check Refrigerant Levels Annually

Refrigerant levels should be checked annually and recharged if necessary. Low refrigerant levels can put additional strain on the system and lead to pressure switch failures or compressor damage.

During the annual check, a technician can:

  • Inspect the system for leaks using specialized equipment.

  • Measure the refrigerant levels and recharge if necessary.

  • Check for any signs of system wear or potential issues.

Maintaining proper refrigerant levels is crucial for efficient system operation and longevity.

Clean Condenser Coils Periodically

Depending on your driving conditions and environment, it's essential to have the condenser coils cleaned periodically to ensure proper airflow and heat dissipation.

The recommended cleaning frequency may vary, but generally, it's advisable to have the coils cleaned:

  • Annually, or more frequently if driving in dusty or polluted areas.

  • After any major repairs or component replacements.

  • If you notice a decrease in cooling performance or increased compressor run times.

Regular coil cleaning can help prevent high-pressure issues and extend the life of your HVAC system.

Proper Usage

Avoid overworking your car's AC system by using it judiciously. Excessive use in extreme conditions can accelerate wear and tear on the system, potentially leading to pressure switch failures or other issues.

Here are some tips for proper usage:

  • Use the AC system in moderation, especially in extremely hot or cold conditions.

  • Avoid running the system at maximum cooling or heating settings for extended periods.

  • Park in shaded areas when possible to reduce the load on the AC system.

  • Consider using the fresh air mode or opening windows when driving at lower speeds or in mild temperatures.

By following these guidelines, you can help minimize stress on the HVAC system and extend its lifespan.

Cost Considerations

When it comes to repairing faulty pressure switches or related HVAC system components, it's essential to be aware of the potential costs involved:

RepairTypical Cost Range
Pressure Switch Replacement$150 - $300 (including labor)
Condenser Coil Cleaning$100 - $200
Compressor Replacement$500 - $1,200
Evaporator Replacement$400 - $800
Expansion Valve Replacement$200 - $500
Accumulator Replacement$150 - $400
Wiring Repairs$100 - $300

Please note that these costs are approximate and can vary depending on your vehicle's make and model, the complexity of the repair, and the labor rates in your area.

While these costs may seem significant, it's important to remember that regular maintenance and addressing issues promptly can help prevent more costly breakdowns and repairs down the line. Additionally, investing in high-quality replacement parts and skilled labor can ensure a longer-lasting repair and better overall system performance.

Conclusion

Faulty pressure switches in HVAC car systems can be a frustrating and potentially costly issue if left unaddressed. As a mechanic, I've seen firsthand the importance of proper troubleshooting, diagnosis, and repair when it comes to these critical components. By understanding the main causes, following the appropriate repair instructions, and implementing preventive measures, you can ensure your car's AC system operates at peak performance and avoid further damage.

Remember, regular maintenance and addressing issues promptly are key to preventing recurrence and extending the lifespan of your car's HVAC system. Don't hesitate to seek the expertise of a qualified automotive technician if you suspect any issues with your vehicle's pressure switches or AC system.

Stay cool, and happy motoring!

FAQs

What is the purpose of an AC pressure switch?

An AC pressure switch monitors the refrigerant pressure levels and turns off the compressor if the pressure gets too high or too low to prevent damage. It acts as a safety mechanism for the AC system.

What causes a faulty AC pressure switch?

Low refrigerant levels due to leaks, blocked or dirty condenser coils, faulty compressor or other AC components, and electrical issues like bad wiring can cause an AC pressure switch to malfunction.

How can I identify a bad AC pressure switch?

Common symptoms of a faulty AC pressure switch include the AC not cooling properly, the compressor cycling on and off rapidly, strange noises from the AC system, and the AC turning off unexpectedly.

Where is the AC pressure switch located?

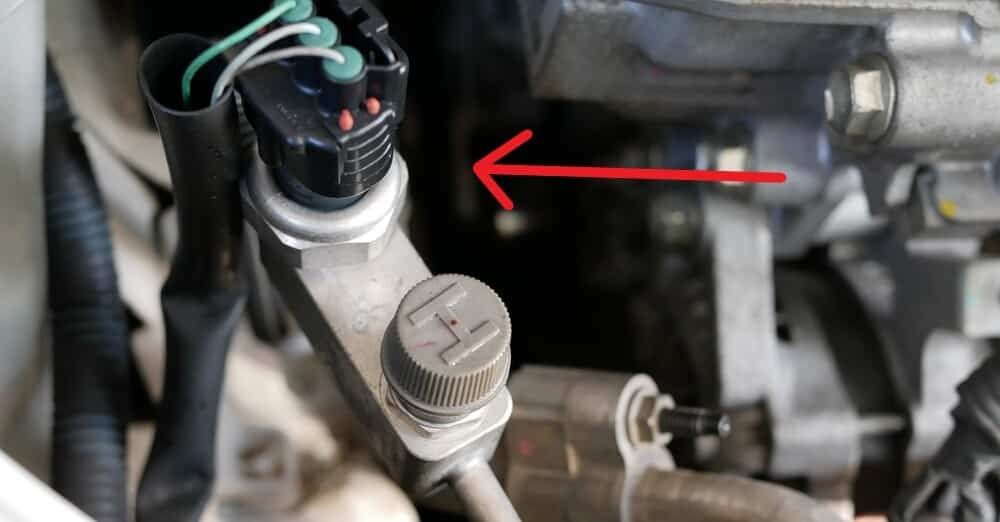

The low-pressure switch is typically located on the larger refrigerant line before the compressor, while the high-pressure switch is on the smaller line after the compressor.

How do I test an AC pressure switch?

You can test an AC pressure switch by using a multimeter to check for continuity across the switch terminals or by connecting an AC manifold gauge set to monitor the pressure readings.

Can a faulty AC pressure switch damage the compressor?

Yes, a malfunctioning AC pressure switch can potentially cause damage to the compressor by allowing the refrigerant pressure to become too high or too low, leading to compressor failure.

How do I replace an AC pressure switch?

To replace an AC pressure switch, you need to recover the refrigerant, disconnect the old switch, install the new switch, evacuate the system, and then recharge it with the correct amount of refrigerant.

How often should I maintain my car's AC system?

Regular maintenance and inspections, checking refrigerant levels annually, and cleaning the condenser coils periodically can help prevent AC pressure switch failures and extend the lifespan of your car's AC system.

What are the cost considerations for AC pressure switch repairs?

The typical cost range for replacing an AC pressure switch, including labor, is $150 to $300, but it can vary depending on the vehicle make and model, and the complexity of the repair.

Can I drive with a faulty AC pressure switch?

While it is possible to drive with a faulty AC pressure switch, it is not recommended as it can lead to further damage to the AC system and potential safety hazards if the refrigerant pressure becomes too high.
