Removing a broken bolt from an engine block can be a challenging and frustrating task for any mechanic or DIY enthusiast. Engine blocks are typically made of cast iron or aluminum alloy, while bolts are made of hardened steel, making them difficult to extract once they break off inside the threaded hole. A broken bolt can prevent further disassembly or repair work, making its removal a critical step before proceeding.
Let's start by understanding how these pesky bolts can break in the first place:
| Common Causes of Broken Bolts |
|---|
| Over-tightening the bolt, which can cause it to stretch and snap |
| Heat cycles and thermal expansion causing stress on the bolt over time |
| Rust and corrosion weakening the bolt material |
| Using low-quality bolts that are prone to breaking |
| Cross-threading or improper installation leading to excessive stress |
Before we dive into the removal process, it's crucial to identify the problem correctly:
Visually inspect the engine block area for any protruding broken bolt shanks
Check for symptoms like coolant leaks, loose components, or abnormal engine noises that could indicate a broken bolt
Use a punch or center punch to create a divot at the center of the broken bolt stub
Now, let's get to the good stuff – removing that pesky broken bolt. There are a few tried-and-true methods to choose from, each with its own advantages and challenges.
This is perhaps the most common approach, and it involves drilling into the broken bolt to create a hole for an extractor tool.
| Drilling Method Steps |
|---|
| Start by drilling a pilot hole into the center of the broken bolt using a small left-handed drill bit |
| Progressively use larger left-handed drill bits to expand the hole until it reaches close to the bolt threads |
| Use a bolt extractor tool (easy-out) that matches the drilled hole size and hammer it into the hole |
| Attach the extractor to a wrench or ratchet and turn counter-clockwise to back out the broken bolt |
If drilling isn't your cup of tea, or if the bolt is particularly stubborn, you can try the welding method.
Clean the area around the broken bolt stub
Weld a nut onto the exposed portion of the broken bolt
Allow the weld to cool slightly, then use a wrench or impact gun to unscrew the bolt by turning the welded nut
This method is a bit more advanced, but it can be a game-changer when dealing with particularly stubborn bolts.

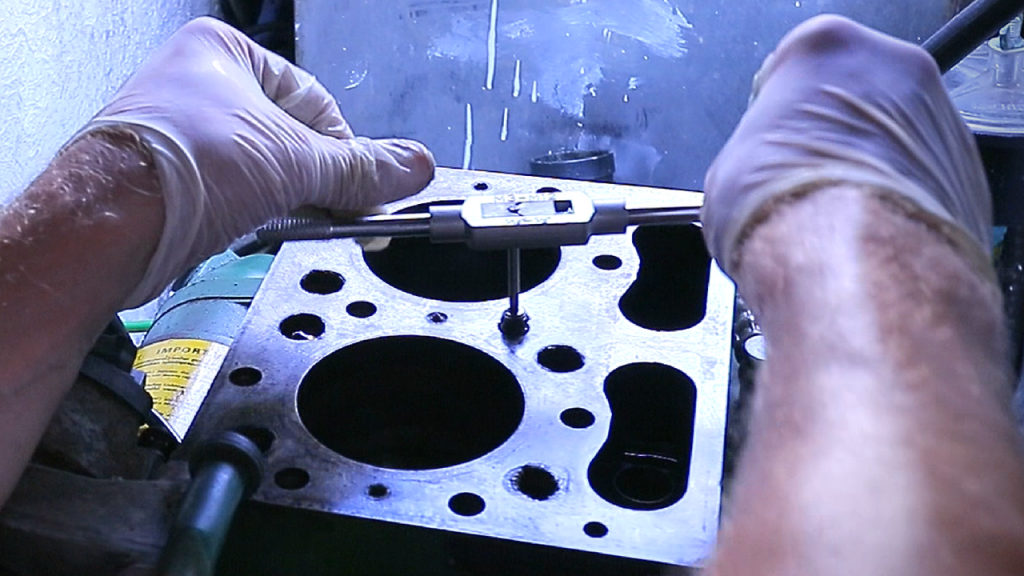

After drilling out most of the broken bolt, use a tap handle and increasingly larger taps to re-thread the hole
Finish by running a bottoming tap of the correct thread size through the hole to clean up the threads
Throughout these processes, there are a few tips and tricks that can make your life easier:
Use high-quality left-handed drill bits and extractors designed for this task
Avoid deforming or pinching the bolt further into the threads
Work slowly and carefully to prevent damaging the engine block threads
Keep the area clean and use lubricants or penetrating oils to aid removal
| Prevention Measures |
|---|
| Use the correct torque specifications when installing bolts |
| Inspect bolts regularly for signs of rust, corrosion or damage and replace as needed |
| Avoid over-tightening bolts which can lead to stretching and breaking |
| Use high-quality bolts and components designed for the application |
The cost can vary depending on the severity of the issue and whether professional repair is required. Replacing just the broken bolt may cost $10-50 for the parts, while having a mechanic extract it could range from $100-500 or more if the engine needs to be disassembled or threads need to be repaired. Doing it yourself can save on labor costs if you have the right tools and skills.
Dealing with a broken bolt in the engine block is no walk in the park, but with the right knowledge and techniques, it's a challenge that can be overcome. Whether you choose to drill, weld, or tap your way to victory, the key is to approach the task with patience, precision, and the right tools.
Remember, prevention is always better than cure. Use high-quality bolts and components designed for the application, and avoid over-tightening or improper installation techniques that can lead to breakage. Regular inspections and maintenance can also go a long way in catching potential issues before they become major headaches.
So, there you have it, my fellow gearheads – a comprehensive guide to removing broken bolts from the engine block. Whether you're a seasoned pro or a DIY enthusiast, this knowledge will come in handy when you find yourself face-to-face with one of these frustrating situations. Happy wrenching!
You will need left-handed drill bits, bolt extractors, a tap and die set, wrenches or ratchets, and potentially a welder.
Use the correct torque specifications when installing bolts and inspect them regularly for signs of damage or corrosion.
Yes, a broken bolt can potentially lead to coolant leaks, loose components, or abnormal engine noises if not addressed.
The drilling method is often considered the easiest, involving drilling into the bolt to create a hole for an extractor tool.
Visually inspect for protruding broken bolt shanks and check for symptoms like leaks, loose parts, or abnormal noises.
Yes, using penetrating oils or lubricants can aid in the removal process by helping to break down rust and corrosion.
A cross-threaded bolt may need to be drilled out and the threads repaired or re-tapped to avoid further damage.
Work slowly and carefully, using the correct size tools and avoiding deforming or pinching the bolt further into the threads.
Professional mechanics often have specialized tools and experience that can make removing a broken bolt easier and faster.
Improper techniques can potentially cause further damage to the engine block threads or components if not done carefully.
