Introduction
Spark plugs are a crucial component in gasoline-powered internal combustion engines, responsible for igniting the air-fuel mixture and enabling the combustion process. Proper maintenance and timely replacement of spark plugs are essential for ensuring optimal engine performance, fuel efficiency, and longevity.

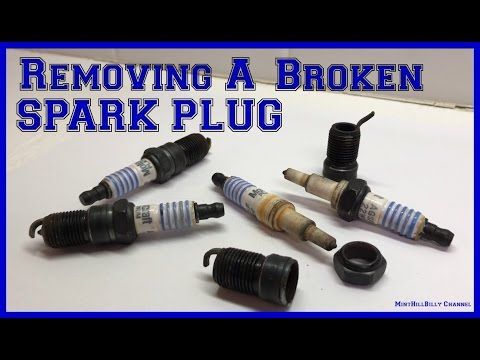

In this article, I'll share my firsthand experience and expertise on how to remove a broken spark plug, covering everything from common causes to step-by-step removal procedures. Whether you're a DIY enthusiast or a professional technician, this guide will equip you with the knowledge and tools to tackle this daunting task with confidence.
Understanding the Causes of Broken Spark Plugs
Before we dive into the removal process, it's essential to understand the common culprits behind broken spark plugs. Over the years, I've encountered various scenarios that can lead to this unfortunate situation:
| Cause | Description |
|---|
| Excessive Carbon Buildup | When an engine runs rich (too much fuel), it can cause excessive carbon buildup on the spark plug electrodes, preventing proper firing and causing the ceramic insulator to crack or break under thermal stress. |
| Improper Heat Range | Using the wrong spark plug heat range for your engine can lead to pre-ignition or detonation, which can damage the plug's internal components. |
| Foreign Object Damage | Sometimes, foreign objects like small rocks or debris can find their way into the combustion chamber and strike the spark plug, causing physical damage. |
| Improper Installation | Cross-threading or over-tightening a spark plug during installation can create stress fractures, leading to eventual failure. |
| Age and Wear | Like any component, spark plugs have a finite lifespan, and over time, the electrodes can erode, and the insulator can become brittle and crack, especially in high-mileage engines. |
Inspecting and Diagnosing the Issue
Before attempting to remove a broken spark plug, it's crucial to inspect and diagnose the issue properly. Here are the steps I typically follow:
Visual Inspection
Compression Test
Resistance Test
Spark Test
Visual Inspection
I carefully examine the broken spark plug for signs of:
These clues can help identify the potential cause of the failure.
Compression Test
If I suspect a more serious internal engine issue, I'll perform a compression test on the affected cylinder. Low compression could indicate a larger problem that needs to be addressed.
Resistance Test
Using a multimeter, I test the spark plug's resistance to check for:
Open circuit
High resistance
These can indicate internal damage.
Spark Test
To verify if the ignition system is functioning correctly, I reconnect the ignition coil and observe the spark at the electrode while cranking the engine.
Removal and Repair Procedures
Once I've diagnosed the issue, it's time to roll up my sleeves and tackle the removal process. Here's how I approach this challenging task:
| Step | Description |
|---|
| Preparation | Ensure the engine is cold, and the piston is at bottom dead center (BDC) in the cylinder with the broken plug. This prevents any debris from falling into the cylinder and causing further damage. |
| Penetrating Oil | Generously soak the broken plug shell with a high-quality penetrating oil and allow it to work its magic for a while. This helps break the rust and carbon bond, making removal easier. |
| Extractor Tool | Carefully tap an appropriately sized easy-out or extractor tool into the empty spark plug threads and attempt to reverse it out. If needed, apply heat to further break the bond. |
| Last Resort | If the extractor fails, carefully punch the porcelain insulator and electrode into the cylinder, then fish out the debris with a magnet or compressed air after removing the cylinder head. This is a last resort and should only be attempted by experienced mechanics. |
| Cleaning and Replacement | Once the broken plug is removed, inspect and clean the cylinder head threads, ensuring they're in good condition. Finally, replace the spark plug with the correct heat range and type specified for your engine. |
Prevention and Proper Maintenance
While removing a broken spark plug can be a challenging task, prevention is always better than cure. Here are some tips I recommend to avoid this situation altogether:
Follow Replacement Intervals
Use the Correct Spark Plugs
Proper Engine Maintenance
Avoid Extreme Conditions
Gentle Installation
Follow Replacement Intervals
Adhere to the manufacturer's recommended spark plug replacement interval based on mileage or time. Don't let them go too long, as this can lead to premature failure.
Use the Correct Spark Plugs
Always use the correct spark plug heat range and type for your engine and driving conditions. Consulting your owner's manual or a professional mechanic can ensure you make the right choice.
Proper Engine Maintenance
Regular:
Oil changes
Air filter replacements
Fuel system cleaning
Can prevent excessive carbon buildup, which is a common cause of spark plug failure.
Avoid Extreme Conditions
Overheating the engine or operating it under extreme conditions can lead to pre-ignition or detonation, which can damage the spark plugs.
Gentle Installation
When installing new spark plugs, be gentle and follow the torque specifications to avoid cross-threading or over-tightening, which can create stress fractures.
Cost Considerations
| Scenario | Cost |
|---|
| Simple Cases | Only need to purchase new spark plugs (typically $5-$20 each) and a can of penetrating oil. |
| Cylinder Head Removal or Internal Engine Damage | Labor costs at a repair shop can quickly escalate to hundreds or even thousands of dollars. |
| DIY Repair | Can save on labor costs but carries the risk of further damage if not done correctly. |
Preventative maintenance by replacing spark plugs on schedule is generally more cost-effective in the long run.
Conclusion
Removing a broken spark plug can be a daunting task, but with the right knowledge, tools, and patience, it's a challenge that can be overcome. As a mechanic, I've learned that proper diagnosis, careful preparation, and the right techniques are key to successfully tackling this repair.
Whether you're a DIY enthusiast or a professional technician, I hope this firsthand account has provided you with valuable insights and practical tips to confidently address this common automotive issue. Remember, prevention is always better than cure, so stay on top of your spark plug maintenance, and you'll save yourself a lot of headaches down the road.
FAQs
You will need penetrating oil, an extractor tool like an easy-out set, a hammer, and potentially a cylinder head removal tool if the extractor fails.
How do you prevent debris from falling into the cylinder?
Ensure the piston is at bottom dead center in the cylinder with the broken plug to prevent debris from falling in and causing further damage.
What is the purpose of using penetrating oil?
Penetrating oil helps break the rust and carbon bond between the spark plug and cylinder head threads, making removal easier.
When should you apply heat during removal?
Apply heat if the extractor tool is not working to further break the bond between the plug and cylinder head.
As a last resort, punch the porcelain insulator and electrode into the cylinder, then remove the cylinder head to fish out the debris.
How do you clean the cylinder head threads after removal?
Inspect and thoroughly clean the cylinder head threads using a tap or thread chaser to ensure they are in good condition.
What type of spark plug should you use for replacement?
Always replace with the correct heat range and type of spark plug specified for your engine in the owner's manual.
How can you prevent spark plug failure?
Follow recommended replacement intervals, use the proper plugs, maintain the engine, avoid extreme conditions, and install plugs gently.
What are signs that a spark plug needs replacement?
Signs include rough idling, trouble starting, engine misfiring, surging, lack of acceleration, and high fuel consumption.
When is it better to have a professional handle spark plug removal?
If the extractor fails or there are signs of internal engine damage, it's best to have an experienced mechanic handle the removal and repairs.
