The rack and pinion system is a critical component of a vehicle's steering mechanism, responsible for converting the rotational motion of the steering wheel into linear motion, allowing the wheels to turn left or right. When this system malfunctions, it can compromise the driver's ability to control the vehicle, posing a significant safety risk. In this comprehensive guide, we'll explore the telltale signs of a failing rack and pinion, the diagnostic process, preventative maintenance measures, and when replacement becomes necessary.

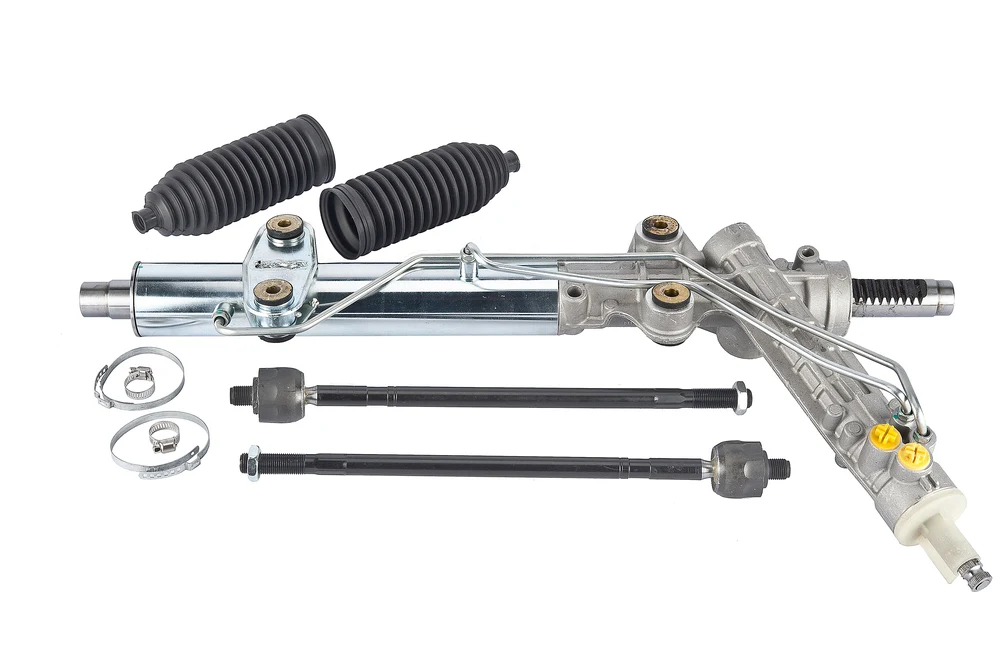

The rack and pinion system is an integral part of a vehicle's steering system. It consists of a linear gear (rack) that moves laterally and a circular gear (pinion) that rotates and meshes with the rack. The rack is connected to the tie rods, which transfer the linear motion to the steering knuckles, ultimately turning the wheels. The pinion, on the other hand, is connected to the steering shaft, which is rotated by the steering wheel.
This mechanism allows for precise steering control and a tight turning radius, making it a popular choice in modern vehicles. However, like any mechanical component, the rack and pinion system is subject to wear and tear over time, and it requires power steering assistance to function effectively.
| Component | Function |
|---|---|
| Rack Gear | Moves laterally within its housing |
| Pinion Gear | Rotates and meshes with the rack gear |
| Tie Rods | Transfer linear motion from the rack to the steering knuckles |
| Steering Shaft | Rotated by the steering wheel, connected to the pinion gear |
| Power Steering | Provides assistance to reduce steering effort |
The rack and pinion system converts the rotational motion of the steering wheel into linear motion, allowing the wheels to turn left or right. This conversion is achieved through the interaction between the linear rack gear and the circular pinion gear. As the steering wheel is turned, the pinion gear rotates, causing the rack gear to move laterally within its housing. This lateral movement of the rack is then transferred to the tie rods, which are connected to the steering knuckles, ultimately turning the wheels.
Due to the significant force required to turn the wheels, especially at low speeds or when the vehicle is stationary, the rack and pinion system requires power steering assistance. This assistance is typically provided by a hydraulic or electric power steering system, which reduces the effort required by the driver to turn the steering wheel.
Over time, the components of the rack and pinion system can wear down, leading to various issues that can affect the vehicle's steering performance and safety. It's crucial to recognize the signs of a failing rack and pinion system to address the problem promptly and prevent further damage or potential accidents.
One of the most common indicators of a failing rack and pinion system is excessive play or looseness in the steering wheel. This can manifest as a noticeable "free play" or a lack of responsiveness when turning the steering wheel. The steering wheel may feel loose or disconnected from the wheels, indicating wear or damage to the internal components of the rack and pinion assembly.
If you experience increasing difficulty turning the steering wheel, especially at lower speeds or when the vehicle is stationary, it could be a sign of a problem with the rack and pinion system. This issue may be caused by worn or damaged components, such as the rack and pinion gears, tie rod ends, or power steering components, which can create excessive friction or binding within the system.
| Symptom | Potential Cause |
|---|---|
| Steering Wheel Play or Looseness | Worn internal components |
| Difficulty Turning Steering Wheel | Worn gears, tie rods, or power steering components |
| Leaking Power Steering Fluid | Leak in the power steering system |
| Clunking or Grinding Noises | Worn or damaged components |
| Vehicle Wandering or Pulling | Misaligned or damaged components |
| Uneven Tire Wear | Improper wheel alignment |
A leak in the power steering system can significantly impact the performance of the rack and pinion. If you notice a reddish or pinkish fluid on the ground where your vehicle is parked, it could indicate a leak in the power steering system. Without proper fluid levels and pressure, the rack and pinion may become stiff and difficult to operate, leading to potential failure.
Unusual noises, such as clunking or grinding, when turning the steering wheel can be a clear indication of a problem with the rack and pinion system. These noises may be caused by worn or damaged components, such as the rack and pinion gears, tie rod ends, or other steering linkage components. Ignoring these noises can lead to further deterioration and potential safety hazards.
If your vehicle tends to wander or pull to one side, even when driving straight on a level surface, it could be a sign of a misaligned or damaged rack and pinion system. This issue can be caused by worn or damaged components, such as the rack and pinion gears, tie rod ends, or other steering linkage components, which can affect the vehicle's ability to maintain a straight line.
Premature or uneven tire wear, particularly on the front tires, can be an indication of a faulty rack and pinion system. When the steering components are misaligned or not functioning properly, it can cause the wheels to be at an improper angle, leading to uneven tire wear and potentially compromising the vehicle's handling and stability.
If you suspect a problem with your rack and pinion system, it's essential to have it inspected by a qualified mechanic. They will perform a series of diagnostic tests to identify the root cause of the issue and determine the appropriate course of action.
Dry Park Test: This test involves rocking the steering wheel back and forth with the vehicle's full weight on the wheels to check for any play or looseness in the steering components. Excessive play or looseness can indicate worn or damaged components within the rack and pinion assembly.
Visual Inspection: A thorough visual inspection of the rack and pinion assembly is crucial in diagnosing potential issues. The mechanic will look for signs of leaks, damage, or loose components that could be contributing to the steering problems. This inspection may involve removing components or covers to gain better access to the rack and pinion system.
Test Drive: A test drive is an essential part of the diagnostic process, as it allows the mechanic to observe and experience any steering issues firsthand. During the test drive, the mechanic will evaluate the vehicle's handling, steering responsiveness, and any unusual noises or behaviors that may indicate a problem with the rack and pinion system.
Regular maintenance and proper care can help extend the life of your rack and pinion system and prevent premature failure. By following these preventative measures, you can minimize the risk of costly repairs or replacements.
| Maintenance Task | Benefit |
|---|---|
| Regular Power Steering Fluid Changes | Ensures optimal performance and prevents leaks or damage |
| Avoiding Overloading or Rough Terrain | Reduces accelerated wear and tear on steering components |
| Routine Inspections, Especially After Collisions | Identifies potential issues before they become major problems |
Maintaining the proper level and condition of the power steering fluid is crucial for the smooth operation of the rack and pinion system. Over time, the fluid can become contaminated or break down, reducing its effectiveness. Regular fluid changes, as recommended by the vehicle manufacturer, can help ensure optimal performance and prevent potential leaks or damage.
Subjecting your vehicle to excessive loads or driving over rough terrain can accelerate the wear and tear on the steering components, including the rack and pinion system. It's essential to follow the manufacturer's guidelines for maximum load capacity and avoid driving on excessively rough or uneven surfaces whenever possible.
Regular inspections of the steering system, including the rack and pinion, are recommended as part of your vehicle's routine maintenance schedule. Additionally, it's crucial to have the rack and pinion inspected after any front-end collision, even if no immediate issues are apparent. Collisions can cause misalignment or damage to the steering components, which may not be immediately noticeable but can lead to premature failure if left unaddressed.
In some cases, the damage or wear to the rack and pinion system may be too severe for repairs to be effective or cost-efficient. In these situations, replacement of the entire rack and pinion assembly may be the best course of action.
Significant wear or damage to components, such as the rack and pinion gears, tie rod ends, or other critical components, may necessitate replacement as the only viable solution. Attempting to repair these components can be costly and may not provide a long-lasting or reliable fix, potentially leading to further issues down the road.
In many cases, replacing the entire rack and pinion assembly is more cost-effective than attempting to repair individual components. The labor costs associated with disassembling and reassembling the system, combined with the cost of replacement parts, can often exceed the cost of a new rack and pinion assembly.
The cost of replacing a rack and pinion system can vary depending on the make and model of your vehicle, as well as the labor rates in your area. On average, you can expect to pay between $500 and $2,000 for a complete rack and pinion replacement, including parts and labor.
Addressing steering issues promptly is crucial for maintaining the safety and reliability of your vehicle. Ignoring warning signs or delaying necessary repairs can have severe consequences.
A failing rack and pinion system can significantly compromise your ability to control the vehicle, posing a serious safety risk to you, your passengers, and other road users. Steering issues can make it difficult to navigate turns, change lanes, or respond to unexpected situations on the road, increasing the likelihood of accidents.
Ignoring steering problems can lead to further deterioration of the rack and pinion system and other related components. This can result in more extensive and costly repairs down the line, as well as potential safety hazards if the system fails completely while driving.
By addressing steering issues promptly, you can ensure that your vehicle is operating at its best and that you have full control over its handling and maneuverability. This not only enhances your driving experience but also helps create safer driving conditions for everyone on the road.
Maintaining a properly functioning rack and pinion system is essential for precise steering control and driving safety. By recognizing the signs of a failing system, seeking professional diagnosis, and following preventative maintenance practices, you can extend the life of your rack and pinion and avoid costly repairs or replacements. Addressing steering issues promptly not only protects your vehicle but also safeguards you and others on the road. Stay vigilant, and don't hesitate to have your vehicle inspected if you notice any concerning symptoms related to your steering system.
A rack and pinion system converts rotational motion into linear motion. It is commonly used in steering mechanisms to allow the wheels to turn when the steering wheel is rotated.
When the pinion gear (circular gear) rotates, it causes the rack (linear gear) to move laterally. This lateral motion of the rack is then transferred to the tie rods and steering knuckles to turn the wheels.
It provides precise steering control and a tight turning radius. There is less backlash and better steering feedback compared to other steering mechanisms.
Yes, most modern vehicles use power-assisted rack and pinion steering systems, either hydraulically or electrically powered, to reduce the effort required to turn the steering wheel.
Common causes include normal wear and tear over time, lack of proper lubrication, impact damage, and contamination of the power steering fluid.
Signs include excessive play or looseness in the steering wheel, difficulty turning the steering wheel, fluid leaks, clunking noises when turning, and the vehicle wandering or pulling to one side.
There is no set replacement interval, but most rack and pinion systems last between 100,000 to 150,000 miles with proper maintenance. Replacement is necessary when there are signs of failure.
In most cases, the entire rack and pinion assembly needs to be replaced as individual components cannot be easily repaired or replaced separately.
The average cost for a rack and pinion replacement, including parts and labor, ranges from $1,000 to $2,000, depending on the vehicle make and model.
Regular power steering fluid changes, avoiding overloading or rough terrain, and routine inspections (especially after collisions) can help extend the life of a rack and pinion system.
