Properly functioning brakes are crucial for ensuring the safety of drivers, passengers, and other road users. Brakes are responsible for slowing down and stopping a vehicle, which is essential in various driving situations, such as avoiding collisions, navigating through traffic, and maintaining control in adverse weather conditions. Failure of the braking system can lead to severe accidents, injuries, and even fatalities.
According to the National Highway Traffic Safety Administration (NHTSA), brake-related issues are one of the leading causes of vehicle crashes in the United States. In 2019, brake problems were cited as a contributing factor in approximately 22% of all crashes involving passenger vehicles.
Warped rotors can arise from various factors, each contributing to the deformation of these crucial braking components. Let's explore the main culprits:
| Cause | Description |
|---|---|
| Excessive Heat Buildup | When the brakes are applied, friction between the pads and rotors generates heat. If this heat becomes excessive or isn't dissipated properly, it can cause uneven expansion of the rotor material, leading to warping. Aggressive driving with frequent hard braking, riding the brakes, faulty brake components like stuck calipers or worn pads that don't dissipate heat well, and towing or carrying heavy loads that put extra strain on the brakes can all contribute to this issue. |
| Uneven Cooling | Rapid cooling of a very hot rotor, such as driving through a puddle after heavy braking, can cause uneven contraction and lead to warping. The thermal shock from the temperature difference causes deformation, similar to taking a hot piece of metal and quenching it in cold water – the sudden temperature change can distort the material. |
| Improper Installation | If the wheel nuts are over-torqued or unevenly torqued, it can create uneven pressure on the rotor surface, causing warping over time. Rotors must be mounted perfectly flat against the hub to ensure even pressure distribution. |
| Poor Quality Rotors | Lower quality rotors made from subpar materials are more prone to warping, especially under high heat conditions. They may not undergo proper stress-relief during manufacturing, making them more susceptible to deformation. |
| Corrosion and Deposits | Brake pad material can get deposited unevenly on the rotor surface, creating high spots that warp under braking forces. Rust and corrosion can also lead to an uneven rotor surface, setting the stage for warping. |
Identifying warped rotors is crucial to address the issue promptly and prevent further damage. Here are the telltale signs to watch out for:

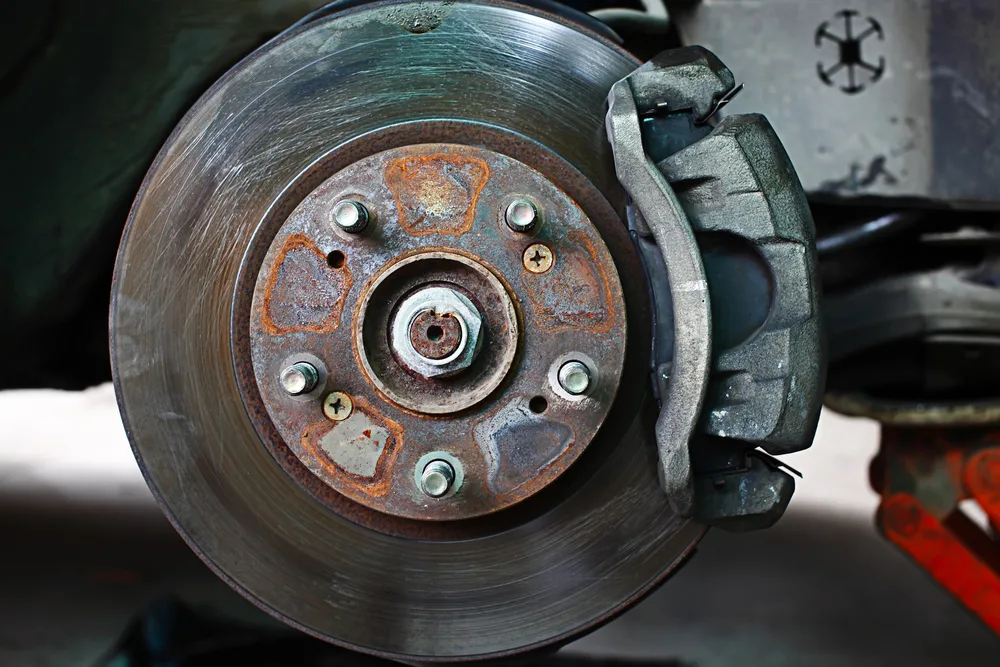

Visual Inspection: One of the first steps in inspecting brakes is to visually check the rotor surface. Bluing on the rotor, which indicates excessive heat buildup, is a red flag. Look for grooves, scoring, or uneven wear patterns that suggest warping.
Pedal Feedback: A pulsating brake pedal, especially at higher speeds, is a clear indication of warped rotors. The pedal will vibrate in sync with the rotor's rotation, creating an unsettling sensation underfoot.
Steering Wheel Vibration: If the front rotors are warped, you may feel a vibration through the steering wheel when braking. This can be particularly noticeable at higher speeds or during hard braking.
Runout Measurement: For a precise diagnosis, use a dial indicator to measure the lateral runout of the rotor surface as it rotates. Runout beyond 0.002-0.005 inches (depending on specifications) indicates warping, and it's time for corrective action.
Once warped rotors are identified, it's crucial to address the issue promptly to ensure safe braking performance. Here are the common solutions:
| Solution | Description |
|---|---|
| Resurfacing/Machining | If the rotor thickness is still above the minimum specification after machining, the rotors can potentially be resurfaced on a brake lathe to restore an even surface. However, this is often a temporary fix, as the stress remains in the metal, and warping can recur more quickly. |
| Replacement | In most cases, the best solution is to replace warped rotors with new, high-quality ones. This ensures proper operation and prevents rapid re-warping. It's recommended to replace the pads at the same time to ensure an even bedding surface for the new rotors. |
| Cleaning and Inspection | Whenever replacing rotors, thoroughly clean all brake components, check for sticking calipers, and replace worn pads and hardware. Proper reinstallation with correct lug nut torquing is critical to prevent future warping issues. |
While fixing warped rotors is essential, prevention is the best approach to avoid costly repairs and ensure optimal braking performance. Here are some effective preventive measures:
Regular Maintenance: Regular brake inspections, typically every 5,000-7,000 miles, can help catch potential issues before they become major problems. Replacing pads before they're too worn and flushing brake fluid to prevent contamination are also essential preventive measures.
Driving Habits:
Avoid aggressive braking whenever possible.
Use engine braking when descending hills or slowing down.
Don't ride the brakes.
If you've been doing some heavy braking, let the rotors cool before coming to a complete stop to prevent uneven cooling.
Quality Components: Investing in high-quality rotors and brake pads designed for your vehicle and driving conditions can go a long way in preventing warping. Consider upgrading to slotted or drilled rotors and high-temperature brake pads for better heat dissipation if you frequently tow or carry heavy loads.
Proper Installation: Ensuring the correct lug nut torquing sequence and specifications is crucial, as is checking for any runout issues with the hub or bearings that could contribute to uneven rotor wear.
The cost to replace warped rotors can vary significantly depending on several factors:
Vehicle Type: The make, model, and year of the vehicle can impact the cost of replacement rotors and associated components.
Rotor Type: Higher-quality rotors, such as slotted or drilled rotors, tend to be more expensive than standard rotors.
Labor Costs: If you opt to have the rotors replaced at a shop, labor costs can add significantly to the overall expense.
On average, the cost to replace warped rotors can range from $200 to $500 or more for parts and labor at a shop. Doing it yourself with purchased parts can significantly reduce the cost, but it requires the necessary tools and know-how.
Resurfacing rotors is sometimes an option, but it may only delay the need for replacement if the warping is severe. Ultimately, replacing warped rotors when needed is important for safe braking performance and can save you from more expensive repairs down the line.
Warped rotors may seem like a minor issue, but they can have serious consequences if left unchecked. By understanding the root causes, recognizing the telltale symptoms, and taking the appropriate corrective measures, you can ensure your vehicle's braking system operates at peak performance and keep yourself and your passengers safe on the road.
Remember, regular maintenance, quality components, and proper installation are key to preventing warped rotors. And if you ever find yourself in doubt, don't hesitate to seek the expertise of a qualified mechanic. Your safety is worth the investment.
Warped brake rotors refer to brake disc surfaces that have become grooved or uneven, usually due to excessive heat or wear over time.
Brake rotor grooves or scoring is typically caused by the abrasive effects of the brake pad material being too aggressive, or by glazed and hardened brake pad material transfer.
Heavily grooved or cracked rotor surfaces are usually easily visible to the naked eye. You can also inspect for a pronounced "marbled" or "glazed" bluish-purple tinge on the brake pads themselves.
When inspecting used brake pads, look closely for evenly-spaced grooves/trenches across the entire surface. Inspect for any signs of uneven wear or overheating.
To bed-in new brake pads, make 8-10 gentle stops from 30 mph without coming to a complete stop. Avoid hard braking for the first 200 miles.
Excessive brake rotor wear is usually caused by harder quality brake compounds, or by abusive stopping techniques such as frequent heavy brake applications.
Severe or excessive heat-checking, cracks, grooves, or bluing of the brake components are signs of abusive brake use.
Cross-drilled brake rotors help to increase surface area and improve cooling in extreme braking conditions. The increased airflow helps to evacuate gases and reduce brake fading.
Proper quality brake components, installation by trained professionals, and preventative maintenance practices can maximize component service life.
Excessive brake use, improper bedding procedures, incompatible brake compounds, and failure to follow the manufacturer's guidelines can all contribute to accelerated wear.
