Service brake assist is a safety feature found on many modern vehicles that helps reduce stopping distance during emergency braking situations. When the brake pedal is pressed very quickly, the brake assist system automatically increases brake pressure to maximum, helping slow the vehicle down faster than the driver could alone.
In this article, we will explore what service brake assist is, how it works, and its crucial role in enhancing vehicle safety. We will also discuss the key components of a service brake assist system, its activation, benefits, integration with other safety features, maintenance, and future advancements.
Service brake assist is an essential safety feature in modern vehicles that can significantly reduce stopping distances in emergency situations. By automatically increasing brake pressure to maximum when the brake pedal is pressed rapidly, service brake assist compensates for the average driver's inability to apply sufficient force quickly enough during panic stops. This technology has the potential to prevent accidents and save lives on the road.
Service brake assist is a safety technology designed to help vehicles stop more quickly in emergency braking situations. It works by monitoring the speed and force with which the brake pedal is depressed and, if necessary, automatically increasing the brake pressure to maximum to help the vehicle stop sooner.
The key components of a service brake assist system are:
| Component | Function |
|---|---|
| Brake booster | Uses engine vacuum to multiply the force applied to the brake pedal |
| Brake assist valve | Monitors brake pedal speed and increases hydraulic pressure to maximum if necessary |
| ABS controller | Modulates brake pressure to each wheel to prevent locking and skidding |
When the brake assist system activates, it quickly increases the hydraulic pressure in the brake lines to the maximum level, ensuring that the vehicle stops as quickly as possible. This rapid increase in brake pressure can significantly reduce the stopping distance, which can be crucial in avoiding or mitigating accidents.
Service brake assist activates when the brake pedal is pressed very rapidly, indicating a panic stop situation. The brake assist valve monitors the speed at which the brake pedal is depressed and, if it detects a rapid application, immediately increases the hydraulic pressure to the brakes to the maximum level.
When service brake assist activates, the driver will feel the brake pedal become very firm as it reaches maximum pressure. The anti-lock braking system (ABS) may also engage, causing the brake pedal to vibrate or pulse as it modulates the brake pressure to each wheel to prevent locking and skidding.
The table below summarizes the conditions that trigger service brake assist and the driver's experience during activation:
| Condition | Driver Experience |
|---|---|
| Rapid brake pedal application | Brake pedal becomes very firm |
| Panic stop situation | ABS may engage, causing brake pedal vibration or pulsation |
It is important to note that service brake assist only activates in emergency braking situations and does not interfere with normal braking operations.
The primary benefit of service brake assist is a significant reduction in stopping distances during emergency braking situations. By automatically increasing brake pressure to maximum, service brake assist can help a vehicle stop 15-20% sooner than the average driver could achieve alone.
Service brake assist also improves vehicle stability during panic braking by working in conjunction with the ABS to prevent wheel lockup and skidding. This enhanced stability helps the driver maintain control of the vehicle, even in challenging conditions.
By reducing stopping distances and improving vehicle stability, service brake assist plays a crucial role in accident prevention and mitigation. In many cases, the shorter stopping distance provided by service brake assist can be the difference between avoiding a collision entirely or significantly reducing its severity.
The benefits of service brake assist can be summarized as follows:
Reduced stopping distance in emergency braking situations
Improved vehicle stability during panic braking
Enhanced accident prevention and mitigation

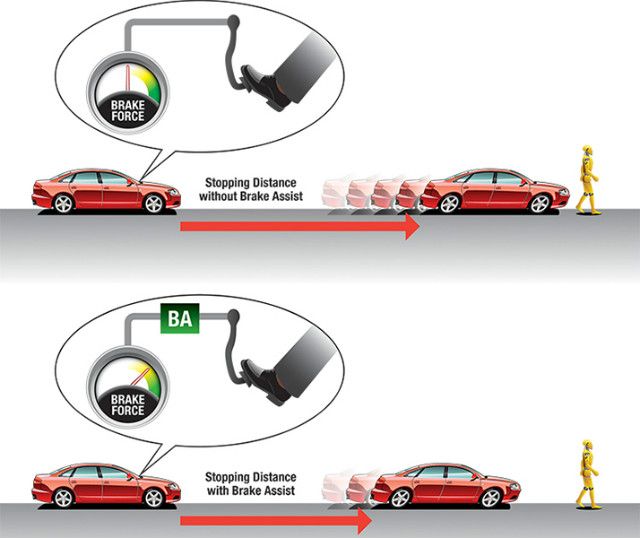

To illustrate the impact of service brake assist on stopping distances, consider the following comparison:
| Braking Scenario | Stopping Distance |
|---|---|
| Without service brake assist | 100 feet |
| With service brake assist | 80-85 feet |
In this example, service brake assist can reduce the stopping distance by 15-20 feet, which can be a significant difference in an emergency situation.
Service brake assist works closely with other vehicle safety systems, particularly the anti-lock braking system (ABS) and electronic brake force distribution (EBD). The ABS prevents wheel lockup during heavy braking, while EBD ensures that the appropriate amount of brake pressure is applied to each wheel based on factors such as vehicle load and weight distribution.
When service brake assist activates, it works in harmony with these systems to provide maximum braking performance. The ABS modulates the brake pressure to each wheel to maintain traction, while EBD optimizes the distribution of brake force for improved stability and shorter stopping distances.
In some vehicles, service brake assist may also be integrated with forward collision warning systems. These systems use sensors to detect potential collisions and can automatically activate the brakes if the driver does not respond in time. The combination of forward collision warning and service brake assist can further enhance vehicle safety by reducing the likelihood and severity of accidents.
The integration of service brake assist with other safety systems can be summarized as follows:
Interaction with ABS to prevent wheel lockup and maintain traction
Collaboration with EBD to optimize brake force distribution
Potential integration with forward collision warning systems for enhanced accident prevention
By working together, these safety systems create a comprehensive network that helps keep drivers and passengers safe on the road.
Service brake assist was first introduced by Mercedes-Benz in 1996 as a groundbreaking safety feature. Since then, the technology has evolved and become more widely available in modern vehicles.
Over the years, advancements in sensors, hydraulic systems, and electronic control units have enabled service brake assist to become more responsive, reliable, and effective. Today, service brake assist is considered a standard safety feature in many new vehicles, with some manufacturers offering it as part of comprehensive safety packages.
The development of service brake assist can be summarized in the following timeline:
1996: Mercedes-Benz introduces service brake assist
Early 2000s: Other manufacturers begin adopting service brake assist technology
Mid-2000s: Advancements in sensors and electronic control units improve system performance
Late 2000s to present: Service brake assist becomes a standard safety feature in many vehicles
As automotive technology continues to progress, it is likely that service brake assist will become even more advanced and effective in the future.
To ensure optimal performance, it is essential to maintain the service brake assist system properly. Regular brake system inspections and servicing can help identify any potential issues with the brake booster, brake assist valve, or ABS controller before they compromise the system's effectiveness.
Driver education is also crucial for maximizing the benefits of service brake assist. While the system operates transparently, drivers should be aware of its capabilities and limitations. It is important to understand that service brake assist is not a substitute for safe driving practices and that its performance may vary depending on factors such as vehicle type, configuration, and road conditions.
Some key points for driver education regarding service brake assist include:
Understanding how service brake assist works and its role in emergency braking situations
Recognizing that service brake assist is not a replacement for safe driving habits
Being aware of the potential variations in service brake assist performance based on vehicle and road conditions
Knowing the importance of regular brake system maintenance for optimal service brake assist performance
By educating drivers about service brake assist and emphasizing the importance of proper maintenance, vehicle owners can help ensure that this critical safety feature remains effective and reliable.
Ongoing research aims to further improve the performance and reliability of service brake assist technology. Some potential future developments include:
Enhanced sensors for more accurate detection of emergency braking situations
Faster-acting hydraulic systems for even shorter stopping distances
Integration with other advanced driver assistance systems (ADAS) for comprehensive vehicle safety
Adaptation to varying road conditions and driver behaviors
As service brake assist technology continues to advance, it is expected to play an increasingly important role in reducing accident severity and improving overall vehicle safety ratings. Researchers and engineers are constantly working to refine and enhance this technology, with the goal of making roads safer for everyone.
Service brake assist is just one of many safety features that contribute to the broader landscape of automotive safety. It works in conjunction with other technologies, such as:
Anti-lock braking system (ABS)
Electronic brake force distribution (EBD)
Traction control system (TCS)
Electronic stability control (ESC)
Forward collision warning (FCW)
Autonomous emergency braking (AEB)
Together, these systems create a comprehensive safety net that helps prevent accidents and mitigate their consequences when they do occur. Each technology plays a specific role in enhancing vehicle safety, and their combined effect is greater than the sum of their individual contributions.
Industry standards and regulations also play a crucial role in ensuring the effectiveness and reliability of service brake assist technology. Manufacturers must adhere to strict guidelines and testing procedures to ensure that their brake assist systems meet or exceed the required performance levels. These standards help maintain a high level of quality and consistency across different vehicle makes and models.
In conclusion, service brake assist is a vital safety feature that enhances vehicle safety by reducing stopping distances in emergency braking situations. By understanding how service brake assist works and its importance in the broader context of automotive safety, drivers can appreciate the role it plays in keeping them and their passengers safe on the road.
As technology continues to advance, service brake assist will likely become even more effective in preventing accidents and saving lives. Drivers should prioritize vehicles equipped with this technology and ensure proper maintenance to keep the system functioning optimally.
Ultimately, service brake assist is a testament to the automotive industry's commitment to improving vehicle safety and reducing the impact of accidents on our roads. As more vehicles adopt this technology and drivers become more aware of its benefits, we can look forward to a future with safer roads and fewer tragedies caused by emergency braking situations.
Service brake assist and emergency brake assist are the same technology. Both terms refer to a system that automatically increases brake pressure to maximum during panic braking situations to help reduce stopping distance.
Retrofitting service brake assist to older vehicles is generally not possible. The technology requires specific components, such as a brake booster, brake assist valve, and ABS controller, which may not be compatible with older vehicle designs.
Service brake assist is designed to work in most weather conditions. However, its performance may be affected by factors such as road surface, tire condition, and vehicle load.
Service brake assist does not significantly impact brake pad wear under normal driving conditions. However, if the system is activated frequently due to aggressive or panic braking, brake pads may wear more quickly.
Service brake assist cannot compensate for worn or damaged brakes. Regular brake system maintenance is essential to ensure optimal performance of the brake assist technology.
Yes, service brake assist can work in conjunction with regenerative braking systems in hybrid and electric vehicles. The two technologies are designed to complement each other for optimal braking performance.
There is no specific warning light for service brake assist malfunctions. However, if there is an issue with the brake system, the brake warning light on the instrument panel will typically illuminate.
The weight of the vehicle can affect service brake assist performance. Heavier vehicles may require more braking force to stop, which can impact the effectiveness of the brake assist system.
No, service brake assist cannot be turned off by the driver. The technology is designed to operate transparently and activate automatically when needed.
Service brake assist has some limitations. It may not perform optimally in extreme driving conditions, such as off-road or racing scenarios, and its effectiveness can be impacted by factors like vehicle maintenance and driver behavior.
