Wireless charging systems are revolutionizing the way we charge electric vehicles (EVs), offering a convenient, automated, and flexible alternative to conventional plug-in charging. This emerging technology allows EVs to charge their batteries without the need for physical cables or plugs, simplifying the charging process and opening up new possibilities for EV owners and operators.

In this article, we will explore the world of wireless EV charging, covering its technological principles, benefits, limitations, real-world applications, and potential impact on the future of electric mobility.

How Wireless EV Charging Works

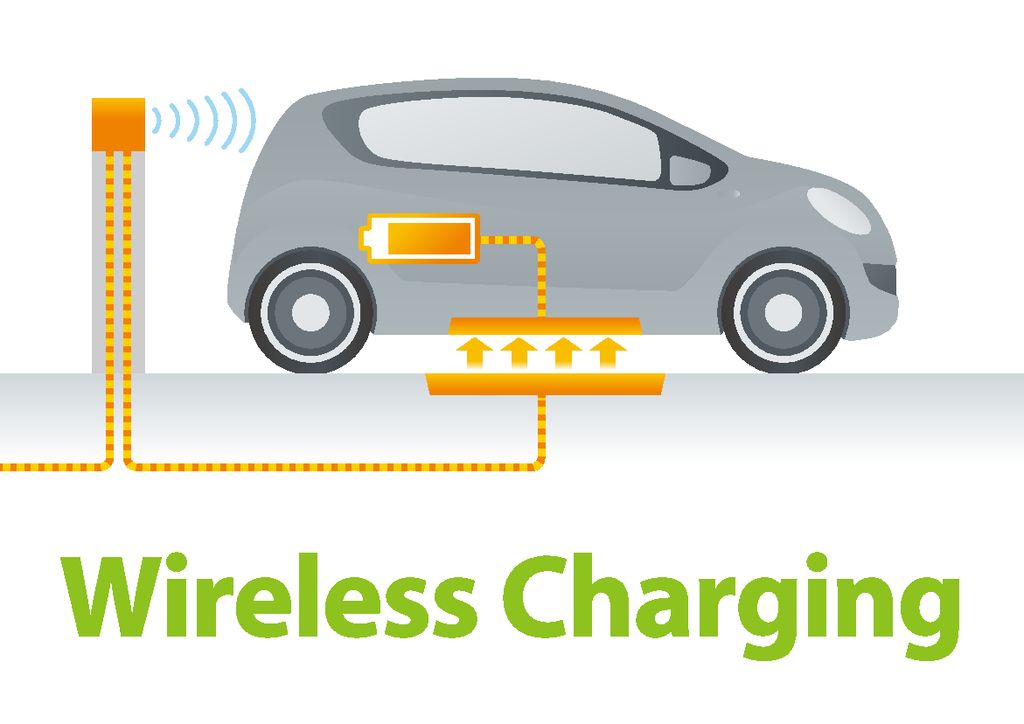

Wireless EV charging relies on the principle of electromagnetic induction to transfer power from a transmitter coil to a receiver coil without physical contact. The transmitter coil, typically embedded in a charging pad on the ground, generates an alternating magnetic field when energized with electric current. The receiver coil, mounted on the underside of the EV, captures this magnetic field and converts it back into electrical current to charge the vehicle's battery.

The efficiency and effectiveness of wireless charging depend largely on the design and alignment of the transmitter and receiver coils, which are carefully engineered to optimize power transfer while minimizing losses. Sophisticated power conversion and control electronics ensure that the power transfer is safe, efficient, and well-regulated, converting the alternating current (AC) from the grid into the direct current (DC) required by the EV battery.

Wireless charging can be implemented in two main configurations:

ConfigurationDescription
Static ChargingEV parks over a charging pad, typically in a garage or parking spot, and charges while stationary
Dynamic ChargingEVs charge while in motion, using a series of charging pads embedded in the roadway

Advantages of Wireless EV Charging

Wireless charging offers several compelling benefits over traditional plug-in charging:

  • Convenience: No need to physically plug in the vehicle, making charging as simple as parking over a pad

  • Automation: Enables automated charging for self-driving EVs without human intervention

  • Durability: No exposed electrical contacts, reducing wear and tear compared to plug-in chargers

  • Safety: Eliminates exposed cables and connectors, minimizing tripping hazards and electrical shock risks

  • Aesthetics: Charging pads can be discreetly installed, blending in with the surroundings

  • Opportunity Charging: Allows EVs to charge opportunistically whenever parked, without dedicated stations

Challenges and Limitations

Despite its advantages, wireless EV charging faces some challenges and limitations:

  • Higher Cost: Currently more expensive than conventional plug-in chargers due to additional hardware and electronics

  • Reduced Efficiency: Inherently less efficient than plug-in charging due to energy losses in wireless power transfer

  • Standardization: Requires established standards and interoperability between different EVs and charging systems

  • Infrastructure: Deployment requires significant investment and coordination with stakeholders

Wireless Charging Standards and Protocols

To ensure compatibility and interoperability, several standards and protocols have been developed for wireless EV charging:

Standard/ProtocolDescription
SAE J2954Defines specifications for wireless power transfer up to 11 kW, including coil designs, communication protocols, and safety features
Qi (Wireless Power Consortium)Primarily focused on consumer electronics but being adapted for EV charging
Rezence (Alliance for Wireless Power)Another standard being adapted for EV charging applications

Global harmonization efforts are underway to ensure that EVs can charge seamlessly across different regions and charging networks.

Current Developments and Pilot Projects

Wireless EV charging is rapidly evolving, with numerous developments and pilot projects worldwide:

  • Automakers integrating wireless charging capabilities into upcoming EV models

  • Pilots in parking lots, taxi stands, and bus depots to evaluate performance and user acceptance

  • Dynamic charging projects testing wireless charging of EVs while driving on public roads and highways

  • Research efforts to increase power levels, improve efficiency, and optimize coil designs

Potential Future Impact

Wireless charging has the potential to significantly impact the future of electric mobility:

  • Accelerate EV adoption by making charging more convenient and attractive to consumers

  • Enable fully autonomous operation of self-driving EVs through automatic charging

  • Reduce the need for large onboard batteries by allowing frequent "top-up" charging

  • Support new business models and use cases, such as electric autonomous shared vehicles (EASVs) and mobility-as-a-service (MaaS) platforms

Conclusion

Wireless charging is a game-changing technology that promises to make EV charging more convenient, automated, and flexible. While challenges remain, the rapid advancements in technology and growing interest from stakeholders suggest that wireless charging will play a significant role in shaping the future of electric mobility.

As we continue to develop and deploy wireless charging systems, we can look forward to a more sustainable, efficient, and user-friendly transportation ecosystem.

FAQs

What is the typical efficiency of wireless EV charging systems compared to plug-in charging?

Wireless EV charging is generally 85-90% efficient, which is slightly lower than plug-in charging due to energy losses in the wireless power transfer process. However, efficiency is continually improving with advancements in technology and coil design.

Can wireless charging work with all types of electric vehicles, including cars, buses, and trucks?

Yes, wireless charging can be adapted to work with various types of EVs, from passenger cars to commercial vehicles like buses and trucks. The charging system's power level and coil design may need to be optimized for different vehicle sizes and battery capacities.

How does the cost of installing a wireless charging system compare to a conventional plug-in charger?

Currently, wireless charging systems are more expensive to install than plug-in chargers due to the additional hardware and electronics required. However, costs are expected to decrease as the technology matures and economies of scale are achieved.

Is it possible to charge multiple EVs simultaneously using a single wireless charging pad?

While most current wireless charging systems are designed for single-vehicle charging, future developments may enable multi-vehicle charging using larger pads or multiple coils. This could be particularly useful for fleet operations or parking lots with high EV turnover.

How does weather, such as rain or snow, affect the performance of wireless charging systems?

Wireless charging systems are designed to be weather-resistant and can operate safely in various conditions, including rain and snow. The charging pads are typically sealed and rated for outdoor use, ensuring reliable performance in most weather conditions.

Can wireless charging systems be installed in existing parking infrastructure, or do they require new construction?

Wireless charging systems can be retrofitted into existing parking spaces, garages, and lots, although some modifications may be necessary to accommodate the charging pads and associated electronics. In new construction projects, wireless charging can be integrated from the outset, allowing for optimal placement and installation.

How long does it take to charge an EV using a wireless charging system compared to a plug-in charger?

The charging time for wireless systems depends on the power level and the EV's battery capacity, similar to plug-in chargers. However, due to the slightly lower efficiency of wireless charging, it may take slightly longer to achieve a full charge compared to an equivalent plug-in charger.

Are there any potential health risks associated with the electromagnetic fields generated by wireless charging systems?

Wireless charging systems are designed to comply with stringent safety standards and regulations, ensuring that the electromagnetic fields generated are well below the levels considered harmful to human health. Extensive testing and research have been conducted to validate the safety of these systems.

Can wireless charging systems be used to charge EVs while they are in motion, such as on highways or city streets?

Yes, dynamic wireless charging systems are being developed and tested to allow EVs to charge while in motion over specially equipped roadways. This technology, though still in the early stages, could significantly extend EV range and reduce the need for large onboard batteries.

How do wireless charging systems handle the alignment between the vehicle's receiver coil and the charging pad?

Most wireless charging systems use sensors and communication protocols to guide the driver in aligning the vehicle over the charging pad. Some advanced systems even offer automatic alignment, where the vehicle can adjust its position to optimize the coupling between the receiver and transmitter coils.
