Bracketed brake calipers are a crucial component of a vehicle's braking system, providing superior stopping power, enhanced safety, and improved performance. These calipers feature an integrated mounting bracket that allows for a solid and stable connection to the vehicle's suspension, ensuring optimal braking efficiency. In this article, we will explore the inner workings of bracketed brake calipers, their advantages over unbracketed designs, and the importance of proper maintenance and upgrades.
A reliable and high-performance braking system is essential for ensuring vehicle safety and control. Bracketed brake calipers play a vital role in achieving these goals by providing a robust and efficient means of slowing down and stopping a vehicle. These calipers offer numerous benefits over traditional unbracketed designs, making them a popular choice for both everyday drivers and performance enthusiasts alike.
In this comprehensive guide, we will delve into the mechanism behind bracketed brake calipers, compare them to unbracketed floating calipers, and highlight the advantages they offer in terms of braking performance, safety, and compatibility with performance upgrades. Additionally, we will discuss the importance of proper maintenance and the potential benefits of upgrading to bracketed calipers.

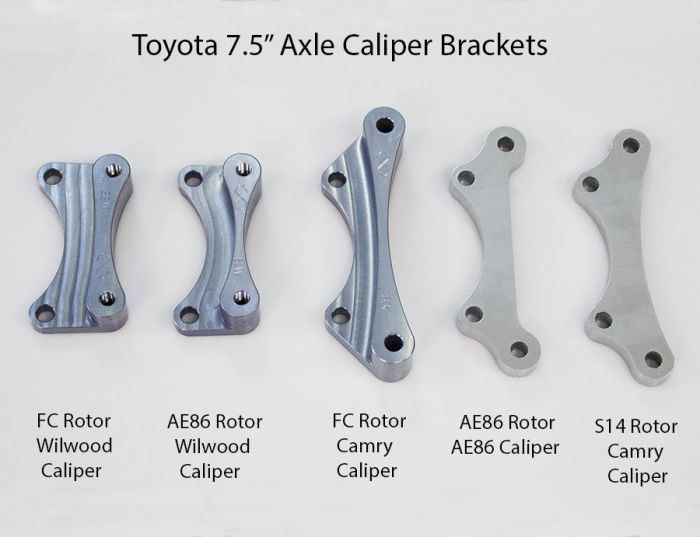

Bracketed brake calipers feature an integrated mounting bracket that is permanently attached to the caliper body. This design provides a solid and stable mounting point, allowing the caliper to be bolted directly to the vehicle's suspension upright or steering knuckle. The integrated bracket ensures proper alignment between the caliper and brake rotor, even under the high torque forces generated during braking.
The stable mounting point provided by the integrated bracket is crucial for maintaining consistent and reliable braking performance. It prevents the caliper from flexing or shifting during heavy braking, ensuring that the brake pads maintain even contact with the rotor surface. This consistent contact results in improved braking efficiency, reduced brake fade, and more predictable pedal feel.
Unbracketed floating calipers, on the other hand, do not have an integrated mounting bracket. Instead, they require a separate caliper mounting bracket to be installed first, to which the caliper body is then attached, usually with sliding pins that allow for slight movement. This design allows the caliper to "float" and self-adjust to maintain even pad contact with the rotor.
While unbracketed floating calipers are commonly found on the front brakes of many passenger vehicles, bracketed calipers are often used on the rear brakes and in high-performance applications. The choice between the two designs depends on the specific suspension layout and braking requirements of each vehicle.
| Feature | Bracketed Calipers | Unbracketed Floating Calipers |
|---|---|---|
| Mounting | Integrated bracket | Separate mounting bracket |
| Caliper Attachment | Bolted directly to suspension | Attached with sliding pins |
| Replacement | Entire caliper assembly replaced | Caliper body replaced, bracket reused |
| Common Application | Rear brakes, high-performance vehicles | Front brakes, passenger vehicles |
Bracketed brake calipers offer several advantages that contribute to improved braking performance and reduced brake fade. The solid mounting provided by the integrated bracket minimizes caliper flex and movement, resulting in more consistent and efficient transfer of braking force to the rotor. This leads to enhanced braking power and a more responsive pedal feel.
Additionally, the stable mounting of bracketed calipers allows for better heat dissipation, as the caliper remains in a fixed position relative to the rotor. This improved heat management helps to reduce brake fade, a phenomenon where braking performance diminishes due to excessive heat buildup. By maintaining optimal operating temperatures, bracketed calipers provide more consistent and reliable braking, even under heavy use.
The superior braking performance offered by bracketed calipers directly contributes to enhanced vehicle safety and control. With more predictable and efficient braking, drivers can feel confident in their ability to slow down or stop their vehicle in various driving conditions. This increased confidence translates to greater peace of mind and a more enjoyable driving experience.
Bracketed calipers also play a crucial role in the overall safety features of a vehicle. By providing reliable and consistent braking performance, they complement other safety systems such as anti-lock brakes (ABS) and electronic stability control (ESC). The integration of bracketed calipers with these advanced safety technologies ensures optimal vehicle control and stability, even in emergency braking situations.
Another advantage of bracketed brake calipers is their compatibility with larger brake pads and rotors. The integrated mounting bracket provides a sturdy foundation that can accommodate the increased size and weight of performance-oriented brake components. Larger brake pads offer greater surface area for improved heat dissipation and reduced wear, while larger rotors provide enhanced thermal capacity and resistance to warping.
The ability to upgrade to larger brake components allows vehicle owners to further enhance the braking performance of their vehicles. This is particularly beneficial for those who engage in high-performance driving or frequently encounter demanding braking conditions. By optimizing the brake system with larger pads and rotors, drivers can experience reduced brake fade, improved pedal feel, and extended component life.
To ensure the long-term reliability and performance of bracketed brake calipers, proper maintenance is essential. Regular inspection and servicing should be performed according to the manufacturer's recommended intervals. This includes checking for signs of wear, leaks, or damage, and replacing components as necessary.
Common maintenance tasks for bracketed calipers include:
Inspecting brake pads for wear and replacing them when necessary
Checking brake fluid levels and condition, and bleeding the system if required
Cleaning and lubricating caliper slide pins and mounting hardware
Inspecting brake rotors for signs of wear, warping, or damage
By adhering to a regular maintenance schedule, vehicle owners can ensure that their bracketed brake calipers continue to perform at their best, providing reliable and efficient braking performance for years to come.
For those looking to improve the braking performance and safety of their vehicles, upgrading to bracketed brake calipers is a worthwhile consideration. The benefits of upgrading from unbracketed floating calipers to bracketed designs include enhanced braking power, reduced brake fade, and improved pedal feel.
When choosing bracketed calipers for an upgrade, it is important to select a reputable brand that offers high-quality components designed specifically for your vehicle. Factors to consider include caliper material, piston size and number, and compatibility with existing brake components.
Upgrading to bracketed calipers can be particularly beneficial for those who frequently engage in high-performance driving or tow heavy loads. The improved braking performance and increased thermal capacity of bracketed calipers can provide added confidence and control in demanding driving situations.
Bracketed brake calipers are a popular choice for high-performance vehicles due to their superior braking capabilities and durability. Many sports cars, luxury vehicles, and performance-oriented models come equipped with bracketed calipers from the factory, showcasing their importance in delivering exceptional braking performance.
The specific benefits of bracketed calipers in high-performance applications include:
Increased braking power and modulation for precise control during aggressive driving
Reduced brake fade, allowing for consistent performance during extended periods of hard use
Enhanced pedal feel and responsiveness, providing drivers with better feedback and control
Compatibility with larger brake components for further performance upgrades
Examples of high-performance vehicles that utilize bracketed brake calipers include:
Porsche 911 GT3
BMW M3/M4
Audi RS models
Mercedes-AMG vehicles
Chevrolet Corvette
Ford Mustang Shelby GT500
These vehicles demonstrate the effectiveness of bracketed calipers in delivering exceptional braking performance, even under the most demanding conditions.
Are bracketed brake calipers more expensive than unbracketed floating calipers?
Bracketed calipers are generally more expensive than unbracketed floating calipers due to their integrated design and performance benefits. However, the added cost is often justified by the improved braking performance and long-term durability they offer.
Can I upgrade my vehicle's existing unbracketed calipers to bracketed calipers?
In many cases, it is possible to upgrade from unbracketed floating calipers to bracketed calipers. However, it is essential to ensure that the selected bracketed calipers are compatible with your vehicle's specific make, model, and year. Consulting with a professional mechanic or a reputable brake component manufacturer can help you determine the best upgrade options for your vehicle.
How often should I replace my bracketed brake calipers?
The lifespan of bracketed brake calipers varies depending on factors such as driving habits, environmental conditions, and maintenance practices. In general, properly maintained calipers can last for many years or even the lifetime of the vehicle. However, it is important to regularly inspect the calipers for signs of wear, leaks, or damage and replace them if necessary. Following the manufacturer's recommended service intervals and addressing any issues promptly can help extend the life of your bracketed calipers.
Bracketed brake calipers offer numerous advantages over unbracketed floating designs, making them an excellent choice for those seeking improved braking performance, enhanced safety, and compatibility with performance upgrades. By providing a solid and stable mounting point, bracketed calipers ensure consistent and efficient braking, reduced brake fade, and a more responsive pedal feel.
Proper maintenance is crucial for ensuring the long-term reliability and performance of bracketed calipers, and upgrading to this design can provide significant benefits for those looking to enhance their vehicle's braking capabilities. Whether you are an everyday driver or a performance enthusiast, investing in bracketed brake calipers can provide peace of mind and confidence behind the wheel, knowing that your vehicle is equipped with a superior braking system.
Bracketed brake calipers are usually made from cast iron or aluminum for strength and heat dissipation. The integrated bracket is part of the same casting.
In many cases, disc brake conversion kits are available to switch from drum to disc brakes. However, it's important to ensure the kit is compatible with your specific vehicle make, model and year.
Consult the manufacturer's fitment guide or check with a knowledgeable parts supplier to verify the bracketed caliper is designed for your exact vehicle application. Incorrect fitment can severely impact braking performance and safety.
Refer to the vehicle service manual or the instructions included with the caliper for the proper mounting bolt torque specs. It is critical to tighten the bolts to the correct specification to ensure secure attachment.
Always use the brake fluid type and specification recommended by your vehicle manufacturer. This ensures proper fluid compatibility with the brake system components and seals.
Brake pad life depends on driving habits and conditions. Generally, inspect the pads every 12,000 miles (19,000 km) and replace them when the friction material is worn to 1/8" (3mm) thick or less.
Yes, you can paint bracketed calipers for a custom look. Use a quality caliper paint that can withstand high temperatures and brake dust to ensure a durable finish.
While some maintenance can be done with common hand tools, a caliper piston retraction tool is often needed to push the pistons back into the caliper when replacing pads. A brake bleeding kit is also useful for flushing the brake fluid.
Corrosion, debris, or damaged slide pins can cause a caliper to seize. Sticking can also result from a collapsed piston boot or piston damage.
Common signs include the vehicle pulling to one side when braking, a spongy or soft brake pedal, reduced braking power, and grinding or squealing noises. Uneven pad wear or leaking brake fluid also indicate potential caliper issues.
