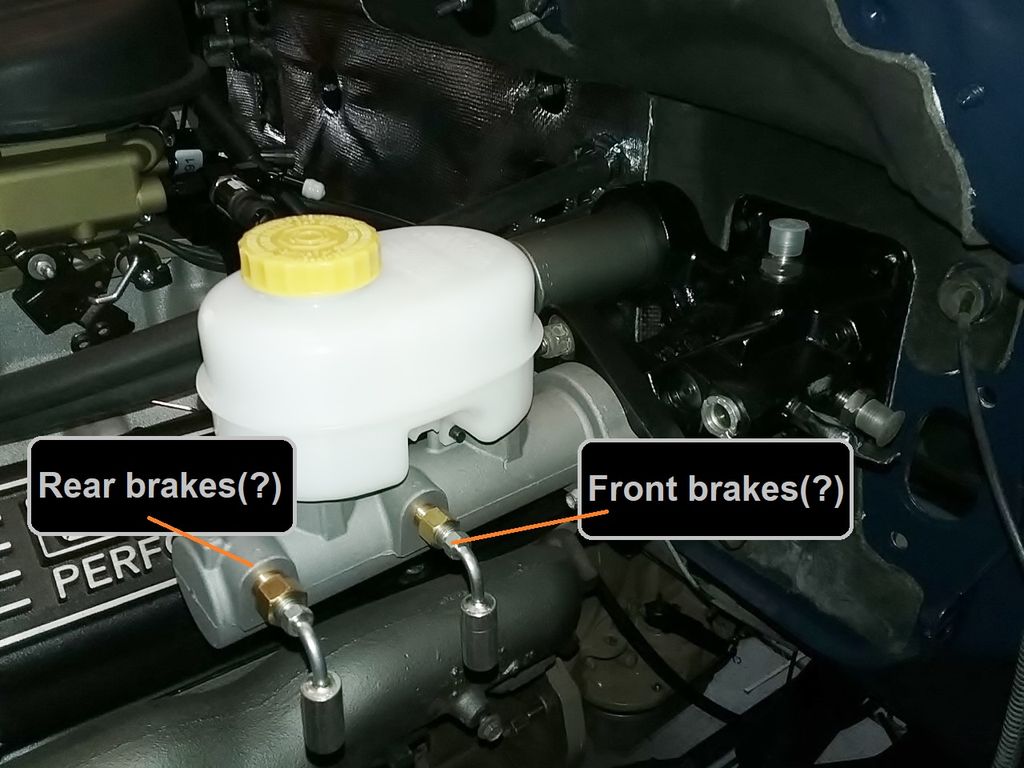

The front port on the master cylinder is the one that connects to the front brakes. It plays a crucial role in the brake system, ensuring that the front brakes receive the necessary hydraulic pressure to function properly. In this article, we will explore the importance of the front port, its design, and how it relates to overall brake performance and safety. We will also cover the differences between the front and rear ports, maintenance requirements, and troubleshooting tips for common issues like brake squealing when reversing.
A master cylinder is a critical component of a vehicle's brake hydraulic system. It converts the force applied to the brake pedal into hydraulic pressure, which is then transmitted to the brake calipers or wheel cylinders to slow down or stop the vehicle. The master cylinder consists of a reservoir that holds brake fluid, a piston assembly, and ports that connect to the brake lines.
| Component | Function |
|---|---|
| Master Cylinder | Converts brake pedal force into hydraulic pressure |
| Front Port | Supplies hydraulic pressure to the front brakes |
| Rear Port | Supplies hydraulic pressure to the rear brakes |
| Brake Fluid | Transmits hydraulic pressure throughout the brake system |
Understanding the function and location of the master cylinder ports is essential for proper brake system maintenance and troubleshooting. The front port, in particular, is crucial for the operation of the front brakes, which typically provide the majority of a vehicle's stopping power. Knowing how to identify and maintain the front port can help ensure optimal brake performance and safety.
The master cylinder typically has two ports: the front port and the rear port. The front port is usually located higher on the master cylinder body and is larger in size compared to the rear port. The rear port is positioned lower and is smaller in diameter.
In addition to their location and size, the front and rear ports may have visual differences that help with identification. Some master cylinders have color-coded ports, with the front port being a different color than the rear port. Others may have labels or markings near the ports indicating their function.
The front port is responsible for supplying hydraulic pressure to the front brakes, which typically handle a larger portion of the braking force compared to the rear brakes. This is because weight transfer during braking shifts the vehicle's weight forward, placing more demand on the front brakes. As a result, the front port must be able to deliver sufficient pressure to ensure effective braking performance.
The front brakes require more hydraulic pressure than the rear brakes due to several factors:
Weight transfer during braking
Larger front brake components (e.g., calipers, rotors)
Greater braking force needed to overcome vehicle momentum
To accommodate these requirements, the front port is designed to handle higher pressure and flow rates compared to the rear port.
The front port's ability to supply adequate hydraulic pressure to the front brakes directly impacts a vehicle's stopping distance. If the front port is restricted, damaged, or improperly connected, it can lead to reduced braking performance and longer stopping distances, compromising vehicle safety.
The front port is typically larger than the rear port to allow for greater fluid flow and pressure delivery. The specific size and dimensions of the front port may vary depending on the vehicle make and model, as well as the master cylinder design. Common front port sizes range from 1/4 inch to 3/8 inch in diameter.
To ensure proper function and prevent leaks, the front port must be adequately sealed and connected to the brake lines. This is typically accomplished using a combination of:
Rubber O-rings or seals
Threaded fittings
Flare nuts or banjo bolts
Proper torque specifications must be followed when connecting the brake lines to the front port to ensure a secure, leak-free connection.
The front port, along with the rest of the brake system components, must be compatible with the type of brake fluid used. Most modern vehicles use DOT 3, DOT 4, or DOT 5.1 brake fluid, which are glycol-based and compatible with the rubber seals and materials used in the brake system. Using the incorrect type of brake fluid can lead to seal degradation, leaks, and poor braking performance.
The front port must be designed to withstand the extreme conditions encountered during braking, such as:
High temperatures
High pressures
Vibration and shock loads
To ensure durability and reliability, the front port is typically made from high-strength materials like cast iron or aluminum and is subjected to rigorous testing during the design and manufacturing process.
When the brake pedal is pressed, the master cylinder piston pressurizes the brake fluid, which then flows through the front port and into the brake lines connected to the front brakes. The pressurized fluid enters the brake calipers, forcing the brake pads against the rotors to generate friction and slow down the vehicle.
The front port is an integral part of the brake hydraulic system, which consists of the following components:
Master cylinder
Brake lines
Brake calipers or wheel cylinders
Brake fluid reservoir
The front port acts as the interface between the master cylinder and the brake lines, enabling the transfer of hydraulic pressure to the front brakes. Any issues with the front port, such as blockages, leaks, or improper connections, can compromise the entire brake hydraulic system's performance.
To ensure proper function and prevent issues, the front port should be regularly inspected and cleaned as part of routine brake system maintenance. This involves:
Visually checking for signs of leaks, damage, or corrosion
Cleaning the port and surrounding area with brake cleaner
Inspecting the brake lines and connections for wear or damage
Regular inspection and cleaning can help identify potential problems early, allowing for timely repairs and preventing more serious issues from developing.
Here is a list of steps for front port maintenance:
Visually inspect the front port and surrounding area
Clean the port and brake line connections
Check for leaks or signs of damage
Verify brake fluid level and condition
Leaks at the front port can lead to reduced braking performance and pose a safety risk. Common signs of a front port leak include:
Visible brake fluid near the port or on the brake lines
Low brake fluid level in the reservoir
Soft or spongy brake pedal feel
If a leak is suspected, the cause must be identified and addressed promptly. This may involve:
Replacing damaged seals or O-rings
Tightening or replacing loose or damaged fittings
Replacing the master cylinder if the leak is due to internal damage or wear
| Problem | Cause | Solution |
|---|---|---|
| Front port leak | Damaged seals, improper installation | Replace seals, check and tighten connections |
| Poor braking performance | Front port blockage, air in the system | Clean port, bleed brake system |
| Brake squealing when reversing | Worn brake pads, dirt, dry or rusty hardware | Inspect and replace pads, clean and lubricate hardware |
When upgrading a vehicle's brakes, such as installing larger calipers or high-performance pads and rotors, the front port may need to be modified to accommodate the increased fluid flow and pressure requirements. This may involve:
Enlarging the front port diameter
Installing high-flow fittings or adapters
Upgrading the master cylinder to a higher-capacity unit
Any modifications to the front port should be performed by a qualified professional to ensure proper function and safety.
In some cases, damage to the front port may necessitate replacing the entire master cylinder. This may be required if:
The port is severely corroded or damaged
The port threads are stripped or damaged
The master cylinder body is cracked or leaking
Replacing the master cylinder is a complex task that should be performed by a skilled mechanic, as it involves properly bleeding the brake system and ensuring all connections are secure and leak-free.
Bench bleeding is the process of removing air from a new or rebuilt master cylinder before it is installed on the vehicle. This is done to ensure that the master cylinder is fully functional and free of air bubbles that could compromise brake performance.
Proper bench bleeding is crucial for the front port to function correctly. If air is present in the master cylinder, it can enter the front port and the brake lines, leading to a soft or spongy brake pedal feel and reduced braking performance. By bench bleeding the master cylinder before installation, technicians can ensure that the front port is able to deliver the necessary hydraulic pressure to the front brakes without any air-related issues.
Given the critical role of the front port in brake system performance and safety, it is essential to prioritize its maintenance as part of regular brake service. This should include:
Visual inspection of the port and surrounding area
Cleaning the port and brake line connections
Checking for leaks or signs of damage
Verifying proper brake fluid level and condition
By incorporating front port checks into routine brake maintenance, vehicle owners and technicians can help prevent issues and ensure optimal braking performance.
Neglecting front port maintenance can lead to a range of problems that compromise brake system performance and safety, such as:
Reduced braking power
Increased stopping distances
Uneven brake pad wear
Brake fluid leaks
Damage to other brake system components
These issues can result in costly repairs and pose significant safety risks, highlighting the importance of regular front port maintenance.
Brake squealing when reversing is a common issue that can have several causes, including:
Worn brake pads
Dirty or contaminated brake components
Rusty or dry brake hardware
Missing or damaged anti-rattle clips or shims
Identifying the specific cause of the squealing is essential for determining the appropriate solution.
To troubleshoot brake squealing when reversing, a thorough inspection of the brake components is necessary. This should include:
Checking brake pad thickness and wear patterns
Examining rotors for uneven wear, grooves, or hot spots
Inspecting brake hardware for rust, damage, or missing components
Based on the inspection findings, the appropriate repairs or replacements can be made to address the squealing issue.
In some cases, brake squealing when reversing can be resolved by cleaning and lubricating the brake components. This involves:
Using brake cleaner to remove dirt, dust, and debris from pads, rotors, and calipers
Applying brake caliper grease to sliding pins and other metal hardware
Ensuring that anti-rattle clips and shims are properly installed and in good condition
Regular cleaning and lubrication can help prevent brake squealing and extend the life of brake components.
If the vehicle currently has semi-metallic brake pads, upgrading to ceramic pads can help reduce brake squealing when reversing. Ceramic brake pads offer several advantages over semi-metallic pads, including:
Quieter operation
Less dust production
Improved heat dissipation
However, it is important to note that ceramic pads may not provide the same level of cold bite as semi-metallic pads, which may be a consideration for some drivers.
If brake squealing persists after attempting the above troubleshooting steps, it is recommended to seek the assistance of a professional brake technician. A qualified technician can perform a thorough inspection of the entire brake system to identify any underlying issues, such as:
Caliper problems
Worn or damaged rotors
Hydraulic system issues
By addressing these problems, the technician can help resolve the brake squealing and ensure that the brake system is operating safely and effectively.
In conclusion, the front port on the master cylinder is a critical component of a vehicle's brake system, responsible for delivering hydraulic pressure to the front brakes. Understanding its location, function, and maintenance requirements is essential for ensuring optimal brake performance and safety. Regular inspection, cleaning, and proper connection of the front port can help prevent leaks, air-related issues, and other problems that can compromise braking effectiveness. When troubleshooting common issues like brake squealing when reversing, a systematic approach that includes inspecting brake components, cleaning and lubricating hardware, and upgrading to ceramic pads can often resolve the problem. However, if the issue persists, seeking the help of a professional brake technician is recommended to ensure that the brake system is operating safely and efficiently.
The front port on the master cylinder typically has a larger diameter compared to the rear port. This is because the front brakes usually require a higher fluid volume and pressure than the rear brakes.
Front disc brakes generally have larger calipers and pads compared to rear drum brakes. The increased size of the front brake components necessitates a greater volume of brake fluid to operate effectively.
No, the front and rear brake lines often have different sizes to match the corresponding port diameters on the master cylinder. Using mismatched line sizes can result in improper connections and leaks.
Yes, bench bleeding a master cylinder before installation is crucial to remove any air from the cylinder. Failing to bench bleed can introduce air into the brake lines, leading to a spongy pedal feel and reduced braking performance.
Swapping the front and rear brake lines can lead to reduced braking performance and uneven brake pad wear. In extreme cases, it may even cause the vehicle to pull to one side during braking.
Yes, a common symptom of a failing master cylinder is a brake pedal that slowly sinks to the floor when pressure is applied. This is often due to worn seals or piston bore damage allowing fluid to bypass the piston.
The compensating port allows brake fluid to return to the reservoir when the brakes are released. It helps prevent vacuum from forming in front of the piston, which could cause a spongy pedal feel.
In a diagonal split system, one front wheel and the opposite rear wheel share a hydraulic circuit. This ensures that if one circuit fails, the vehicle will still have one functioning front and rear brake, maintaining better stability and control during braking.
A portless master cylinder eliminates the need for a compensating port, using a valve assembly within the piston to balance pressure. Conventional master cylinders rely on the compensating port to allow fluid return and maintain proper pressure balance.
Using the incorrect brake fluid can lead to seal degradation, leaks, and poor braking performance. Always refer to your vehicle's owner's manual or consult with a professional mechanic to determine the appropriate brake fluid for your car's braking system.
