Vehicles, especially those operating in urban areas or high-traffic conditions, are exposed to various airborne contaminants, including particulate matter, gases, and allergens. These pollutants can enter the vehicle's cabin through the ventilation system, potentially compromising the air quality and posing health risks to the occupants.
Before we dive into the flow direction, let's first understand the cabin air filter's primary function. This unassuming component plays a crucial role in maintaining the air quality inside your vehicle's cabin. It acts as a barrier, trapping pollutants, dust, pollen, and other airborne particles, ensuring that the air you breathe while driving is clean and fresh.
| Cabin Air Filter Benefits |
|---|
| Improves air quality inside the cabin |
| Traps pollutants, dust, and pollen |
| Enhances HVAC system efficiency |
| Promotes a healthier driving environment |
Over the years, I've encountered numerous cases where the cabin air filter was installed incorrectly, leading to reduced airflow and inefficient filtering of air entering the cabin. This issue can arise due to several reasons:
Misunderstanding the direction of airflow through the filter housing
Failing to follow the airflow arrow markings on the filter itself
Lack of clear instructions in the vehicle's owner's manual
| Potential Consequences of Incorrect Installation |
|---|
| Reduced airflow into the cabin |
| Inefficient air filtration |
| Musty odors or whistling noises |
| Decreased HVAC system performance |
As a mechanic, one of the first steps in addressing any issue is to accurately diagnose the problem. When it comes to cabin air filter flow direction, here's how I approach the inspection process:
Locate the cabin air filter housing: This is typically located behind the glove box or under the dashboard, depending on the vehicle make and model.
Check for arrow markings on the filter itself: Most cabin air filters have arrow markings indicating the proper airflow direction. If present, these markings should be your primary guide.
If no arrows are present, run the fan on high and use a piece of paper: In the absence of arrow markings, I recommend running the fan on high and using a piece of paper to determine the airflow path. The paper should be drawn towards the cabin, indicating the direction of airflow.
Look for signs of incorrect installation: Reduced airflow, whistling noises, or musty odors can be indicators that the cabin air filter is installed in the wrong direction.
Once the cause of the incorrect installation has been identified, it's time to rectify the issue. Here are the repair instructions for each specific cause:
Consult your vehicle's owner's manual: The manual should provide specific instructions on the correct filter orientation. If the instructions are unclear, refer to online resources or seek professional guidance.
Generally, airflow is from the outside (fresh air intake) towards the cabin: This is the most common airflow direction, but it's always best to double-check for your specific vehicle model.
The arrow on the filter should point in the direction of airflow into the cabin: If the arrow is pointing towards the fresh air intake, it's installed incorrectly.
Always follow the arrow markings on the new filter when installing: These arrows are strategically placed by the manufacturer to ensure proper airflow direction through the filter media.
Double-check the arrow's orientation before securing the filter in place: It's a simple step, but one that can save you from potential headaches down the line.
If instructions are unclear, use the paper test: As mentioned earlier, running the fan on high and using a piece of paper to determine the airflow path can be a reliable method.
Refer to online forums or professional guides for your specific vehicle model: Chances are, someone else has encountered the same issue and shared their experience, which can be invaluable.
Consult a professional mechanic if you're unsure: Sometimes, it's better to seek expert guidance than to risk installing the filter incorrectly.
Prevention is always better than cure, and when it comes to cabin air filters, a few simple steps can go a long way in avoiding future issues:
Replace cabin air filters according to the manufacturer's recommended intervals: Neglecting to replace the filter can lead to reduced airflow and decreased air quality inside the cabin.
When replacing, carefully note the airflow direction of the old filter: This can serve as a reference point for the new filter's installation.
Keep the filter housing area clean: Debris buildup in the housing can obstruct airflow and potentially cause damage to the HVAC system.
| Recommended Cabin Air Filter Replacement Intervals |
|---|
| Most vehicles: Every 12,000 to 15,000 miles |
| Vehicles in dusty or polluted areas: Every 6,000 to 12,000 miles |
| Refer to your owner's manual for specific recommendations |
While the cabin air filter itself is an inexpensive component, with prices typically ranging from $15 to $50 depending on the vehicle, the labor costs associated with professional installation can add up. If you choose to have a professional replace the filter, you can expect to pay anywhere from $30 to $100 in labor charges.
| Cabin Air Filter Replacement Costs |
|---|
| Filter cost: $15 - $50 |
| Professional labor cost: $30 - $100 |
| DIY (no labor cost) |
However, if you're comfortable with the process and have the necessary tools, replacing the cabin air filter yourself can be a cost-effective solution, eliminating the need for labor costs altogether.
In the world of automotive maintenance, even the smallest components can have a significant impact on the overall performance and comfort of your vehicle. The cabin air filter's flow direction may seem like a minor detail, but getting it right can make a world of difference in ensuring efficient air filtration and preventing potential HVAC system issues down the line.
As a mechanic, I've witnessed firsthand the consequences of improper cabin air filter installation, and I cannot stress enough the importance of following the manufacturer's instructions and paying close attention to the airflow direction markings. By taking the time to understand and address this often-overlooked aspect, you can breathe easy, knowing that the air inside your vehicle's cabin is clean, fresh, and free from unwanted pollutants.
Remember, a properly installed cabin air filter not only enhances the air quality inside your vehicle but also contributes to the overall efficiency and longevity of your HVAC system. Don't neglect this crucial component – prioritize its maintenance, and you'll be rewarded with a more comfortable and healthier driving experience.
If installed backwards, the cabin air filter will not effectively trap pollutants and dust particles from entering the cabin. It can also reduce airflow and HVAC system efficiency.
The cabin air filter housing is typically located behind the glove box or under the dashboard, depending on your vehicle's make and model. Consult your owner's manual for the exact location.
Yes, a severely clogged cabin air filter can restrict airflow and allow musty or unpleasant odors to circulate inside the cabin.
Most manufacturers recommend replacing the cabin air filter every 12,000 to 15,000 miles or annually, whichever comes first. Refer to your owner's manual for specific recommendations.
Replacing the cabin air filter is generally a straightforward process that most vehicle owners can do themselves with the right tools and instructions.
Typically, you'll need basic hand tools like screwdrivers and pliers to access and remove the old filter. Consult your vehicle's service manual for specific tool requirements.
While unlikely, it is possible for a professional mechanic to install the cabin air filter in the wrong direction, especially if they are unfamiliar with your vehicle's specific model.
If there are no airflow direction markings on the filter, you can use the paper test method described in the article to determine the correct airflow path.
While not a direct factor, a clogged cabin air filter can reduce HVAC system efficiency, which may indirectly impact fuel efficiency as the engine works harder to compensate.
While it is generally safe to drive without a cabin air filter, it is not recommended as it can allow pollutants, dust, and allergens to enter the cabin, potentially affecting your health and comfort.
Sarah isn't your average gearhead. With a double major in Mechanical Engineering and Automotive Technology, she dived straight into the world of car repair. After 15 years of turning wrenches at dealerships and independent shops, Sarah joined MICDOT to share her expertise and passion for making cars run like new. Her in-depth knowledge and knack for explaining complex issues in simple terms make her a valuable asset to our team.
As an automotive mechanic with years of experience, I've encountered countless situations where car owners are puzzled by their vehicle's air conditioning (AC) system. One of the most common questions I receive is, "What should the AC pressure be with the engine off?" This query often arises when drivers notice their AC isn't cooling as effectively as it should, or they suspect a potential issue with the system.
In this article, I'll delve into the intricacies of AC pressure readings, the factors that influence them, and the steps you can take to diagnose and address any underlying problems. Buckle up, as we embark on a journey to demystify this crucial aspect of automotive air conditioning.
Before we dive into the specifics of AC pressure with the engine off, it's essential to grasp the fundamental principles of how an automotive air conditioning system operates. The AC system is a closed-loop circuit that circulates refrigerant, a specialized liquid/gas mixture responsible for absorbing heat from the cabin and expelling it outside the vehicle.
| Component | Function |
|---|---|
| Compressor | Compresses the refrigerant gas, increasing its pressure and temperature |
| Condenser | Dissipates heat from the high-pressure, high-temperature refrigerant gas, causing it to condense into a liquid |
| Expansion Valve/Orifice Tube | Regulates the flow of refrigerant from the high-pressure side to the low-pressure side |
| Evaporator | Absorbs heat from the cabin air, causing the liquid refrigerant to evaporate and cool the air |
The pressure within this closed-loop system is a critical indicator of its overall health and performance. When the engine is running, the AC compressor, driven by the engine, compresses the refrigerant gas, increasing its pressure and temperature. This high-pressure, high-temperature gas then flows through the condenser, where it dissipates heat and condenses back into a liquid state.
However, when the engine is off, the compressor is not actively compressing the refrigerant, and the system should reach a state of equilibrium, where the pressures on both the high and low sides of the system equalize.
In an ideally functioning AC system with no leaks or component failures, the static pressures on both the high and low sides should equalize and match the ambient temperature pressure. This pressure is typically measured in pounds per square inch (PSI) and can be easily determined using a temperature-pressure chart or an AC manifold gauge set.
For example, if the ambient temperature is 75°F (24°C), the static pressure on both sides of the AC system should be around 55-60 PSI when the engine is off. This equilibrium pressure is crucial because it indicates that the system is holding the correct amount of refrigerant and that there are no significant leaks or blockages.
| Ambient Temperature | Expected Static Pressure (PSI) |
|---|---|
| 65°F (18°C) | 40-45 PSI |
| 75°F (24°C) | 55-60 PSI |
| 85°F (29°C) | 70-75 PSI |
| 95°F (35°C) | 90-95 PSI |
While an ideal AC system should exhibit balanced pressures when the engine is off, several factors can disrupt this equilibrium, leading to improper pressure readings. Here are some of the most common culprits:
The most prevalent issue causing improper AC pressures is a refrigerant leak within the system. Even small leaks over time can result in low refrigerant levels, which can cause the pressures on both sides to drop below the expected values. Refrigerant leaks can occur due to various reasons, such as:
The compressor is the heart of the AC system, responsible for circulating and compressing the refrigerant. If the compressor fails or becomes faulty, it can disrupt the refrigerant flow and cause uneven or abnormal pressure readings, even with the engine off.
Common signs of compressor failure include:
The expansion valve or orifice tube is a critical component that regulates the flow of refrigerant from the high-pressure side to the low-pressure side of the system. If these components become clogged or obstructed, it can lead to improper pressure readings and inefficient cooling.
Causes of a clogged expansion valve or orifice tube include:
While less common, failures in other AC system components, such as the condenser, evaporator, or receiver/drier, can also contribute to improper pressure readings and overall system performance issues.
If you suspect an issue with your vehicle's AC system due to improper pressure readings with the engine off, it's crucial to have a professional technician diagnose and repair the problem. Here's a general overview of the diagnostic and repair process:
The first step in diagnosing AC pressure issues is to connect an AC manifold gauge set to the service ports on the high and low sides of the system. This specialized tool allows you to monitor the pressures on both sides and identify any discrepancies or abnormalities.
| Gauge Set Component | Function |
|---|---|
| Low-side gauge | Measures the pressure on the low-pressure side of the system |
| High-side gauge | Measures the pressure on the high-pressure side of the system |
| Manifold | Connects the gauges to the service ports |
| Hoses | Allow refrigerant flow between the system and the gauge set |
With the engine off and the AC system at rest, the technician will observe the static pressures on both the high and low sides. If the pressures are low or uneven, it indicates a leak or other system fault that needs further investigation.
If a leak is suspected, the technician will use specialized tools, such as UV dye or electronic leak detectors, to pinpoint the source of the leak. Once identified, the faulty component(s) will be repaired or replaced, and the system will be evacuated and recharged with the correct amount of refrigerant and lubricant.
In cases where a major component, such as the compressor or expansion valve, has failed, replacement of the faulty part is typically required. This process involves evacuating the system, replacing the component, and then recharging the system with the appropriate refrigerant and lubricant levels.

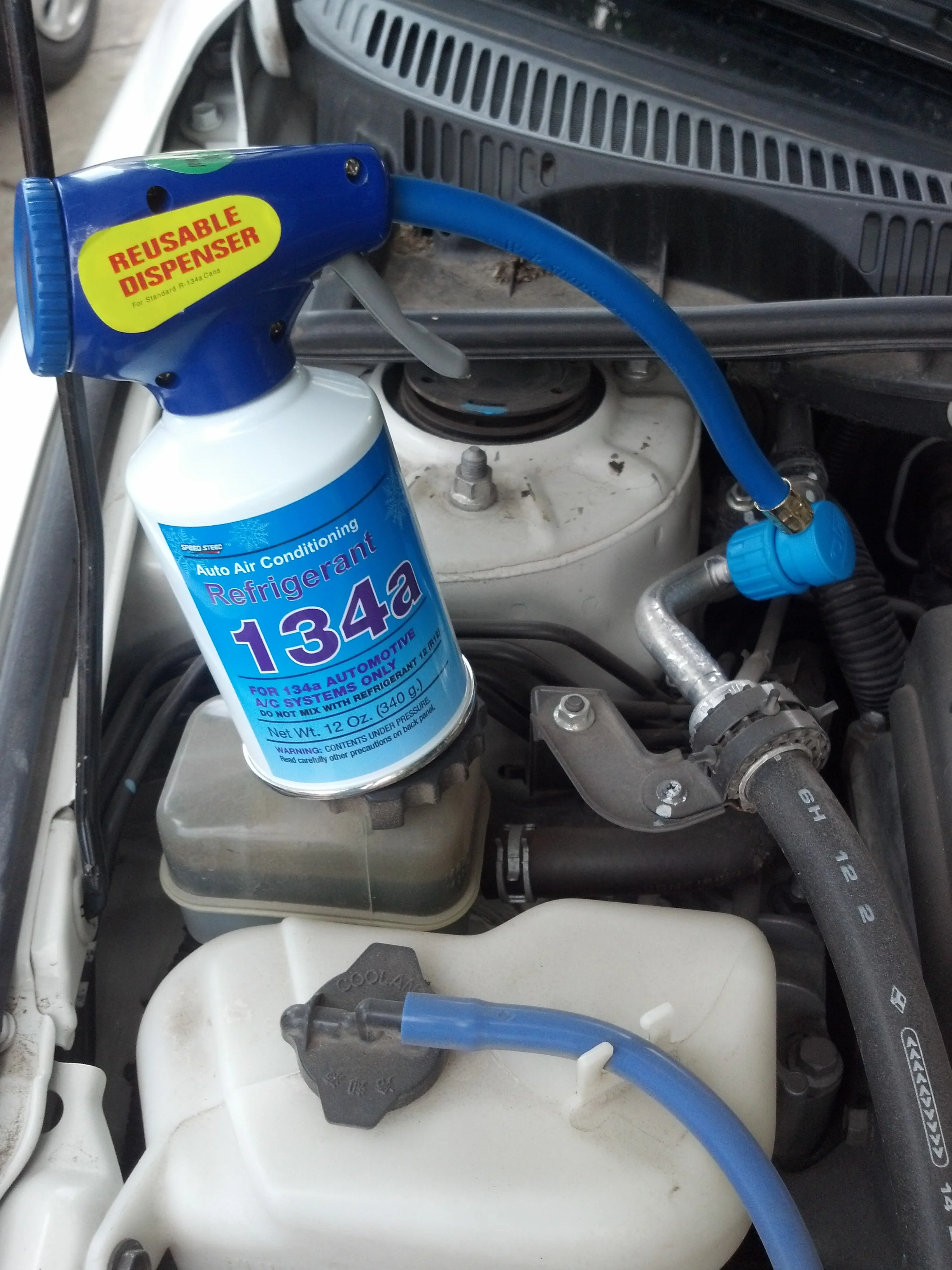

After repairs or component replacements, the AC system will be recharged with the correct amount of refrigerant and lubricant. The technician will then verify the pressures with the engine off to ensure the system is operating within the expected parameters.
