Air conditioning systems in vehicles rely on a refrigerant gas and lubricating oil to function properly. Over time, the refrigerant can leak out, leading to a loss of cooling performance. Recharging the system with new refrigerant is a common maintenance task, but it raises the question of whether additional oil needs to be added during the recharge process.
Before we dive into the specifics of oil and recharging, it's essential to grasp the fundamental components of an automotive AC system. The heart of the system is the compressor, which circulates the refrigerant through a closed loop. This loop includes the condenser, expansion valve, and evaporator. Lubricating oil is mixed with the refrigerant to ensure proper lubrication for the compressor and other moving parts.
Here's a breakdown of the key components:
| Component | Function |
|---|---|
| Compressor | Circulates the refrigerant through the system |
| Condenser | Cools and condenses the refrigerant from a gas to a liquid |
| Expansion Valve | Regulates the flow of refrigerant into the evaporator |
| Evaporator | Absorbs heat from the air, causing the refrigerant to evaporate and cool the cabin |
Now, let's address the main reasons why you might need to recharge your AC system and potentially add oil:
Refrigerant Leaks: One of the most common culprits is refrigerant leaks. These leaks can occur due to various reasons, such as:
Worn seals
Damaged hoses
Faulty components (compressor, condenser, etc.)
When a leak occurs, not only does the refrigerant escape, but the lubricating oil also seeps out, leaving the system dry and potentially causing further damage.
Compressor Failure: The compressor is a critical component that keeps the refrigerant circulating. If it fails, the refrigerant and oil can leak out or become contaminated, rendering the entire system ineffective.
Lack of Maintenance: Neglecting regular AC maintenance can also lead to issues that can contribute to refrigerant and oil loss, such as:
Clogged filters
Debris buildup
Moisture accumulation
All of these factors can affect the system's performance and potentially cause leaks or other problems.
Before attempting any repairs or recharging, it's crucial to properly inspect and diagnose the AC system. Here are the steps I typically follow:
Weak or warm airflow from the vents can be an indication of a refrigerant leak or other AC issues. If the airflow is not as cool as it should be, further investigation is necessary.
When you turn on the AC, the compressor clutch should engage. If it doesn't, it could be due to low refrigerant levels or a faulty compressor.
A thorough visual inspection for signs of refrigerant leaks is essential. Look for:
Oil residue
Moisture buildup
Puddles under the vehicle
Using a UV dye or leak detector can help pinpoint the exact location of the leak.
Connecting manifold gauges to the AC system allows me to check if the high and low-side pressures are within the recommended range. Abnormal pressures can indicate leaks or other issues that need to be addressed.
| Pressure | Typical Range |
|---|---|
| Low-side | 25-35 psi |
| High-side | 200-300 psi |
Deviations from these ranges can signify potential problems.
Once the issue has been identified, it's time to take the necessary steps to repair the AC system:
If a leak is detected, it must be located and repaired. This may involve:
Replacing damaged hoses
Replacing worn seals
Replacing faulty components (compressor, condenser, etc.)
In cases where the system is contaminated, a thorough flush with a specialized cleaning solution is required to remove:
Debris
Moisture
Contaminants

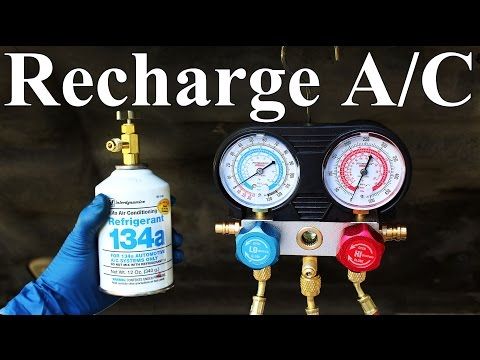

After repairs, I perform a vacuum process to remove any remaining moisture from the system. Then, I recharge it with the correct:
Type of refrigerant
Amount of refrigerant
Amount of compressor oil
In some cases, major components like the compressor, condenser, or others may need to be replaced if they are faulty or beyond repair.
To avoid costly repairs and ensure your AC system operates efficiently, I highly recommend following these preventive maintenance practices:
Have your AC system inspected and serviced:
Annually
As recommended by the manufacturer
This can help catch issues early and prevent them from escalating.
Regularly cleaning or replacing the following filters is essential for proper airflow and system performance:
Cabin air filter
Condenser fins
Even in cooler months, it's a good idea to run your AC system periodically. This helps:
Keep the seals lubricated
Prevent moisture buildup
The cost of recharging an AC system can vary depending on the extent of the repairs needed. Here's a general breakdown:
| Service | Typical Cost Range |
|---|---|
| Simple Recharge (Refrigerant and Oil) | $100 - $300 |
| Compressor Replacement | $500 - $1,500 |
| Condenser Replacement | $400 - $1,000 |
| Evaporator Replacement | $600 - $1,200 |
Please note that these costs can vary depending on the vehicle and labor costs in your area. However, regular maintenance can help prevent costly repairs in the long run.
In conclusion, adding oil when recharging the AC system is often necessary, especially if there has been a refrigerant leak or compressor failure. However, it's crucial to properly diagnose the issue and address any underlying problems before attempting a recharge. By following the recommended inspection, repair, and maintenance procedures, you can ensure your vehicle's AC system operates efficiently and keeps you cool and comfortable on those hot summer days.
Remember, preventive maintenance is key to avoiding costly repairs and extending the lifespan of your AC system. Don't hesitate to consult with a professional mechanic if you're unsure about any aspect of your vehicle's AC system. Stay cool, my friends!
The lubricating oil ensures proper lubrication for the compressor and other moving parts of the AC system. It is mixed with the refrigerant and circulates through the closed loop.
Signs of a refrigerant leak include weak or warm airflow from the vents, oil residue or moisture buildup around the AC components, and puddles under the vehicle.
If the compressor fails, it can cause the refrigerant and oil to leak out or become contaminated, rendering the entire AC system ineffective.
Checking the high and low-side pressures with manifold gauges can help diagnose issues like leaks or other problems, as abnormal pressures indicate potential problems.
A system flush with a specialized cleaning solution is necessary to remove debris, moisture, and contaminants from a contaminated AC system.
A vacuum process is performed to remove any remaining moisture from the AC system before recharging it with refrigerant and oil.
It is recommended to have your AC system inspected and serviced annually or as recommended by the manufacturer.
Running the AC system periodically, even in cooler months, helps keep the seals lubricated and prevents moisture buildup.
A simple AC recharge, including refrigerant and oil, typically costs between $100 and $300.
The most expensive AC system repair is typically the evaporator replacement, which can cost between $600 and $1,200.
