Exhaust System Parts 101: The Ultimate Guide for Vehicle Enthusiasts

Sarah Khan
Sarah Khan
10 min read

Review by: Sarah Khan
Maintenance Exhaust

The exhaust system is a critical component of any internal combustion engine vehicle, responsible for expelling harmful gases, reducing emissions, and enhancing overall performance. This comprehensive guide delves into the intricate world of exhaust system parts, exploring their functions, types, benefits, maintenance, and customization options. Whether you're a car enthusiast seeking to optimize your vehicle's performance or a curious learner eager to understand the inner workings of this vital system, this article will provide you with a wealth of knowledge.

Introduction to Exhaust Systems

The exhaust system plays a crucial role in the safe and efficient operation of a vehicle. Its primary function is to route the exhaust gases produced by the engine's combustion process away from the vehicle and its occupants. These gases, which include carbon monoxide, nitrogen oxides, and hydrocarbons, can be harmful if inhaled or released directly into the environment.

PurposeImportance
Expel exhaust gasesMaintain a safe and breathable environment within the vehicle
Reduce emissionsMitigate the environmental impact of vehicular pollution
Minimize noise levelsContribute to a more pleasant driving experience and comply with noise regulations

Beyond expelling exhaust gases, the exhaust system also contributes to noise reduction and improved engine performance. By minimizing backpressure and facilitating the smooth flow of exhaust gases, the system enhances the engine's efficiency and power output.

The main functions of an exhaust system are:

  • Collect and channel exhaust gases from the engine's cylinders

  • Convert harmful substances into less toxic compounds

  • Dampen excessive noise

  • Expel the remaining gases safely away from the vehicle

These functions are achieved through the coordinated operation of various components, each playing a specific role in the overall system.

Components of an Exhaust System

The exhaust system comprises several interconnected components, each designed to perform a specific task in the process of expelling and treating exhaust gases. Understanding the role and function of these components is crucial for maintaining optimal system performance and addressing any potential issues.

Exhaust Manifold/Headers

The exhaust manifold, or headers, is the first component in the exhaust system. Its primary function is to collect the exhaust gases from the engine's cylinders and channel them into the rest of the system. Manifolds are designed to minimize backpressure, allowing for more efficient exhaust flow and improved engine performance.

ComponentFunctionBenefits
Exhaust ManifoldCollect exhaust gases from cylindersReduce backpressure, improve exhaust flow
HeadersCollect exhaust gases from cylinders (aftermarket)Reduce turbulence, enhance exhaust flow

Headers, on the other hand, are aftermarket exhaust manifolds that are often used in performance applications. They feature individual pipes for each cylinder, reducing turbulence and further enhancing exhaust flow.

Catalytic Converter

The catalytic converter is a critical component in the exhaust system, responsible for reducing harmful emissions. It utilizes a honeycomb structure coated with precious metals like platinum, rhodium, and palladium to facilitate chemical reactions that convert toxic gases, such as carbon monoxide, hydrocarbons, and nitrogen oxides, into less harmful substances like water, carbon dioxide, and nitrogen.

Catalytic converters play a vital role in meeting emissions regulations and minimizing the environmental impact of vehicular pollution.

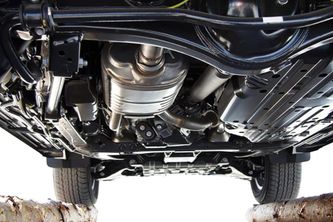

Resonator

The resonator is designed to minimize the noise produced by the exhaust system. It employs chambers and baffles to cancel out excessive sound waves, resulting in a quieter ride. Resonators are particularly effective at reducing low-frequency exhaust noise, which can be disruptive and contribute to overall noise pollution.

Muffler

The muffler is another noise-reduction component in the exhaust system. It utilizes sound-absorbing materials and additional chambers to further reduce noise levels, ensuring a more pleasant driving experience. Mufflers are designed to dampen high-frequency exhaust noise, complementing the role of the resonator in achieving optimal noise reduction.

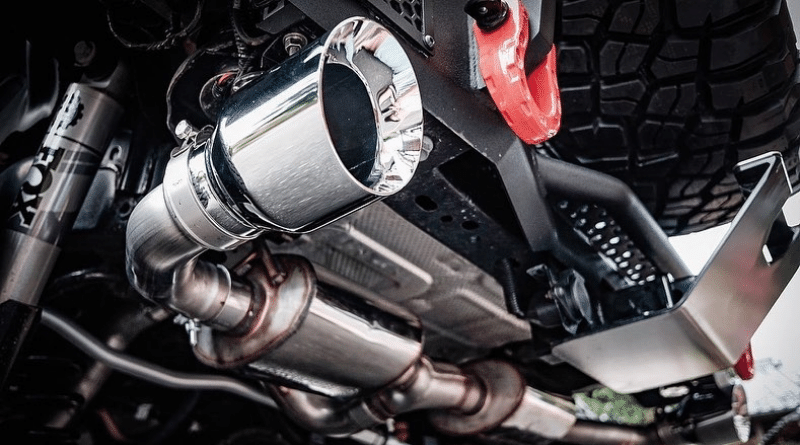

Tailpipe/Exhaust Tips

The tailpipe is the final exit point for the exhaust gases, expelling them safely away from the vehicle. Exhaust tips, which are attached to the end of the tailpipe, can serve both functional and aesthetic purposes. While their primary role is to direct the exhaust gases away from the vehicle, exhaust tips can also be customized to enhance the vehicle's appearance and alter the sound of the exhaust system.

Types of Exhaust Systems

Exhaust systems come in various configurations, each designed to meet specific performance and aesthetic requirements. Understanding the different types of exhaust systems can help vehicle owners make informed decisions when considering upgrades or replacements.

TypeDescriptionSuitable For
Single ExitUtilizes a single pipe to direct exhaust gasesCost-effective, smaller vehicles
Dual ExitEmploys two separate pipes for exhaust flowLarger vehicles, improved performance
Stock/FactoryPre-installed system designed for compliance and adequate performanceMost vehicles
PerformanceAftermarket upgrades for enhanced performance (cat-back, axle-back)Performance-oriented vehicles
  • Single Exit vs. Dual Exit: Single exit exhaust systems utilize a single pipe to direct the flow of exhaust gases, while dual exit systems employ two separate pipes. Dual exit systems are typically found on larger vehicles with six-cylinder or larger engines, as they provide better exhaust flow and improved performance. However, single exit systems can be more cost-effective and suitable for smaller vehicles with lower exhaust flow requirements.

  • Stock/Factory Exhaust: Most vehicles come equipped with a stock or factory-installed exhaust system designed to meet noise and emissions regulations while providing adequate performance. These systems are engineered to strike a balance between efficiency, noise reduction, and compliance with applicable standards.

  • Performance Exhaust Systems: Performance exhaust systems, such as cat-back and axle-back systems, are aftermarket upgrades designed to enhance engine performance. These systems feature larger diameter pipes, high-flow mufflers, and other performance-oriented components that reduce backpressure and improve exhaust flow.

    • Cat-back systems replace the exhaust components from the catalytic converter back, while axle-back systems replace the components from the rear axle to the exhaust tip.

    • Both types of performance exhaust systems can provide noticeable gains in horsepower, torque, and overall engine responsiveness.

Benefits of Upgrading to a Performance Exhaust System

While stock exhaust systems are designed to meet basic requirements, upgrading to a performance exhaust system can offer several benefits for vehicle enthusiasts and those seeking enhanced performance.

Increased Horsepower and Torque

One of the primary advantages of a performance exhaust system is the potential for increased horsepower and torque. By reducing backpressure and allowing for better exhaust flow, these systems can boost engine power and torque output. The improved airflow and reduced restriction enable the engine to operate more efficiently, resulting in a noticeable performance enhancement.

Improved Fuel Efficiency

Counterintuitively, a performance exhaust system can also contribute to improved fuel efficiency. With reduced engine workload and backpressure, the engine can operate more efficiently, potentially leading to better fuel economy. This benefit is particularly appealing for those seeking both performance and cost savings at the pump.

Enhanced Sound and Aesthetics

Many performance exhaust systems are designed to produce a more aggressive and sporty exhaust note, appealing to enthusiasts who appreciate the auditory experience of a high-performance vehicle. Additionally, these systems often offer customizable exhaust tips, allowing vehicle owners to personalize the appearance of their exhaust system and enhance the overall aesthetic of their ride.

Maintenance and Inspection

Regular maintenance and inspection of the exhaust system are crucial for ensuring its longevity and optimal performance. Neglecting these tasks can lead to costly repairs and potential safety hazards.

Importance of Regular Inspections

Regular inspections of the exhaust system are essential for identifying any signs of damage or wear before they escalate into more significant issues. These inspections should be performed by a qualified technician who can thoroughly examine the system's components and identify potential problems.

Common signs of damage or wear include:

  • Rust

  • Cracks

  • Loose connections

  • Excessive noise

Rust can weaken the structural integrity of the system, while cracks or loose connections can lead to exhaust leaks, compromising the system's performance and potentially posing safety risks.

Timely Repairs and Replacements

If any issues are detected during an inspection, it is crucial to address them promptly. Timely repairs or replacements of damaged components can prevent further deterioration and avoid costly repairs down the line. Neglecting these issues can not only impact the exhaust system's performance but also potentially lead to safety hazards and increased emissions.

Professional Servicing and Cleaning

While some maintenance tasks, such as visual inspections, can be performed by vehicle owners, professional servicing is recommended for thorough inspections and proper maintenance. Qualified technicians have the expertise and specialized tools to identify and address any issues accurately.

Additionally, keeping the exhaust system clean and free from debris is essential for optimal performance. Professional cleaning services can remove built-up soot, carbon deposits, and other contaminants, ensuring the system operates at peak efficiency.

Exhaust System Installation and Customization

When upgrading or replacing an exhaust system, vehicle owners have the option of DIY installation or seeking professional assistance. Additionally, various customization options are available to personalize the system's appearance and performance.

Considerations for DIY Installation vs. Professional Installation

Installation MethodProsCons
DIY InstallationCost-effective for experienced enthusiastsRequires proper tools, knowledge, and fitment
Professional InstallationEnsures proper fitment and complianceHigher cost

DIY installation of an exhaust system can be a cost-effective option for experienced enthusiasts with the necessary tools and knowledge. However, it is crucial to follow manufacturer instructions carefully and ensure proper fitment to avoid potential issues.

Professional installation, on the other hand, offers the assurance of proper fitment and compliance with local regulations and emissions standards. Experienced technicians have the expertise to ensure the exhaust system is installed correctly and functions as intended.

Customization Options

Customization options for exhaust systems include different materials, muffler types, and exhaust tips.

CustomizationOptions
MaterialsStainless steel, aluminized steel
Muffler TypesStraight-through, baffled
Exhaust TipsSubtle, aggressive styles
  • Materials: Stainless steel and aluminized steel are popular material choices, offering durability and corrosion resistance.

  • Muffler Types: Muffler types range from straight-through designs for maximum flow to baffled mufflers for noise reduction.

  • Exhaust Tips: Exhaust tips can be customized to enhance the vehicle's appearance and alter the exhaust note, with options ranging from subtle to aggressive styles.

Compliance with Regulations and Emissions Standards

Regardless of the customization options chosen, it is essential to ensure compliance with local regulations and emissions standards. Certain modifications or aftermarket components may not meet legal requirements, potentially resulting in fines or legal issues. Consulting with a professional or researching applicable regulations is recommended before making any significant changes to the exhaust system.

Conclusion

A well-functioning exhaust system is essential for vehicle performance, efficiency, and longevity. By understanding the various components, types, and benefits of exhaust systems, vehicle owners can make informed decisions about maintenance, upgrades, and customizations.

Regular inspections and timely repairs are crucial to ensure the exhaust system operates optimally, reducing emissions, improving performance, and providing a more enjoyable driving experience. Whether you opt for a stock system or upgrade to a performance exhaust, proper maintenance and adherence to regulations will ensure your vehicle operates at its best while minimizing its environmental impact.

FAQS

What is the average cost of installing a performance exhaust system?

The cost can range from a few hundred dollars for an axle-back system to over $1,000 for a full cat-back or turbo-back system. Professional installation will add to the total cost.

How difficult is it to install an aftermarket exhaust system yourself?

It depends on the specific system, but many cat-back and axle-back kits are designed for easier DIY installation. Full turbo-back or header-back systems are more complex.

It varies by location, but generally cat-back systems that retain the catalytic converters are legal. Systems without catalytic converters may violate emissions laws.

Do performance exhausts negatively impact fuel economy?

While less restrictive exhausts can improve engine efficiency, the increased power may lead to more aggressive driving habits that reduce fuel economy.

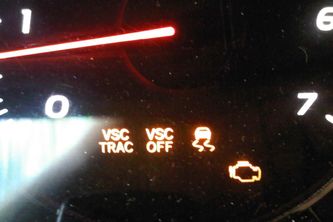

Can an aftermarket exhaust cause check engine lights?

Yes, removing catalytic converters or sensors can trigger check engine lights related to emissions systems. Professional tuning may be required.

How long does a performance exhaust system last?

With proper installation and maintenance, a quality stainless steel performance exhaust can last 5-10 years or more before requiring replacement.

Do aftermarket exhausts increase drone or cabin noise?

Yes, less restrictive exhausts and muffler designs can increase cabin drone, especially at lower RPMs. Sound insulation may be needed.

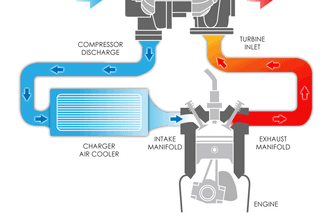

Are performance exhausts bad for turbocharged engines?

No, less backpressure can actually benefit turbo engines by reducing stress on the turbocharger. However, tuning may be required.

Can an aftermarket exhaust void the vehicle's warranty?

Possibly. Manufacturers may deny warranty claims if the aftermarket exhaust is deemed the cause of any engine/emissions system issues.

Do performance exhausts produce more emissions?

Generally no, if the catalytic converters are retained. However, removing catalytic converters will increase emissions significantly.
