The 7.3L Powerstroke diesel engine, found in Ford Super Duty trucks from 1994 to 2003, is renowned for its durability and longevity. However, proper maintenance, particularly regular oil changes, is crucial to ensure its continued optimal performance. This comprehensive guide aims to provide an in-depth understanding of the oil requirements for the 7.3L Powerstroke engine, covering topics such as oil capacity, recommended oil types and viscosities, the benefits of synthetic oil, and a step-by-step guide to changing the oil. Additionally, we will explore common oil leak areas and the importance of addressing them promptly.
The 7.3L Powerstroke engine has a specific oil capacity that must be met to ensure proper lubrication and engine protection. Here are the details:
| Engine | Oil Capacity |
|---|---|
| 7.3L Powerstroke | 15 quarts or 14.2 liters |
It's important to note that the engine's displacement (7.3 liters) differs from its oil capacity, which refers to the amount of oil required for an oil change.
Ford recommends using Motorcraft synthetic blend or full synthetic diesel oils specifically designed for the 7.3L Powerstroke engine. These oils are formulated to meet the engine's unique requirements and provide optimal performance.
The recommended oil viscosity for the 7.3L Powerstroke engine varies based on the ambient temperature. Using the correct viscosity is crucial for proper oil flow, lubrication, and engine protection. Ford provides the following guidelines:
| Temperature Range | Recommended Viscosity |
|---|---|
| Above 30°F (-1°C) | SAE 15W-40 |
| -10°F (-23°C) to 30°F (-1°C) | SAE 10W-30 |
| Below 30°F (-1°C) | SAE 5W-30 |
| Below 0°F (-18°C) (Extreme Cold) | SAE 0W-30 |
Adhering to these recommendations ensures proper oil flow and lubrication, especially during cold starts, which can be particularly challenging for diesel engines.
The 7.3L Powerstroke engine features a Hydraulically actuated, Electronically controlled, Unit Injector (HEUI) system, which relies on highly pressurized engine oil for fuel injection. This advanced system places immense stress on the engine oil, causing it to break down more rapidly than in traditional diesel engines.
Synthetic oils are designed to resist breakdown and maintain their properties under extreme conditions, making them an excellent choice for the 7.3L Powerstroke engine. These oils offer several benefits:
Superior lubrication
Resistance to thermal breakdown
Prevention of stiction (sticking) in the HEUI injectors
By using synthetic oil, 7.3L Powerstroke owners can expect improved engine protection, reduced wear, and extended engine lifespan. The oil's ability to resist breakdown ensures consistent performance and reduces the risk of costly repairs.
One of the critical benefits of synthetic oil for the 7.3L Powerstroke engine is its ability to prevent stiction in the HEUI injectors. Stiction occurs when the injector's internal components become stuck due to the buildup of varnish or other deposits, leading to improper fuel delivery and potential engine damage.
Synthetic oils are formulated with advanced additives that help prevent the formation of these deposits, ensuring smooth operation of the HEUI injectors and optimal fuel delivery.

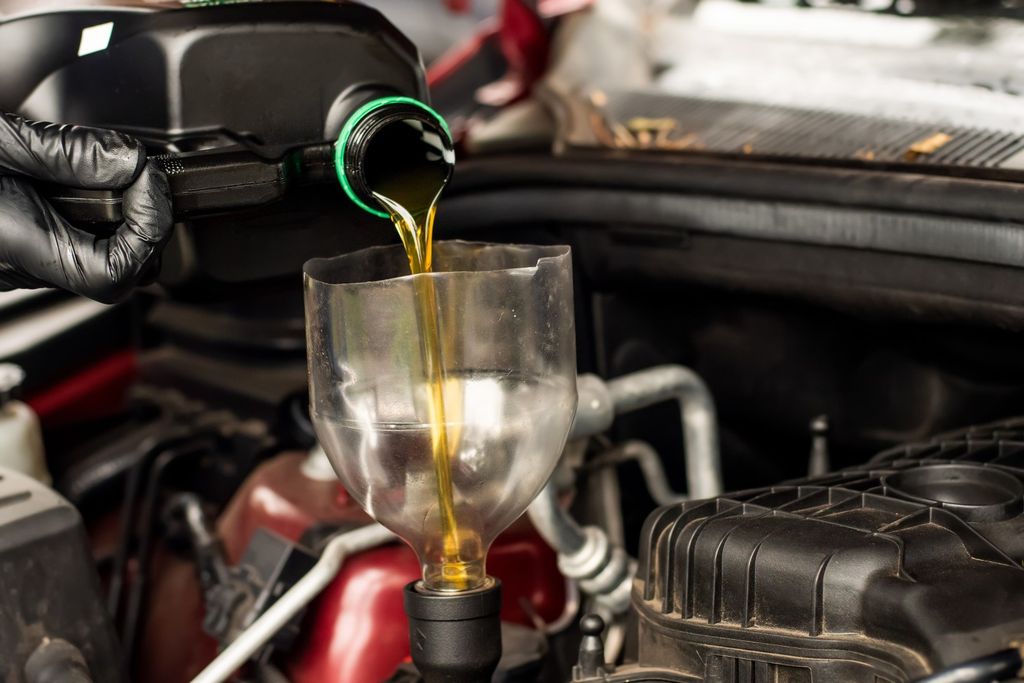

Changing the oil on a 7.3L Powerstroke is a straightforward process that can be performed at home, saving you money on labor costs. Here's a step-by-step guide:
Warm up the engine to ensure the oil flows freely.
Place a drain pan underneath the oil filter, capable of holding at least 15 quarts of oil.
Using a wrench or oil filter wrench, remove the old oil filter.
Allow the oil to drain completely from the engine.
Replace the drain plug gasket (if necessary) and tighten the drain plug.
Lubricate the gasket of the new oil filter (Motorcraft FL1995 or Donaldson DBL7405 recommended) with clean engine oil.
Fill the new filter with approximately 1/2 to 3/4 quart of fresh oil.
Install the new filter and tighten it according to the manufacturer's instructions.
Remove the oil fill cap and pour in 14 to 14.5 quarts of fresh oil, allowing for the oil already added to the filter.
Start the engine and let it idle for a minute, then shut it off and wait a few minutes for the oil to settle.
Check the dipstick and top up the oil level if necessary, ensuring it's within the crosshatch area.
[Insert relevant image or video demonstrating the oil change process]
While changing the oil, it's essential to inspect for any oil leaks, as the 7.3L Powerstroke is known to develop leaks over time. Common areas to check include:
| Leak Area | Description |
|---|---|
| Turbo Pedestal | Leaks can occur where the turbo mounts to the pedestal or where the pedestal meets the engine block. |
| Valve Cover Gaskets | Worn gaskets can cause oil to leak into the valley between the cylinder heads. |
| HPOP (High Pressure Oil Pump) O-rings | Failing o-rings can lead to significant oil leaks. |
| Rear Main Seal | A leaking rear main seal can cause oil to drip from the back of the engine. |
Addressing these leaks promptly is crucial to prevent further damage and costly repairs down the line. Neglecting oil leaks can lead to decreased engine performance, increased wear, and potentially catastrophic engine failure.
It's important to regularly inspect the engine for any signs of oil leaks and address them immediately. Delaying the repair of oil leaks can result in more extensive and expensive repairs in the future.
Proper maintenance, including regular oil changes with the recommended oil type and viscosity, is essential for ensuring the longevity and reliable performance of the 7.3L Powerstroke engine. By following the guidelines outlined in this comprehensive guide, you can maximize the lifespan of your engine, prevent costly repairs, and enjoy the exceptional durability that the 7.3L Powerstroke is known for.
Engine displacement refers to the total volume of the engine's cylinders, while oil capacity is the amount of oil required for an oil change. These are two different measurements.
While conventional oil can be used, synthetic or synthetic blend oils are highly recommended for the 7.3L Powerstroke due to the extreme operating conditions of the HEUI fuel system.
Ford recommends changing the oil every 5,000 miles or 6 months, whichever comes first, when using the recommended oil types.
Using the wrong oil viscosity can lead to improper oil flow, inadequate lubrication, and increased wear, potentially causing engine damage.
It is generally not recommended to mix different oil brands or types, as they may have varying additive packages that could interact negatively.
Common signs of an oil leak include oil spots on the ground, low oil levels, and the presence of oil in the engine valley or around gaskets and seals.
Used engine oil should be disposed of responsibly at designated recycling centers or auto parts stores that accept used oil for proper disposal or recycling.
Ford does not recommend using oil additives or supplements, as they can potentially cause engine damage and are unnecessary with the recommended oils.
The engine block heater is designed to warm up the engine coolant and oil, making it easier to start the engine in cold weather conditions.
Ford recommends using the Motorcraft FL1995 or Donaldson DBL7405 oil filters, which are specifically designed for the 7.3L Powerstroke engine.
