Diesel engines are a unique breed of internal combustion engines that operate on a fundamentally different principle than their gasoline counterparts. Unlike gasoline engines, which rely on spark plugs to ignite the fuel-air mixture, diesel engines utilize a process called compression ignition, eliminating the need for spark plugs altogether. This article will delve into the intriguing ignition mechanism of diesel engines, the role of glow plugs, and how they differ from gasoline engines in terms of ignition and combustion processes.
Diesel engines are designed to initiate combustion through compression ignition, a process that harnesses the power of high compression ratios to generate the necessary heat for spontaneous ignition of the fuel.
In a diesel engine, the following sequence of events occurs:
Only air is drawn into the cylinders during the intake stroke.
This air is then compressed to extremely high pressures, typically within the range shown in the table below:
| Compression Ratio Range |
|---|
| 14:1 to 25:1 |
As the piston reaches the top of the compression stroke, the compressed air reaches temperatures often exceeding 500°C (932°F).
At this point, diesel fuel is injected directly into the combustion chamber.
The high temperature causes the atomized fuel to ignite spontaneously, without the need for an external spark.
The direct injection of fuel into the combustion chamber is a crucial aspect of the diesel engine's design. This method ensures that the fuel is introduced precisely when the air is at its hottest and most compressed state, facilitating efficient and complete combustion.
While diesel engines do not require spark plugs for ignition, they are equipped with glow plugs, which serve a vital function during cold starts.
Glow plugs are small heating elements installed in the combustion chambers of diesel engines. Their primary roles include:
Pre-heating the combustion chambers when the engine is cold
Facilitating the initial ignition process during cold starts
During a cold start, the compressed air in the cylinders may not reach a high enough temperature to ignite the diesel fuel immediately. In such cases, the glow plugs provide the necessary heat to facilitate the initial ignition process.
The activation and deactivation of glow plugs are precisely controlled:
Activated during cold starts to pre-heat the combustion chambers
Deactivated once the engine is running and the combustion chambers have reached the required operating temperature
In contrast to diesel engines, gasoline engines rely on a different ignition mechanism known as spark ignition. Gasoline engines have lower compression ratios, typically between 8:1 and 12:1, which are not high enough to generate the temperatures required for spontaneous ignition of the fuel-air mixture.

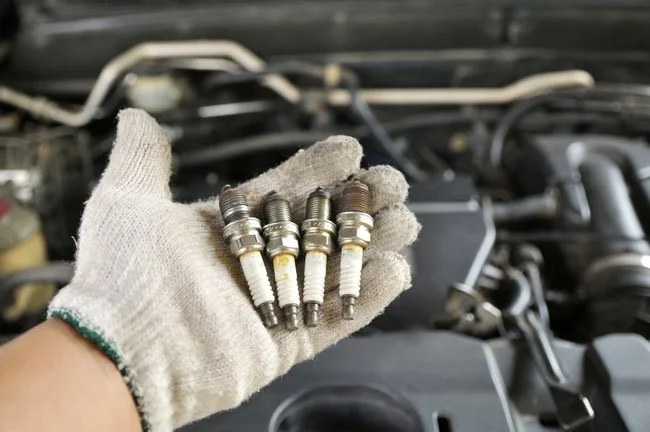

To initiate combustion in gasoline engines, spark plugs are used. These spark plugs provide the necessary electrical spark to ignite the compressed fuel-air mixture in each cylinder. The spark plugs are an essential component of the ignition system in gasoline engines and must be periodically replaced as part of regular maintenance.
Key differences between diesel and gasoline engines:
| Aspect | Diesel Engine | Gasoline Engine |
|---|---|---|
| Ignition Mechanism | Compression Ignition | Spark Ignition |
| Compression Ratio | High (14:1 to 25:1) | Lower (8:1 to 12:1) |
| Fuel Injection | Direct Injection into Combustion Chamber | Port Injection or Direct Injection |
| Ignition Source | Spontaneous Ignition due to High Compression | Spark Plugs |
| Glow Plugs | Required for Cold Starts | Not Required |
| Combustion Process | Compression-driven after Cold Start | Spark-initiated throughout Operation |
Unlike diesel engines, which achieve combustion through compression alone after the initial cold start phase, gasoline engines rely on spark plugs for ignition throughout their operation. This fundamental difference in ignition mechanisms is a key distinction between diesel and gasoline engines.
While diesel engines do not have spark plugs to replace, glow plugs may require periodic maintenance or replacement. The lifespan of glow plugs can vary depending on factors such as:
Engine usage
Driving conditions
Quality of the glow plugs
Most manufacturers recommend inspecting and potentially replacing glow plugs every 60,000 to 100,000 miles or as part of scheduled maintenance intervals. Faulty glow plugs can lead to issues with cold starting and may negatively impact engine performance, making it essential to follow the recommended maintenance guidelines.
In summary, diesel engines do not require spark plugs for ignition due to their unique compression ignition design. The high compression ratios in diesel engines generate enough heat to ignite the fuel-air mixture spontaneously, eliminating the need for an external spark. However, diesel engines are equipped with glow plugs, which serve to pre-heat the combustion chambers during cold starts to aid in the initial ignition process. Once the engine is running and the combustion chambers are sufficiently hot, the glow plugs are no longer needed and turn off automatically. This distinct ignition mechanism sets diesel engines apart from gasoline engines, which rely on spark plugs for ignition throughout their operation.
Diesel engines typically have compression ratios ranging from 14:1 to 25:1. This high compression ratio is necessary for the compression ignition process.
A diesel engine initiates combustion through the compression ignition process, where the high compression ratios generate enough heat to spontaneously ignite the injected diesel fuel without the need for an external spark.
Glow plugs are heating elements installed in the combustion chambers of diesel engines to facilitate cold starts by pre-heating the combustion chambers when the engine is cold.
No, glow plugs are only required for cold starts. Once the engine is running and the combustion chambers have reached the required operating temperature, the glow plugs are deactivated.
Diesel engines rely on compression ignition, while gasoline engines use spark ignition, where spark plugs provide the electrical spark to ignite the fuel-air mixture.
Gasoline engines have lower compression ratios, typically between 8:1 and 12:1, which are not high enough for spontaneous ignition of the fuel-air mixture.
In diesel engines, fuel is injected directly into the combustion chamber when the air is at its hottest and most compressed state, facilitating efficient and complete combustion.
Yes, glow plugs may require periodic maintenance or replacement, typically every 60,000 to 100,000 miles or as part of scheduled maintenance intervals, depending on factors such as engine usage and driving conditions.
Yes, faulty glow plugs can lead to issues with cold starting and may negatively impact engine performance, making it essential to follow the recommended maintenance guidelines.
No, gasoline engines do not require glow plugs as they rely on spark plugs for ignition throughout their operation.
