Minimum Brake Shoe Thickness: Guidelines for Safe Braking Performance

Sarah Khan
Sarah Khan
6 min read

Review by: Sarah Khan
Maintenance Brakes

Introduction

Brake shoes are a critical component of the braking system in vehicles equipped with drum brakes. They are responsible for creating friction against the rotating drum, which slows down and stops the vehicle. Over time, the friction material on the brake shoes wears down, reducing their effectiveness. Maintaining a minimum brake shoe thickness is crucial for ensuring proper braking performance and safety.

Understanding the Braking System

Before delving into the specifics of brake shoe thickness, it's essential to understand the braking system's role in ensuring your safety on the road. Brakes are responsible for slowing down or stopping your vehicle, and their proper functioning is paramount.

The braking system consists of several components, each playing a crucial role in the overall braking process. Here's a breakdown of the key components:

ComponentFunction
Brake PedalInitiates the braking process when pressed by the driver.
Master CylinderConverts the mechanical force from the brake pedal into hydraulic pressure.
Brake LinesCarry the hydraulic pressure from the master cylinder to the wheel cylinders or calipers.
Wheel Cylinders/CalipersApply the hydraulic pressure to the brake shoes or pads, creating friction.
Brake Shoes/PadsThe friction material that presses against the brake drums or rotors, slowing the vehicle.
Brake Drums/RotorsThe components that the brake shoes or pads press against to create friction.

The brake shoes, in particular, are the components that create friction against the brake drums, converting your vehicle's kinetic energy into heat, ultimately bringing it to a halt.

Causes of Brake Shoe Wear

Over time, brake shoes inevitably wear down due to normal usage. However, there are several factors that can accelerate this process:

  • Excessive Wear and Tear: The more you use your brakes, the faster the friction material on the brake shoes will wear down. This is especially true for city driving, where frequent braking is required.

  • Uneven Wear: If one of your brake components, such as a wheel cylinder or caliper, becomes stuck or seized, it can cause uneven wear on the brake shoes. This leads to one shoe wearing out faster than the other, compromising your braking performance.

  • Contamination: Grease, oil, or brake fluid can contaminate the brake lining, causing it to deteriorate rapidly. This is often the result of a leak or improper maintenance.

  • Overheating and Glazing: Excessive braking or towing heavy loads can cause the friction material to overheat and glaze, reducing its effectiveness and accelerating wear.

Identifying Worn Brake Shoes

As a mechanic, I've developed a keen eye for spotting worn brake shoes. Here's how you can identify the issue:

Inspection Steps

  1. Park your vehicle on a level surface and apply the parking brake.

  2. Raise the vehicle and remove the wheels to access the brake drums.

  3. Remove the brake drums to expose the brake shoes.

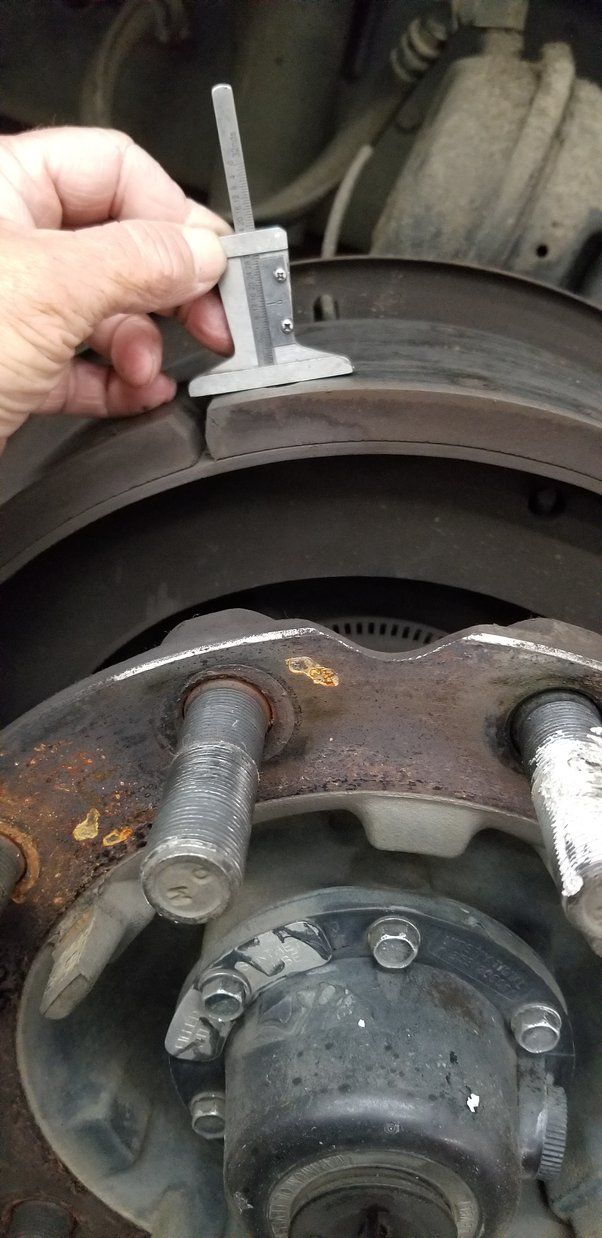

  4. Inspect the brake shoe thickness using a micrometer or brake lining gauge.

Signs of Wear

SignDescription
Thickness Below MinimumBrake shoe lining thickness below the manufacturer's specified minimum (typically 1/4 inch or 6.35 mm).
Visible DamageGrooves, cracks, or uneven wear on the lining surface.
Brake NoiseSquealing, grinding, or rattling when applying brakes.
Reduced Braking PerformanceIncreased pedal travel or longer stopping distances.

Repair Procedures and Tips

When it comes to replacing brake shoes, following the proper procedures is crucial for ensuring safe and reliable braking performance. Here's what you need to know:

Replacing Brake Shoes

  • Follow the vehicle manufacturer's instructions for proper removal and installation.

  • Clean the brake backing plate and other components thoroughly.

  • Replace brake shoes in axle sets (both wheels) for even braking.

  • Adjust the brake shoes to the specified clearance after installation.

  • Lubricate all moving parts with the recommended brake lubricant.

Resurfacing Brake Drums

If the brake drums are within the manufacturer's specifications, you can use a brake lathe or drum brake machine to remove any grooves or hot spots, ensuring a smooth surface for the new brake shoes.

Additional Components

  • Inspect and replace other worn components like:

    • Wheel cylinders

    • Brake hardware

    • Drums (if necessary)

  • Use high-quality brake shoes designed for your vehicle make and model.

  • Avoid getting any lubricant or contamination on the new brake lining.

Preventing Recurring Issues

While brake shoe replacement is inevitable, there are steps you can take to prolong their lifespan and prevent recurring issues:

Regular Maintenance

  • Follow the vehicle manufacturer's recommended brake inspection intervals.

  • Check brake lining thickness during every brake service.

  • Replace brake shoes when they approach the minimum thickness specification.

Proper Usage

  • Avoid excessive brake usage or riding the brakes, which can cause overheating.

  • Adjust driving habits to reduce wear on brakes:

    • Coasting

    • Engine braking

    • Anticipating stops

  • Maintain correct tire pressure and wheel alignment to prevent uneven wear.

Cost Considerations

The cost of replacing brake shoes can vary depending on several factors:

FactorDescription
Vehicle Make and ModelBrake shoe prices can differ based on the vehicle's specifications.
Part QualityHigher-quality brake shoes tend to be more expensive but offer better performance and longevity.
Labor CostsProfessional automotive repair shops charge for labor in addition to parts.

On average, you can expect to pay between $100 to $300 per axle for brake shoe replacement at a professional automotive repair shop. This cost typically includes the brake shoes, drums (if necessary), hardware, and labor.

If you're handy with tools and have the necessary equipment, doing it yourself can significantly reduce the cost, with brake shoes costing around $25 to $100 per axle, depending on the quality.

Conclusion

Maintaining the minimum brake shoe thickness is crucial for ensuring safe and reliable braking performance. By understanding the causes of wear, identifying the signs, and following proper repair procedures, you can prevent potential safety hazards and extend the lifespan of your braking system.

Remember, addressing brake issues promptly is essential, as worn-out brake shoes can lead to reduced braking performance, increased stopping distances, and potential accidents. Regular maintenance and timely replacements can help you avoid costly repairs and keep you and your loved ones safe on the road.

FAQs

What is the typical thickness of new brake shoes?

New brake shoes usually have a thickness between 10-12 mm (0.39-0.47 inches). This provides sufficient brake lining material for effective braking performance.

How do I measure brake shoe thickness?

You can measure brake shoe thickness using a micrometer or dedicated brake lining gauge. Visually inspecting the brake shoes after removing the drum can also give you an estimate.

What causes uneven brake shoe wear?

Uneven brake shoe wear can be caused by stuck or seized brake components like calipers or wheel cylinders, improper brake adjustment, or misaligned wheels.

Can I replace just one brake shoe instead of the axle set?

It's recommended to replace brake shoes as an axle set (both wheels) to ensure even braking performance. Replacing just one shoe can lead to unbalanced braking.

How often should I check brake shoe thickness?

Check brake shoe thickness during every brake service or at the manufacturer's recommended intervals, typically every 6 months or 6,000 miles.

What are the signs of contaminated brake shoes?

Signs of contaminated brake shoes include rapid wear, reduced braking performance, and discoloration or glazing of the friction material.

Can I resurface brake drums instead of replacing them?

If the brake drums are within the manufacturer's specifications for minimum thickness and runout, you can resurface them using a brake lathe or drum brake machine.

What type of brake shoes should I use for my vehicle?

Use brake shoes specifically designed for your vehicle's make, model, and year. Consult your owner's manual or a professional mechanic for the correct brake shoe specifications.

Can I install brake shoes myself or should I have a professional do it?

With the right tools, instructions, and mechanical aptitude, you can install brake shoes yourself. However, if you're unsure, it's best to have a professional mechanic handle the job.

How can I extend the lifespan of my brake shoes?

To extend brake shoe lifespan, avoid excessive braking, maintain proper tire pressure and wheel alignment, and follow the recommended maintenance schedule for brake inspections and adjustments.
