Introduction

Transmission lines are responsible for carrying transmission fluid to and from the transmission cooler, which is typically integrated into the radiator. Over time, the connections between these lines and the radiator fittings can develop leaks, leading to transmission fluid loss and potential transmission damage if left unaddressed. Leaks can occur due to various reasons, such as worn or damaged seals, improper installation, or general wear and tear.

Main Causes of Transmission Line to Radiator Fitting Leaks

The main causes of transmission line to radiator fitting leaks can be categorized as follows:

CauseDescription

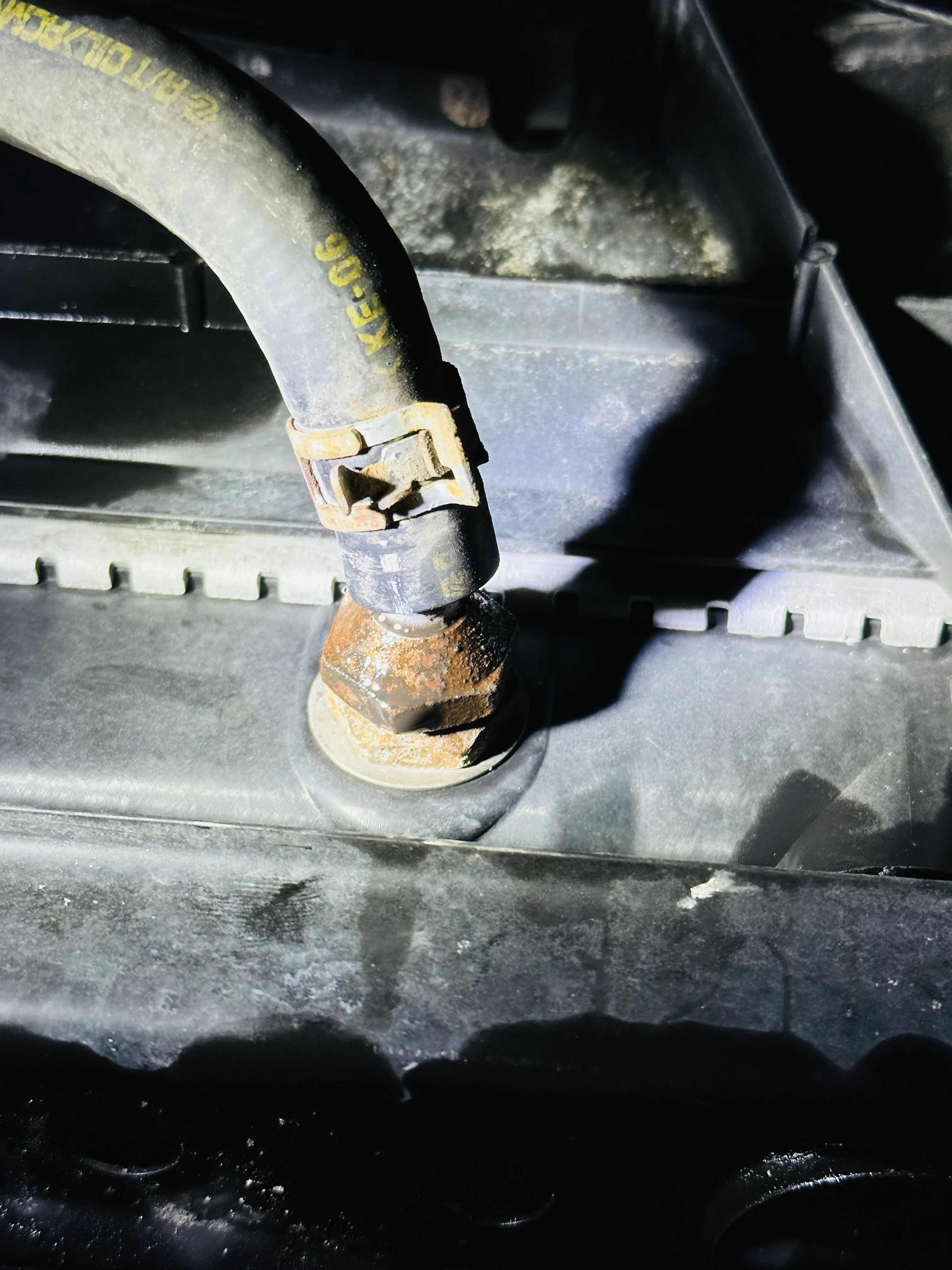

Corrosion and Debris BuildupOver time, the transmission cooler line fittings where they connect to the radiator can corrode and accumulate debris, causing leaks at the connection points. This issue is more prevalent in older vehicles or those driven in harsh environments with road salt or contaminants.
Damaged or Worn O-ringsThe o-rings that seal the fittings to the radiator can become brittle, crack, or get dislodged, leading to leaks. These small rubber rings play a crucial role in maintaining a tight seal, but they can degrade due to age, heat, and exposure to transmission fluid.
Improper InstallationIf the fittings are not properly tightened or the lines are not inserted fully into the fittings, it can cause leaks. This is often the result of improper installation or maintenance work, where the technician didn't follow the correct torque specifications or failed to ensure a proper seal.
Physical DamageDents, crimps, or bends in the transmission lines near the radiator fittings can eventually cause cracks and leaks. This type of damage can occur due to road debris, accidents, or even improper handling during repairs or maintenance.

Inspection and Diagnosis

When a customer brings in a vehicle with a suspected transmission line leak at the radiator, the first step is to perform a thorough inspection and diagnosis. Here's how I approach it:

  1. Visual Inspection: I visually inspect the transmission cooler line fittings at the radiator for any wetness, drips, or fluid trails indicating a leak. This can often reveal the source of the problem.

  2. Corrosion and Damage Check: I check for corrosion buildup, damaged threads, or deformed fittings, which can contribute to leaks.

  3. Line Movement Test: I attempt to move the lines slightly to check if they are loose in the fittings, which could indicate a poor seal or improper installation.

  4. O-ring Inspection: If the leak source is not immediately apparent, I remove the lines from the radiator fittings and inspect the o-rings for cracks, brittleness, or dislodging, which can cause leaks.

Repair Procedures

Once the cause of the leak has been identified, it's time to address the issue. Here are the common repair procedures I follow:

Replacing O-rings

If the o-rings are the culprit, the repair process is relatively straightforward:

  • Disconnect the transmission lines from the radiator fittings.

  • Remove and replace the o-rings with new ones of the correct size.

  • Apply a thin coat of transmission fluid or sealant to the new o-rings before reinstallation to ensure a proper seal.

Replacing Fittings

If the fittings are heavily corroded or damaged, they need to be replaced:

  • Remove the old fittings from the radiator carefully to avoid damaging the radiator housing.

  • Install the new fittings using thread sealant and tighten to the specified torque to prevent leaks.

Replacing Transmission Lines

In cases where the lines are crimped, dented, or severely corroded near the fittings, they need to be replaced:

  • Cut the damaged section using a tubing cutter.

  • Install new transmission line sections using compression fittings or flare fittings.

  • Ensure the new lines are routed properly without any kinks or excessive bends that could cause future issues.

Prevention and Maintenance

While repairs are sometimes necessary, prevention is always better than cure. Here are some tips I recommend to my customers to avoid transmission line leaks at the radiator fittings:

Preventive MeasureDescription
Regular InspectionsRegularly inspect the transmission cooler lines and fittings for any signs of leaks or damage during routine maintenance.
Fluid and Line ReplacementReplace the transmission fluid and cooler lines according to the manufacturer's recommended intervals to prevent degradation and buildup.
Use Protective CoatingsUse dielectric grease or anti-seize on the fittings to prevent corrosion and galling, which can lead to leaks over time.
Proper InstallationIf you're performing any repairs or maintenance involving the transmission lines or radiator fittings, ensure proper installation and tightening to the specified torque to avoid leaks.
Avoid Excessive ForceWhen tightening fittings, avoid excessive force that could damage the threads or deform the fittings, leading to potential leaks down the line.

Cost Considerations

The cost of repairing a transmission line to radiator fitting leak can vary depending on the extent of the repairs needed:

RepairCost Range
Replacing O-rings$5 - $20 for parts
Replacing Fittings$20 - $50 per fitting, plus labor costs
Replacing Transmission Lines$50 - $200 for lines, plus labor costs
Radiator Replacement$200 - $500 for parts and labor

Labor costs at a professional mechanic can range from $80 to $150 per hour, so DIY repairs can significantly reduce the overall cost for those with the necessary skills and tools.

Conclusion

Transmission line to radiator fitting leaks may seem like a minor issue, but ignoring them can lead to more significant problems, such as transmission fluid loss, overheating, and potential transmission failure. By understanding the causes, performing proper inspections, and following the appropriate repair procedures, you can address this problem effectively and prevent further damage to your vehicle.

Remember, regular maintenance and preventive measures can go a long way in avoiding these leaks altogether. As a mechanic, I've seen firsthand the benefits of addressing these issues promptly and correctly, ensuring a smooth and reliable driving experience for my customers.

FAQs

What are the most common symptoms of a transmission line to radiator fitting leak?

The most common symptoms are transmission fluid leaks or drips around the radiator area, and low transmission fluid levels if the leak is severe.

Can a transmission line leak at the radiator fitting cause transmission damage?

Yes, if left unaddressed, a severe leak can lead to low transmission fluid levels, overheating, and potential transmission failure.

How do you inspect for a transmission line to radiator fitting leak?

Visually inspect the fittings and lines for wetness, corrosion, damage, and check if the lines are loose in the fittings.

What tools are needed to repair a transmission line leak?

Common tools needed include wrenches, a tubing cutter, thread sealant, and compression or flare fittings for line replacement.

Can you drive with a transmission line leak at the radiator fitting?

It's not recommended to drive with an active leak, as it can lead to further fluid loss and potential transmission damage.

How often should transmission cooler lines be replaced?

Transmission cooler lines should be replaced according to the manufacturer's recommended intervals or if they show signs of damage or excessive corrosion.

What causes transmission line fittings to corrode?

Exposure to road salt, contaminants, and harsh environments can accelerate corrosion on the fittings over time.

Can improper installation cause transmission line leaks?

Yes, if the fittings are not properly tightened or the lines are not fully inserted, it can lead to leaks.

What is the purpose of using dielectric grease or anti-seize on fittings?

These products help prevent corrosion and galling, which can cause leaks over time.

Is it cheaper to repair a transmission line leak yourself?

Yes, DIY repairs can significantly reduce costs compared to professional labor charges if you have the necessary skills and tools.
