Introduction
The Transmission Control Module (TCM) is an essential component in modern vehicles equipped with automatic transmissions. As automotive technology has advanced, transmissions have become increasingly complex, necessitating the integration of electronic controls to manage their operation effectively.
Understanding the Transmission Control Module

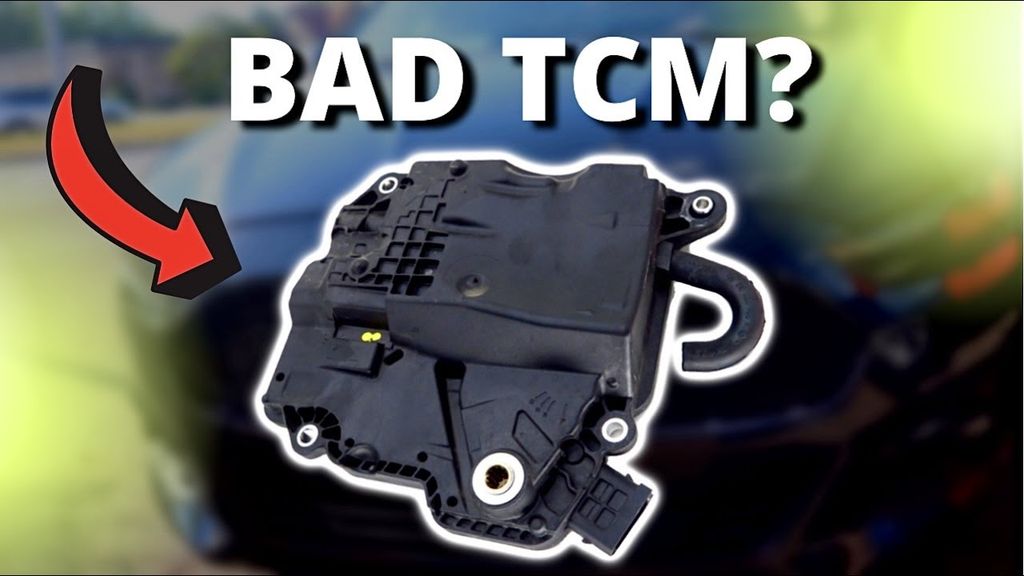

Before we delve into the location of the TCM, let's first understand its significance. The transmission control module is responsible for managing the shifting of gears, adjusting the hydraulic pressure, and ensuring smooth and efficient operation of the transmission. It constantly receives input from various sensors, such as the vehicle speed sensor, throttle position sensor, and brake pedal position sensor, to determine the optimal gear for the current driving conditions.
When the TCM malfunctions, you may experience a range of transmission-related issues, including:
| Symptom | Description |
|---|
| Erratic shifting | The transmission shifts gears unexpectedly or at inappropriate times. |
| Difficulty downshifting or upshifting | The transmission struggles to change gears smoothly. |
| Slipping gears | The transmission slips out of gear, causing a momentary loss of power. |
| Poor fuel economy | The transmission's inefficient operation leads to increased fuel consumption. |
| Stuck in a single gear | The vehicle becomes stuck in a single gear, unable to shift. |
These symptoms can be frustrating and potentially dangerous, making it essential to address any TCM-related problems promptly.
Common Locations of the Transmission Control Module
The location of the TCM can vary significantly depending on the vehicle make and model. Here are some of the most common places where you might find it:
| Location | Description |
|---|
| Inside the transmission case | The TCM is integrated directly into the transmission case, making it more challenging to access and replace. This design often requires removing the entire transmission from the vehicle. |
| Mounted on the outside of the transmission | Many modern vehicles have the TCM mounted on the exterior of the transmission case, allowing for easier access without the need to remove the entire transmission. |
| In the engine bay | Some manufacturers choose to place the TCM in the engine bay, typically near the firewall or fender well, keeping it away from the heat and vibrations of the transmission. |
| Under the dashboard | In certain vehicles, the TCM may be located under the dashboard or in the passenger compartment, making it easier to access for diagnosis and repair but exposing it to potential water damage or excessive heat from the cabin. |
Diagnosing TCM Issues
If you suspect a problem with your transmission control module, there are several steps you can take to diagnose the issue:
Check for Warning Lights: Keep an eye out for any illuminated warning lights on your dashboard, such as the Check Engine Light or Transmission Warning Light. These lights can indicate a potential TCM problem.
Observe Transmission Behavior: Pay attention to any unusual transmission behavior, such as erratic shifting, slipping gears, or the vehicle getting stuck in a single gear. These symptoms can be indicative of a faulty TCM.
Use a Diagnostic Scanner: Invest in a reliable diagnostic scanner or code reader to retrieve any transmission-related error codes. These codes can provide valuable insights into the nature of the problem and help pinpoint the issue.
Consult Your Vehicle's Service Manual: Refer to your vehicle's service manual or repair guide to accurately locate the TCM for your specific make and model. These manuals often provide detailed diagrams and instructions for accessing and replacing the TCM.
Repair and Replacement Considerations
If your TCM needs to be replaced, it's crucial to follow the proper procedures to ensure a successful repair. Here are some important considerations:
Programming and Flashing
In many cases, a new TCM will require programming or flashing with the latest software to match your vehicle's specifications. This process often requires specialized equipment and should be performed by a professional mechanic or dealership.
Proper Installation and Testing
When replacing the TCM, ensure proper installation, secure connections, and thorough testing to confirm that the transmission operates correctly after the repair.
TCM Repair Services
Some companies offer TCM repair services as an alternative to replacement, which can be more cost-effective. These services typically involve cleaning, replacing damaged components, or updating the software/firmware through reprogramming or reflashing.
| Repair Option | Cost Range |
|---|
| TCM Replacement | $200 - $600 (part) + $100 - $200 (labor) |
| TCM Repair Service | $250 - $500 |
Cost Considerations
The cost to replace a TCM can vary greatly depending on the vehicle make and model, but generally ranges from $200 to $600 for the part itself, with additional labor costs of $100 to $200. TCM repair services can be a more affordable option, typically ranging from $250 to $500.
Preventive Maintenance
To help prevent TCM issues and extend the lifespan of your transmission, it's essential to follow these preventive maintenance practices:
Regular Transmission Fluid Changes: Follow the manufacturer's recommended maintenance schedule for transmission fluid changes and filter replacements. Clean fluid and proper filtration help prevent TCM issues and prolong the life of your transmission.
Avoid Harsh Conditions: Avoid driving in conditions that could expose the TCM to water damage or excessive heat, as these can contribute to premature failure.
Address Issues Promptly: If you notice any transmission-related issues, address them promptly to prevent further damage to the TCM or other components.
Conclusion
The transmission control module plays a vital role in the smooth operation of your vehicle's automatic transmission. While its location can vary across different makes and models, understanding where to find it and how to diagnose potential issues is crucial for maintaining the longevity and performance of your transmission.
By following proper repair procedures, considering cost-effective repair options, and practicing preventive maintenance, you can ensure that your TCM remains in top condition, providing you with a seamless driving experience for years to come.
Remember, as a mechanic, I always recommend consulting with a qualified professional or referring to your vehicle's service manual for accurate diagnosis and repair procedures specific to your vehicle. Proper maintenance and addressing issues promptly can help prevent costly TCM failures and transmission problems.
FAQs
What is the primary function of the transmission control module?
The transmission control module (TCM) is responsible for managing and regulating the operation of the automatic transmission. It controls gear shifting, hydraulic pressure adjustments, and ensures smooth and efficient transmission performance.
The TCM receives input from various sensors, such as the vehicle speed sensor, throttle position sensor, and brake pedal position sensor, to determine the optimal gear for the current driving conditions.
What are some common symptoms of a faulty TCM?
Common symptoms of a faulty TCM include erratic shifting, difficulty downshifting or upshifting, slipping gears, poor fuel economy, and the vehicle getting stuck in a single gear.
Where is the TCM typically located in a vehicle?
The TCM can be located in various places, such as inside the transmission case, mounted on the outside of the transmission, in the engine bay, or under the dashboard, depending on the vehicle make and model.
How can you diagnose TCM issues?
You can diagnose TCM issues by checking for warning lights, observing transmission behavior, using a diagnostic scanner to retrieve error codes, and consulting the vehicle's service manual.
What is involved in replacing a TCM?
Replacing a TCM often requires programming or flashing the new module with the latest software, proper installation, secure connections, and thorough testing to ensure correct transmission operation.
Are there alternatives to replacing a faulty TCM?
Some companies offer TCM repair services as an alternative to replacement, which can be more cost-effective and involve cleaning, replacing damaged components, or reprogramming/reflashing the existing module.
What is the typical cost range for TCM replacement or repair?
The cost for TCM replacement can range from $200 to $600 for the part, plus $100 to $200 for labor. TCM repair services typically cost between $250 and $500.
What preventive maintenance practices can help extend the lifespan of a TCM?
Regular transmission fluid changes, avoiding harsh conditions that could expose the TCM to water damage or excessive heat, and addressing transmission-related issues promptly can help prevent TCM issues and prolong its lifespan.
Is it recommended to consult a professional for TCM diagnosis and repair?
Yes, it is highly recommended to consult with a qualified professional mechanic or refer to the vehicle's service manual for accurate diagnosis and repair procedures specific to your vehicle's make and model.
