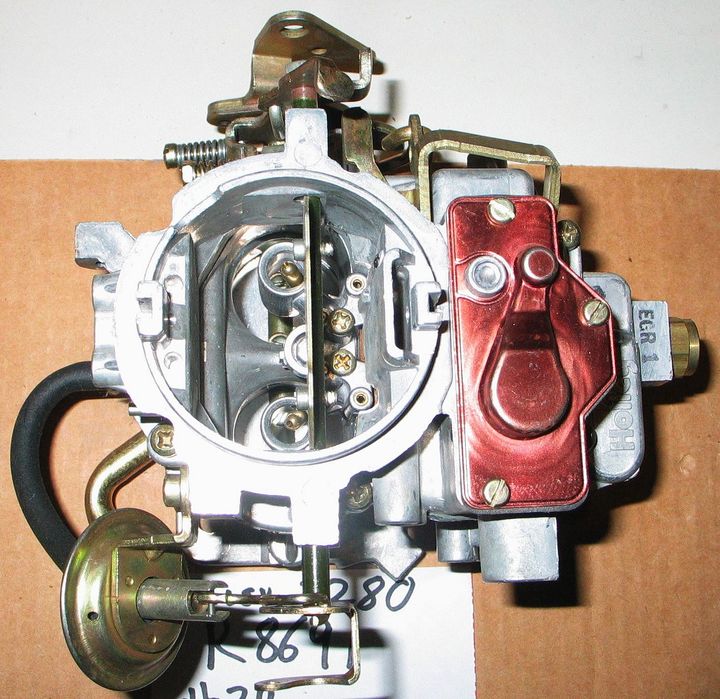

A carburetor is a crucial component in internal combustion engines that mixes air and fuel in the proper ratio for efficient combustion. Before the advent of modern fuel injection systems, carburetors were the primary means of delivering the air-fuel mixture to the engine cylinders. Despite being largely replaced by fuel injection in modern vehicles, carburetors still hold significant importance in the automotive enthusiast community and certain industries.
The basic working principle of a carburetor revolves around the Venturi effect. As air flows through a constricted section (the Venturi) in the carburetor, its velocity increases, creating a low-pressure area. This low-pressure area draws fuel from a jet or nozzle, allowing it to mix with the incoming air. The resulting air-fuel mixture is then delivered to the engine cylinders for combustion.
A carburetor consists of several key components:
| Component | Description |
|---|---|
| Float Chamber | A small reservoir that maintains a consistent fuel level, ensuring a steady supply to the jets. |
| Jets | Small openings that meter the amount of fuel drawn into the airstream based on the low-pressure created by the Venturi effect. |
| Throttle Valve | A butterfly valve that controls the amount of air-fuel mixture entering the engine, regulating its speed and power output. |
| Choke | A valve that restricts the air intake, enriching the air-fuel mixture for cold starts or high altitudes. |
Carburetors can be classified into different types based on their design and operation:
Constant Vacuum Carburetors: These maintain a constant vacuum in the Venturi, adjusting the fuel flow based on engine speed and load.
Constant Choke Carburetors: These maintain a constant choke or air restriction, adjusting the fuel flow based on engine speed and load.
Multi-Venturi Carburetors: These have multiple Venturi sections, each optimized for different engine operating conditions.
Additionally, carburetors can be classified based on their orientation:
| Carburetor Type | Description |
|---|---|
| Updraft Carburetors | Air enters from below and travels upwards, commonly used in aviation applications. |
| Downdraft Carburetors | Air enters from above and travels downwards, often used in high-performance automotive applications. |
| Sidedraft Carburetors | Air enters from the side, commonly found in older automotive engines. |
A carburetor's primary function is to maintain the optimal air-fuel ratio for efficient combustion under varying engine conditions. During idle or low-load conditions, the carburetor delivers a richer (more fuel) mixture to prevent stalling. As the engine speed and load increase, the carburetor progressively leans out the mixture by increasing the air flow and reducing the fuel flow.
The carburetor operation can be divided into three main stages:
Idle Conditions: During idle or low-load conditions, the carburetor delivers a richer (more fuel) mixture to prevent stalling. This is achieved by adjusting the idle mixture screws, which control the amount of fuel delivered through the idle circuits.
Acceleration: When the driver demands more power, such as during acceleration, the carburetor must respond quickly by increasing the air-fuel mixture flow. This is typically accomplished through the use of an accelerator pump, which injects an additional burst of fuel into the airstream to prevent hesitation or stumbling during rapid throttle opening.
Cruising: During cruising conditions, when the engine is operating at a steady speed and load, the carburetor adjusts the air-fuel mixture to a leaner (less fuel) ratio for optimal fuel efficiency. This is achieved by precisely metering the fuel flow through the main jets, ensuring a balanced air-fuel mixture for smooth and efficient operation.
Proper carburetor tuning and adjustment are crucial for achieving optimal engine performance, fuel efficiency, and emissions. This involves adjusting the idle mixture screws, setting the correct float level, and synchronizing multiple carburetors (if present) for balanced air-fuel delivery.
Advantages of carburetors include:
Simplicity and cost-effectiveness compared to fuel injection systems.
Tunability, allowing enthusiasts to fine-tune the air-fuel mixture for specific performance requirements.
Reliability and ease of maintenance, making them suitable for older vehicles and certain applications.
However, carburetors also have several disadvantages:
| Disadvantage | Description |
|---|---|
| Lower fuel efficiency | Compared to modern fuel injection systems, carburetors are generally less efficient in metering the air-fuel mixture, resulting in lower fuel efficiency. |
| Increased emissions | Due to the less precise air-fuel metering capabilities of carburetors, they tend to produce higher emissions compared to fuel injection systems. |
| Slower throttle response | Carburetors can exhibit slower throttle response, especially during rapid acceleration, due to the mechanical nature of their operation. |
| Susceptibility to icing and vapor lock | Carburetors can be susceptible to issues such as icing and vapor lock, which can affect their performance and reliability under certain operating conditions. |
While carburetors have been largely replaced by fuel injection systems in modern vehicles, they remain relevant in several applications:
Classic and Performance Vehicles: Carburetors are widely used in the restoration and modification of classic cars, hot rods, and performance vehicles, where enthusiasts value their simplicity and tunability.
Racing Circuits: Many racing organizations, particularly in vintage and grassroots categories, still mandate the use of carburetors for cost-effectiveness and adherence to traditional rules.
Aviation and Marine Industries: Carburetors are still commonly found in small aircraft engines and marine applications due to their reliability and ease of maintenance.
Proper maintenance and troubleshooting are essential for ensuring optimal carburetor performance. Regular cleaning and adjustment of the carburetor components, such as jets, float levels, and throttle linkages, can prevent issues like rough idling, stalling, and poor fuel economy.
Common carburetor problems include:
| Problem | Description |
|---|---|
| Clogged jets or passages | Restricting fuel flow, leading to lean air-fuel mixtures and poor engine performance. |
| Stuck or worn throttle valves | Causing erratic air-fuel delivery and poor throttle response. |
| Faulty float levels | Leading to flooding or lean conditions, affecting the air-fuel mixture and engine performance. |
| Vacuum leaks | Disrupting the Venturi effect and air-fuel metering, leading to poor engine performance and increased fuel consumption. |
Addressing these issues promptly and following recommended maintenance schedules can help extend the lifespan and performance of carburetors.
Carburetors have played a pivotal role in the development of the automotive industry. Early pioneers like Edward Butler, Wilhelm Maybach, and Gottlieb Daimler made significant contributions to carburetor design and technology in the late 19th and early 20th centuries.
Over the years, various innovations have improved carburetor performance and efficiency, such as:
The introduction of multi-barrel designs, featuring multiple Venturi sections and fuel circuits, allowed for improved fuel metering and better performance across a wider range of engine operating conditions.
Progressive linkages enabled smoother and more precise throttle response by gradually opening the carburetor barrels as the throttle was depressed, providing better control over the air-fuel mixture delivery.
Advanced metering systems, such as those developed by companies like Holley and Weber, incorporated sophisticated fuel circuits and metering components, enhancing the precision and tunability of carburetors for high-performance applications.
Companies like Holley, Weber, and Edelbrock have been at the forefront of carburetor development, catering to the needs of performance enthusiasts and racing applications.
While fuel injection systems have largely replaced carburetors in modern vehicles, the legacy and significance of carburetors in automotive history cannot be understated. They paved the way for more advanced fuel delivery systems and continue to be celebrated by enthusiasts and collectors alike.
Carburetors are fascinating components that have played a crucial role in the evolution of internal combustion engines. Despite being largely replaced by fuel injection systems, they remain relevant in various applications and hold a special place in the hearts of automotive enthusiasts worldwide.
A carburetor mixes air and fuel for internal combustion engines. It relies on the Venturi effect to draw fuel into the airstream.
Carburetors adjust the air-fuel mixture by metering the fuel flow through jets and restricting the air flow with the throttle valve.
The main components are the float chamber, jets, throttle valve, and choke.
Carburetors can be classified as constant vacuum, constant choke, multi-venturi, updraft, downdraft, or sidedraft.
During acceleration, an accelerator pump injects an additional burst of fuel to prevent hesitation or stumbling.
Carburetors are simpler, more cost-effective, tunable, and easier to maintain compared to fuel injection systems.
Carburetors generally have lower fuel efficiency, higher emissions, slower throttle response, and are susceptible to issues like icing.
Carburetors are still used in classic/performance vehicles, racing circuits, aviation, and marine industries.
Regular cleaning, adjusting jets/float levels/linkages, and addressing issues like clogged passages or vacuum leaks.
Multi-barrel designs, progressive linkages, and advanced metering systems from companies like Holley and Weber.

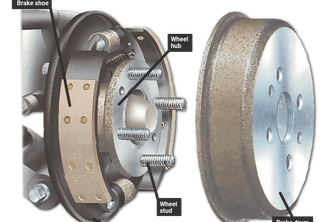

Brake shoes are a crucial component of the braking system in vehicles, particularly in drum brake systems. They play a vital role in slowing down and stopping the vehicle by creating friction against the rotating brake drum.
