Semi trucks primarily use air brakes, which are different from the hydraulic brakes used in most passenger vehicles. Air brakes are the most common type of braking system in semi trucks, utilizing compressed air to apply pressure to the brake pads or shoes, creating friction against the brake drum or rotor to slow down or stop the vehicle. The compressed air is supplied by an engine-mounted compressor and stored in tanks until needed.

In this article, we will explore the various types of brakes found in semi trucks, including air brakes, disc brakes, drum brakes, and supplementary braking systems. We will also discuss brake components, maintenance, performance, safety, regulations, and advancements in semi truck brake technology.

I. Introduction to Semi Truck Brakes

Brakes are a critical component of any vehicle, but they are especially important in semi trucks due to the heavy loads and demanding operating conditions these vehicles face. The braking system in a semi truck must be able to safely and reliably slow down and stop the vehicle, even when fully loaded and traveling at highway speeds.

A. Importance of brakes in semi trucks

Semi trucks can weigh up to 80,000 pounds when fully loaded, which means that their braking systems must be incredibly powerful and reliable to ensure the safety of the driver, other road users, and the cargo being transported. A failure in the braking system can lead to catastrophic accidents, making it essential for semi truck brakes to be well-maintained and properly functioning at all times.

B. Brief overview of brake types

Semi trucks employ several types of brakes, each with its own unique characteristics and advantages. The most common types include air brakes, disc brakes, and drum brakes. Additionally, semi trucks often feature supplementary braking systems, such as jake brakes and parking brakes, to enhance overall braking performance and safety.

II. Air Brakes

Air brakes are the most widely used type of braking system in semi trucks. They offer several advantages over hydraulic brakes, making them well-suited for the heavy loads and demanding operating conditions faced by semi trucks.

A. How air brakes work

Air brakes use compressed air to apply pressure to the brake pads or shoes, which then create friction against the brake drum or rotor to slow down or stop the vehicle. When the driver presses the brake pedal, air is released from the brake chambers, pushing the brake pads or shoes against the drum or rotor. The compressed air is supplied by an engine-mounted compressor and stored in tanks until needed.

B. Advantages of air brakes in semi trucks

One of the main advantages of air brakes is their ability to provide consistent and reliable braking performance, even under heavy loads and extreme conditions. Air brakes also offer a fail-safe feature: if there is a loss of air pressure in the system, the brakes will automatically engage, bringing the vehicle to a stop. This redundancy and fail-safe design make air brakes an ideal choice for semi trucks.

C. Components of air brake systems

Air brake systems consist of several key components that work together to ensure proper functioning and safety. These components include:

a. Compressor: The compressor is responsible for generating the compressed air used in the braking system. It is typically mounted on the engine and driven by a belt or gear.

b. Air tanks: Compressed air is stored in air tanks until it is needed for braking. Semi trucks usually have multiple air tanks to ensure an adequate supply of air pressure.

c. Brake chambers: Brake chambers are the components that convert the compressed air pressure into mechanical force, which is then applied to the brake pads or shoes.

d. Slack adjusters: Slack adjusters are responsible for maintaining the proper distance between the brake pads or shoes and the drum or rotor, ensuring optimal braking performance.

ComponentFunction
CompressorGenerates compressed air for the braking system
Air tanksStore compressed air until needed for braking
Brake chambersConvert compressed air pressure into mechanical force
Slack adjustersMaintain proper distance between brake pads/shoes and drum/rotor

III. Disc Brakes

Disc brakes are becoming increasingly popular in newer semi trucks due to their improved performance and durability compared to traditional drum brakes.

A. Disc brake functionality

Disc brakes consist of a brake rotor (disc) attached to the wheel hub and a caliper that houses the brake pads. When the brakes are applied, the caliper squeezes the brake pads against the rotor, creating friction to slow the vehicle. Disc brakes offer several advantages over drum brakes, including better heat dissipation, improved braking performance, and easier maintenance.

B. Benefits of disc brakes in semi trucks

Disc brakes provide several benefits when used in semi trucks:

  • Enhanced braking performance, particularly in wet or challenging conditions

  • Improved heat dissipation, reducing the risk of brake fade

  • Easier maintenance and inspection compared to drum brakes

  • Longer brake pad life due to better heat management

C. Comparison to drum brakes

While drum brakes have been the traditional choice for semi trucks, disc brakes are gaining popularity due to their superior performance. Disc brakes offer better heat dissipation, which helps prevent brake fade and ensures consistent braking performance under heavy loads and extreme conditions. Additionally, disc brakes are easier to maintain and inspect compared to drum brakes.

Brake TypeAdvantagesDisadvantages
Disc Brakes- Enhanced braking performance, particularly in wet or challenging conditions
- Improved heat dissipation, reducing the risk of brake fade
- Easier maintenance and inspection compared to drum brakes
- Longer brake pad life due to better heat management
- Higher cost compared to drum brakes
- More complex design with more moving parts
Drum Brakes- Lower cost compared to disc brakes
- Simpler design with fewer moving parts
- Well-suited for heavy loads and high-torque applications
- Reduced braking performance compared to disc brakes, especially in wet conditions
- Increased risk of brake fade due to heat buildup
- More difficult to maintain and inspect compared to disc brakes

IV. Drum Brakes

Despite the growing popularity of disc brakes, drum brakes are still widely used in semi trucks, particularly on the rear axles.

A. Drum brake operation

Drum brakes consist of a brake drum that rotates with the wheel and brake shoes that press against the inside of the drum when the brakes are applied. When the driver presses the brake pedal, compressed air is sent to the brake chambers, which push the brake shoes against the drum, creating friction to slow the vehicle.

B. Advantages and disadvantages of drum brakes

Drum brakes offer several advantages, including:

  • Lower cost compared to disc brakes

  • Simpler design and fewer moving parts

  • Well-suited for heavy loads and high-torque applications

However, drum brakes also have some disadvantages:

  • Reduced braking performance compared to disc brakes, especially in wet conditions

  • Increased risk of brake fade due to heat buildup

  • More difficult to maintain and inspect compared to disc brakes

C. Common use in rear axles

Despite the growing popularity of disc brakes, drum brakes are still commonly used on the rear axles of semi trucks. This is due to their lower cost and ability to handle high-torque applications, such as when the vehicle is fully loaded or traveling downhill.

V. Supplementary Braking Systems

In addition to the primary braking systems, semi trucks often feature supplementary braking systems to enhance overall braking performance and safety.

A. Jake Brakes

a. How jake brakes work: Jake brakes, also known as engine brakes, use the engine's compression to slow the vehicle. When activated, the jake brake opens the exhaust valves at the top of the compression stroke, releasing the compressed air and creating a braking effect.

b. Benefits of using jake brakes: Jake brakes help reduce wear on the primary braking system, particularly when traveling downhill or carrying heavy loads. They also provide an additional level of safety and control, allowing the driver to maintain a safe speed without relying solely on the primary brakes.

B. Parking Brakes

a. Spring-loaded parking brake function: Semi trucks are equipped with powerful spring-loaded parking brakes. These brakes are applied automatically when the vehicle is parked, ensuring that it remains stationary even on inclines or when the primary braking system fails.

b. Fail-safe feature: The spring-loaded design of the parking brakes also serves as a fail-safe feature. If there is a loss of air pressure in the primary braking system, the parking brakes will automatically engage, bringing the vehicle to a stop and preventing uncontrolled movement.

VI. Brake Components and Maintenance

Proper maintenance and regular inspection of brake components are essential for ensuring the safe and reliable operation of semi truck brakes.

A. Brake Pads and Shoes

a. Function and importance: Brake pads (used with disc brakes) and brake shoes (used with drum brakes) are responsible for creating the friction necessary to slow down or stop the vehicle. These components are critical for ensuring proper braking performance and must be regularly inspected and replaced when worn.

b. Replacement intervals: The replacement interval for brake pads and shoes varies depending on factors such as driving conditions, load weight, and the type of braking system. It is important to follow the manufacturer's recommended replacement schedule and to have the brakes inspected regularly by a qualified technician.

B. Brake Rotors and Drums

a. Role in braking system: Brake rotors (used with disc brakes) and brake drums (used with drum brakes) are the surfaces against which the brake pads or shoes create friction to slow down or stop the vehicle. These components must be in good condition to ensure proper braking performance.

b. Inspection and maintenance: Brake rotors and drums should be regularly inspected for wear, damage, or excessive heat buildup. In some cases, these components may need to be resurfaced or replaced to maintain optimal braking performance.

C. Brake Lines and Valves

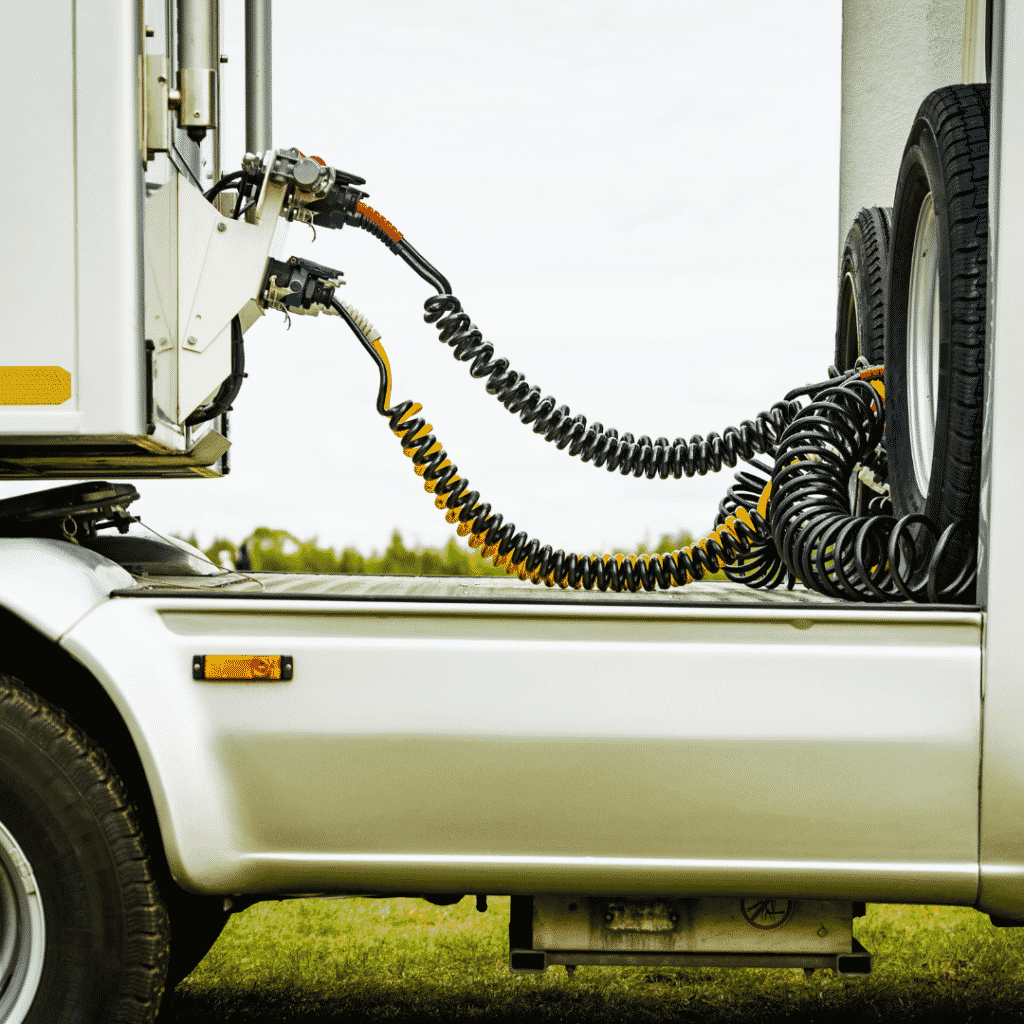

a. Air flow regulation: Brake lines and valves are responsible for transporting compressed air throughout the braking system. These components must be free from leaks and properly maintained to ensure that the brakes function correctly.

b. Proper maintenance practices: Regular inspection and maintenance of brake lines and valves are essential for preventing air leaks and ensuring that the braking system operates efficiently. This includes checking for signs of wear, damage, or corrosion and replacing components as needed.

Brake ComponentFunctionReplacement Interval
Brake Pads (disc brakes) and Brake Shoes (drum brakes)Create the friction necessary to slow down or stop the vehicleVaries depending on driving conditions, load weight, and type of braking system, typically 50,000 to 100,000 miles
Brake Rotors (disc brakes) and Brake Drums (drum brakes)Surfaces against which brake pads or shoes create friction to slow down or stop the vehicleInspect regularly and replace when excessively worn or warped, typically 200,000 to 400,000 miles
Brake Lines and ValvesTransport compressed air throughout the braking systemInspect regularly and replace when leaking, damaged, or corroded, typically 150,000 to 300,000 miles

VII. Brake Performance and Safety

Several factors contribute to the overall performance and safety of semi truck brakes, including stopping distance, fade resistance, and durability.

A. Stopping Distance

a. Factors affecting stopping distance: The stopping distance of a semi truck is influenced by several factors, including the vehicle's weight, speed, road conditions, and the condition of the braking system. A fully loaded semi truck will require a significantly longer stopping distance compared to an empty one.

b. Importance of proper brake maintenance: Proper maintenance of the braking system is critical for ensuring that the vehicle can stop safely and efficiently. Worn or damaged brake components can increase stopping distances and reduce overall braking performance, putting the driver and other road users at risk.

B. Fade Resistance

a. Causes of brake fade: Brake fade occurs when the brakes become less effective due to excessive heat buildup. This can happen when the brakes are used repeatedly or for prolonged periods, such as when traveling downhill or carrying heavy loads.

b. Strategies to minimize brake fade: To minimize the risk of brake fade, semi trucks often employ strategies such as using jake brakes to supplement the primary braking system, allowing the brakes to cool between uses, and ensuring that the braking system is properly maintained.

C. Durability and Reliability

a. Design features for durability: Semi truck brakes are designed to withstand the demanding operating conditions and heavy loads encountered in commercial trucking. This includes the use of high-quality materials, robust construction, and redundant systems to ensure reliable braking performance.

b. Regular inspection and maintenance: Regular inspection and maintenance of the braking system are essential for ensuring its long-term durability and reliability. This includes checking for signs of wear, damage, or leaks, and replacing components as needed to maintain optimal braking performance.

VIII. Regulations and Standards

Semi truck brakes are subject to various regulations and standards to ensure their safety and performance.

A. Federal Motor Carrier Safety Administration (FMCSA)

a. Brake system requirements: The FMCSA sets minimum requirements for the design, performance, and maintenance of semi truck braking systems. These requirements are intended to ensure that the brakes are capable of safely stopping the vehicle under a wide range of operating conditions.

b. Inspection and maintenance regulations: The FMCSA also mandates regular inspection and maintenance of semi truck brakes to ensure that they remain in safe operating condition. This includes daily pre-trip inspections by the driver and periodic comprehensive inspections by qualified technicians.

B. Department of Transportation (DOT)

a. Brake performance standards: The DOT establishes performance standards for semi truck brakes, including minimum stopping distances and fade resistance requirements. These standards are designed to ensure that the brakes are capable of safely stopping the vehicle under various load and speed conditions.

b. Safety compliance: Semi truck operators must comply with DOT regulations regarding brake performance and maintenance to ensure the safety of their vehicles and the public. Failure to comply with these regulations can result in fines, penalties, and the grounding of the vehicle until the issues are addressed.

IX. Advancements in Semi Truck Brake Technology

As technology continues to evolve, new advancements in semi truck brake technology are being developed to improve safety, performance, and efficiency.

A. Anti-lock Braking Systems (ABS)

a. Function and benefits of ABS: Anti-lock braking systems (ABS) help prevent the wheels from locking up during hard braking, allowing the driver to maintain steering control and reduce the risk of skidding or jackknifing. ABS constantly monitors wheel speed and adjusts brake pressure as needed to optimize braking performance.

b. Improved safety and control: By preventing wheel lockup and maintaining steering control, ABS significantly improves the safety and control of semi trucks, particularly in emergency braking situations or on slippery road conditions.

B. Electronic Stability Control (ESC)

a. How ESC works: Electronic stability control (ESC) systems use sensors to monitor the vehicle's motion and steering input. If the system detects a potential loss of control, it can automatically apply individual brakes and adjust engine power to help the driver maintain control of the vehicle.

b. Advantages in preventing rollovers and jackknifing: ESC is particularly effective in preventing rollovers and jackknifing, which are two of the most dangerous types of semi truck accidents. By intervening when a loss of control is detected, ESC can help keep the vehicle stable and reduce the risk of these types of accidents.

C. Brake-by-Wire and Regenerative Braking

a. Potential future developments: As semi truck technology continues to advance, new braking systems such as brake-by-wire and regenerative braking may become more common. Brake-by-wire systems replace traditional hydraulic or pneumatic brake lines with electronic signals, allowing for more precise and responsive braking control. Regenerative braking, commonly used in hybrid and electric vehicles, captures the energy generated during braking and uses it to recharge the vehicle's batteries.

b. Improved efficiency and performance: These advanced braking technologies have the potential to improve the efficiency and performance of semi truck brakes, reducing energy consumption and wear on the braking system while enhancing overall safety and control.

Conclusion

Semi trucks rely on a variety of braking systems to ensure safe and reliable operation, with air brakes being the most common type. Disc brakes, drum brakes, and supplementary braking systems like jake brakes and parking brakes also play critical roles in the overall braking performance of these heavy-duty vehicles. Proper maintenance, inspection, and compliance with regulations and standards are essential for ensuring the long-term safety and reliability of semi truck brakes. As technology continues to advance, new developments in brake technology, such as anti-lock braking systems, electronic stability control, and brake-by-wire, are expected to further enhance the performance and safety of semi truck brakes in the future.

FAQs

What is the purpose of slack adjusters in air brake systems?

Slack adjusters are responsible for maintaining the proper distance between the brake pads or shoes and the drum or rotor. They automatically adjust the brake linkage to compensate for wear, ensuring optimal braking performance.

How do disc brakes dissipate heat more effectively than drum brakes?

Disc brakes feature an open design that allows for better airflow around the rotor, helping to dissipate heat more efficiently. This reduces the risk of brake fade and ensures consistent braking performance under demanding conditions.

Why are drum brakes still commonly used on the rear axles of semi trucks?

Drum brakes are well-suited for the high-torque applications encountered on the rear axles of semi trucks, particularly when the vehicle is fully loaded or traveling downhill. Additionally, drum brakes are less expensive than disc brakes, making them a cost-effective choice for many semi truck operators.

How do jake brakes help reduce wear on the primary braking system?

Jake brakes use the engine's compression to slow the vehicle, reducing the need for the driver to rely solely on the primary brakes. This helps to reduce wear on the brake pads, shoes, rotors, and drums, extending the life of these components.

What are the consequences of not properly maintaining semi truck brakes?

Neglecting proper maintenance of semi truck brakes can lead to reduced braking performance, increased stopping distances, and a higher risk of accidents. It can also result in costly repairs and downtime for the vehicle.

How often should brake pads and shoes be replaced in semi trucks?

The replacement interval for brake pads and shoes in semi trucks varies depending on factors such as driving conditions, load weight, and the type of braking system. Generally, brake pads and shoes should be replaced every 50,000 to 100,000 miles, or as recommended by the manufacturer.

What are the signs that brake rotors or drums need to be replaced?

Signs that brake rotors or drums need to be replaced include excessive wear, warping, cracking, or scoring on the surface. Vibrations or pulsations in the brake pedal during braking can also indicate that the rotors or drums are in need of replacement.

How do anti-lock braking systems (ABS) improve safety in semi trucks?

Anti-lock braking systems (ABS) prevent the wheels from locking up during hard braking, allowing the driver to maintain steering control and reduce the risk of skidding or jackknifing. This significantly improves the safety and control of semi trucks, particularly in emergency braking situations or on slippery road conditions.

What is the role of electronic stability control (ESC) in preventing semi truck accidents?

Electronic stability control (ESC) systems use sensors to monitor the vehicle's motion and steering input, automatically applying individual brakes and adjusting engine power if a potential loss of control is detected. This helps to prevent rollovers and jackknifing, two of the most dangerous types of semi truck accidents.

How might brake-by-wire and regenerative braking systems impact the future of semi truck brakes?

Brake-by-wire systems replace traditional hydraulic or pneumatic brake lines with electronic signals, allowing for more precise and responsive braking control. Regenerative braking, commonly used in hybrid and electric vehicles, captures the energy generated during braking and uses it to recharge the vehicle's batteries, improving overall efficiency.
