The automotive industry is undergoing a significant transformation, with electrification and brake-by-wire systems at the forefront of this change. These technologies are revolutionizing the way vehicles brake, enhancing safety, performance, and efficiency. In this article, we will explore the rise of electrification in the automotive industry, the emergence of brake-by-wire technology, and their combined impact on the future of automotive braking. We will delve into the workings of brake-by-wire systems, their advantages over traditional braking systems, and their crucial role in the era of electric and autonomous vehicles.
The automotive landscape is shifting towards electrification, driven by the need for more sustainable and efficient transportation solutions. This transition has paved the way for the development and adoption of advanced technologies, such as brake-by-wire systems. Brake-by-wire technology replaces the traditional mechanical linkages between the brake pedal and the hydraulic brake system with electronic sensors, controllers, and actuators, enabling faster response times, precise control, and seamless integration with regenerative braking in electric and hybrid vehicles.
The combination of electrification and brake-by-wire systems is set to transform the automotive industry, making vehicles safer, more efficient, and better equipped to handle the demands of modern driving. As the industry continues to evolve, understanding the implications of these technologies becomes increasingly important for consumers, manufacturers, and stakeholders alike.

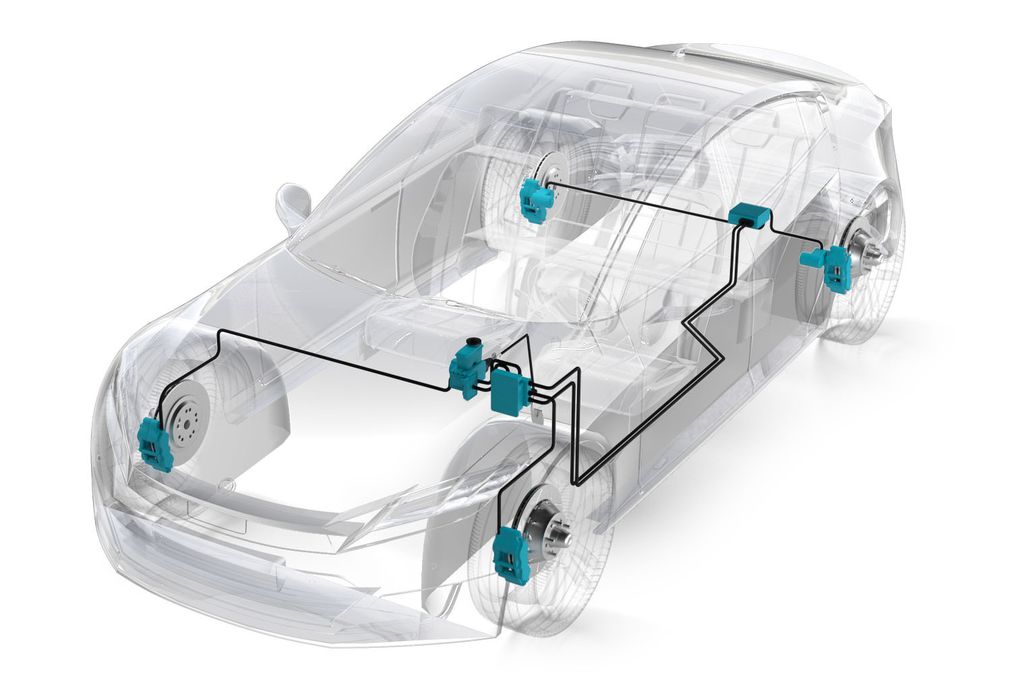

Brake-by-wire systems represent a significant departure from traditional braking systems, replacing mechanical linkages with electronic components. At the heart of a brake-by-wire system are sensors, controllers, and actuators that work together to provide precise and responsive braking performance.
When the driver presses the brake pedal, sensors detect the force and travel of the pedal, converting this mechanical input into electronic signals. These signals are then transmitted to a central control unit, which processes the information and determines the appropriate braking force to apply at each wheel. The controller sends commands to electro-hydraulic or electro-mechanical actuators located at each wheel, which apply the necessary braking force to slow down or stop the vehicle.
This electronic control loop allows for rapid and precise modulation of braking force, adapting to various driving conditions and ensuring optimal braking performance. By eliminating the need for mechanical linkages, brake-by-wire systems reduce the complexity and weight of the braking system, while also enabling advanced features and functionalities that enhance vehicle safety and efficiency.
Brake-by-wire technology offers several key advantages over traditional hydraulic braking systems, making it an attractive option for modern vehicles. One of the most significant benefits is the faster response times achieved through electronic control. By transmitting signals electronically rather than relying on the propagation of hydraulic pressure, brake-by-wire systems can engage the brakes more quickly, reducing stopping distances and improving overall safety.
Another advantage of brake-by-wire technology is the precise control it offers over the braking force applied at each wheel. The electronic control unit can continuously monitor and adjust the braking force based on factors such as vehicle speed, road conditions, and driver input, ensuring optimal braking performance in various situations. This level of control enhances vehicle stability and handling, particularly in challenging driving scenarios.
Brake-by-wire systems also enable seamless integration with regenerative braking in electric and hybrid vehicles. Regenerative braking captures the kinetic energy that would otherwise be lost during deceleration, converting it into electrical energy to recharge the vehicle's battery. By blending regenerative braking with traditional friction braking, brake-by-wire systems optimize energy recovery and extend the range of electric vehicles.
Furthermore, brake-by-wire technology paves the way for advanced features like autonomous emergency braking. With the ability to automatically apply the brakes in response to detected obstacles or imminent collisions, brake-by-wire systems can significantly enhance vehicle safety and reduce the risk of accidents.
Lastly, brake-by-wire systems offer the flexibility to customize the brake pedal feel through software adjustments. This allows manufacturers to fine-tune the braking response and provide drivers with a consistent and intuitive braking experience across different vehicle models and configurations.
| Advantage | Description |
|---|---|
| Faster response times | Electronic signal transmission enables quicker brake engagement |
| Precise control | Braking force can be finely modulated at each wheel based on driving conditions |
| Regenerative braking integration | Seamless blending of friction and regenerative braking optimizes energy recovery |
| Autonomous emergency braking | Automatic brake application in response to detected hazards enhances safety |
| Pedal feel customization | Software adjustments allow for a consistent and intuitive braking experience |
Vehicle electrification has been a key driver in the adoption of brake-by-wire technology. As the automotive industry shifts towards electric and hybrid vehicles, traditional braking systems face challenges that brake-by-wire systems are well-equipped to address.
Conventional braking systems in internal combustion engine vehicles often rely on vacuum-assisted brake boosters to amplify the force applied by the driver. However, electric and hybrid vehicles typically lack the consistent vacuum supply needed for these systems to function effectively. Brake-by-wire technology offers an efficient solution to this problem, providing reliable and responsive braking performance without the need for vacuum assistance.
Moreover, brake-by-wire systems play a crucial role in maximizing the benefits of regenerative braking in electrified vehicles. By seamlessly integrating friction braking with regenerative braking, brake-by-wire systems optimize energy recovery during deceleration, helping to extend the range of electric vehicles. This integration is particularly important in urban driving conditions, where frequent stopping and starting can significantly impact vehicle efficiency.
As the demand for electric and hybrid vehicles continues to grow, driven by environmental concerns and advancements in battery technology, the adoption of brake-by-wire systems is expected to accelerate. The synergy between vehicle electrification and brake-by-wire technology will shape the future of automotive braking, leading to more efficient, sustainable, and high-performance vehicles.
Autonomous vehicles represent another frontier where brake-by-wire technology plays a vital role. As vehicles become increasingly automated, the need for rapid and precise braking control becomes paramount. Brake-by-wire systems are essential in enabling the split-second decision-making and actuation required for safe and reliable autonomous driving.
In autonomous vehicles, the electronic control unit of the brake-by-wire system can process data from an array of sensors, including cameras, radar, and lidar, to perceive the surrounding environment and anticipate potential hazards. When the system detects a situation that requires braking, it can command the actuators to apply the necessary force at each wheel, ensuring a swift and controlled response.
Brake-by-wire technology also contributes to the overall simplification and weight reduction of autonomous vehicle systems. By eliminating the need for mechanical linkages and certain hydraulic components, brake-by-wire systems help streamline the vehicle architecture, making it more compact and efficient. This is particularly important in the context of autonomous vehicles, where minimizing complexity and maximizing reliability are critical considerations.
As autonomous driving technology continues to advance, brake-by-wire systems will play an increasingly important role in ensuring the safety and performance of self-driving vehicles. The precise control, rapid response, and seamless integration with other vehicle systems offered by brake-by-wire technology will be essential in realizing the vision of fully autonomous transportation.
While brake-by-wire technology offers numerous benefits, ensuring the safety and reliability of these systems is of utmost importance. Given the critical role that brakes play in vehicle safety, manufacturers must implement robust measures to guarantee the dependability and fault tolerance of brake-by-wire systems.
One key aspect of ensuring safety in brake-by-wire systems is the use of redundant electronic architectures. By incorporating multiple independent channels for signal transmission and processing, brake-by-wire systems can maintain functionality even in the event of a single component failure. This redundancy ensures that the braking system remains operational and responsive, minimizing the risk of accidents due to system malfunctions.
In addition to redundant electronics, brake-by-wire systems often incorporate fail-safe mechanical backups. These backups, such as hydraulic or cable-operated systems, provide a secondary means of applying the brakes in case of a complete electronic failure. While these backups may not offer the same level of performance as the primary brake-by-wire system, they ensure that the vehicle can still be brought to a safe stop in emergency situations.
Extensive testing and validation are also crucial in ensuring the safety and reliability of brake-by-wire systems. Manufacturers subject these systems to rigorous testing procedures, simulating a wide range of operating conditions and potential failure scenarios. This testing helps identify and address any weaknesses or vulnerabilities in the system, ensuring that it meets stringent safety standards before being deployed in production vehicles.
Furthermore, as brake-by-wire systems rely on electronic communication and control, cybersecurity becomes a critical consideration. Manufacturers must implement robust security measures, such as encryption and authentication protocols, to protect brake-by-wire systems from potential cyber threats. Safeguarding these systems against unauthorized access and manipulation is essential to maintain the integrity and reliability of the braking system.
To ensure the safety and reliability of brake-by-wire systems, manufacturers must:
Implement redundant electronic architectures for fault tolerance
Incorporate fail-safe mechanical backups for emergency situations
Conduct extensive testing and validation to identify and address vulnerabilities
Prioritize cybersecurity measures to protect against potential threats
By adhering to these principles and continuously refining the technology, manufacturers can deliver brake-by-wire systems that inspire confidence and trust among consumers, regulatory bodies, and other stakeholders in the automotive industry.
| Feature | Conventional Hydraulic Brakes | Electrified Brake-by-Wire Systems |
|---|---|---|
| Energy Recovery | Converts kinetic energy to waste heat | Regenerative braking recovers energy and recharges battery, improving efficiency up to 17% |
| Pedal Feel | Physical hydraulic connection between pedal and brakes | Electronic sensors and actuators simulate pedal feel, enabling customization and faster response |
| Brake Fluid | Uses hydraulic brake fluid to transmit force | Electro-hydraulic brakes (EHB) still use fluid, while Electro-mechanical brakes (EMB) eliminate it entirely |
| Control Precision | Limited by hydraulic fluid properties and mechanical linkages | More precise control and easier integration with driver assistance and autonomous systems |
| Maintenance | Regular fluid changes and component replacements | Regenerative braking extends friction pad life, potentially over 100,000 miles |
| Weight | Heavier due to fluid, master cylinder, and vacuum booster | Lighter by eliminating some hydraulic components, especially with EMB |
| Fail-safe Redundancy | Proven design with physical backup connection | Requires redundant power supplies and communication for electronic control, still under development for EMB |
| Cost | Mature technology with lower cost | Currently more expensive due to added components and development costs, but expected to decrease with scale |
| Noise | Minimal noise from hydraulic system | EMB may have higher noise from electric motors, still being optimized |
| Integration | Limited integration with other vehicle systems | Enables advanced features like stability control, emergency braking, and regenerative blending |
The adoption of brake-by-wire technology in the automotive industry has been a gradual process, initially limited to high-end and electric vehicles. However, as the technology has matured and proven its reliability, it has begun to spread to mainstream vehicles, driven by a combination of factors, including cost reduction and growing consumer acceptance.
In the early stages of brake-by-wire development, the technology was primarily implemented in premium vehicles, where the added cost could be more easily absorbed. These high-end applications served as a testing ground for the technology, allowing manufacturers to refine and optimize the systems before introducing them to a broader market.
Electric vehicles have also been at the forefront of brake-by-wire adoption, as the technology is particularly well-suited to the unique requirements of electrified powertrains. The absence of a consistent vacuum source in electric vehicles, which is necessary for traditional brake boosters, has accelerated the shift towards brake-by-wire systems in this segment.
As brake-by-wire technology has demonstrated its reliability and performance benefits, it has gradually made its way into mainstream vehicles. Advancements in electronics and manufacturing processes have helped reduce the cost of implementing brake-by-wire systems, making them more accessible to a wider range of vehicles. This cost reduction has been a key factor in the expanding adoption of the technology across the automotive industry.
Moreover, the growing consumer awareness and acceptance of advanced vehicle technologies have contributed to the increasing prevalence of brake-by-wire systems. As drivers become more familiar with the benefits of electronic braking control, such as improved safety features and enhanced performance, the demand for vehicles equipped with brake-by-wire technology is expected to rise.
| Vehicle Segment | Brake-by-Wire Adoption |
|---|---|
| High-end vehicles | Early adopters, serving as a testing ground for the technology |
| Electric vehicles | Rapid adoption due to the absence of a consistent vacuum source |
| Mainstream vehicles | Gradual adoption driven by cost reduction and growing consumer acceptance |
The expanding adoption of brake-by-wire technology in the automotive industry is a testament to its proven reliability, performance benefits, and increasing affordability. As the technology continues to mature and gain widespread acceptance, it is poised to become a standard feature in vehicles across all segments, reshaping the landscape of automotive braking systems.
The future of automotive braking is closely intertwined with the ongoing trends of vehicle electrification and automation. As these technologies continue to advance and converge, brake-by-wire systems will play an increasingly crucial role in shaping the performance, safety, and efficiency of future vehicles.
The integration of brake-by-wire technology with vehicle electrification is expected to deepen in the coming years. As electric and hybrid vehicles become more prevalent, the demand for efficient and seamless braking systems that can optimize energy recovery will grow. Brake-by-wire systems, with their ability to precisely control the blending of friction and regenerative braking, will be essential in maximizing the range and performance of electrified vehicles.
Similarly, the development of autonomous driving technology will further drive the adoption of brake-by-wire systems. As vehicles become more capable of self-driving, the need for rapid, accurate, and reliable braking control will be paramount. Brake-by-wire systems, with their electronic control and fast response times, will be critical in enabling the safe and efficient operation of autonomous vehicles in various driving scenarios.
Beyond their functional benefits, brake-by-wire systems also have the potential to revolutionize vehicle design and packaging. By eliminating the need for bulky mechanical linkages and hydraulic components, brake-by-wire technology allows for greater flexibility in the placement and configuration of braking system components. This freedom in design can lead to more compact and aerodynamic vehicle architectures, contributing to improved efficiency and performance.
Moreover, the adoption of brake-by-wire technology is expected to have a significant impact on the development of safer and more efficient vehicles. With the ability to precisely modulate braking force at each wheel, brake-by-wire systems can enhance vehicle stability and handling, reducing the risk of accidents in challenging driving conditions. Additionally, the integration of brake-by-wire with advanced driver assistance systems (ADAS) and autonomous emergency braking (AEB) will further improve vehicle safety by enabling proactive and responsive braking in critical situations.
As the automotive industry continues to evolve, the future of braking lies in the seamless integration of brake-by-wire technology with electrification, automation, and advanced safety features. This synergy will pave the way for a new generation of vehicles that are safer, more efficient, and better equipped to meet the demands of an increasingly connected and sustainable transportation ecosystem.
The combination of electrification and brake-by-wire technology represents a significant leap forward in the evolution of automotive braking systems. By replacing traditional mechanical and hydraulic components with advanced electronic systems, brake-by-wire offers a host of benefits, including faster response times, precise control, and seamless integration with regenerative braking. As the automotive industry continues to embrace electrification and autonomous driving, brake-by-wire will play an increasingly pivotal role in shaping the future of transportation, contributing to the development of safer, smarter, and more sustainable vehicles.
Brake-by-wire systems offer several advantages, including faster response times, precise control of braking force at each wheel, seamless integration with regenerative braking in electric and hybrid vehicles, and the ability to enable advanced features like autonomous emergency braking. They also reduce complexity and weight by eliminating mechanical linkages and some hydraulic components.
Brake-by-wire systems ensure safety and reliability through the use of redundant electronic architectures, fail-safe mechanical backups, extensive testing and validation, and robust cybersecurity measures. These measures help maintain functionality even in the event of component failures or power loss.
Vehicle electrification is a key driver for brake-by-wire adoption, as electric and hybrid vehicles often lack the consistent vacuum supply needed for traditional brake boosters. Brake-by-wire systems provide an efficient solution while enabling seamless integration with regenerative braking to improve vehicle range.
Brake-by-wire systems are essential for autonomous vehicles, as they enable rapid, precise braking control in response to data from various sensors and the vehicle's control unit. They also help simplify the vehicle architecture and reduce weight, which are critical considerations for autonomous vehicles.
The two main types of brake-by-wire systems currently in use are electro-hydraulic brake (EHB) systems, which use electronic control to modulate hydraulic pressure, and electro-mechanical brake (EMB) systems, which replace hydraulic components with electric actuators. EHB systems are more common, while EMB systems are still in development.
Brake-by-wire systems impact vehicle design and packaging by eliminating the need for bulky mechanical linkages and hydraulic components, allowing for greater flexibility in the placement and configuration of braking system components. This freedom in design can lead to more compact and aerodynamic vehicle architectures, contributing to improved efficiency and performance.
Brake-by-wire systems face challenges in market adoption due to the need for consumer education about their benefits, as well as the higher initial costs compared to traditional braking systems. However, as the technology matures and costs decrease, widespread adoption is expected to increase.
Brake-by-wire systems contribute to vehicle efficiency and sustainability by enabling regenerative braking in electric and hybrid vehicles, which recovers kinetic energy during deceleration to recharge the battery. This helps extend the range of these vehicles and reduces overall energy consumption.
Government regulations, such as emissions targets and safety standards, play a significant role in driving the development and adoption of brake-by-wire technology. As regulations become more stringent, automakers are incentivized to implement advanced braking systems that improve vehicle efficiency and safety.
Brake-by-wire systems can enhance the driving experience by providing a more responsive and consistent brake feel, as well as enabling advanced features like automatic emergency braking and customizable pedal feedback. However, some drivers may need time to adjust to the different sensation compared to traditional hydraulic brakes.
