Introduction

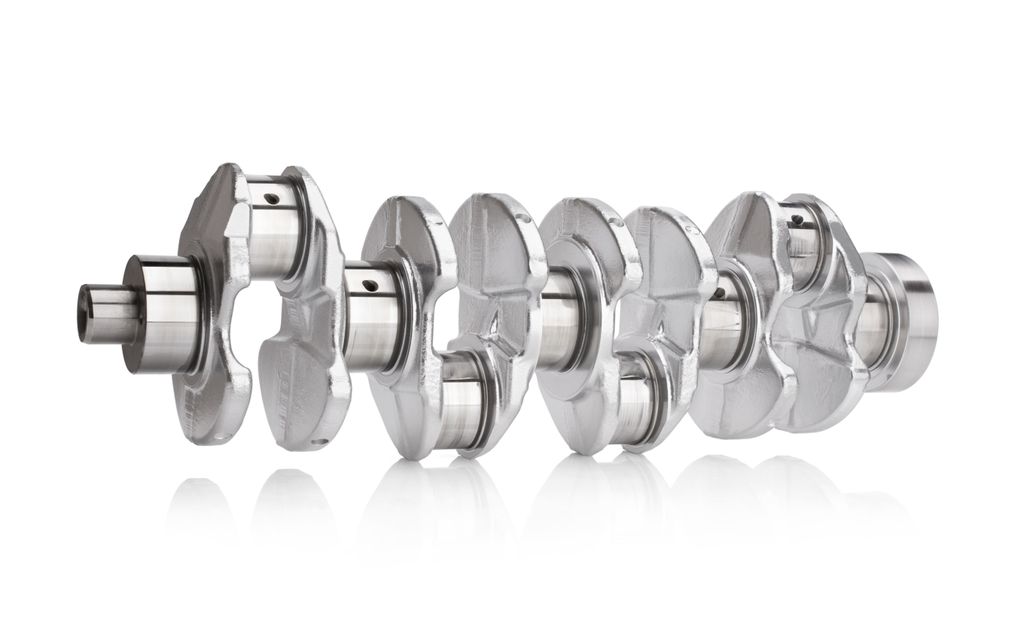

A crankshaft is a critical component found in internal combustion engines, which are widely used in various applications, including automobiles, trucks, generators, and industrial machinery. These engines convert the chemical energy stored in fuel into mechanical energy through a series of controlled explosions or combustion events. The crankshaft plays a pivotal role in this energy conversion process.

The Crankshaft's Role in the Engine

The crankshaft is a rotating shaft that serves as the backbone of an engine's internal combustion process. It's a masterpiece of engineering, designed to withstand immense forces and vibrations while ensuring smooth and efficient power transfer. Imagine the crankshaft as a conductor, orchestrating the intricate dance of pistons, connecting rods, and bearings, all working in harmony to generate the power that propels your vehicle forward.

Common Issues and Causes

Despite its robust construction, crankshafts are not immune to wear and tear. Over time, various factors can contribute to their deterioration, leading to potential issues that require attention. Let me walk you through some of the most common culprits:

CauseDescription
Lack of Proper LubricationInsufficient oil supply or contaminated oil can lead to metal-to-metal contact between the crankshaft and bearings, causing excessive wear and damage. Proper lubrication is crucial for the smooth operation and longevity of the crankshaft.
Mechanical OverloadAbnormal combustion, water hammers, or sudden jamming of the engine due to a faulty gearbox or loose counterweights can overload and damage the crankshaft. These unexpected forces can strain the crankshaft beyond its design limits, potentially leading to catastrophic failure.
Excessive VibrationsFaulty vibration dampers, flywheels, or couplings can cause excessive rotary oscillations, leading to crankshaft fatigue and potential failure. Vibrations are the nemesis of any rotating component, and the crankshaft is no exception.
Previous Bearing DamageMaterial weakening or softening of the bearing journals due to previous bearing damage or improper modification work can compromise the crankshaft's integrity. A damaged bearing can initiate a chain reaction, ultimately affecting the crankshaft itself.
Manufacturing DefectsErrors in geometry, such as conical or spherical bearing journals, or incorrect bearing clearances, can lead to premature crankshaft wear or failure. While rare, manufacturing defects can slip through even the most stringent quality control processes.

Inspection and Diagnosis

As a mechanic, I cannot stress enough the importance of regular inspections and proper diagnosis when it comes to crankshaft issues. Here are some of the techniques we employ to identify potential problems:

  • Visual Inspection: A thorough visual examination of the crankshaft journals, oil holes, and radius areas can reveal signs of wear, cracks, or damage. A trained eye can often spot potential issues before they escalate.

  • Crankshaft Deflection Measurement: By measuring the distance between adjacent crank webs at various points around the crankshaft, we can detect excessive deflection or bending, which can indicate underlying issues.

  • Oil Analysis: Sending lubricating oil samples for analysis can reveal contaminants or insolubles, which can be early indicators of potential crankshaft problems.

  • Magnetic Particle Inspection: This advanced technique involves magnetizing the crankshaft and applying magnetic particles to reveal cracks or defects that may be invisible to the naked eye.

  • Knocking or Vibration Noises: Unusual noises from the engine can be a telltale sign of crankshaft issues or bearing damage. As mechanics, we've learned to listen carefully to the "voice" of the engine.

Repair Procedures

When it comes to crankshaft repair, precision and expertise are paramount. Here are some of the common procedures we employ to breathe new life into a damaged crankshaft:

ProcedureDescription
Grinding and PolishingFor minor wear or damage, we can grind and polish the crankshaft journals to remove imperfections, ensuring proper dimensions and surface finish. This process requires skilled hands and specialized equipment.
Welding and HardfacingIn cases of severe wear or damage beyond grinding limits, welding and hardfacing techniques can be employed to rebuild the crankshaft journals. This process involves adding material to the damaged areas and then machining them to the correct specifications.
BalancingAfter repairs, the crankshaft must undergo dynamic balancing to ensure proper operation and reduce vibrations. An imbalanced crankshaft can lead to excessive wear and potential failure.
Heat TreatmentIn some instances, heat treatment may be required to restore the hardness and wear resistance of the crankshaft material after welding or hardfacing procedures.
Alignment and StraighteningTechniques like peen straightening or cold pressing can be employed to correct crankshaft deflection or bending within acceptable limits, ensuring proper alignment and smooth operation.

Preventive Maintenance

As the saying goes, "an ounce of prevention is worth a pound of cure." Proper maintenance is key to extending the lifespan of your crankshaft and avoiding costly repairs. Here are some preventive measures I recommend:

  • Regular Oil Changes and Filtration: Maintaining proper oil quality and cleanliness is crucial for ensuring adequate lubrication and preventing premature wear on the crankshaft and other engine components.

  • Follow Manufacturer's Guidelines: Adhering to the recommended maintenance schedules, operating procedures, and specifications provided by the manufacturer can go a long way in preventing crankshaft issues.

  • Avoid Overloading or Overspeeding: Operating the engine within specified limits is essential to prevent excessive stress on the crankshaft, which can lead to premature failure.

  • Inspect and Replace Worn Components: Regularly inspecting and replacing worn bearings, seals, or other components that can contribute to crankshaft damage is a proactive measure that can save you from costly repairs down the line.

Cost Considerations

While crankshaft repair or replacement may seem daunting, it's essential to understand the potential costs involved. The cost can vary significantly depending on several factors:

Cost FactorDescription
Labor CostsCrankshaft repair or replacement can be labor-intensive, with labor costs ranging from $75 to $165 per hour, depending on the location and complexity of the job.
Parts CostsA new crankshaft can cost anywhere from $100 to over $1,000, depending on the vehicle make, model, and engine size.
Repair ComplexitySimple repairs like grinding and polishing may cost around $100 for a four-cylinder engine, while major repairs involving welding, balancing, and heat treatment can cost several hundred to thousands of dollars.
Engine AccessibilityIf the crankshaft needs to be removed from the engine, additional labor costs may be incurred, potentially adding several hundred dollars to the total cost.
Vehicle TypeLuxury or high-performance vehicles typically have more expensive crankshaft components, increasing the overall repair or replacement cost.

It's crucial to consult with a qualified mechanic or engine repair specialist to obtain an accurate cost estimate based on the specific vehicle, engine, and extent of damage or wear.

Conclusion

The crankshaft is a true engineering marvel, a component that deserves our utmost respect and attention. As automotive enthusiasts and mechanics, it's our responsibility to understand the intricacies of this vital component and take proactive measures to ensure its longevity. By following proper maintenance practices, heeding warning signs, and seeking professional assistance when needed, we can keep our engines running smoothly and our vehicles on the road for years to come.

Remember, a well-maintained crankshaft is the heartbeat of a healthy engine, and a healthy engine is the key to a reliable and enjoyable driving experience. So, let's raise our wrenches in a toast to the crankshaft – the unsung hero that keeps our wheels turning and our adventures rolling.

FAQs

What is the primary function of a crankshaft?

The primary function of a crankshaft is to convert the reciprocating motion of pistons into rotational motion. It serves as the central rotating shaft that drives the vehicle's wheels or machinery's output.

What are the main components of a crankshaft?

The main components of a crankshaft are the crankpins, counterweights, and journals or bearing surfaces.

Why are counterweights important in a crankshaft design?

Counterweights are crucial in a crankshaft design to balance the forces and vibrations caused by the reciprocating motion of the pistons.

What materials are commonly used for manufacturing crankshafts?

Crankshafts are typically made from high-strength alloy steels, such as medium-carbon steels alloyed with elements like chromium, molybdenum, and nickel.

How does the crankshaft's design differ for engines with varying cylinder numbers?

The crankshaft's design, including the number of crankpins and their arrangement, varies based on the number of cylinders in the engine.

What is the purpose of nitriding in crankshaft manufacturing?

Nitriding is a heat treatment process used to increase the surface hardness and wear resistance of crankshafts, improving their durability and lifespan.

What is the significance of the crankshaft's stiffness?

The crankshaft's stiffness is crucial to prevent excessive deflection or bending under the high loads and forces experienced during engine operation.

How does a crankshaft contribute to engine vibration?

An imbalanced or improperly designed crankshaft can contribute to excessive vibrations in the engine, leading to potential damage and reduced efficiency.

What is the role of the flywheel in relation to the crankshaft?

The flywheel is often attached to one end of the crankshaft and helps to smooth out the power delivery and reduce vibrations during the engine's operation.

What are some common issues or failures associated with crankshafts?

Common crankshaft issues or failures can include wear, cracks, bearing damage, excessive deflection, and fatigue due to factors like lack of lubrication, overloading, or manufacturing defects.
